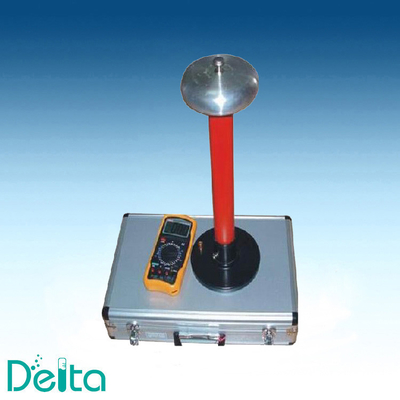

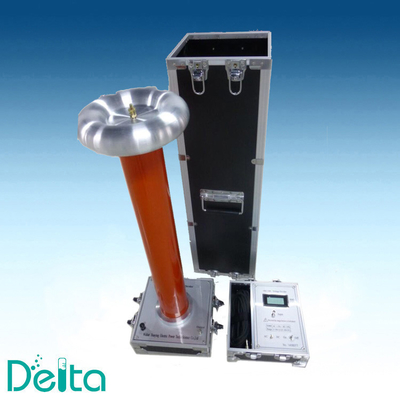

Frc Small Size 50kv to 300kv Capacitive Voltage Divider
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Portable, Convenient To Use And Carry | Item Name | Frc Small Size 50kv To 300kv Capacitive Voltage Divider |
|---|---|---|---|
| Functions | For Capactive High Voltage Testing | Application Field | Electrical Industry |
| Weight | 8kg, 10kg, 18kg, 25kg | Dimension | 22cm*22cm*60/75/140/180cm |
| AC Voltage | 50kv, 100kv, 200kv, 300kv | Powery Supply | 220V, 50Hz |
| Warranty Period | 1 Year | ||
| Highlight | FRC small capacitive voltage divider,50kV to 300kV voltage divider,high voltage test equipment |
||
Product Description
Frc Portable DC or AC High Voltage Divider for Pulse Hv Testing
Introduction:
FRC Capacitive Voltage Divider is one kind of universal high-voltage measuring instruments. It can be used in power systems, electrical appliances, electronic equipment manufacturing sector to measure AC high-voltage and DC high-voltage under the industrial frequency.
FRC Capacitive Voltage Divider is made up of high-vlotage measuring part and low-voltage measuring instrument. They are separate when working. It works safely and reliably.
FRC Capacitive Voltage Divider is a type of portable structure. It packs with aluminum alloy box to be chassis. It's very convenient to use and carry.
Parameters:
| del | FRC-50 | FRC-100 | FRC-200 | FRC-300 | |
| Range | AC | 50 | 100 | 200 | 300 |
| (kV) | DC | 70 | 140 | 280 | 400 |
| Accuracy | AC | 1.50% | 1.50% | 1.50% | 1.50% |
| DC | 1.00% | 1.00% | 1.00% | 1.00% | |
| Impedance | R(MΩ) | 200 | 400 | 800 | 1200 |
| Capacitance | C(PF) | / | 200 | 100 | 75 |
| Size(cm) |
| 22*22*60 | 22*22*75 | 22*22*140 | 22*22*180 |
| Weight |
| 8 | 10 | 18 | 25 |
| Working Environment | Temperature:0-40ºC, Relative humidity:<85% | ||||
Frc Small Size 50kv to 300kv Capacitive Voltage Divider Features:
