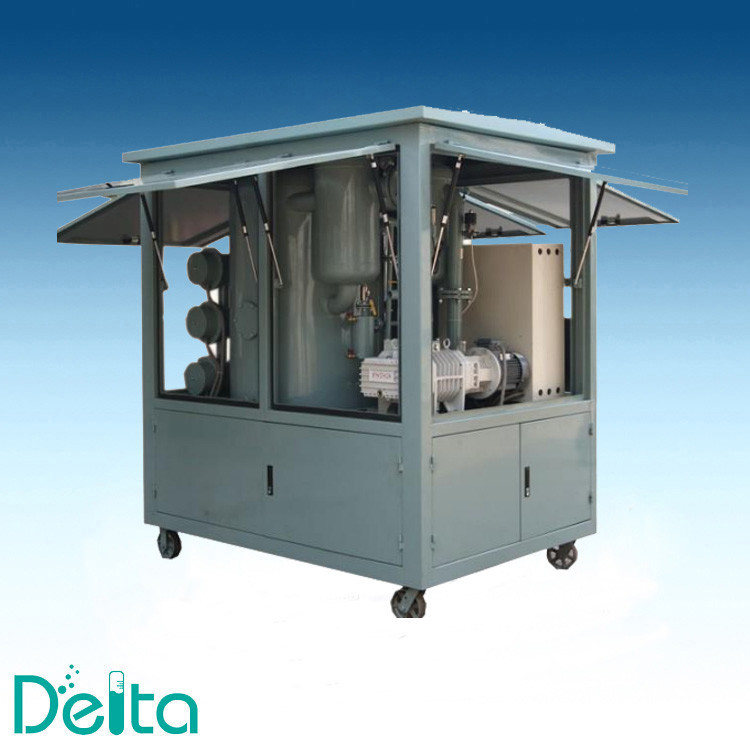

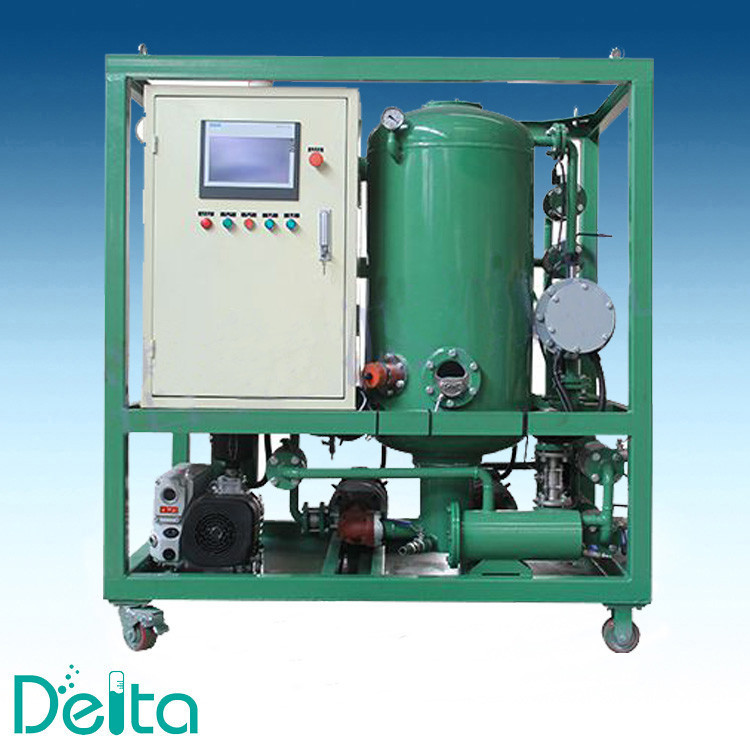

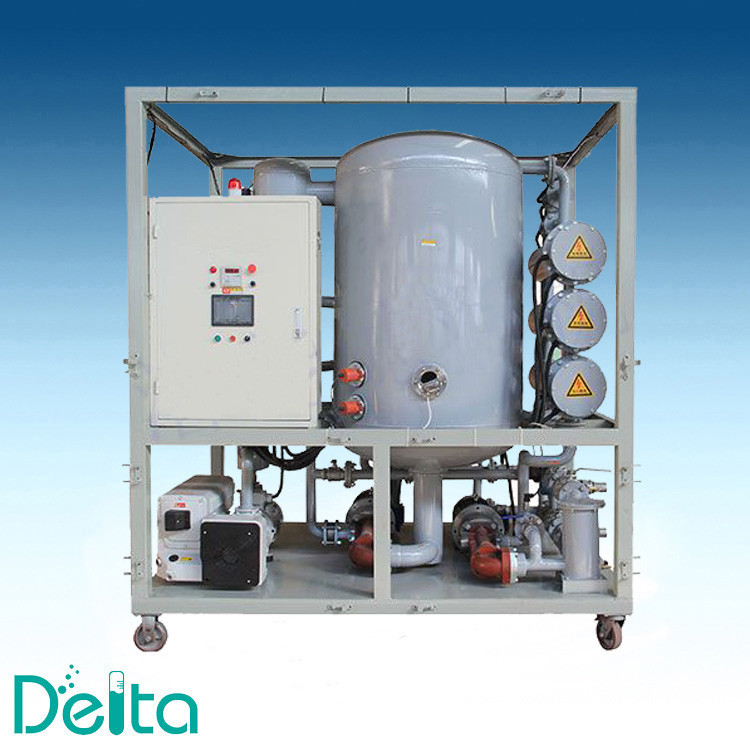

ZJA China Oil Purifier for Purifying Transformer Oil

  • ZJA China Oil Purifier for Purifying Transformer Oil
  • ZJA China Oil Purifier for Purifying Transformer Oil
  • ZJA China Oil Purifier for Purifying Transformer Oil
  • ZJA China Oil Purifier for Purifying Transformer Oil
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number ZJA
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details ZJA Purifier for Purifying Transformer Oil packed in veneer case
Delivery Time 10 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description ZJA China Oil Purifier For Purifying Transformer Oil Functions For Purifying Transformer Oi
Applicable Transforme EXW, Fob, CNF, CIF, DDU, Etc. Test Standards IEC60076-18
Voltage 380V Folw Rate 100 L/min
Application Field Electrical Servicer Working Pressure <0.5MPa
Warranty 1 Year
Leave a Message
Product Description

ZJA China Oil Purifier for Purifying Transformer Oil

Introduction:

ZJA  Purifier for Purifying Transformer Oil is very important to reliability, performance and lifetime of transformer. The oil should be free from moisture, dissolved gases, particles, etc. Even some new oils may require treatment to acceptable level before injecting into the transformer;
Our ZJA Purifier for Purifying Transformer Oil is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.
ZJA Purifier for Purifying Transformer Oil the advantages of high working vacuum, high filtration speed, oil quality protection, the filter advanced the oil treatment technique and equipment performance and once can raise the puncture voltage up to over 35V.
ZJA Purifier for Purifying Transformer Oil Purifier can be installed by sealed regular or movable with a trailer, so it is suitable to treat oil, fill oil in vacuum chamber and circulating dry hot-oil when large transformer is being installed and overhauled.



Specifications:



NO Item Name ZJA China Oil Purifier for Purifying Transformer Oil
1 ers Unit 1.8KY 3KY 6KY 9KY 12KY 18KY
2 Flow Rate L/H 1800 3000 6000 9000 12000 18000
3 Working Vacuity Pa ≤80 ≤80 ≤80 ≤80 ≤80 ≤80
4 Working Pressure Mpa ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
5 Temperature Range ºC 45-65 45-65 45-65 45-65 45-65 45-65
6 Power Supply 　 50Hz 380V 3-Phase 4-Wire or as request 　
7 Total Power KW 16 36 70 100 150 200
8 Inlet/Outlet Diameter mm 20/20 25/25 32/32 40/40 50/50 65/65
9 Length mm 1600 1800 2200 2500 2800 3450
10 Width mm 1250 1450 1600 1950 2150 2600
11 Height mm 2000 2200 2450 2700 3000 3000
12 Weight Kg 500 700 1460 1800 2400 4000



ZJA China Oil Purifier for Purifying Transformer Oil SFRA:

ZJA China Oil Purifier for Purifying Transformer Oil 0ZJA China Oil Purifier for Purifying Transformer Oil 1
