Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine

  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
  • Zja Double Stage Vacuum Used Transformer Oil Purifier, Transformer Oil Recycling Machine
Place of Origin China Mainland
Brand Name Delta
Certification ISO9001
Model Number ZJA
Minimum Order Quantity 1 set
Price USD1.0 / set
Packaging Details Packed in wooden case and container
Delivery Time Within 30 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 30L/Min, 50L/Min, 100L/Min, 150L/Min, 200L/Min Description Zja Double Stage Vacuum Transformer Oil Purifier
Functions Remove Water, Gases, Acid, Particles From The Oil Advantages High Working Vacuum, High Filtration Speed, Oil
Structure It Can Be Sealed Or Movable With Trailer Application Field Electrical Servicer
Working Pressure <0.5MPa Working Vacuum Degree -0.08 ~ -0.0999MPa
Temperature Control Range 20 - 80 Celsius Power Supply Three Phase, 380V, 50Hz, Or As Quested
Oil Quality After Purifying Breakdown Voltage >60kv Oil Quality After Purifying 01 Water Content 5-10ppm
Trade Term EXW, Fob, DDU, CNF, CIF, Etc. Delivery Lead Time 30 Days
Shipping Method By Sea Condition Totally New
Language English
Leave a Message
Product Description

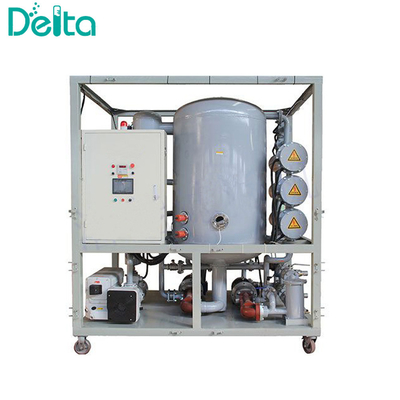

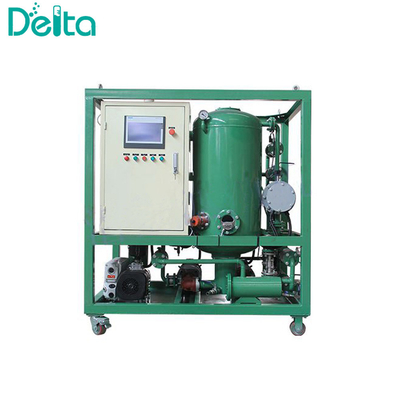

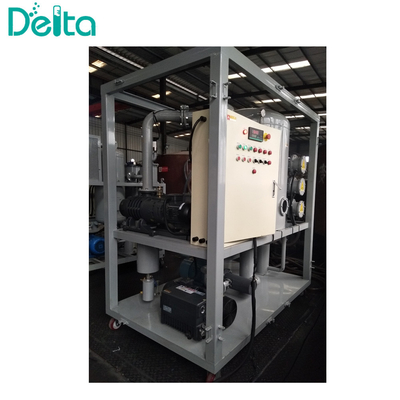

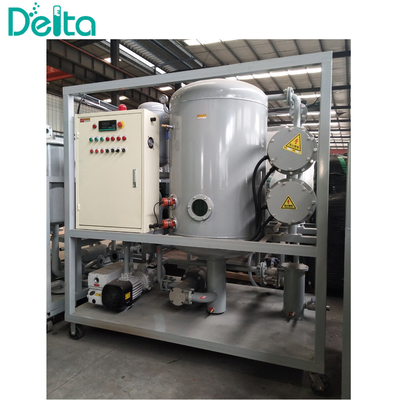

Zja Double Stage Vacuum Transformer Oil Purifier

Introduction:

Transformer oil is very important to reliability, performance and lifetime of transformer. The oil should be free from moisture, dissolved gases, particles, etc. Even some new oils may require treatment to acceptable level before injecting into the transformer;

Our ZJA Outdoor Using Dirty Insulation Oil Purifying Machine is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.

With the advantages of high working vacuum, high filtration speed, oil quality protection, the filter advanced the oil treatment technique and equipment performance and once can raise the puncture voltage up to over 35V.

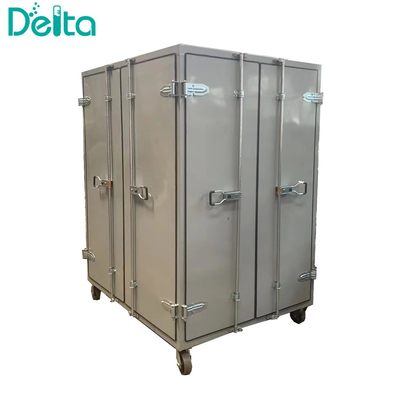

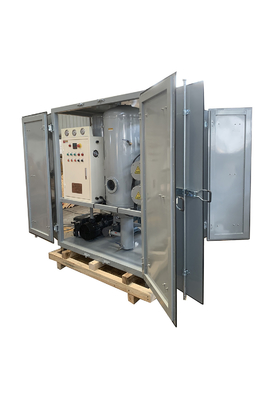

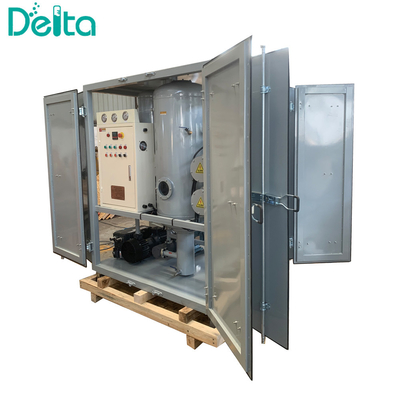

ZJA Outdoor Using Dirty Insulation Oil Purifying Machine can be installed by sealed regular or movable with a trailer, so it is suitable to treat oil, fill oil in vacuum chamber and circulating dry hot-oil when large transformer is being installed and overhauled.





Parameters:

Parameters Unit 1.8KY 3KY 6KY 9KY 12KY 18KY
Flow Rate L/H 1800 3000 6000 9000 12000 18000
Working Vacuity Pa ≤80 ≤80 ≤80 ≤80 ≤80 ≤80
Working Pressure Mpa ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Temperature Range ºC 45-65 45-65 45-65 45-65 45-65 45-65
Power Supply   50Hz 380V 3-Phase 4-Wire or as request
Total Power KW 16 36 70 100 150 200
Inlet/Outlet Diameter mm 20/20 25/25 32/32 40/40 50/50 65/65
Length mm 1600 1800 2200 2500 2800 3450
Width mm 1250 1450 1600 1950 2150 2600
Height mm 2000 2200 2450 2700 3000 3000
Weight Kg 500 700 1460 1800 2400 4000



Features:

One pot with two-stage vacuum-segregating space, it comes into being different pressure so as to keep oil line balance between two stages.

Imported vacuum-pump from Europe has preceding level in the world and high air pump speed guarantee high working vacuity.

New technology of vacuum-segregating adopts particular spinning disk and stainless steel machine with dehydration and air pump.

Using new type of heating equipment which can reduce heating burthen and extend oil life.

Oil level control adopts photoelectric way of which the main components are imported from Switzerland.

Customers can choose equipment equipped with all or partly imported components.

It's equipped with filter assemblies imported from Italy.

All pumps must be airproofed by our factory, moreover running without noise and leakage. extended oil life.
