Small Size Movable Transformer Maintenance Vacuum Pumping Machine
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | ZJ |
| Minimum Order Quantity | 1 set |
| Price | USD1.0 / set |
| Packaging Details | Packed in wooden case and container |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size Movable Vacuum Pumping Machine | Function | For Vacuum Drying&Vacuum Oil Injecting |
|---|---|---|---|
| Air Pumping Speed | 300L/S, 600L/S, 900L/S, 1200L/S...... | Description | High Vacuum Transformer Vacuum Pumping System |
| Pumping Level | 2 | Pumping Speed | 70 L/S - 1200 L/S |
| Limit Vacuity | <3 PA | Display | Digital |
| Power Supply | 380V, 50Hz, 3-Phase-4-Wire | Condition | Totally New |
| Language | English | OEM Service | Yes |
| Delivery Lead Time | 20 Days | Shipping Method | By Sea |
| Installation | Already Installed Before Shipment |
Product Description

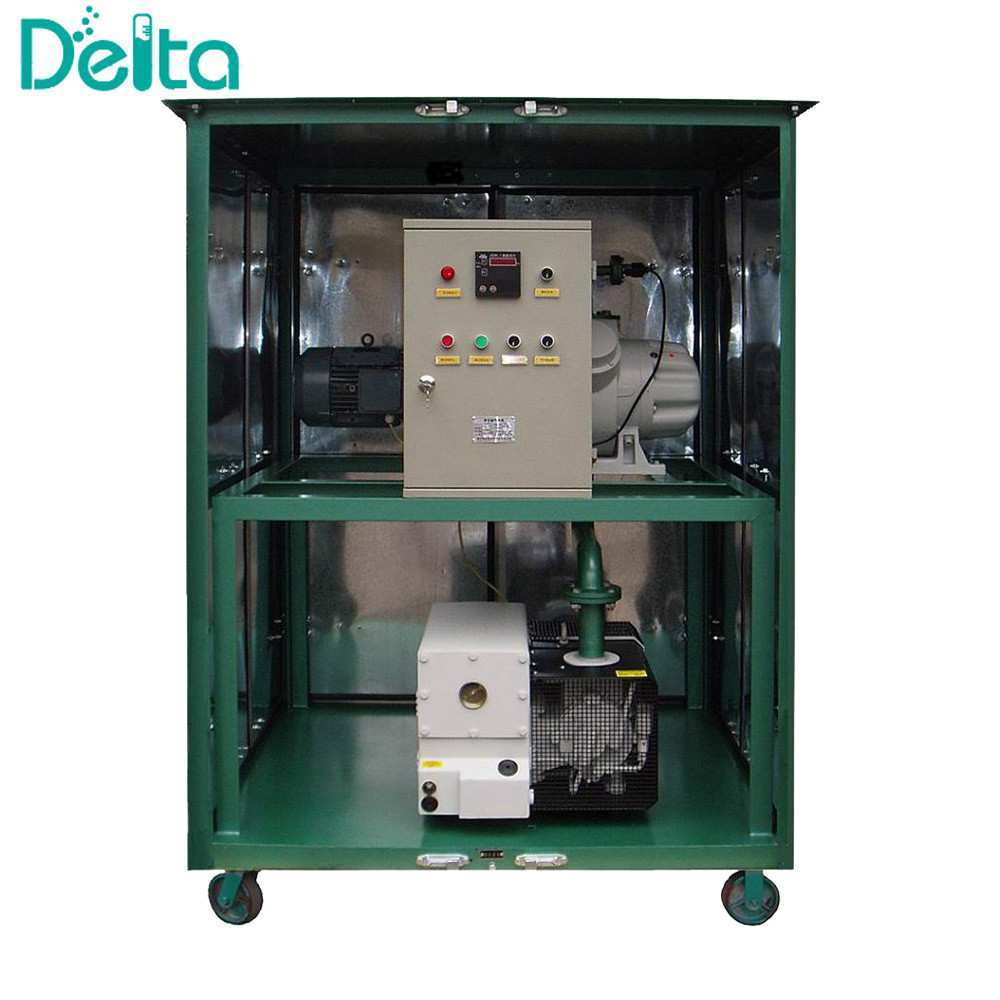

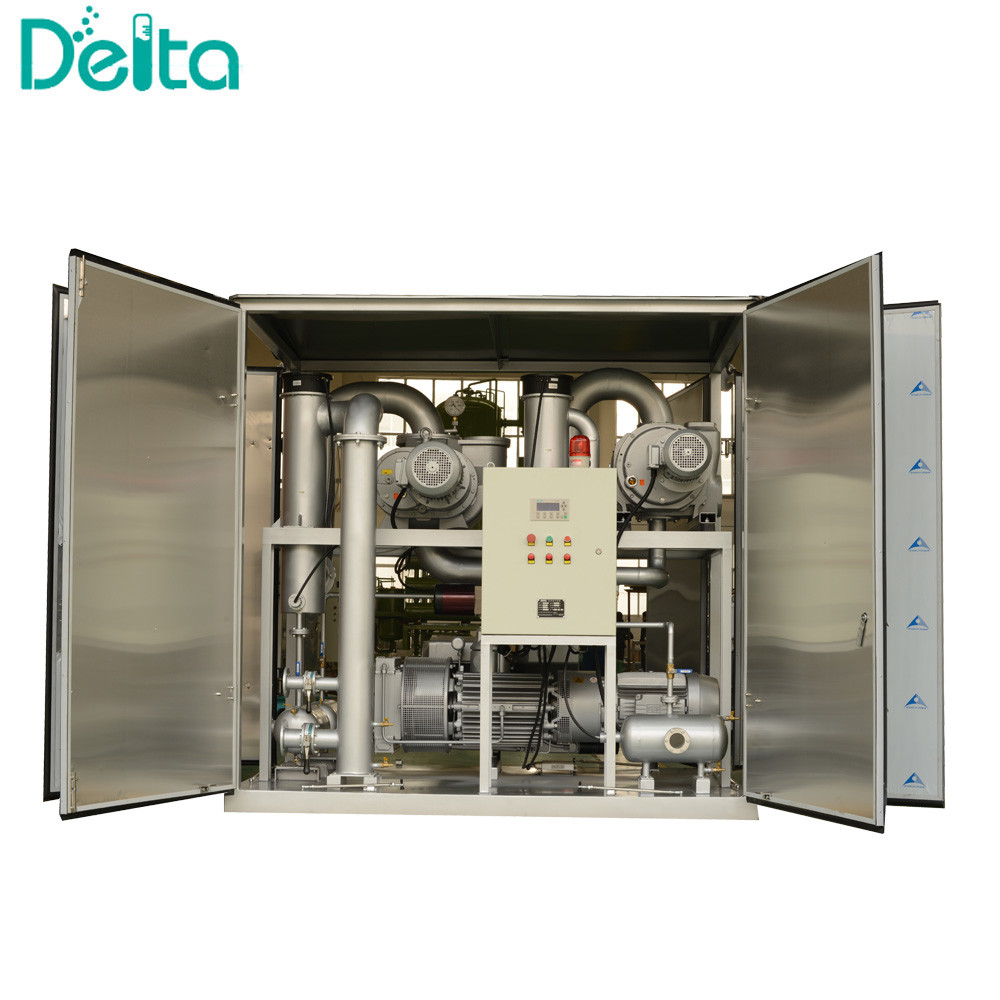

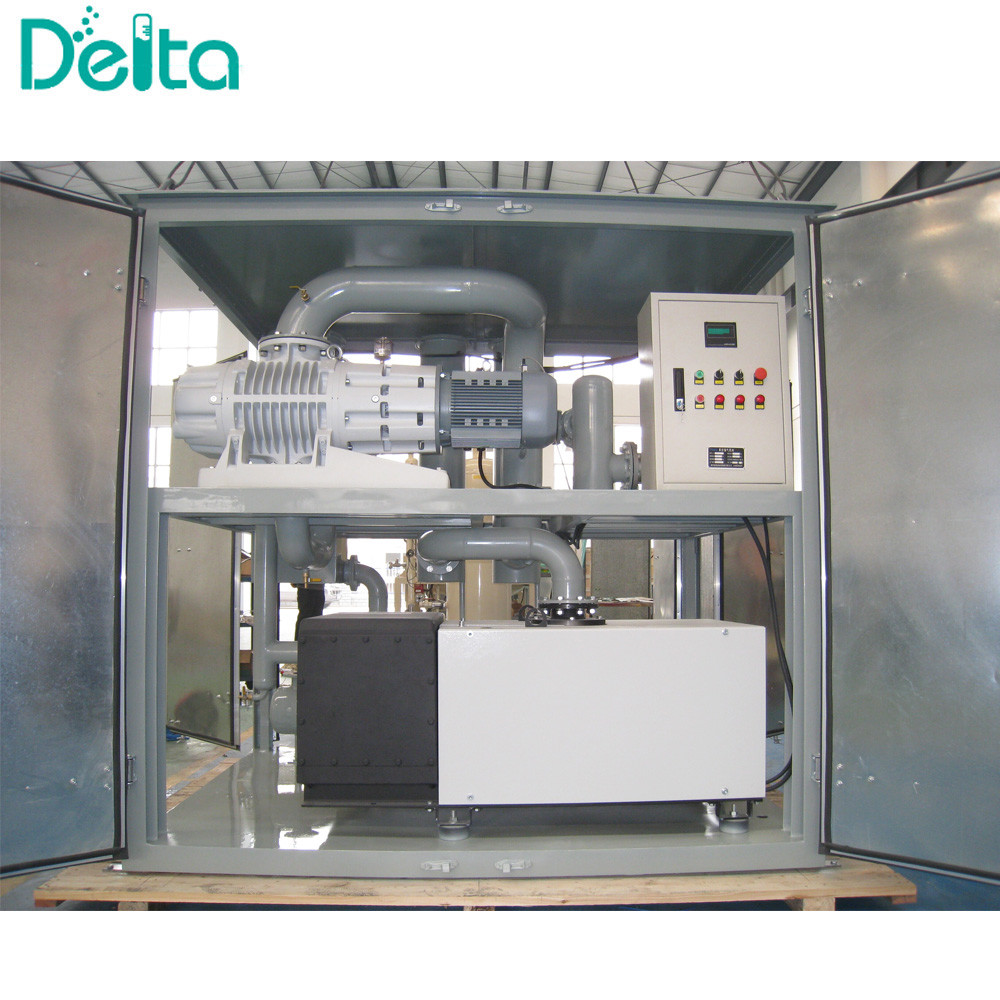

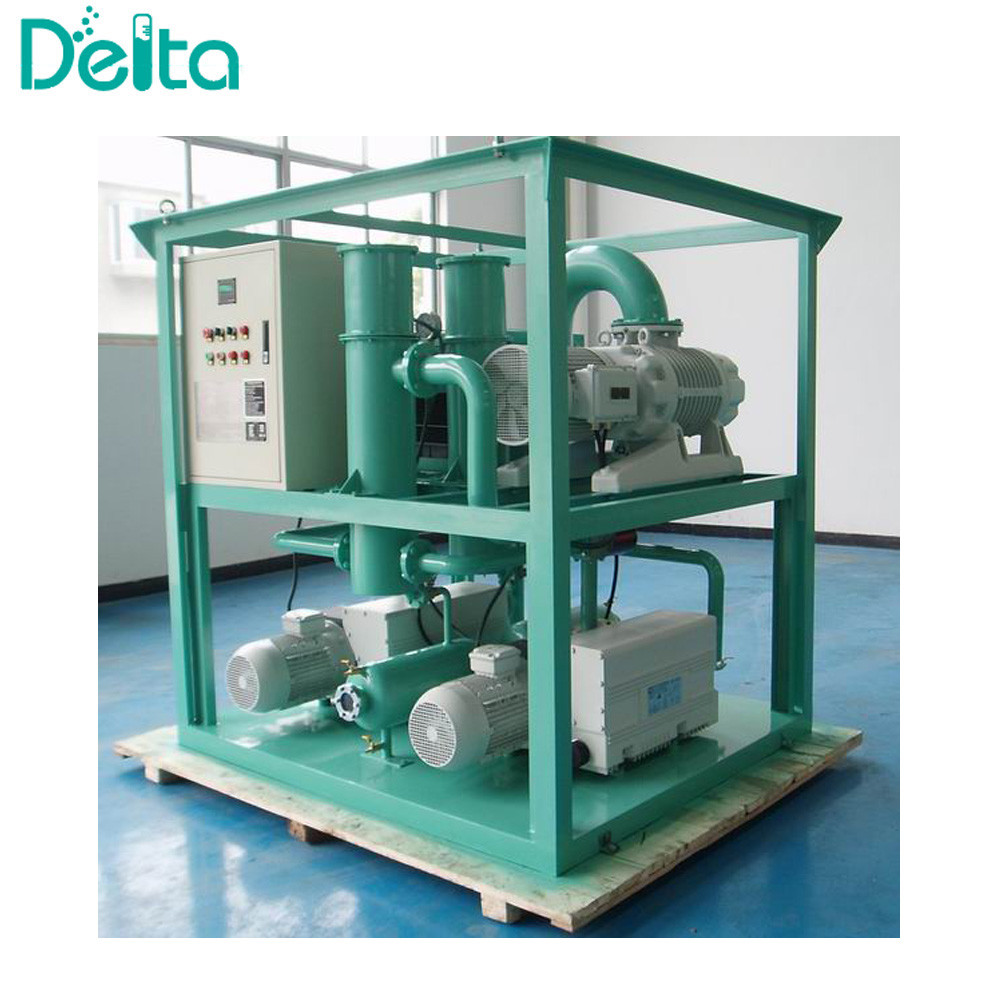

ZJ Small Size Movable Transformer Maintenance Vacuum Pumping Machine
Introduction:
ZJ Small Size Movable Vacuum Pumping Machine For Transformer Maintenance is suitable for vacuum drying and vacuum oil injecting for high voltage electrical transformer from 220kV-1000kV.
Strong vacuum pumps make working vacuum degree to 10Pa and limit vacuum to 1Pa.
It adopts air cooling type German original sliding-vane rotary vacuum pump and roots pump.
It has features of fast start, large pumping rate, stable, easy operation and so on.
There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.
Customers who purchased the ZJ Vacuum Pumping Unit also purchased our ZJA Transformer Oil Purifier and GF Dry Air Generator together.
Features:
GIS connection available;
Digital vacuum degree management;
Anti-absorption;
Machine can start fast;
Strong vacuum pumping capacity;
Stable performance;
Easy operation;
Parameters:
|
Parameter |
Unit |
ZJ-70 |
ZJ-150 |
ZJ-300 |
ZJ-600 |
ZJ-1200 |
|
Power Supply |
|
380V, 50Hz, 3-phase-4-wire, or as requested |
||||
|
Power |
kW |
4 |
6.5 |
7 |
11 |
18.5 |
|
Limit Vacuity |
Pa |
≤3 |
||||
|
Pumping Speed |
L/S |
70 |
150 |
300 |
600 |
1200 |
|
Pumping Level |
|
2 |
||||
|
Connection Diameter |
mm |
50 |
50 |
50 |
80 |
80 |
|
Length |
mm |
1200 |
1300 |
1400 |
1600 |
1750 |
|
Width |
mm |
950 |
1000 |
1100 |
1200 |
1300 |
|
Height |
mm |
1500 |
1600 |
1700 |
1900 |
2100 |
|
Weight |
kg |
300 |
400 |
500 |
1250 |
1560 |
