YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System

  • YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System
  • YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System
  • YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System
  • YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System
Place of Origin Chongqing, China
Brand Name Delta
Certification ISO9001
Model Number YL
Minimum Order Quantity 1 set
Price USD1.0 / set
Packaging Details Packed in wooden case and container
Delivery Time Within 30 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate 50L/Min Power 1.1kw
Power Supply 380V, 50Hz, 3phase Application For Transformer Oil Filtration
Working Pressure Less Than 0.5MPa Delivery Lift >15 M
Filtering Accuracy <5um Mechanical Impurities Content <0.1%
Net Weight 100kg Packing Weight 150kg
Condition 100% Brand New Delivery Lead Time 10 Days
Shipping Method By Air Or By Sea Language English
OEM Servie Available
Leave a Message
Product Description

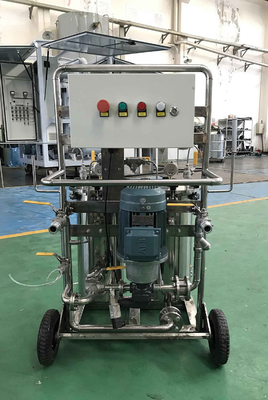

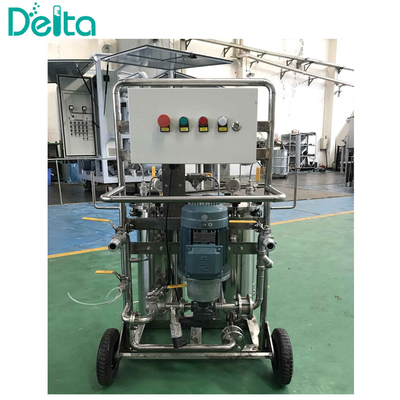

YL 50L Per Min Mobile Type High Precision Transformer Oil Filtration System



Introduction:

It's mainly consist of the following systems:Oil circulating system and controlling system.

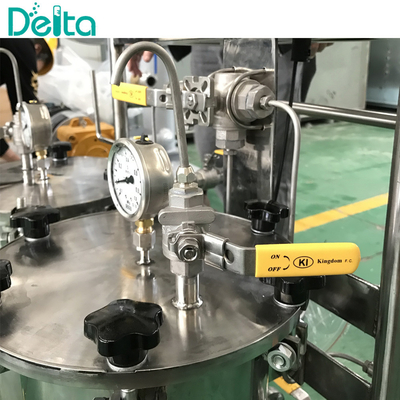

  • a. Oil circulating system: it's made up of coarse filter and fine filter.The corse filter is equipped on oil inlet,which is able to filter out large particles,protect vacuum separating system and oil transferring pump from damaging and reduce the filtering pressure of fine filter.The fine filter is mainly used to filter out tiny mechanical impurities to improve the cleanness;
  • b. Controlling system: simple and reliable.



Main Features:
1. Objects:hydraulic oil and aviation hydraulic oil.
2. High filtering efficiency,convenient to move and simple operation
3. High precision filter,large filtering area, high pollutant-holding capacity and low cots.The clean oil can meet the standard of ISO4406 17/14(NAS 7 of NAS1638 Standard) or above.
4. It's equipped with monitoring system,automatic ultra-pressure pump stopping device and alarming device to indicate to change filters.
5. It's mobile,flexible and convenient.
6. It's equipped with coil system which can set the oil return lines on the vehicle and reduce the pollution to tubes.

Specifications:

Parameters Unit YL-50
Flow rate L/min 50
Working pressure MPa ≤0.5
Total power KW 1.1
Working noise dB(A) ≤85
Length cm 93
Width cm 65
Height cm 130
Weight Kg 100
Diameter of oil-in/out pipe mm 32/32
Delivery lift m ≥ 15
Power supply   3 phase,4 wire,380V 50HZ
