Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing

  • Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
  • Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
  • Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
  • Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
  • Value Built High Sensitive Partial Discharge Imager For Weak Signal Capturing
Place of Origin China
Brand Name Delta
Certification ISO
Model Number DT-511PD
Minimum Order Quantity 1 pc
Price USD1.0

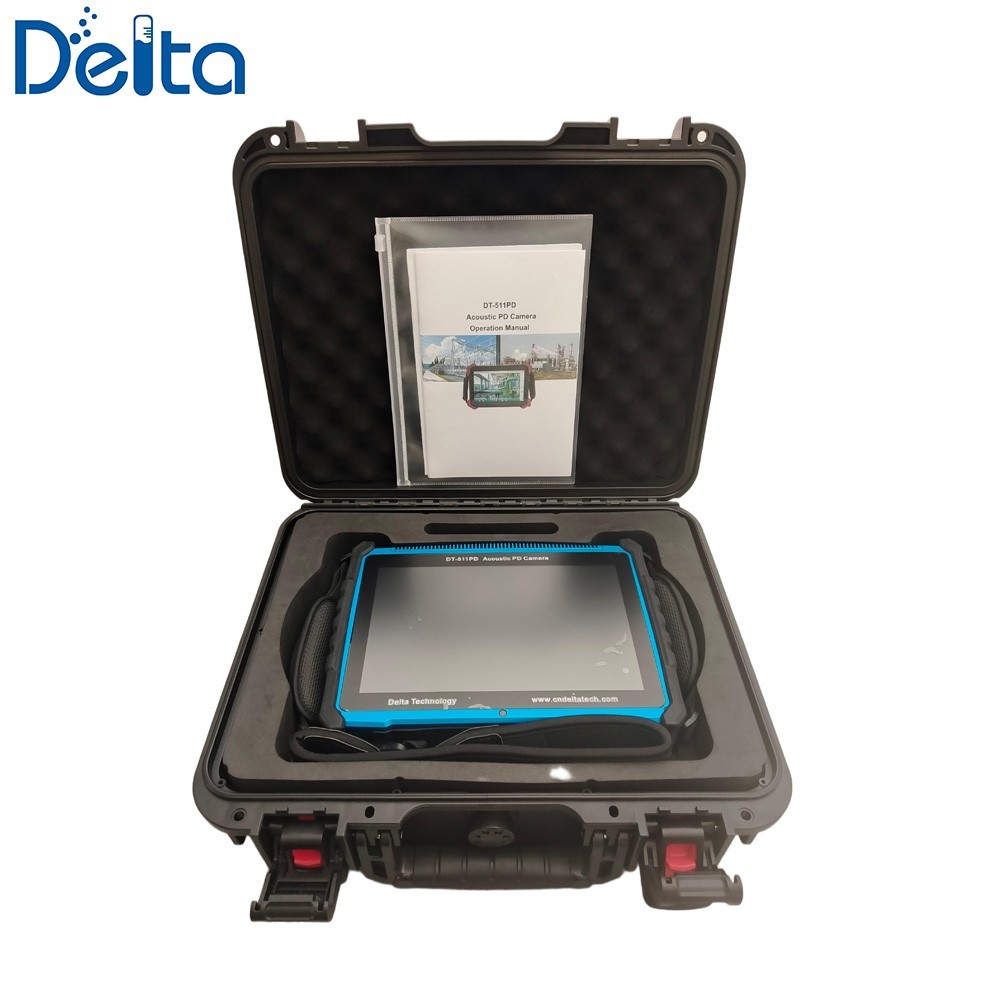

Packaging Details Packed in a carton box.
Delivery Time 10 days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 100 sets / month
Product Details
Leave a Message
Product Description

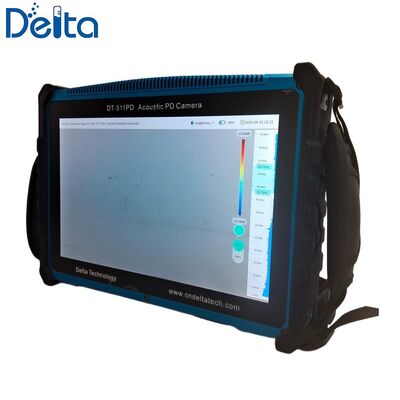

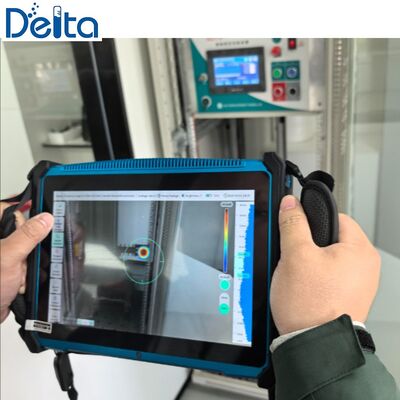

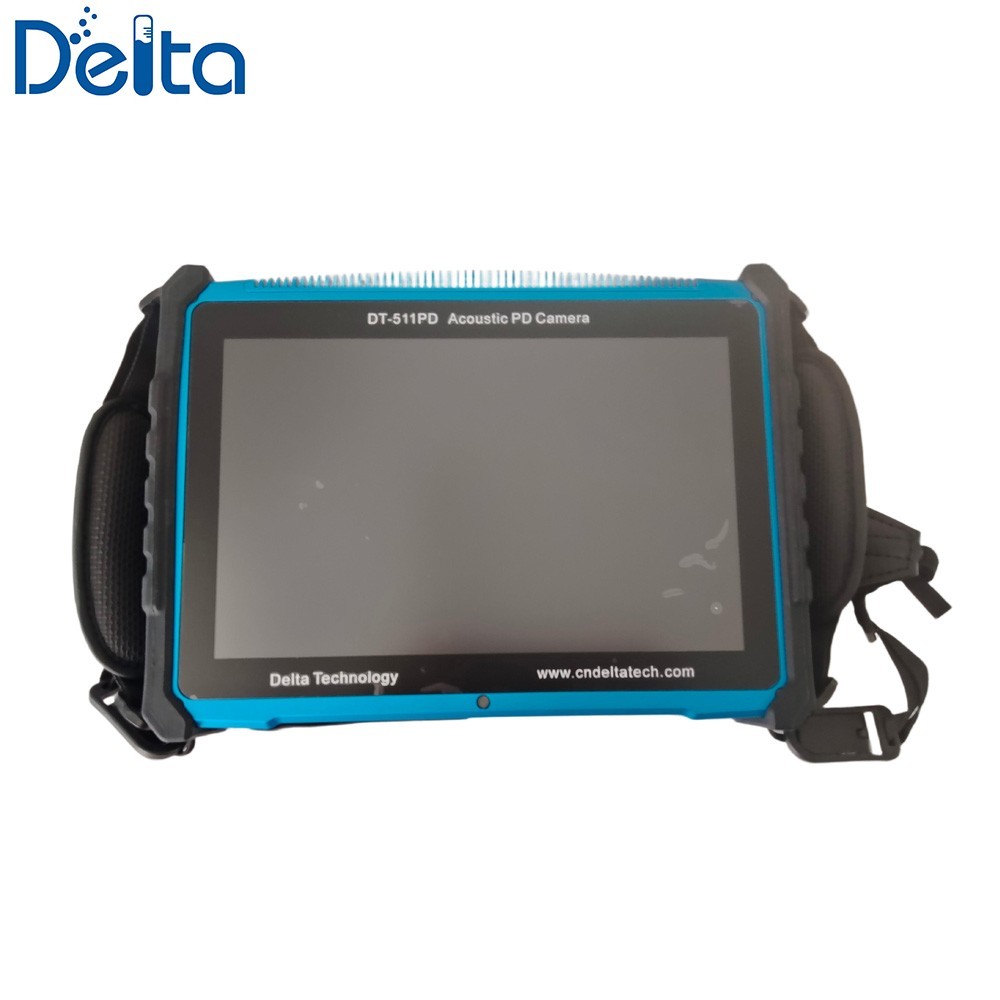

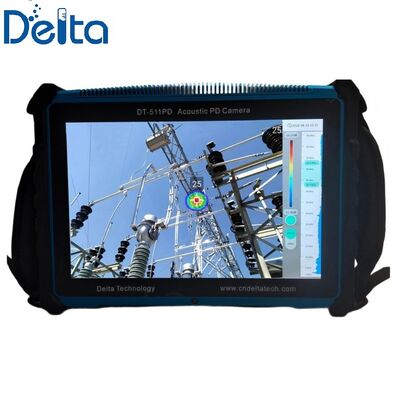

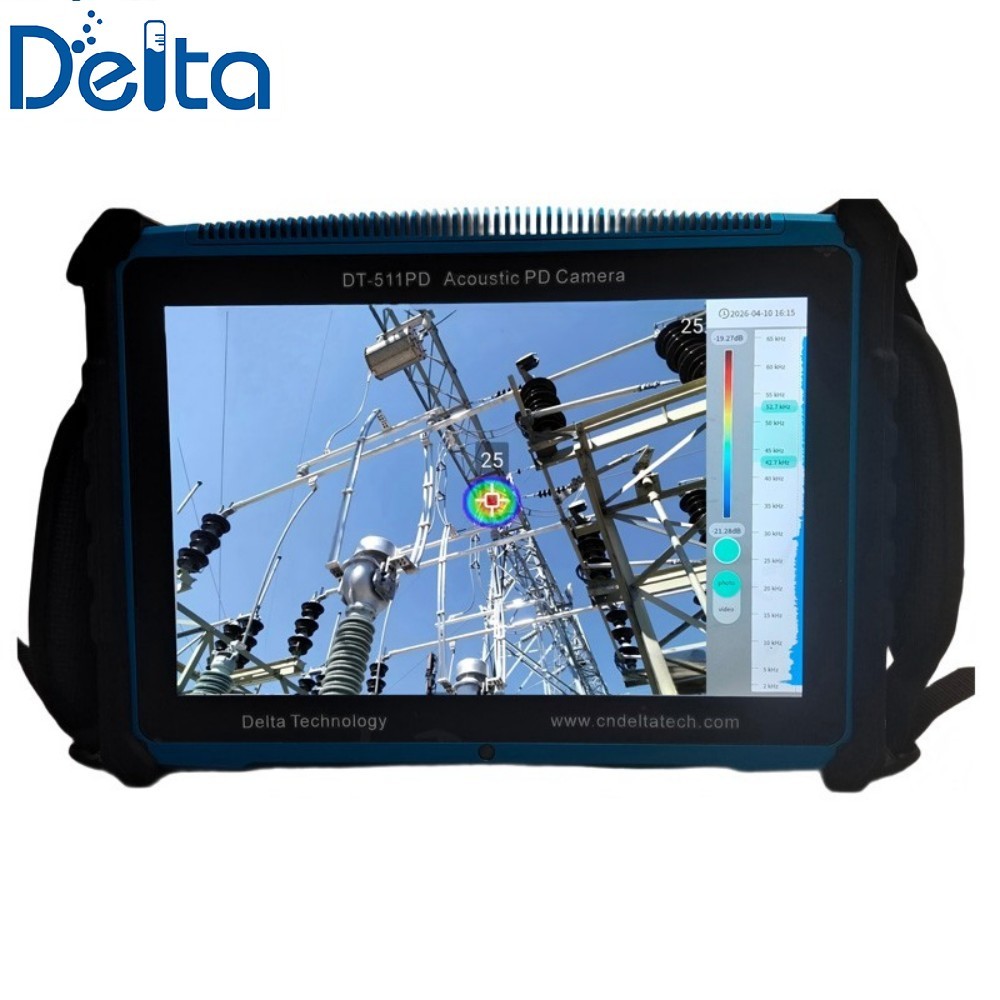

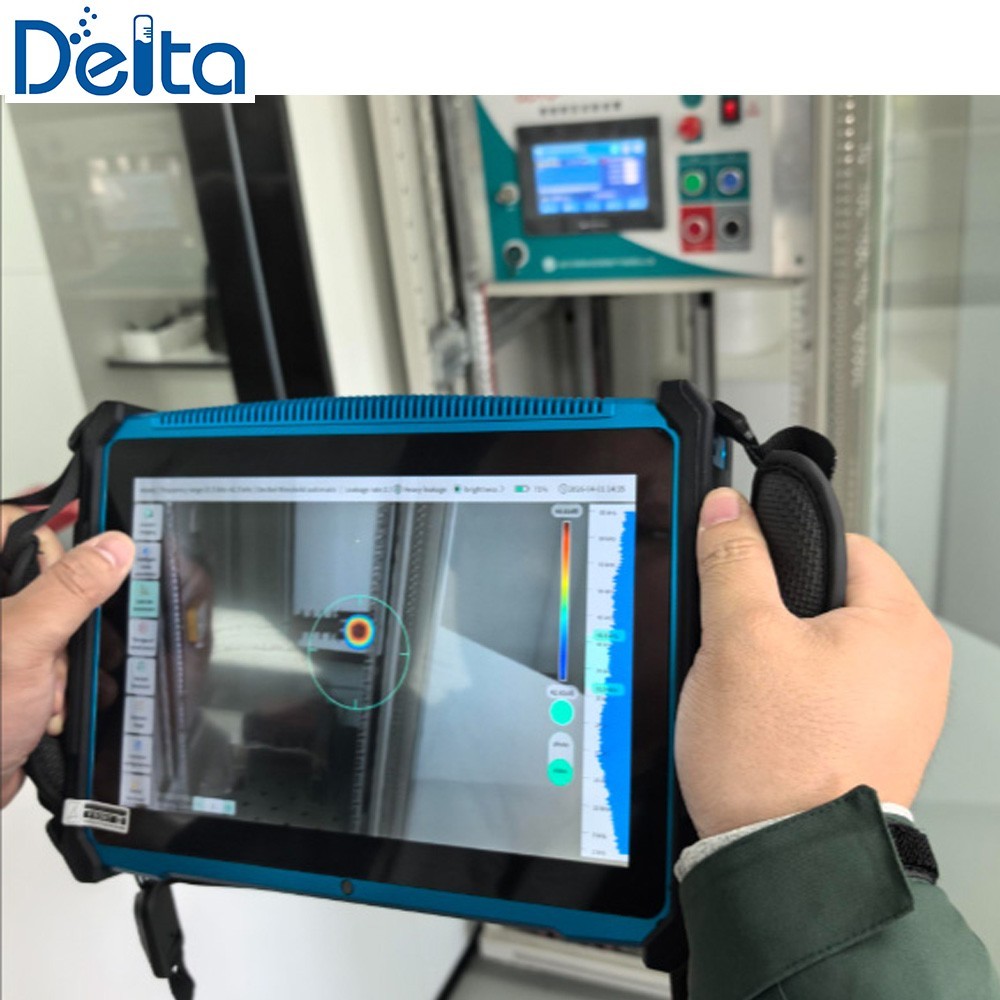

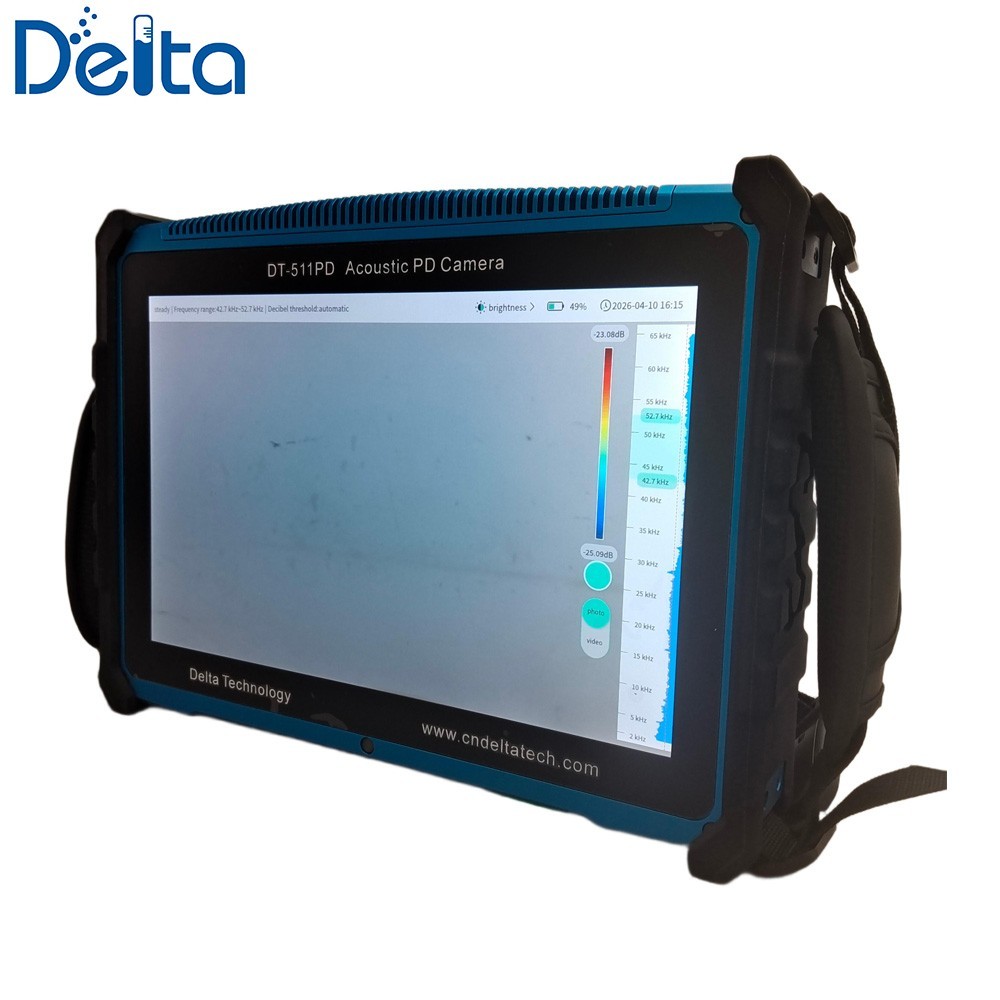

DT-511PD Handheld Ultrasonic Partial Discharge Imager



Introduction:

  • DT-511PD Handheld Ultrasonic Partial Discharge Imager is a new type of partial discharge localization detector, it integrated with noise source identification and localization, gas leak localization detection and analysis and diagnosis system.
  • It uses a high-sensitivity digital microphone array, which is mainly used to detect pressurized gas leakage and partial discharge of electrical insulation equipment.



Functions:

  • Thermal imaging function (optional)
  • Intelligent noise reduction function
  • Leakage rate assessment function
  • Frequency adjustment function
  • Sound source type switching function
  • Decibel threshold adjustment function
  • Add common configuration function
  • Historical record review function
  • Dynamic range adjustment function
  • FFT spectrum
  • Partial discharge spectrum
  • Photo/video recording



Parameters:



Size 270*190*45mm
Weight <2kg
Shell material Aluminum alloy+anti-drop silicone protective cover
IP class IP56
Display screen 10inch capacitive type
Resolution 1280*800
Camera 8MP auto focus
Channel 72 channel (can be extended)
Microphone High-sensitivity digital microphone
Measurement frequency 2kHz-65kHz
Effective test distance 0.5~50M
Accuracy ±1cm
Charging voltage 15V 2A
Intemal storage 128GB+16GB
Data interface TIF card
Interface type USB3.0 / Type-C
Steady-state algorithm With steady state / transient algorithm
Fill light 1w Fill light
External sensor Support expansion of USB external sensors, including sound level meter, sensor,etc.
PRPD map Display
Charging time 2 - 2.5h
