xProduct Details
| Test Specimen | Transformer, Circuit Breaker, Protection Relay, Cable, SF6 | Item Name | CPT-III Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument |
|---|---|---|---|
| Functions | Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument，Test Parameters Of Various Kinds Of Transformer | Applicable Transformer | CPT-III Analysis Instrument，<110kV, >2.5VA Transformer |
| Knee Point Voltage | 1kV | Max. Test Voltage | 1kV |
| Size | 420*330*320mm | Weight | 24kg |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Electric Testing Equipment for Transformer, Switch, Relay, Cable testing

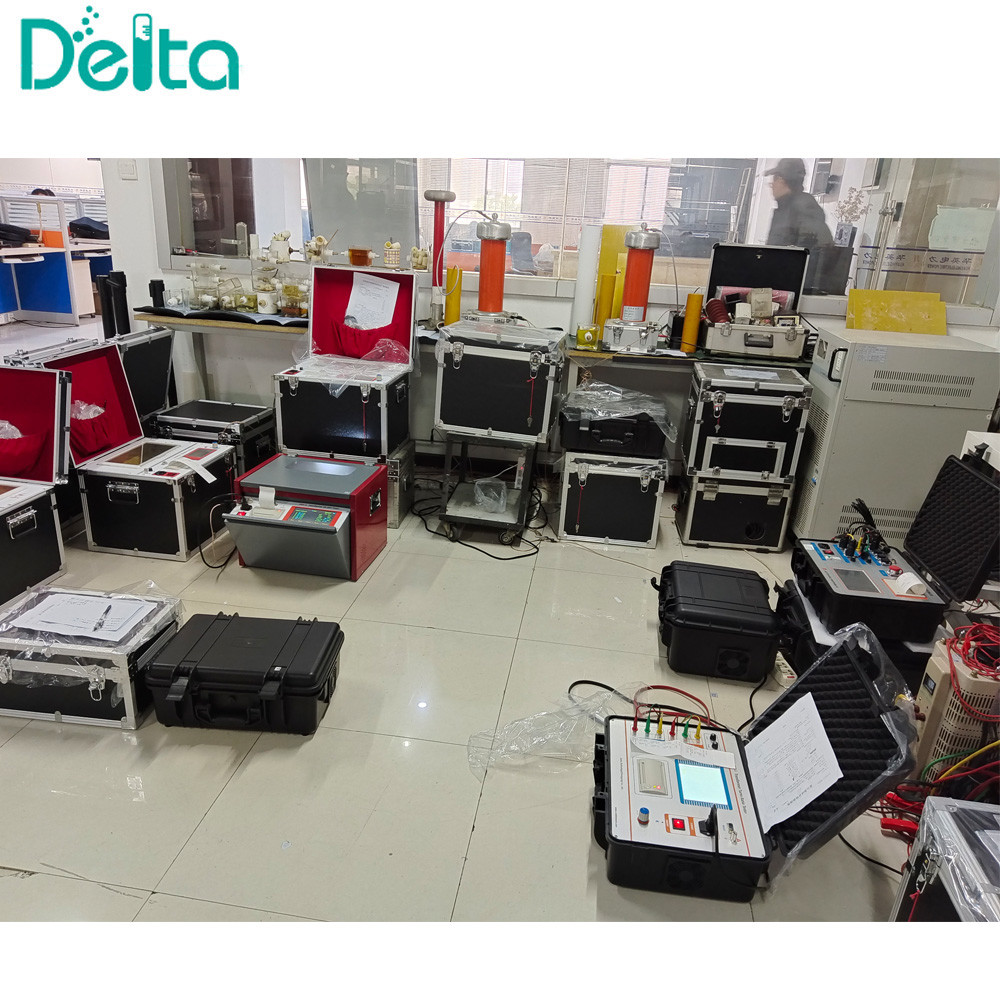

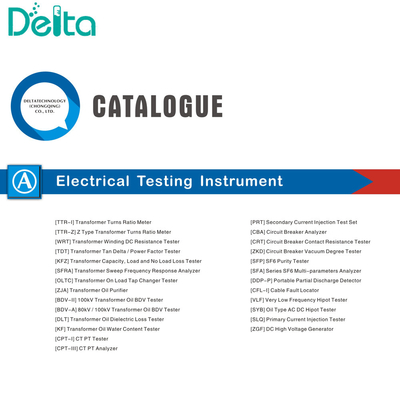

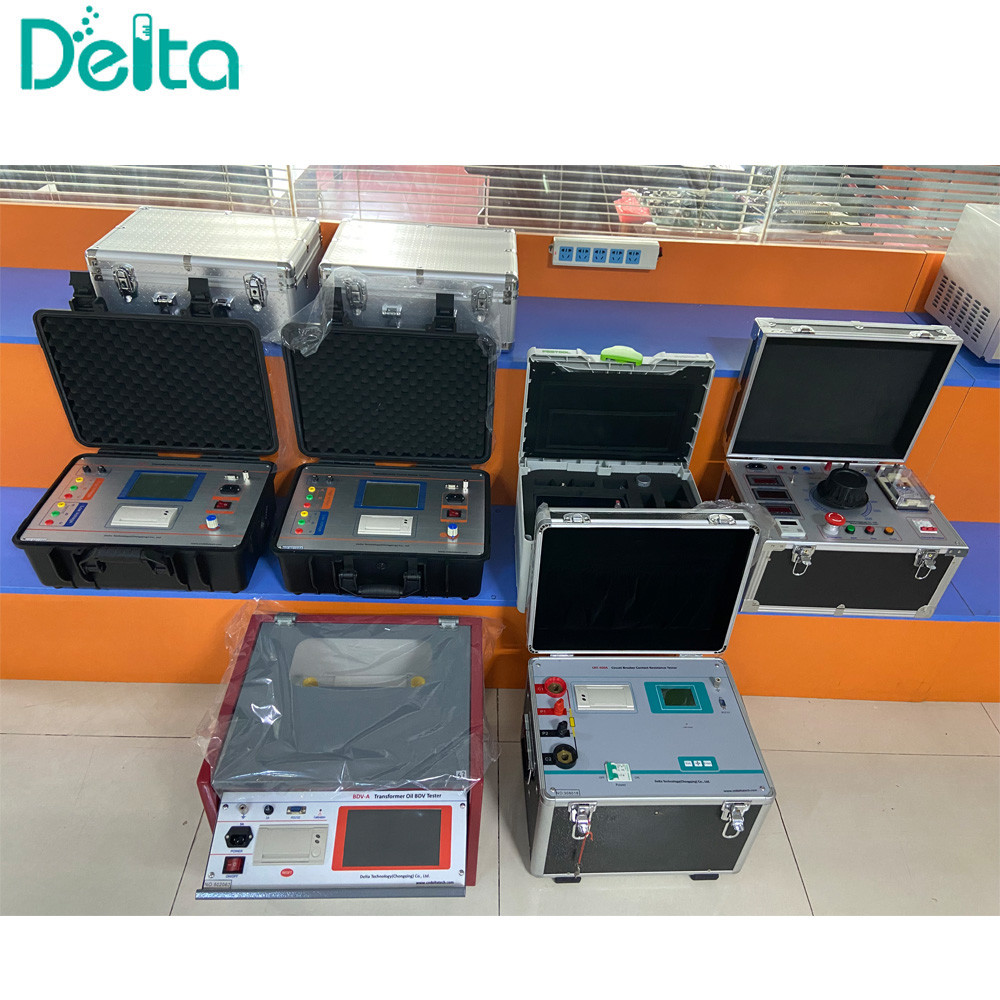

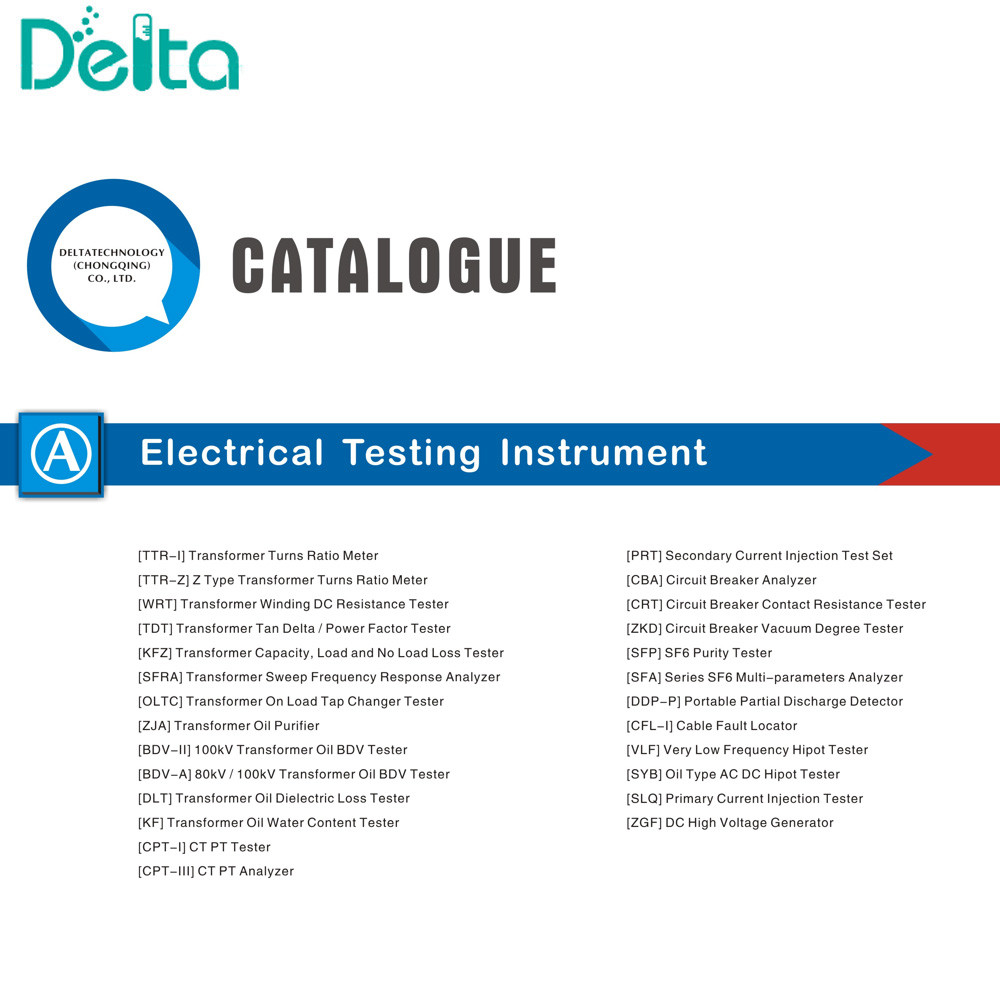

Delta Technology has a series of equipment for Transformer, Switchgear, Cable, SF6 and Transformer Oil Testing.

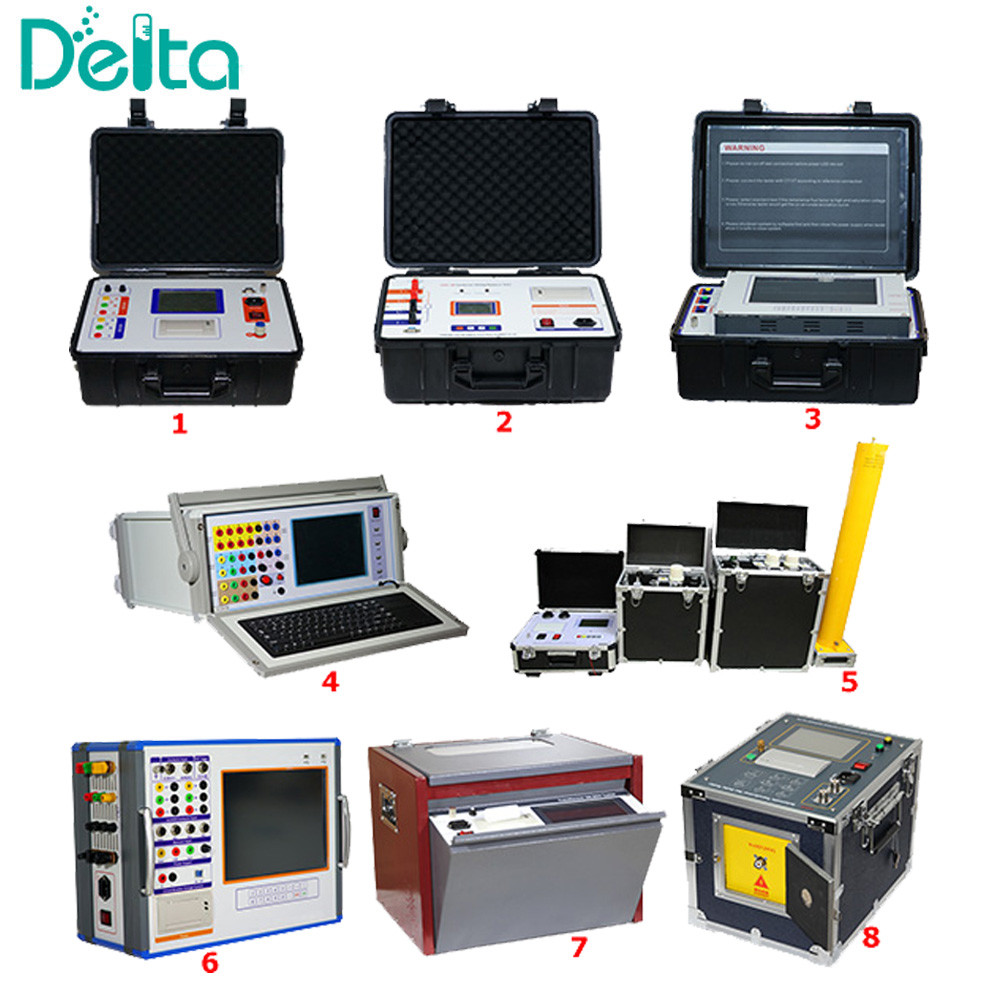

Below are some of our hot sale products,
- TTR-I Transformer Turns Ratio TTR Tester;
- KFZ Transformer Capacity, Load Loss and No Load Loss Tester;
- CPT-III Multi-functional CT PT Analyzer;
- PRT-P6 Six Phase Secondary Injection Test Kit;
- VLF-80 Very Low Frequency AC Hipot Tester;
- CBA-III Multi-functional Circuit Breaker Analyzer;
- BDV-A 80kV/100kV Transformer Oil Breakdown Voltage BDV Tester;
- TDT Transformer Power Factor / Tan Delta Tester;

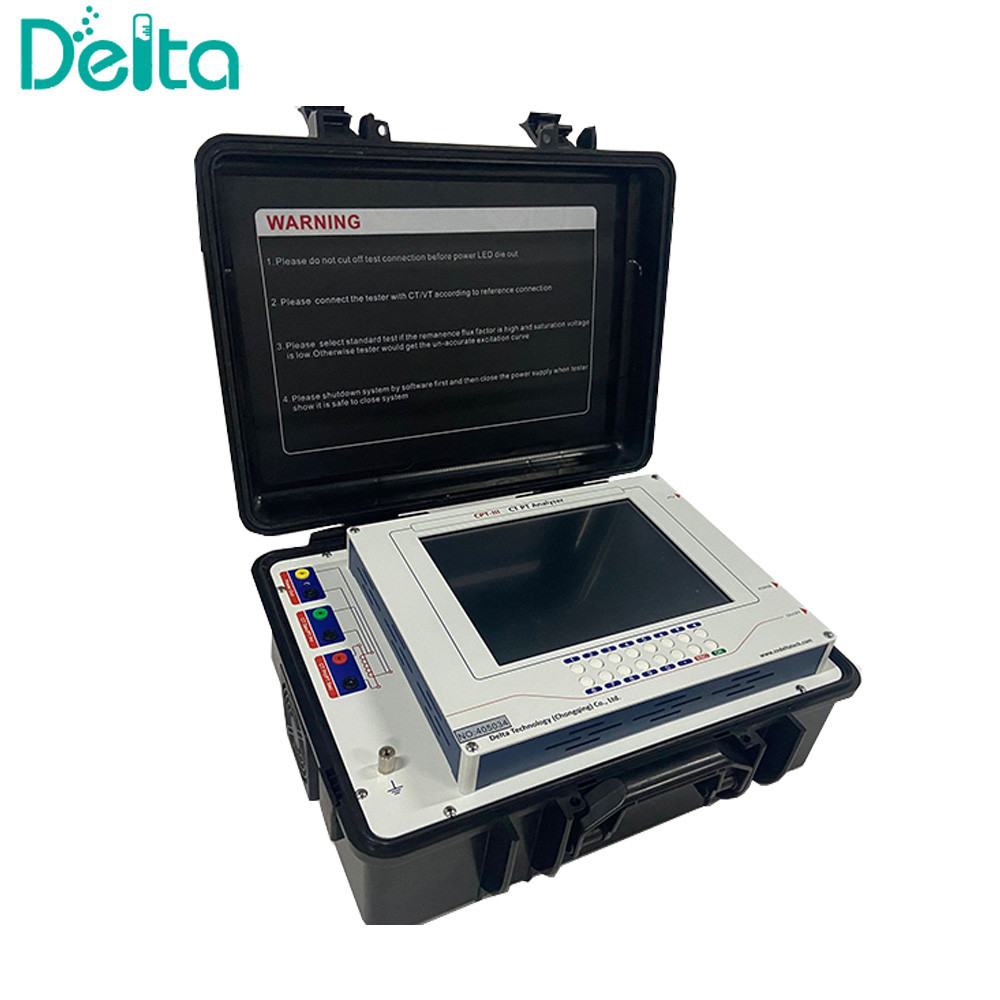

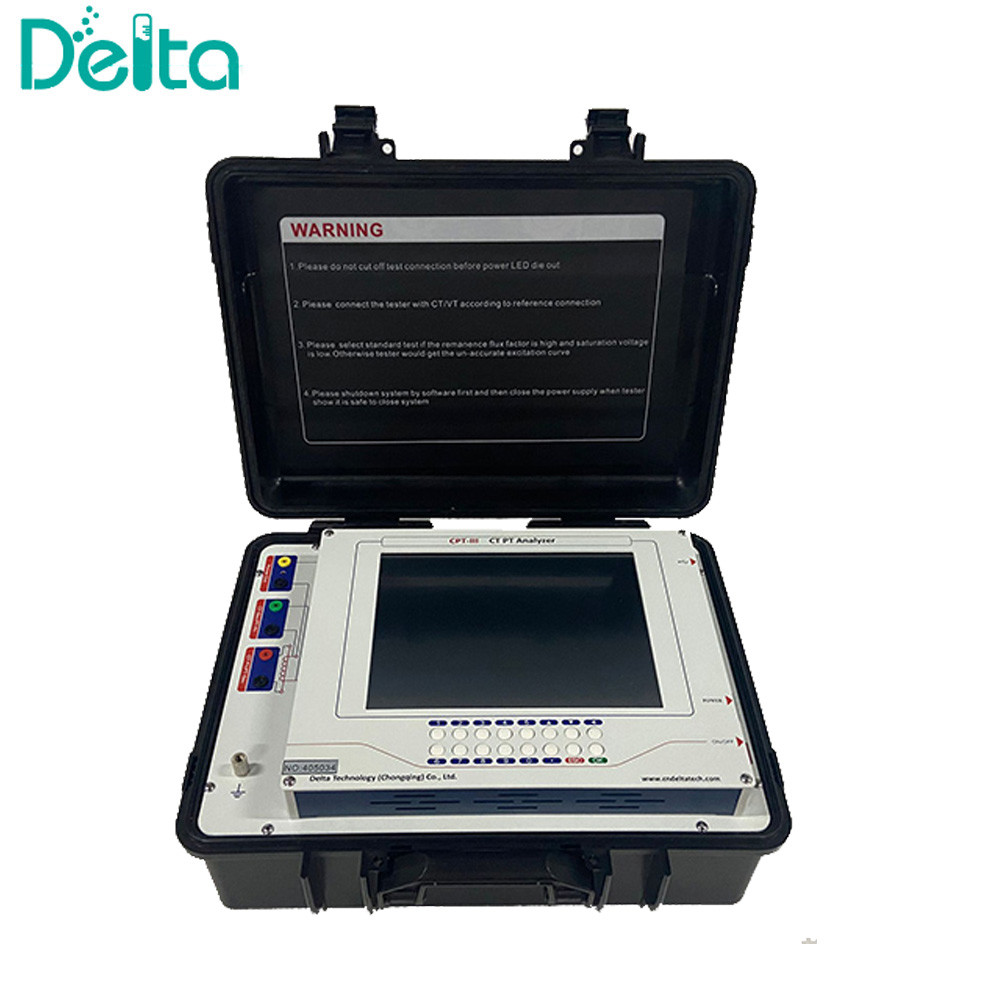

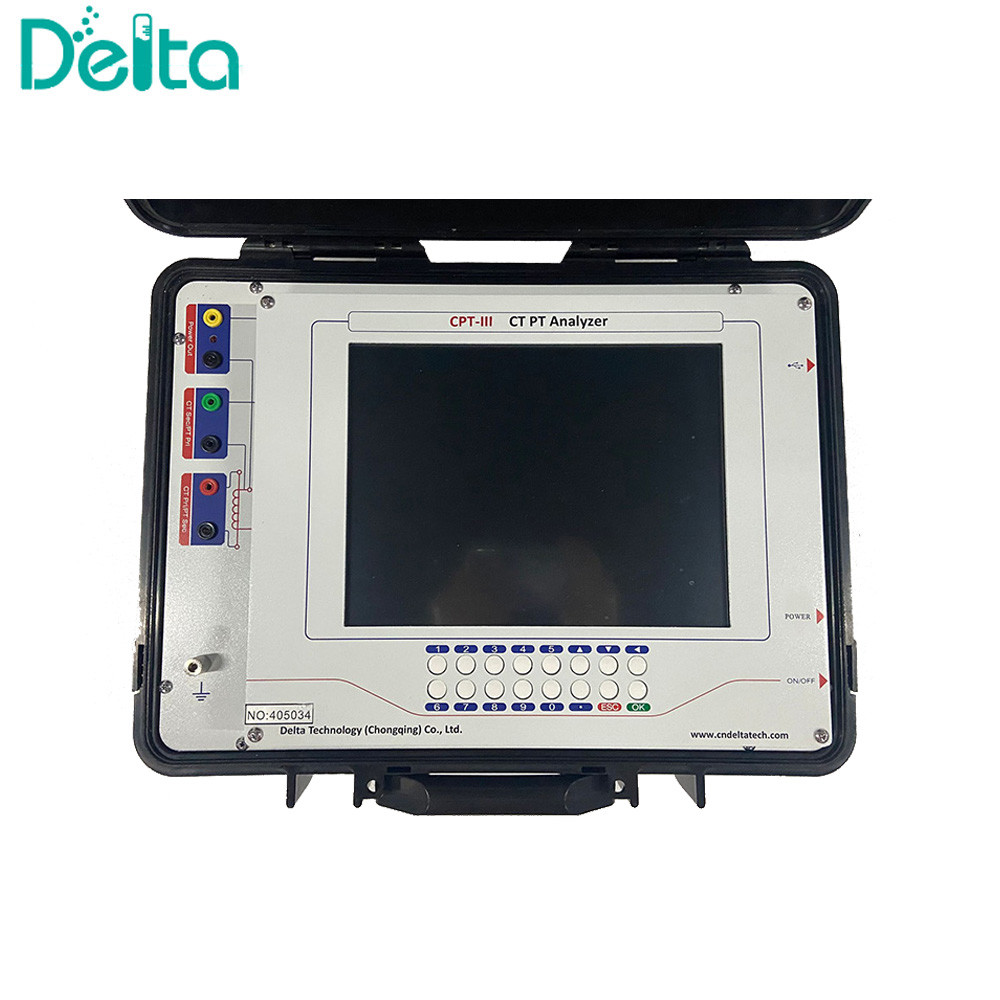

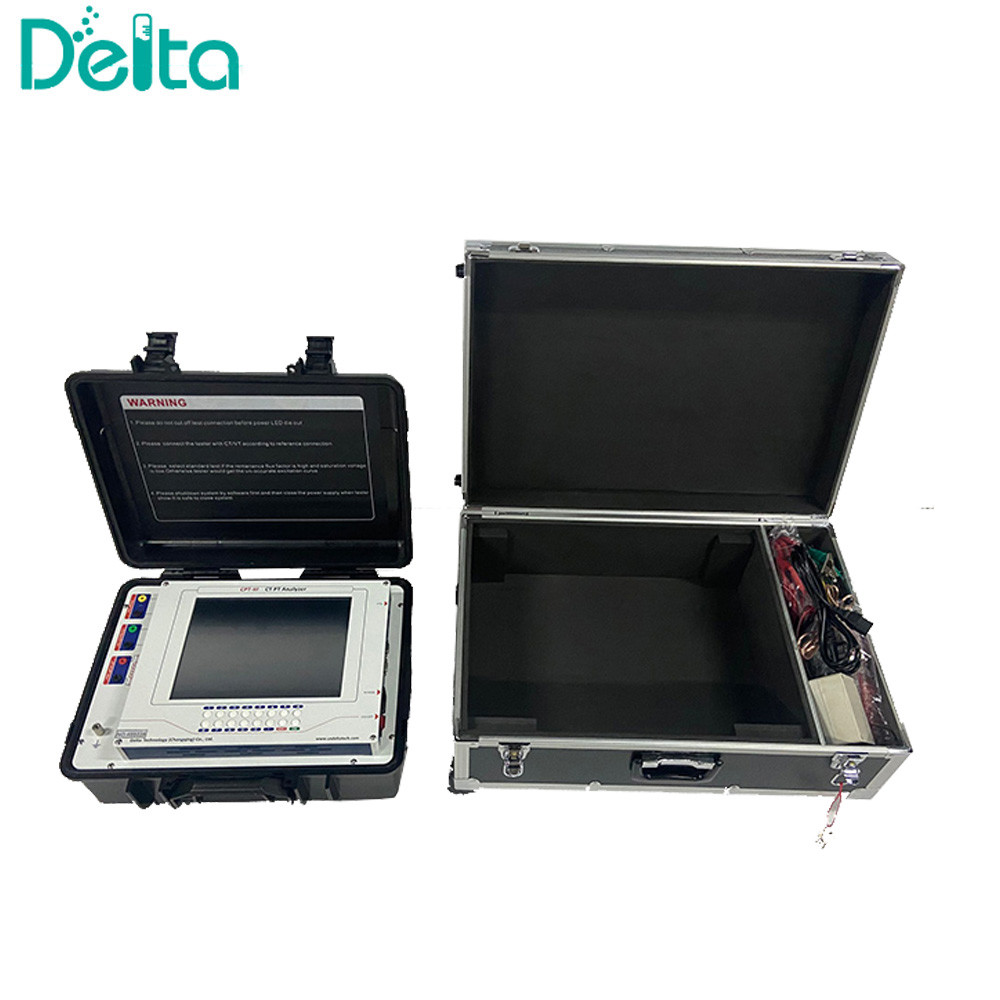

Detailed Introduction of CPT-III CT PT Analyzer
Introduction:
-
CPT-III CT PT Analyzer is a special instrument for testing characteristic of CT and PT.
-
It can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere feature curve drawing and CT error drawing.
-
It has large output, high precision,stable performance and automatic testing.
Features:
-
CT/PT transformation ratio test
-
CT /PT polarity test
-
CT /PT volt-ampere feature curve measurement
-
CT ratio error measurement
-
Error curve measurement
-
Result print
-
Unload data to PC
-
PC online test
Parameters:
|
Input voltage |
Output scope |
Measuring Range |
Measuring degree |
||||
|
Device main engine |
220V |
0～600V 0～20A |
0～600V 0～20A |
0.5% |
|||
|
380V |
0～1000V 0～20A |
0～1000V 0～20A |
0.5% |
||||
|
220V |
0～600A |
0～600A |
Transformation ratio measuring precision 1% |
||||
|
External voltage raising machine |
220V |
0～1650V 0～3A |
0～1650V 0～3A |
0.5% |
|||
|
380V |
0～2000V 0～3A |
0～2000V 0～3A |
0.5% |
||||
|
External current raising machine |
220V |
0～1000A |
0～1000A |
Transformation ratio measuring precision 1% |
|||
|
External voltage adjustment machine |
0～1000V, 0～30A |
0.5% |
|||||
|
Device working power |
220V/380V 50HZ |
External dimensions |
420*330*320mm |
Weight |
24kg |
||
