JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | JF-2004 |
| Minimum Order Quantity | 1 set Partial Discharge Detector |
| Price | USD1.0 |
| Packaging Details | JF-2004 Partial Discharge Detector is packed in veneer case |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets Partial Discharge Detector per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Partial Dischage Detector For Transformer GIS Cable Motor Detecting | Item Name | JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting |
|---|---|---|---|
| Function | Detect Partial Discharge Of Gis, Transformer, Etc. | Application Field | Electric Industry |
| Reference Standards | 9031809090 | Dimension | 600(W)*310(D)*545(H)mm |
| Weight | 0.4kg | Test Objects | Transformers, Gis, Overhead Lines, Cable, Cabient |
| Detection Method | Ultrasonic Method | Application Field | Electrical Industry |
| Description | JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting | Functions | Detect Partial Discharge Of Gis, Transformer, Etc. |
| Power Supply | Built-in Battery, 3.7V/1ah Lithium Battery | Battery Working Time | About 8 Hours |
| Display | 4.0 Inch RGB LCD Screen | Data Storage | 16g SD Card |
| Sensors | Sensor Of Gis Is Free,Other Detectors Are Optional | Language | English |
Product Description
JF-2004 Electric Testing Partial Dischage Detector For Transformer GIS Cable Motor Detecting
Introduction:
- JF-2004 Electric Testing Partial Dischage Detector is used for the detection and evaluation of the insulation status of high-voltage switchgear, ring network cabinets, transformers, GIS, overhead lines, cable terminals, cable branch boxes and other equipment.
- Partial discharge intensity detection: By measuring the discharge signal within a power frequency period, the intensity of partial discharge is characterized according to the maximum value (dB) in the discharge pulse sequence.
- Partial discharge frequency detection: The device measures the discharge signal within a power frequency period, extracts discharge pulses, and characterizes the frequency of partial discharges according to the number of discharge pulses.
Standards:
- ASTM: ASTM D2863
- ISO: ISO 4589-2
- NES: NES 714
Application Field:
- Building Materials;
- Wire&cable;
- Upholstered furniture;
- Others;
Features:
- Configure different sensors to realize partial discharge detection of almost all electrical equipment;
- The humanized man-machine interface facilitates data management of different devices, including traceback of historical data change trends, and horizontal and vertical data analysis, and realizes 360 ° comprehensive diagnosis of the device under test;
- Built-in ultrasonic sensors and transient ground voltage (hereinafter referred to as TEV) sensors, which can be connected with special sensors such as transformers, GIS, overhead lines, and cables;
- Adopt a non-intrusive detection method, no power failure during the test, maybe no high voltage source is applied, which is more convenient to use than a traditional pulsed partial discharge detector;
- The test bandwidth range is 30kHz ~ 2.0GHz, suitable for the detection principle of various frequency bands;
Parameters:
| Item Name | JF-2004 Partial Dischage Detector For Transformer GIS Cable Motor Detecting |
| Measuring range | 0-60 dBmV |
| Resolution | ±1dB |
| Maximum pulse per cycle | 1400 |
| Measurement frequency | 3~100MHz |
| Display | 4.0 inch RGB LCD screen |
| Controller | ARM |
| Connector | USB interface (also charger input) 3.5mm stereo headphone jack External ultrasonic sensor input wireless Wi-Fi Wireless synchronization benchmark |
| SD card | standard 16G |
| Earphone | minimum 8 ohm |
| Humidity | 20-85% relative humidity |
| Weight | 0.4KG(host) |

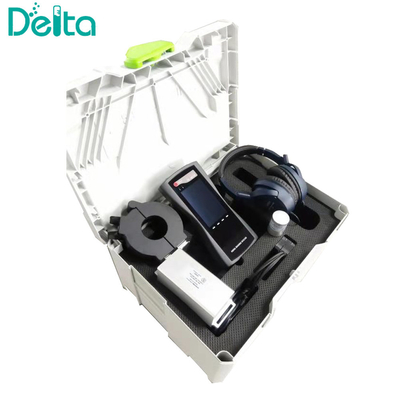

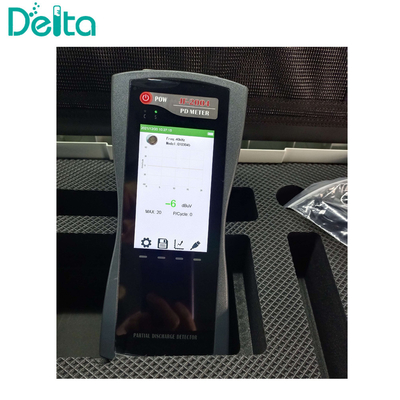

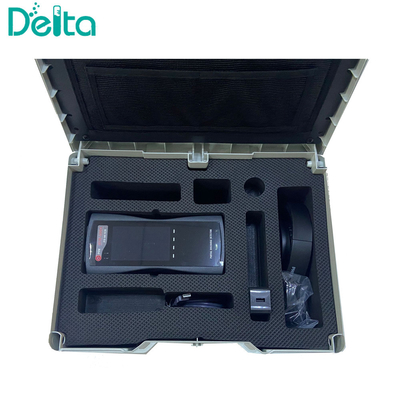

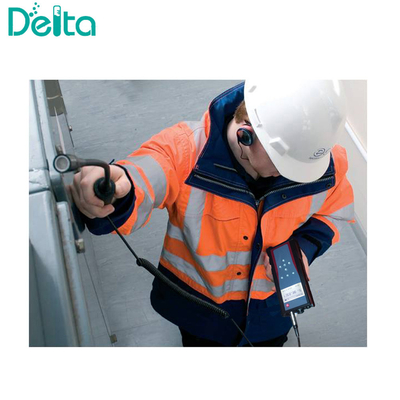

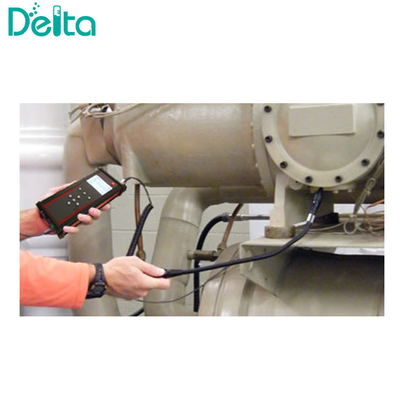

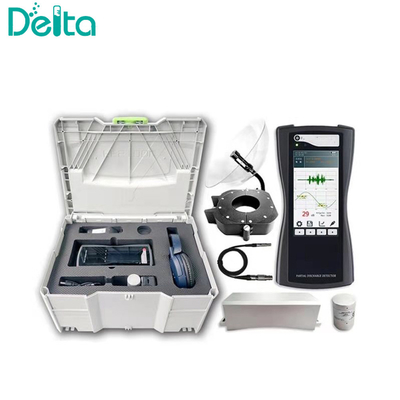

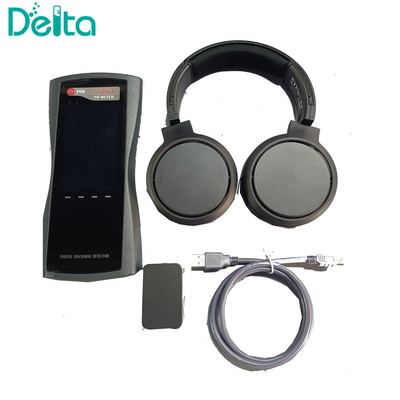

JF-2004 Partial Discharge Detector Picture:
