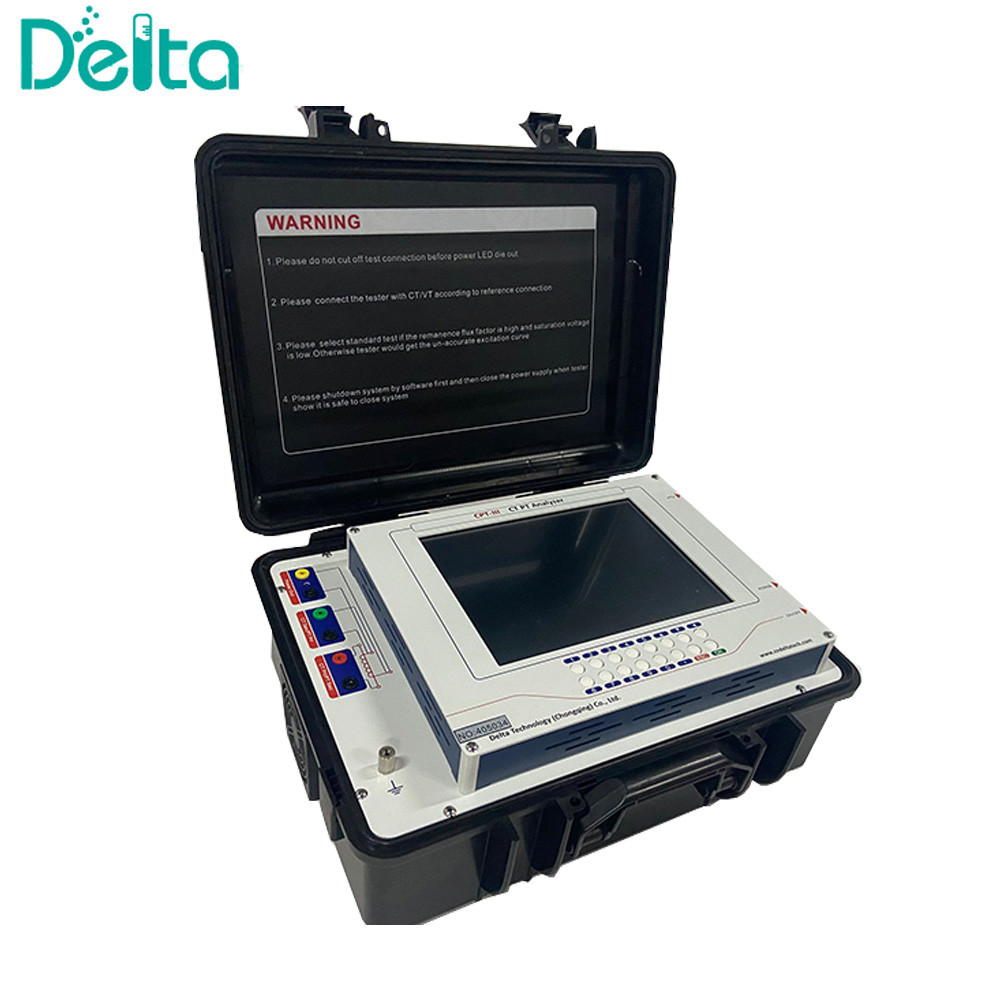

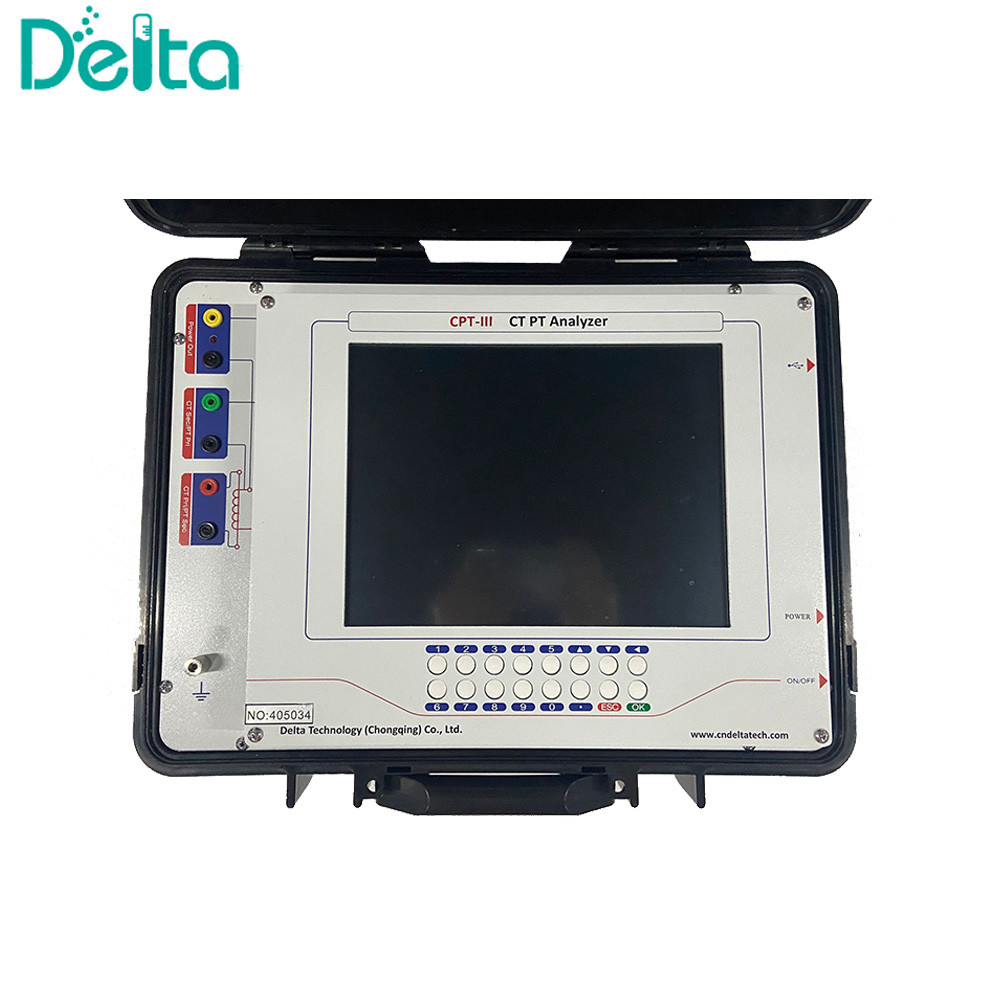

CPT-III Large Screen Automatic CT PT Analysis Instrument CT PT Analyzer
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CPT-III |
| Minimum Order Quantity | 1 set CT PT Analyzer |
| Price | USD1.0 / set |

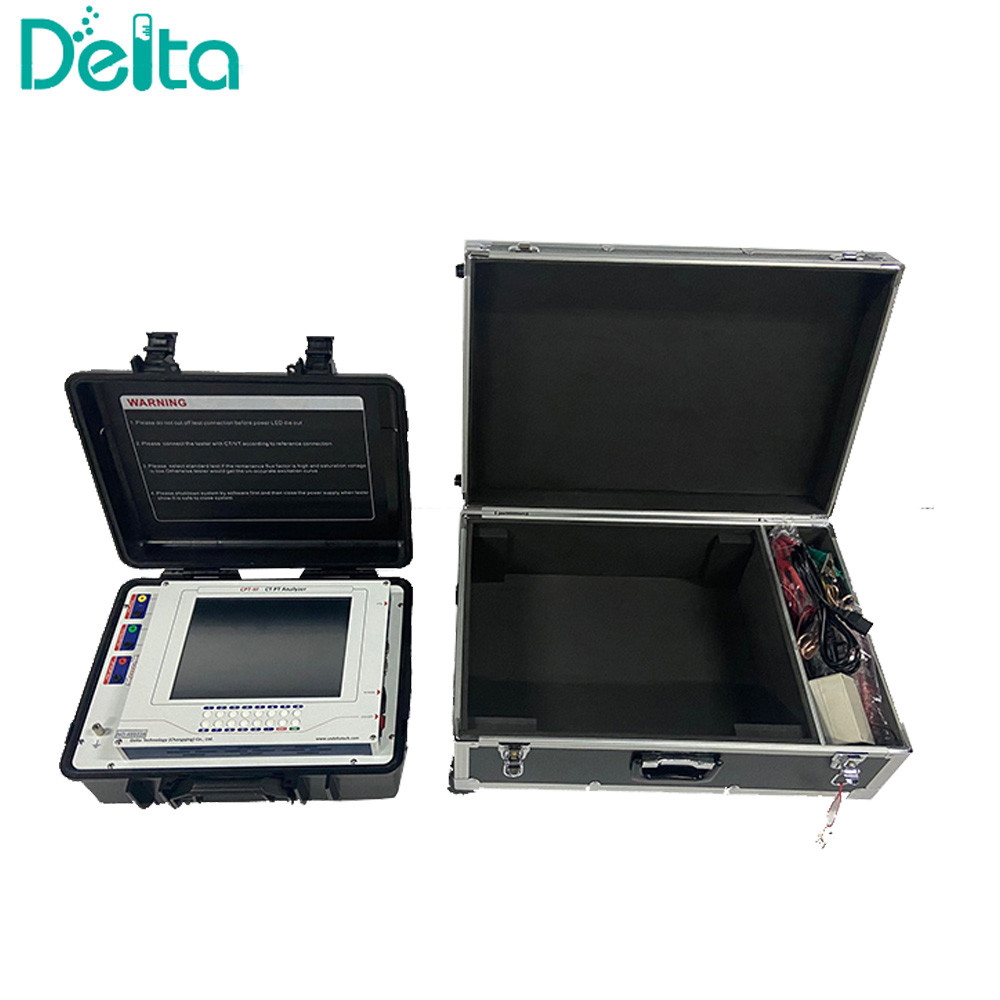

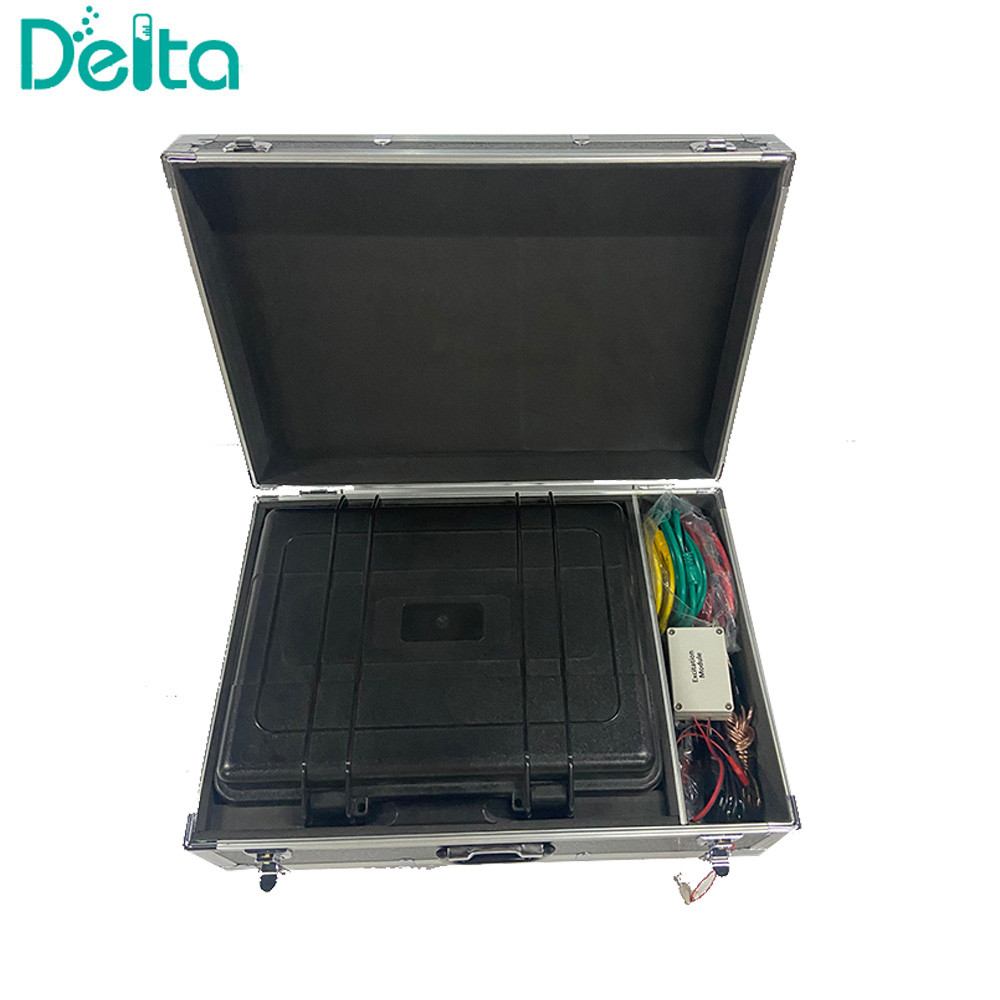

| Packaging Details | CT PT Analyzer is packed in plywood case. |
| Delivery Time | Within 7 days after the order is confirmed. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 Sets CT PT Analyzer / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Portable CT PT Volt-Ampere Characteristic Analyzer | Test Standards | IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5 |
|---|---|---|---|
| Application | Measure All Kinds Of Transformer, CT | Test Parameters | Excitation Current Turns Ratio Polarity, Etc. |
| Description | CT PT Volt-Ampere Characteristic Analyzer | Voltage Output | 0.1-180V AC |
| Current Output | 0.001~5A RMS | Power Output | 500va |
| Max. Knee Voltage Measurement | 45kv | Data Storage | >1000 Groups |
| Operation | Touch Screen | Size | 485mm * 356mm * 183mm |
| Customized Support | OEM | Delivery Lead Time | 7 Days |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. |
Product Description

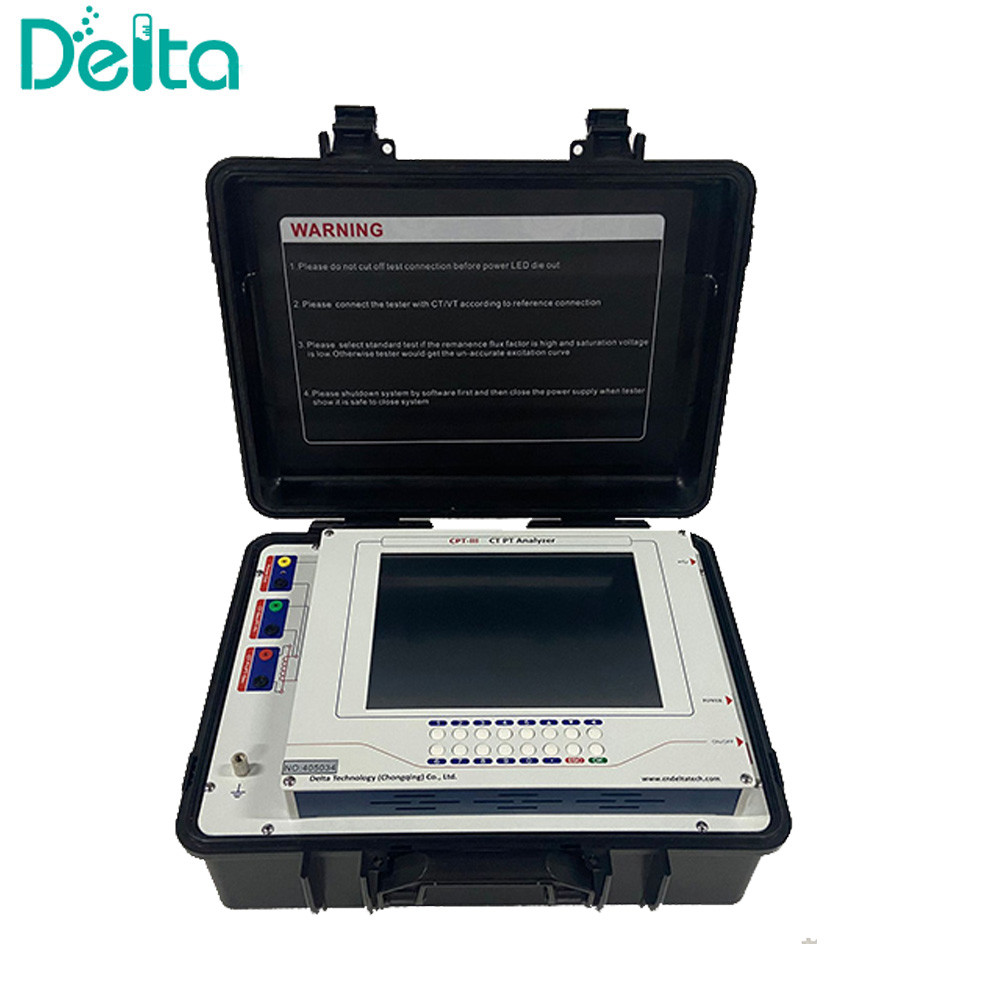

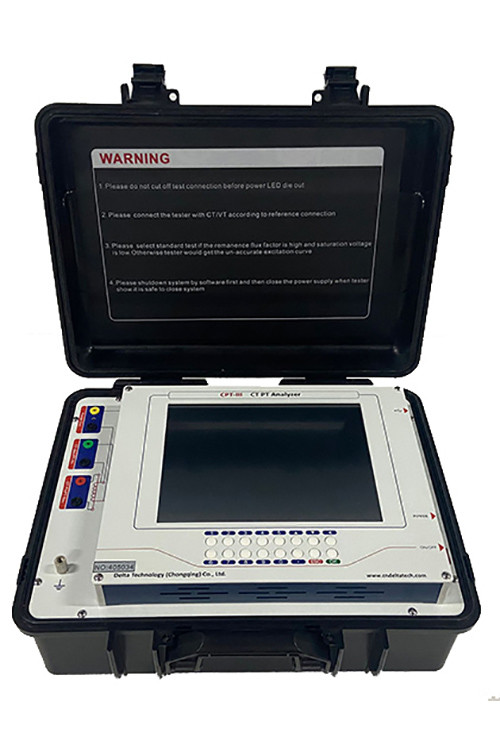

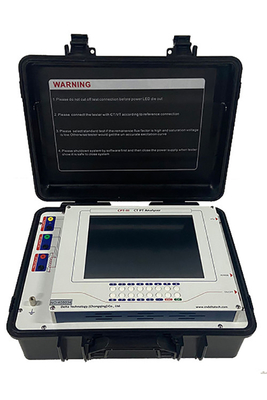

CPT-III Large Screen Automatic CT PT Analysis Instrument CT PT Analyzer
Introduction:
- CPT-III CT Analyzer is used to measure all kinds of current transformer and voltage transformer.
- It can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one test.
- CPT-III ct pt tester can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified.
Parameters:
- Test standards: IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
- Power supply: AC220V±10%, 50/60Hz±10%
- Voltage output: 0.1~180V (AC)
- Current output: 0.001~5A(RMS)
- Power output: 500VA
- Maximum knee voltage measurement: 45KV
- PT ratio error measurement: typical error <0.05%, maximum error<0.1%
- PT phase angle measurement: maximum error < 3min
- Memory capacity: >1000 groups test results
- Working condition: temperature: -10ºC~50ºC, humidty: ≤90%
- Size: 485mm * 356mm * 183mm, weight: <15kg
| Test Parameters | Range | Error | Resolution |
| Current | 0~10A (automatically change range in 0.1/0.4/2/10A) | <±0.1%+0.01%FS | / |
| Voltage | 0~200V (automatically change range in 1V/10V/70V/200V) |
<±0.1%+0.01%FS | / |
| Turns Ratio | 1~5000 | <0.05% | / |
| 5000~35000 | <0.1% | / | |
| Phase | / | ±2min | Resolution: 0.01min |
| Winding Resistance | 0~8kΩ (automatically change range in 2ohm/20ohm/80ohm/800ohm/8kohm) | <0.2%RDG+0.02%FS | Max. resolution: 0.1mΩ |
| Temperature | -50~100 Celsius degree | <3 Celsius degree | / |
| CT Secondary Burden | 0~160ohm (automatically change range in 2ohm/20ohm/80ohm/160ohm) |
<0.2%RDG+0.02%FS | Max. resolution: 0.001ohm |
| PT Secondary Burden | 0~80kohm (automatically change range in 800ohm/8kohm/80kohm) |
<0.2%RDG+0.02%FS | Max. resolution: 0.1ohm |
| PT Ratio | 1~10000 | <0.1% | / |
| 10000~35000 | <0.2% | / |
Functions of test software:
- Make evaluation for test results according to selected standards.
- Make word report for test result.
- Make word reports one time for multi-group test records on the PC.
- Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test.
- Compare excitation curves with saved excitation curves in the same window.
