Oltc Low Price Transformer Load Switch Tap Changer Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | OLTC |
| Minimum Order Quantity | 1 set Oltc Low Price Transformer Load Switch Tap Changer Tester |
| Price | USD1.0 / set Oltc Low Price Transformer Load Switch Tap Changer Tester |
| Packaging Details | OLTC is packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Transformer On Load Tap Changer Tester | Functions | Automatic Transformer On Load Tap Changer Tester |
|---|---|---|---|
| Current Source Charge | 3A/1A, 0.6A/0.2A | Power Supply | AC 220V, 50Hz/60Hz |
| Temperature | -10-40°C | Humidity | <85%RH |
| Application Field | Electrical Industry, Oil Laboratory, Etc. | Delivery Lead Time | 7 Days After The Order Is Confirmed |
| Shipping Method | Suggest To Ship By Air Or Express | Protection Functions | Power-off Protection, Over-Voltage Protection |
| Max. Voltage Of The Port | 24V | Max. Range Of Transition Resistance | 100ohm |
| Measuring Range | 1A: 0.4-20ohm, 0.2A: 10-100ohm | Record Time Of Waveform | 300ms |
| Sample Rate | 30K | OEM Service | Yes, Available, For Free |
| Language | English | ||
| Highlight | OLTC transformer load switch tester,low price tap changer tester,electric testing equipment with warranty |
||
Product Description
Oltc Low Price Transformer Load Switch Tap Changer Tester
Introduction:
-
Oltc Low Price Transformer Load Switch Tap Changer Tester can record switch operation waveform in the overall process. The longest time is 6.4s.
-
Oltc Low Price Transformer Load Switch Tap Changer Tester can test various parameters such as transition waveform, transition time, transition resistance, and three-phase synchronization one time and analyze results automatically.
-
Oltc Low Price Transformer Load Switch Tap Changer Tester has power-off protection, over-voltage protection, perpetual clock, and high-speed printing.
Features:
- Test transformers of type Y0 Y Δ and display resistance value directly.
- Automatically analyze waveform faults and mark the fault.
- Automatically adjust resistance value and time range according to sampling data.
- Transformer type Δ is able to display to synchronization status of three phases.
- Be able to test with winding or without winding.
- Four terminal connection modes provide high accuracy of resistance measurement.
- Continuous test to save time of power off.
- Make a word report.
- 800×480 colorized LCD with touch screen and high-speed printer.
- Store 1000 groups of data and also can be saved by USB flash disk.
Parameters:
| Item Name |
Oltc Low Price Transformer Load Switch Tap Changer Tester |
| Three-phase constant current source charge | Three-phase constant current source charge |
| Maximum voltage of the port | 24V |
| Maximum range of transition resistance | 100Ω |
| Measuring range | 1A: 0.4Ω~20Ω 0.2A: 10Ω~100Ω |
| Record time of waveform | 300ms |
| Sample rate | 30k |
| Resolution of time | 0.1ms |
| Resolution of resistance | 0.1Ω |
| Accuracy of transition resistance | ±5% Reading±0.1Ω |
| Accuracy of transient time | ±0.5% Reading±0.2mS |
| Temperature | -10-40°C |
| Humidity | <85%RH |

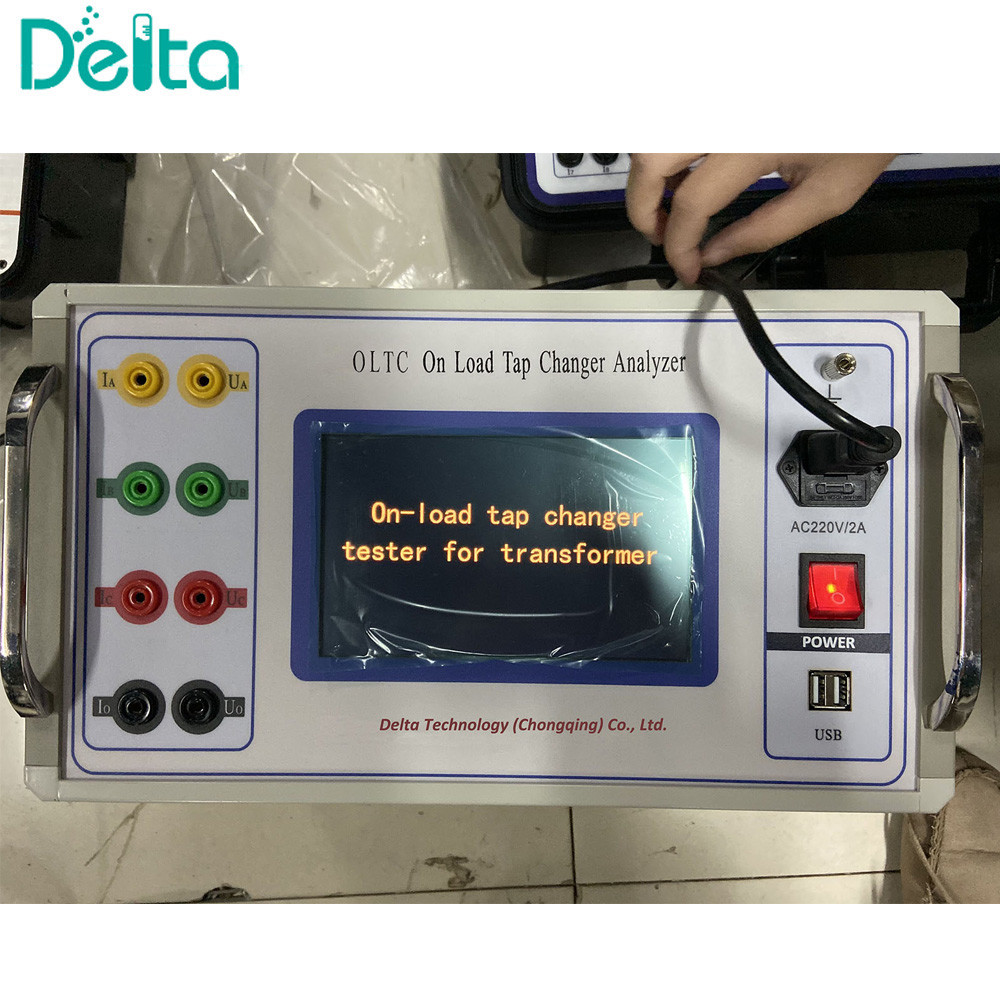

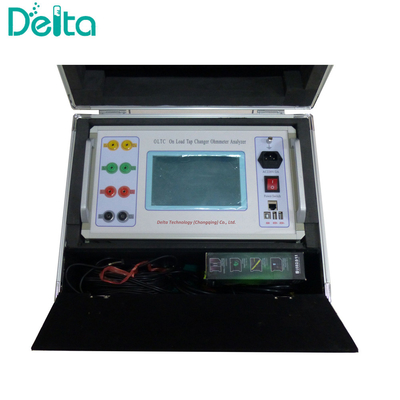

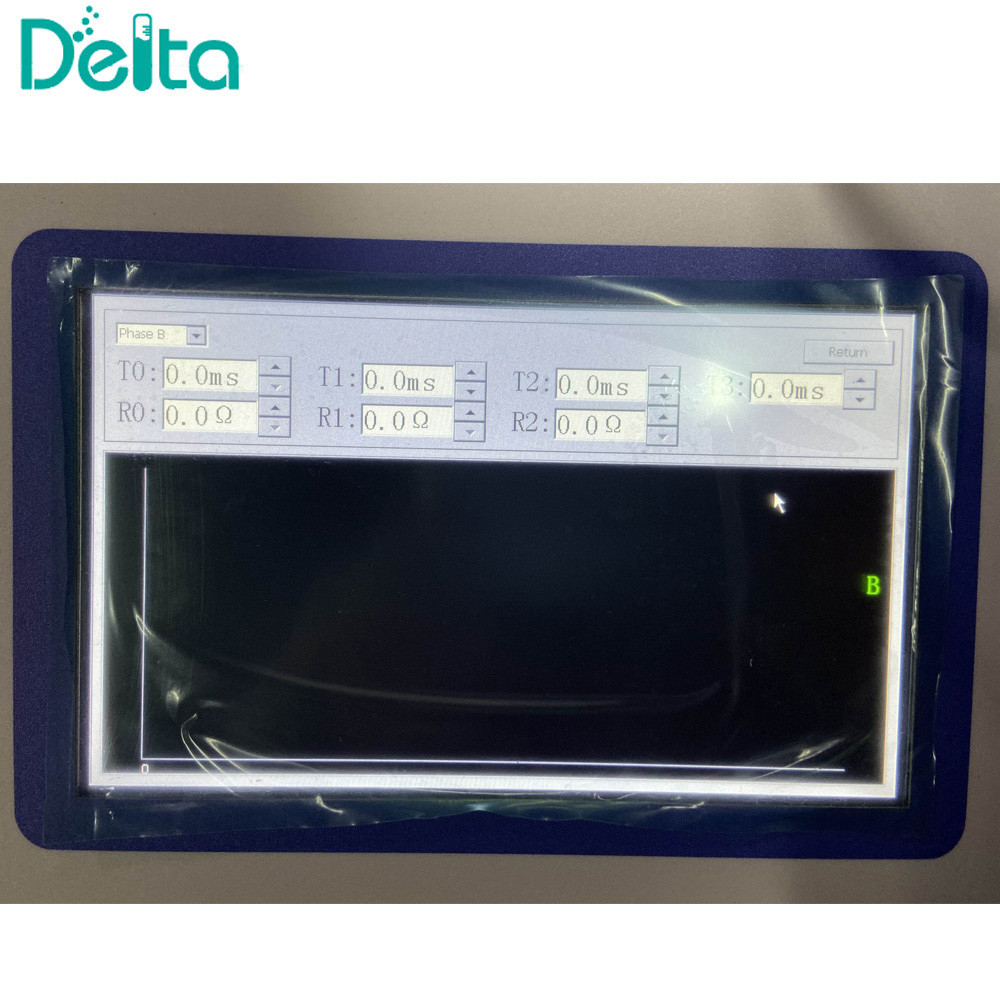

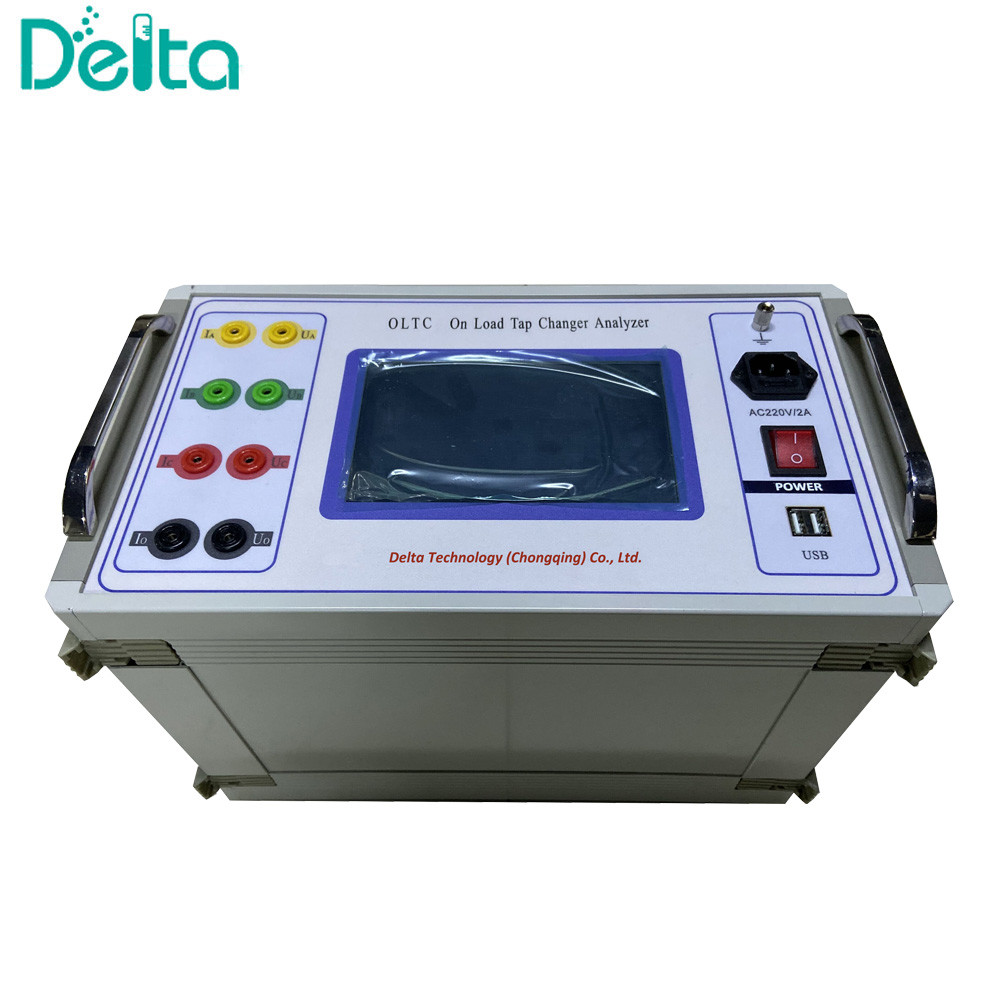

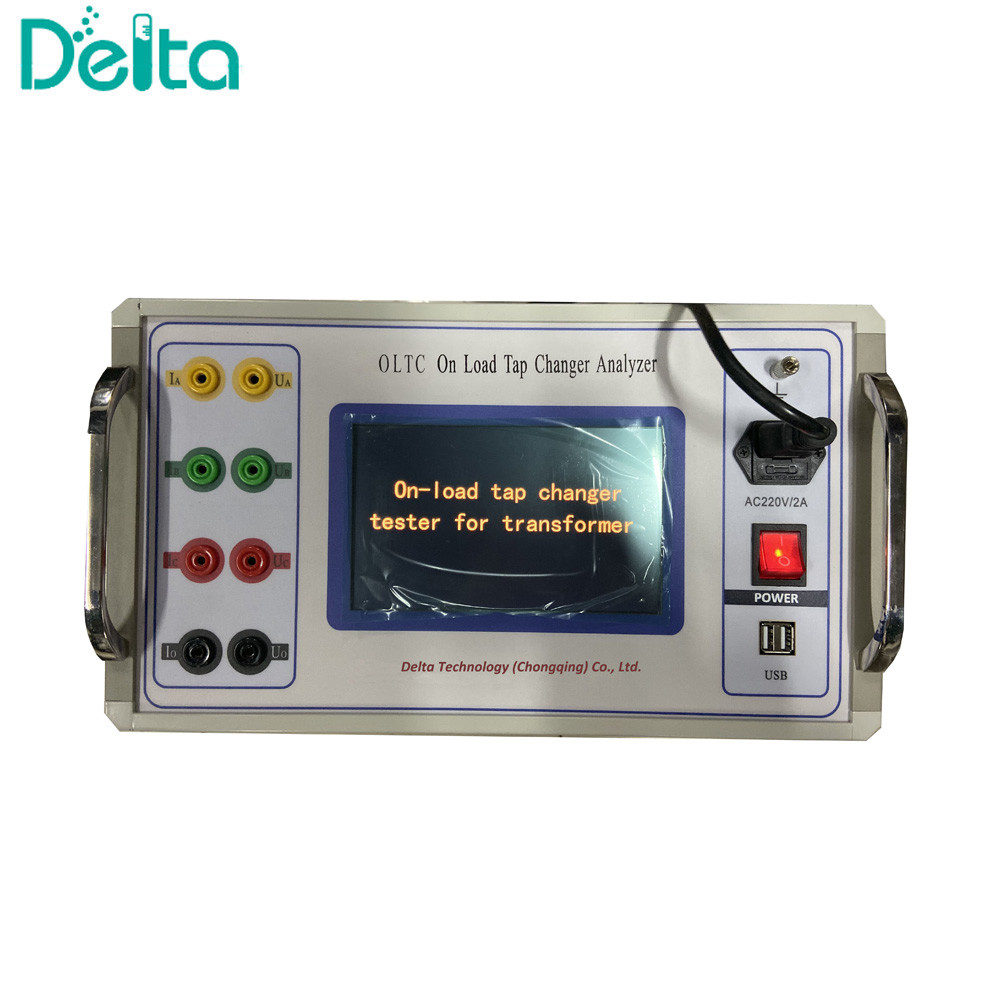

Oltc Low Price Transformer Load Switch Tap Changer Tester Real Picture:
