TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | TAG-8000 |
| Minimum Order Quantity | 1 set Transmission Line Tester |
| Price | USD1.0 / set |

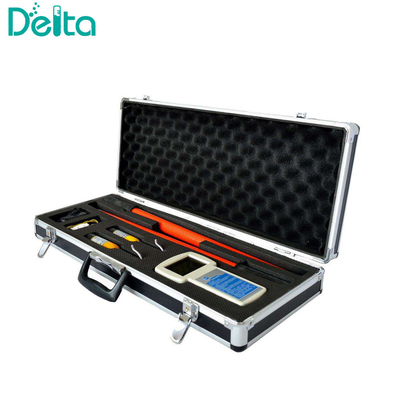

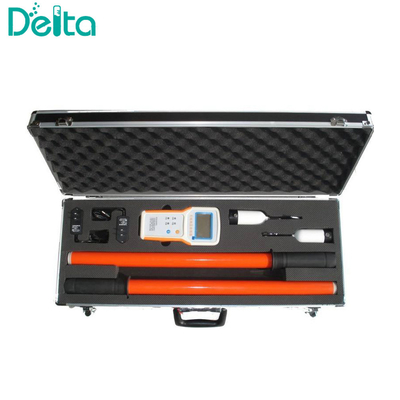

| Packaging Details | Transmission Line Tester is packed in one plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 Sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Voltage Range | 0.22kv - 220kv | Maximum Detection Distance | 100 Meters |
|---|---|---|---|

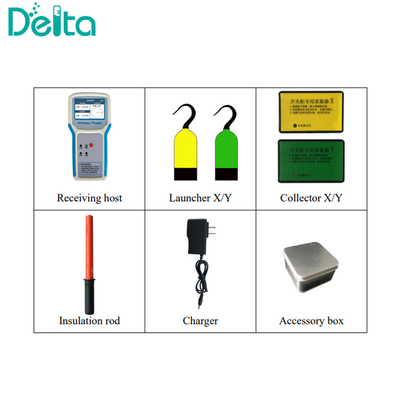

| Frequency Accuracy | 0.1Hz | Consists | Two Transmitters (X And Y) And A Receiver |
| High Voltage Leakage Current | <10ua | Transmitter Power Consumption | <0.1W |
| Receiver Working Power | <0.3W | Net Weight | 3.6kg |
| Packaging Size | 56cm *26cm *13cm | Mainframe Power Supply | 2500mAh Battery |
| Transmitter Power Supply | 450mAh. | Delivery Lead Time | 7 Days |
| Shipping Method | By Courier | Language | English |
| OEM Service | Available |
Product Description

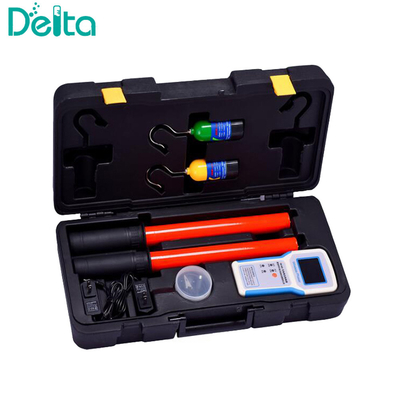

TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester
Introduction:
- TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester is applied to the grid-connected or circuit-connected nuclear phases of two High-Voltage circuits.
- TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester can also be used for remote (remote) nuclear phases to determine whether the color of the phase sequence is consistent with the name of the phase sequence.
- TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester is suitable for live operation of 0.22 ~ 220kV AC transmission line and secondary side live operation, with high voltage galvanometer function.
- It adopts wireless transmission technology, safe and reliable operation, convenient use, and overcomes many disadvantages of wired nuclear phase instruments.
- Meanwhile, it is configured with a GPS module, and two or more instruments can be used for the remote nuclear phase after matching and upgrading.
Parameters:
| Item Name | TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester |
| Phase difference accuracy | Error ≤5° |
| Frequency accuracy | ±0.1Hz |
| Cross-voltage measurement range | 0.22kV~220kV |
| Maximum transmission line-of-sight | about 100 meters |
| High voltage leakage current when measured | <10uA |
| Transmitter power consumption | <0.1W |
| Receiving mainframe working power | <0.3W |
| Working environment | -35ºC--- +45ºC humidity≤95%RH |
| Complete machine weight | 3.6kg |
| Instrument packaging size | length 56cm* width 26cm* height 13cm |
Features:
- The measurement range across voltage is 0.22kv ~ 220kV.
- The maximum transmission line-of-sight of the transmitter and receiving mainframe is about 100 meters.
- The distance of two GPS mainframes is 0.3km ~ 800km in the remote nuclear phase.
- Human voice prompts measurement results and operation steps.

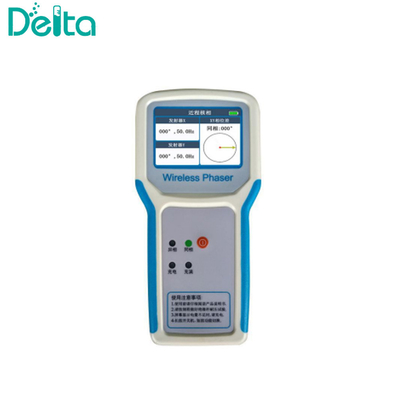

- The 3.2-inch color screen simultaneously displays the phase difference, frequency, vector diagram, and iso-phase results of two lines, and displays the number of GPS satellites, GPS timing status time, and other information.
- Automatic shutdown without operation for 1 hour continuously.
- The charger and receiver mainframe are built-in rechargeable lithium batteries with a 5V charger.
- Mainframe built-in 18650 lithium battery, battery capacity of 2500mAH. The transmitter has a built-in 14430 lithium battery with a capacity of 450mAH.
