With Battery Portable Transformer Turn Ratio Polarity Testing Instrument
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | TTR-III |
| Minimum Order Quantity | 1 set |
| Price | USD1.0 / set |
| Packaging Details | Transformer Turn Ratio Polarity Testing Instrument is packed in a plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Handheld Portable Transformer Tester | Reference Standard | IEC |
|---|---|---|---|
| Applicable Transformers | Single Phase, 3 Phase, Normal & Z Type Transformer | Test Parameters | Turns Ratio, Phase Angle, Polarity, Vector Group |
| Special Function | Blind Test | Power Supply | AC220V, 50Hz, DC5000mAh Battery |
| Data Storage | 1000 Groups | Weight | 3kg (with Battery) |
| Delivery Lead Time | 10 Days | Display | Digital Display |
| Language | English |
Product Description

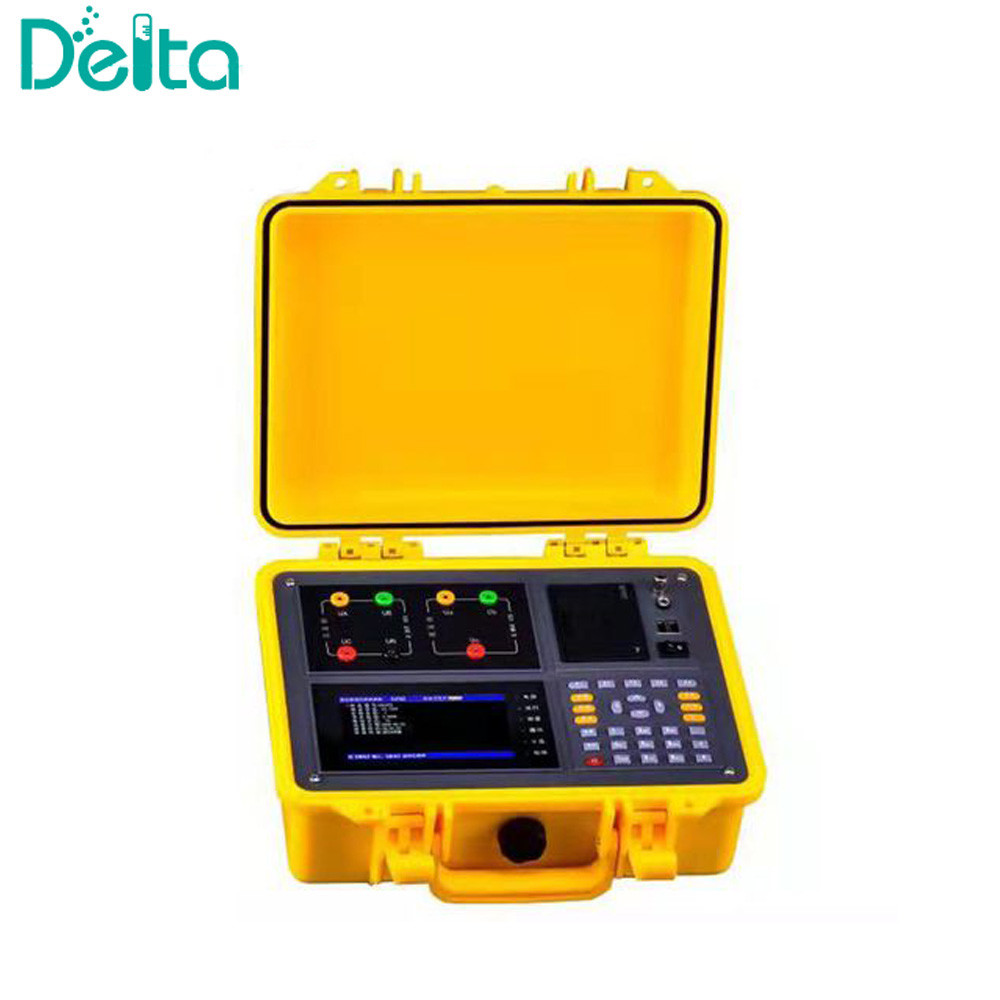

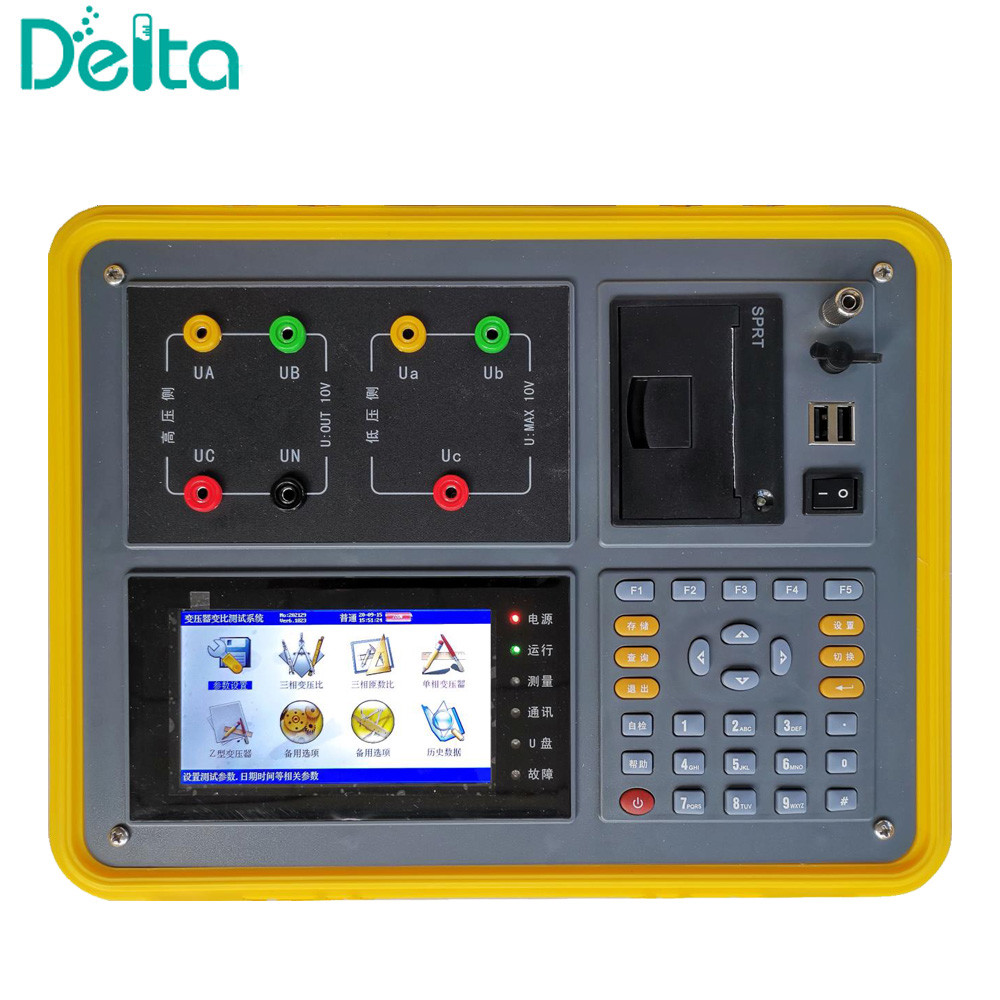

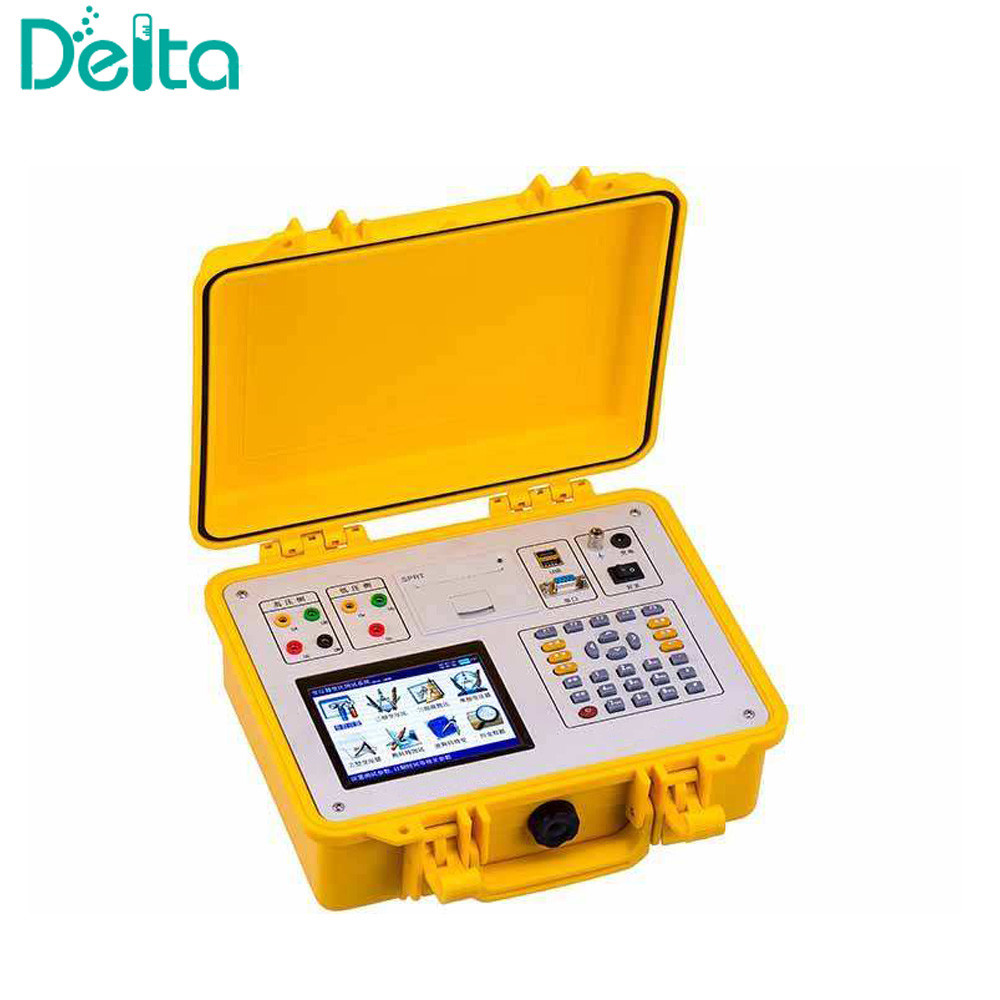

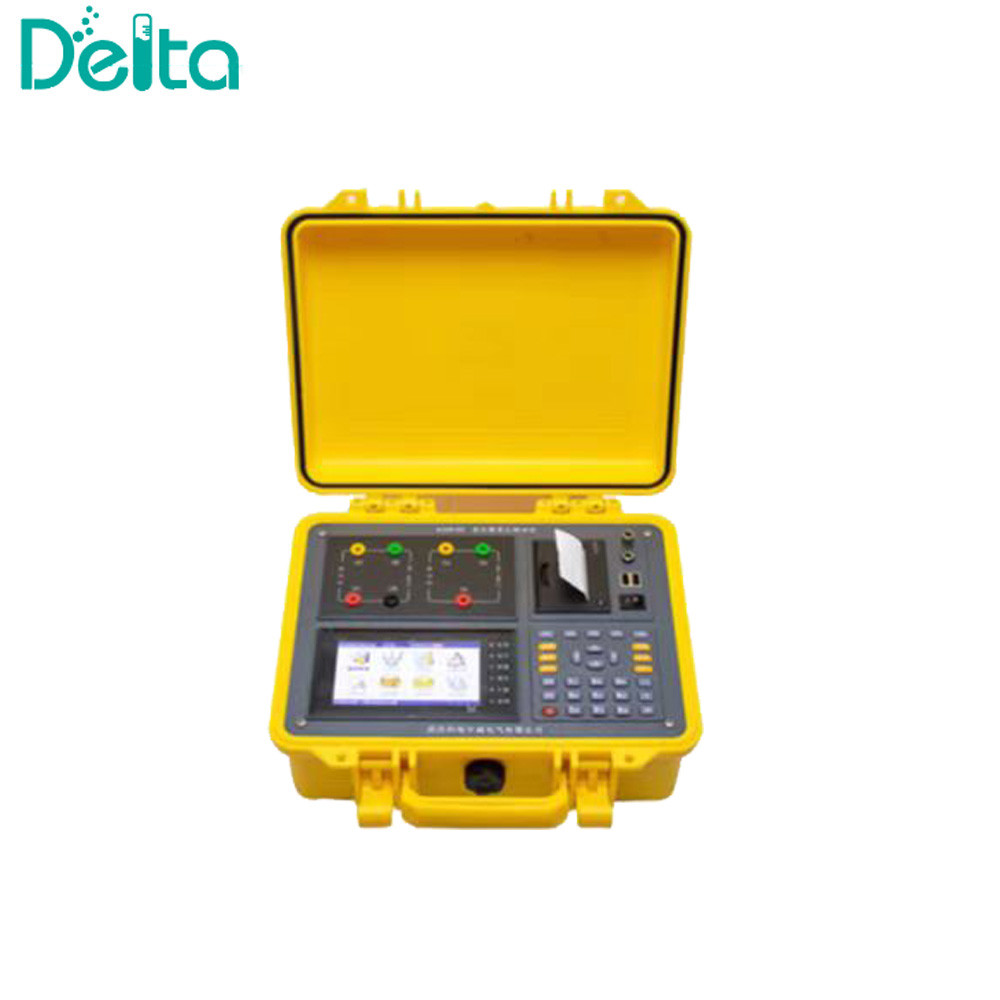

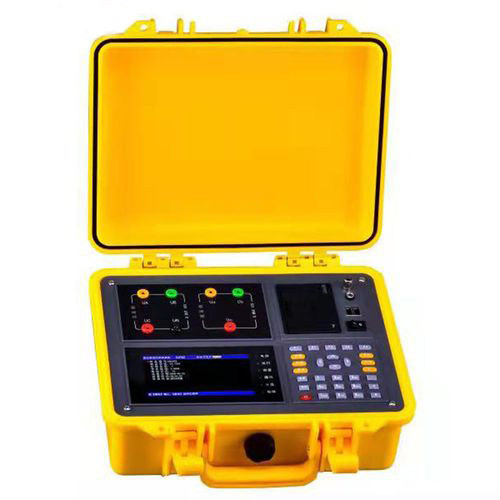

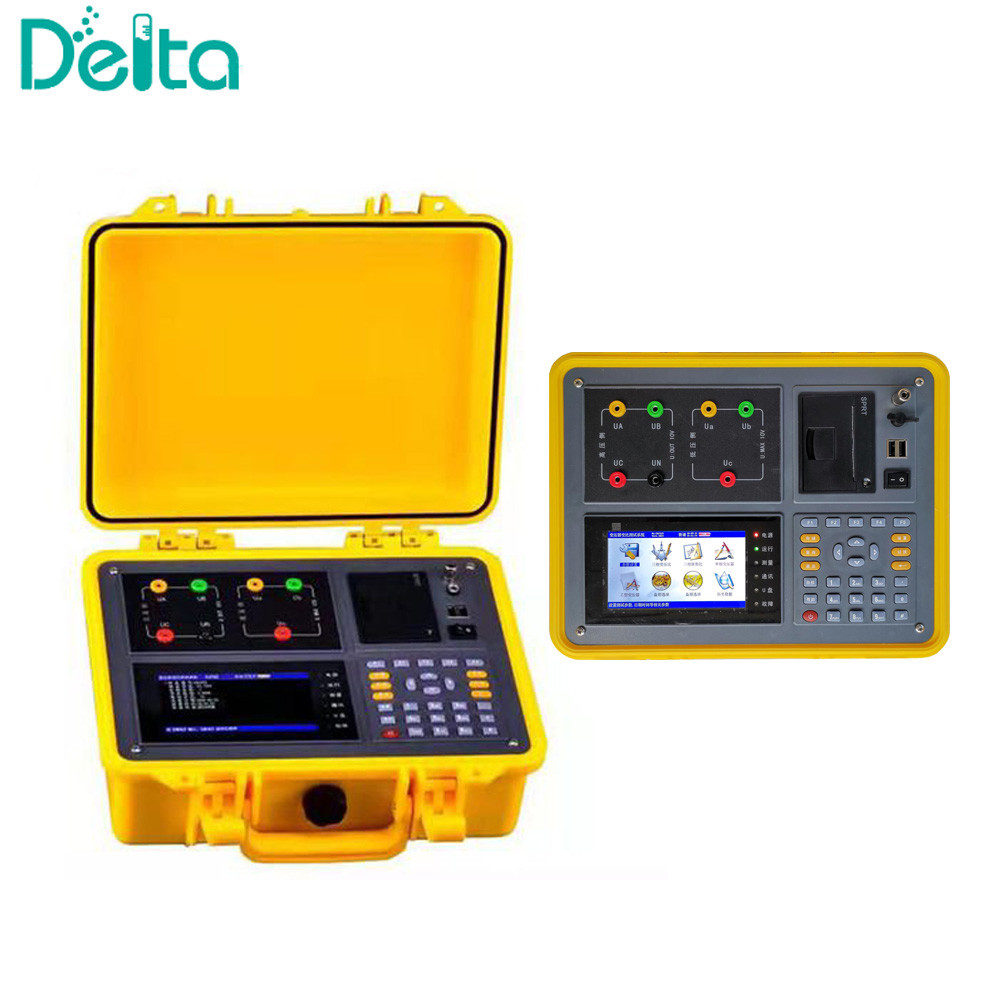

TTR-III With Battery Portable Transformer Turn Ratio Polarity Testing Instrument
Introduction:
TTR-III Portable Transformer Turn Ratio Polarity Testing Instrument is independently developed and produced by our company according to the user's on-site use requirements. It is easy to operate, complete in function, and stable and reliable in data.
At the same time, it is also the first variable ratio tester in China that can perform blind test (accurate measurement without knowing the connection method and group of the transformer under test) and test the parallel running state of the main transformer.
TTR-III Portable Transformer Turn Ratio Polarity Testing Instrument can test problem of parallel operation of transformers from the root.
TTR-III Portable Transformer Turn Ratio Polarity Testing Instrument is the most advanced and multi-functional turns ratio tester in China.
Main Parameters:
1. Ratio measurement range: 0.9~10000.
2. Measurement speed: complete the three-phase test within 1 minute.
3. Accuracy: High voltage side voltage is 0.05%, low-voltage side voltage is 0.1%
4.Ratio measurement accuracy: 0.9-1000: 0.1% 1000-3000: 0.2% 3000-10000:0.3%
5. Power supply: AC220V, 50Hz, and DC rechargeable battery.
5. Weight: 3Kg
Main Features:
1. Multi-functions:
| Parameters Testing | Single Phase Transformer | 3 Phase Transformer |
| Turns Ratio Testing | Yes | Yes |
| Phase Angle Testing | Yes | Yes |
| Polarity Testing | Yes | Yes |
| Vector Group Testing | / | Yes |
2. Blind test function: There is no need to select the wiring method and group, and the measurement of Y/△, △/Y transformers does not require external short-circuit, and the wiring method can be automatically switched according to the selected test content.
3. Tap test: It can quickly measure the transformation ratio and transformation ratio error at each tap changer position. The rated transformation ratio only needs to be input once, and the transformation ratio error of each tap position can be calculated without repeated input.
4. The magnitude and phase relationship between various voltages and currents are visually represented by vector diagrams, so that users can easily understand the actual meaning of each parameter.
5. The test source used by this instrument is a digitally synthesized standard sinusoidal digital source with a distortion degree of less than 0.1% and is not affected by the quality of the working power supply
