Low Price High Accuracy Electrical Testing Meter Current Transformer Loading Box
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | FY-H |
| Minimum Order Quantity | 1 set Electrical Testing Meter Current Transformer Loading Box |
| Price | USD1.0 / set Electrical Testing Meter Current Transformer Loading Box |
| Packaging Details | Electrical Testing Meter Current Transformer Loading Box is packed in one plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Classes | 6kv, 10kv, 35kv, 110kv, 220 Kv | Class Of Accuracy | 0.05 Level, 0.02 Level, 0.01 Level |
|---|---|---|---|
| Testing Voltage | 2kv | Power Factor | 0.8-1.0 |
| Accuracy | 3% | Rated Current | 5A |
| Current Range | 1% - 120% | Rated Capacity | 2.5 - 60va |
| Rated Frequency | 50Hz | Operation Mode | Manual |
| Display | Analoge | Language | English |
| Type | Electrical Testing Meter Current Transformer Loading Box | Dimension | 25cm * 35cm * 18cm |
| Net Weight | 8kg |
Product Description

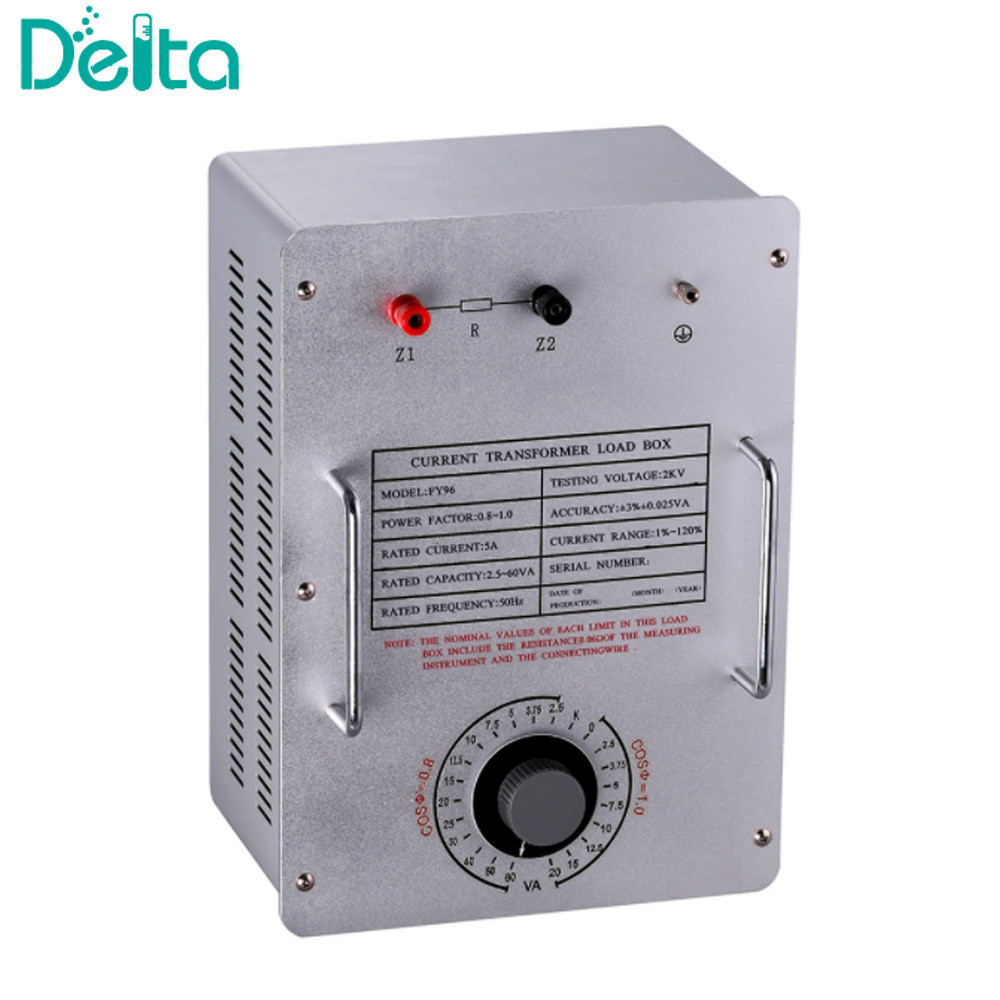

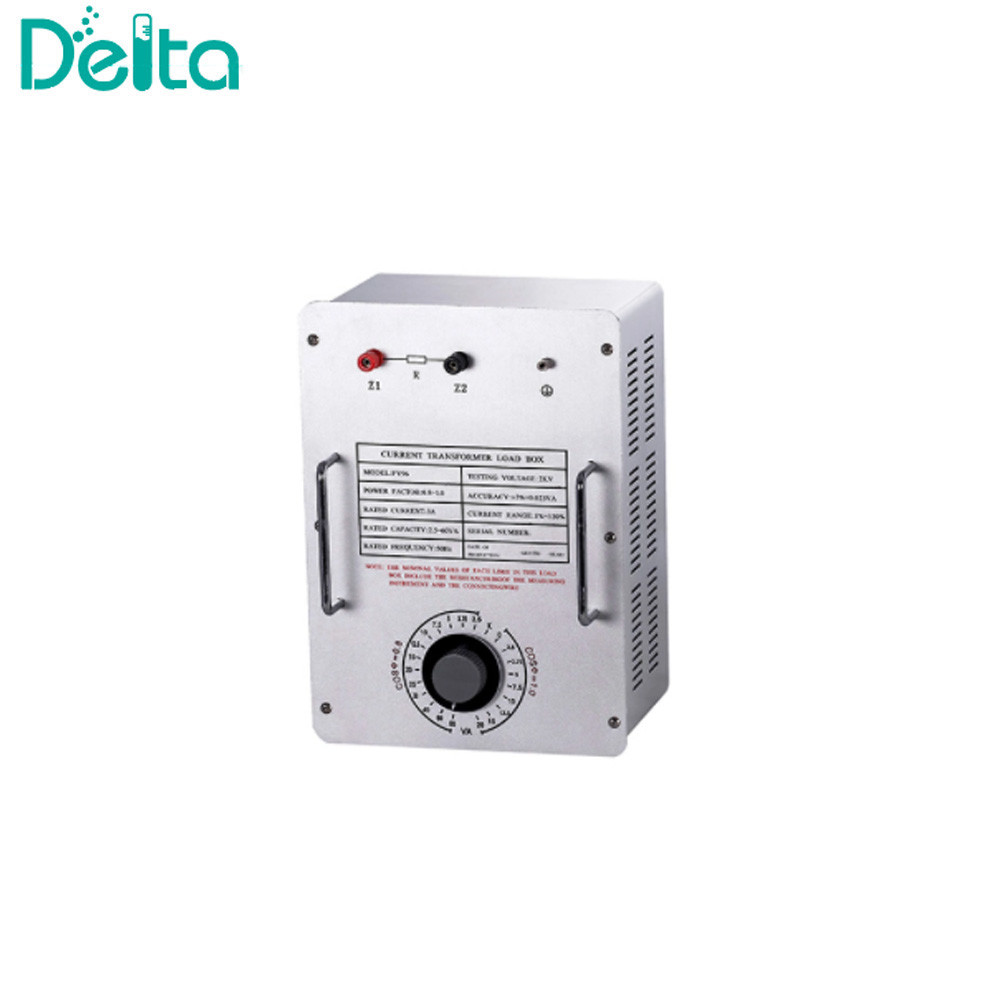

Low Price High Accuracy Electrical Testing Meter Current Transformer Loading Box
Introduction:
- The Low Price High Accuracy Electrical Testing Meter Current Transformer Loading Box is specially provided for various payloads when testing current and voltage transformers, and it is an ideal matching product for various transformer verification devices.
- The Low Price High Accuracy Electrical Testing Meter Current Transformer Loading Box is in strict accordance with the national standard.
- The Low Price High Accuracy Electrical Testing Meter Current Transformer Loading Box output capacity is large, with full range of loads, in light weight, and stable.
Main Parameters:
- Voltage classes: 6kV, 10kV, 35kV, 110kV, 220 kV;
- Class of accuracy: 0.05 level,0.02 level,0.01 level;
