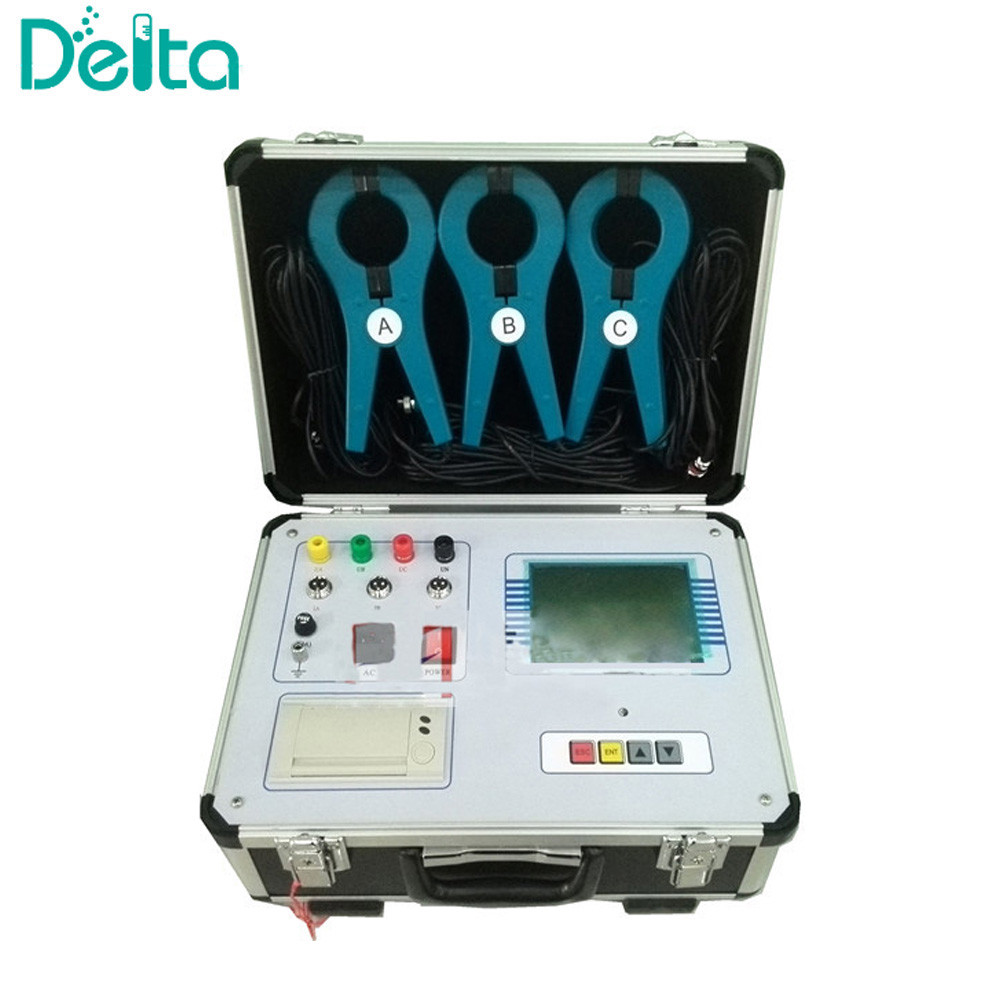

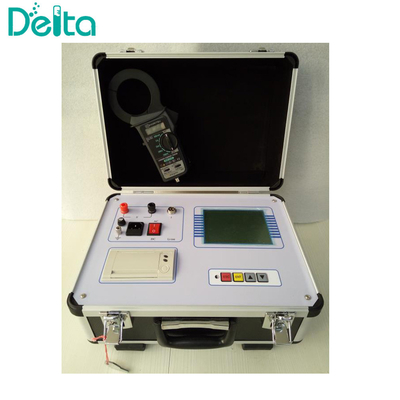

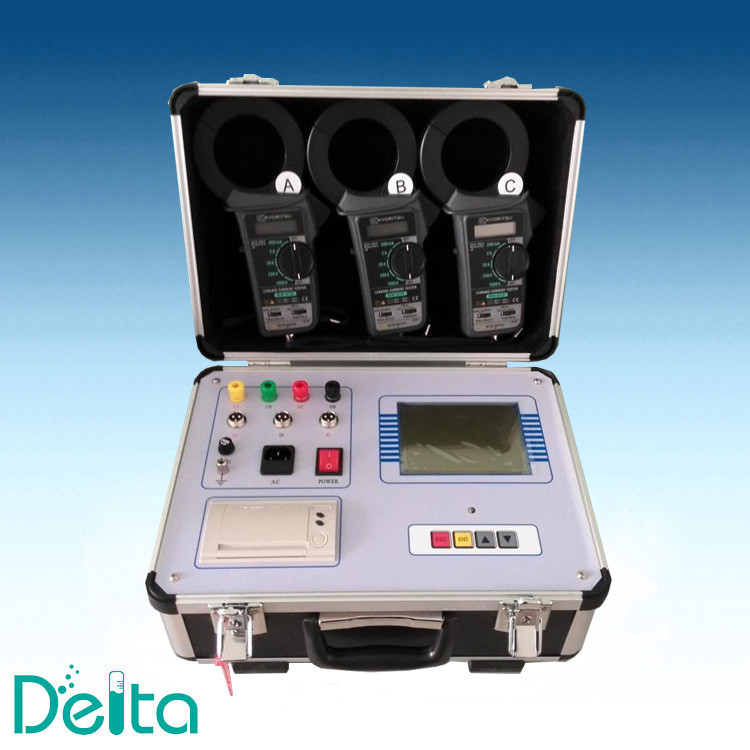

0.1UF~3300UF Automatic Capacitance Bridge Tester Meter

  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
  • 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
Place of Origin China Mainland
Brand Name Delta
Certification ISO9001
Model Number DR-C50
Minimum Order Quantity 1 set Capacitance Bridge Tester Meter
Price USD1,000.0 - USD3,000.0
Packaging Details Capacitance Bridge Tester Meter is Packed in one plywood case.
Delivery Time Within 10 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets Capacitance Bridge Tester Meter / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Automatic For Capacitor Bank Testing Capacitance Measurement Range 0.01UF-3,300UF
Current Measurement Range 0-20A Inductance Measurement 1mh-50h
Resistance Measurement 50mohm-20kohm Dimension 400mm*320mm*220mm
Net Weight 8kg Test Object Capacitor Bank Or Reactors
Measured Parameters Capacitance, Current, Inductance, Resistance...... Equipment Type Electrical Testing Equipment
Language Language Power Supply 220V, 50Hz
You can tick the products you need and communicate with us in the message board.
Capacitance Bridge Tester Meter 10 sets
Leave a Message
Product Description

DC-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter



Introduction:
Capacitors in the capacitor bank are all in parallel in the field, so the leads need to be removed when workers measure with a general capacitance meter, which is a heavy workload and easily causes wiring errors.

Our DR-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter is newly developed to measure single or three capacitors of a group of parallel capacitors without disconnecting the wire, and it can also measure the inductance, resistance, and current.

The wiring is convenient, the operation is simple, which reduces the workload of the maintenance personnel and greatly improve the testing efficiency of the site, and provides security for the normal operation of the power grid.

Main Parameters:



No. Item Name DR-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
1 Capacitance measurement Capacitance range 0.01μF ~ 3,300μF
Capacity range 5 ~ 20,000kvar
Accuracy ±1.0%
Resolution 0.001μF
2 Current measurement Measurement range 0~20A
Accuracy ±3.0%
Resolution 0.01A
3 Inductance measurement Measurement range Small inductance method: 1mH-5Mh; Large inductance method: 5Mh-50H
Inductive reactance measurement range 50mΩ~20KΩ
Accuracy ±3.0%
Resolution 0.01Mh
4 Resistance measurement Measurement range

Small inductance method: 50mohm-1ohm;

Large inductance method: 1ohm-20Kohm
Accuracy 0.01ohm
5 Power supply 220V±10%, 50Hz
Rated output 2V/20V/500VA
6 Working environment 0℃ ~ +40℃,≤90%RH
7 Dimension 400mm*320mm*220mm
8 Weight 8kg
