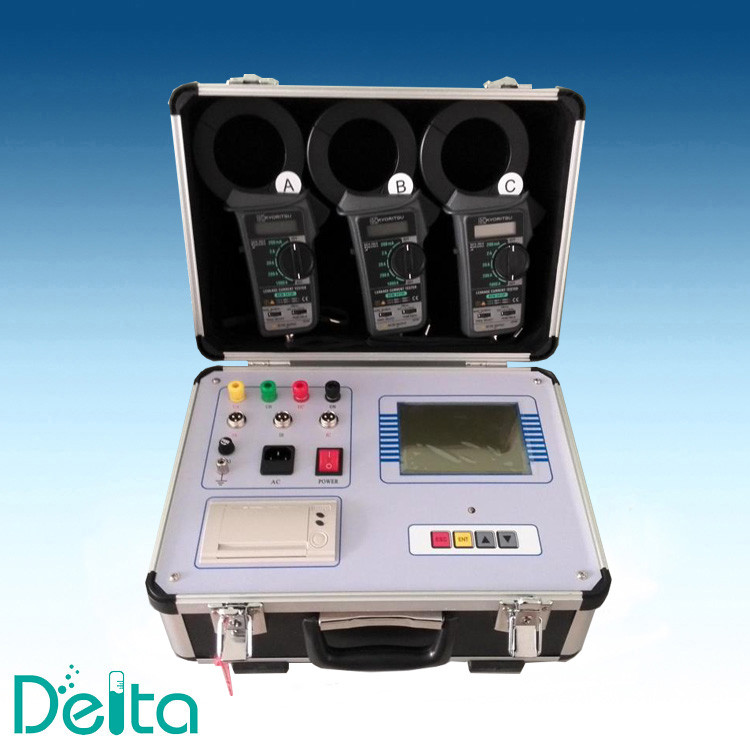

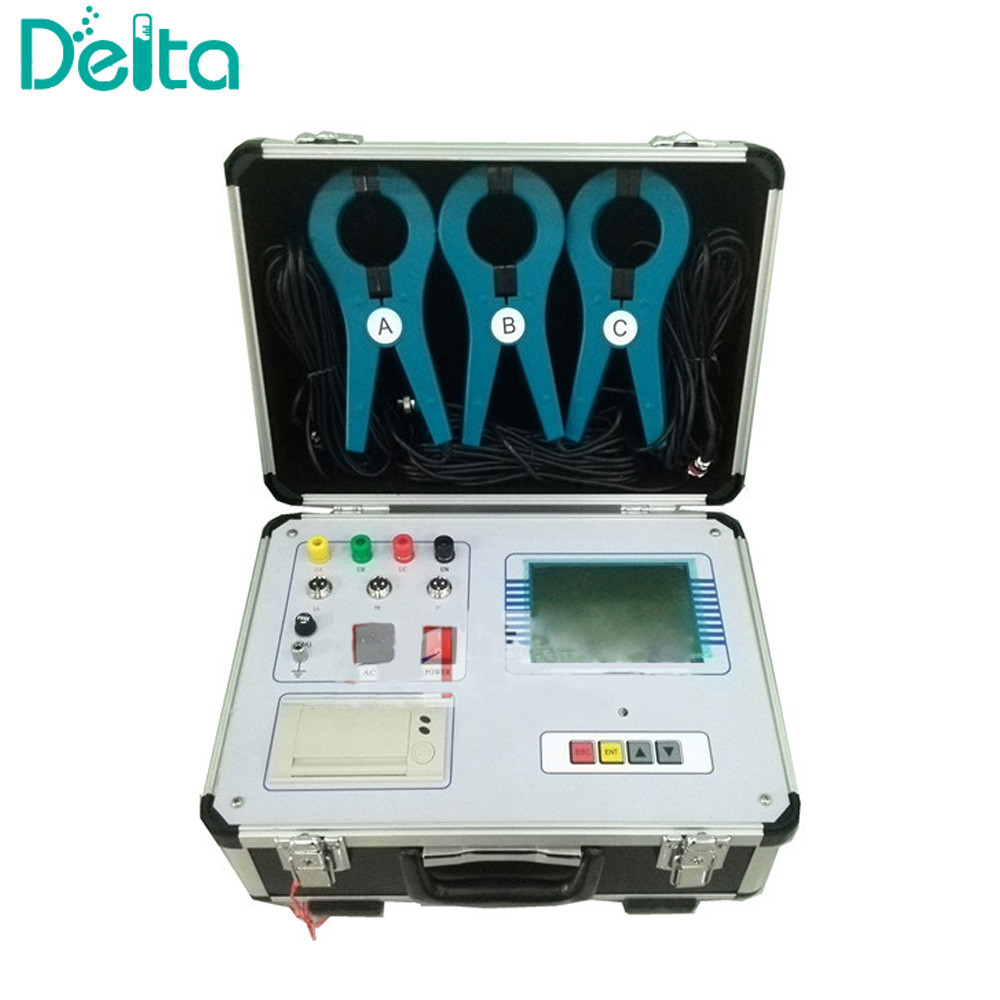

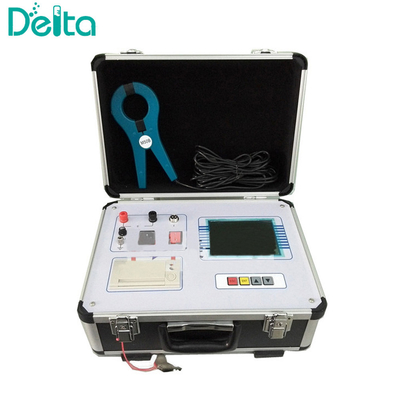

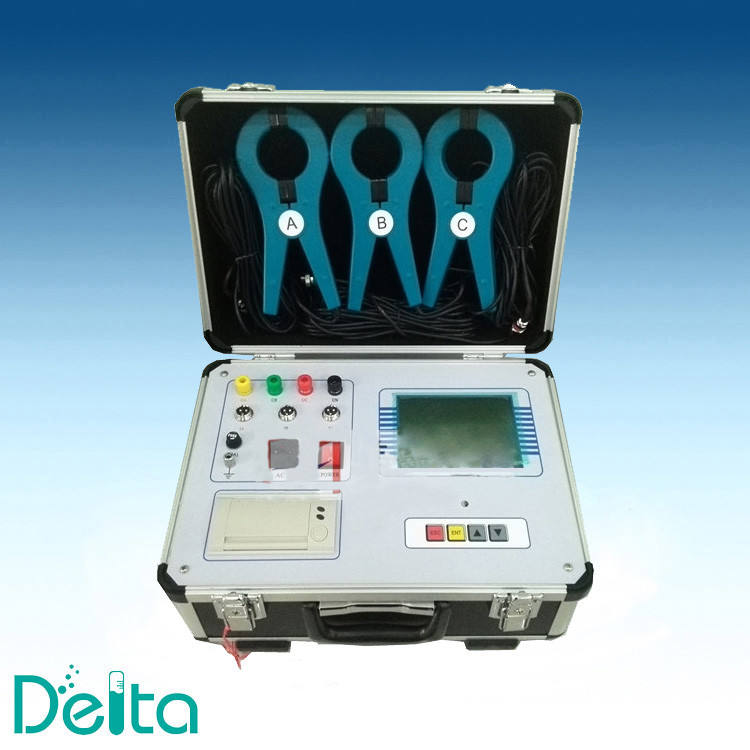

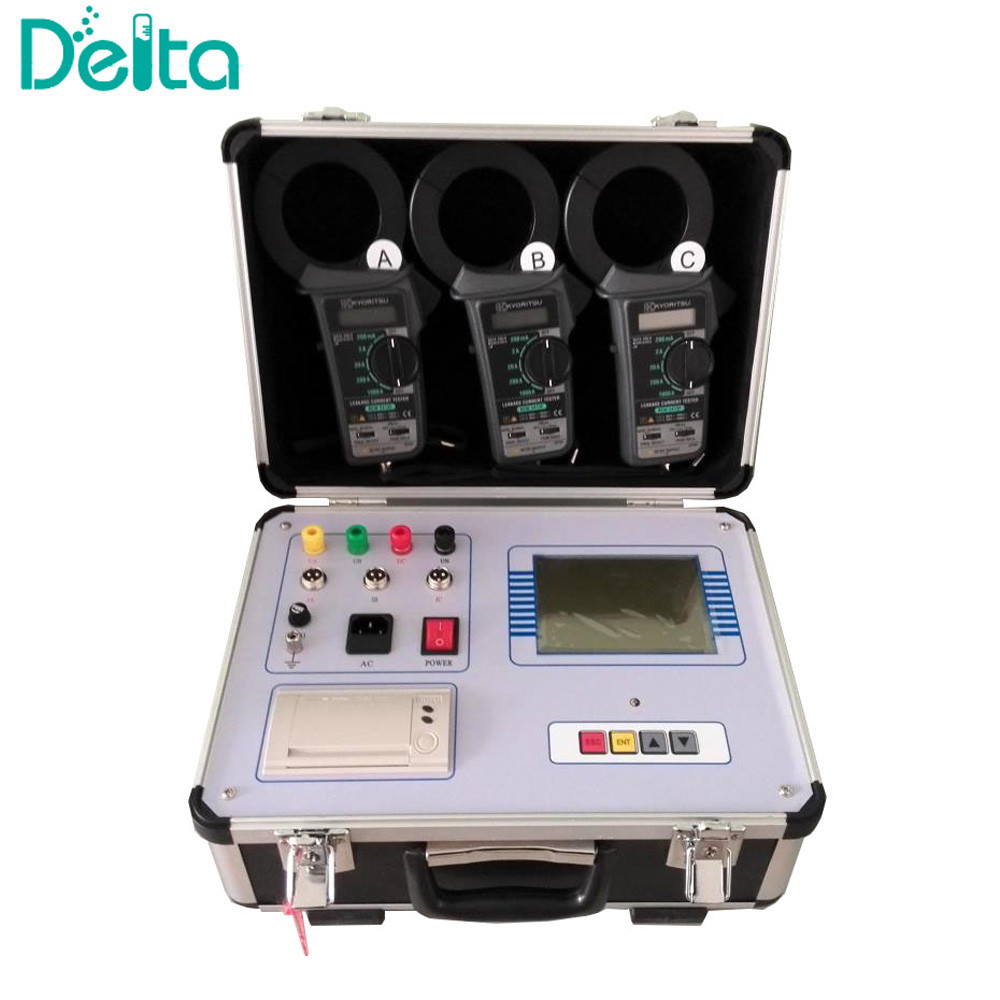

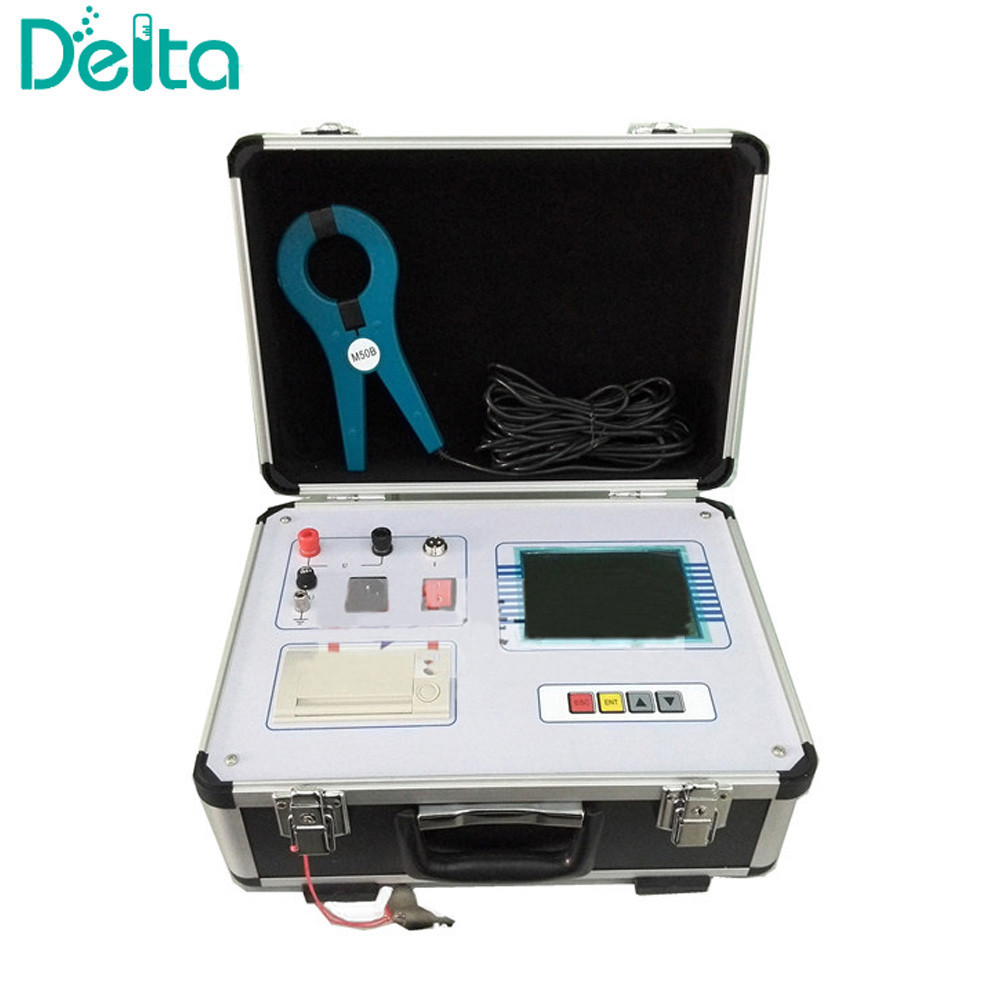

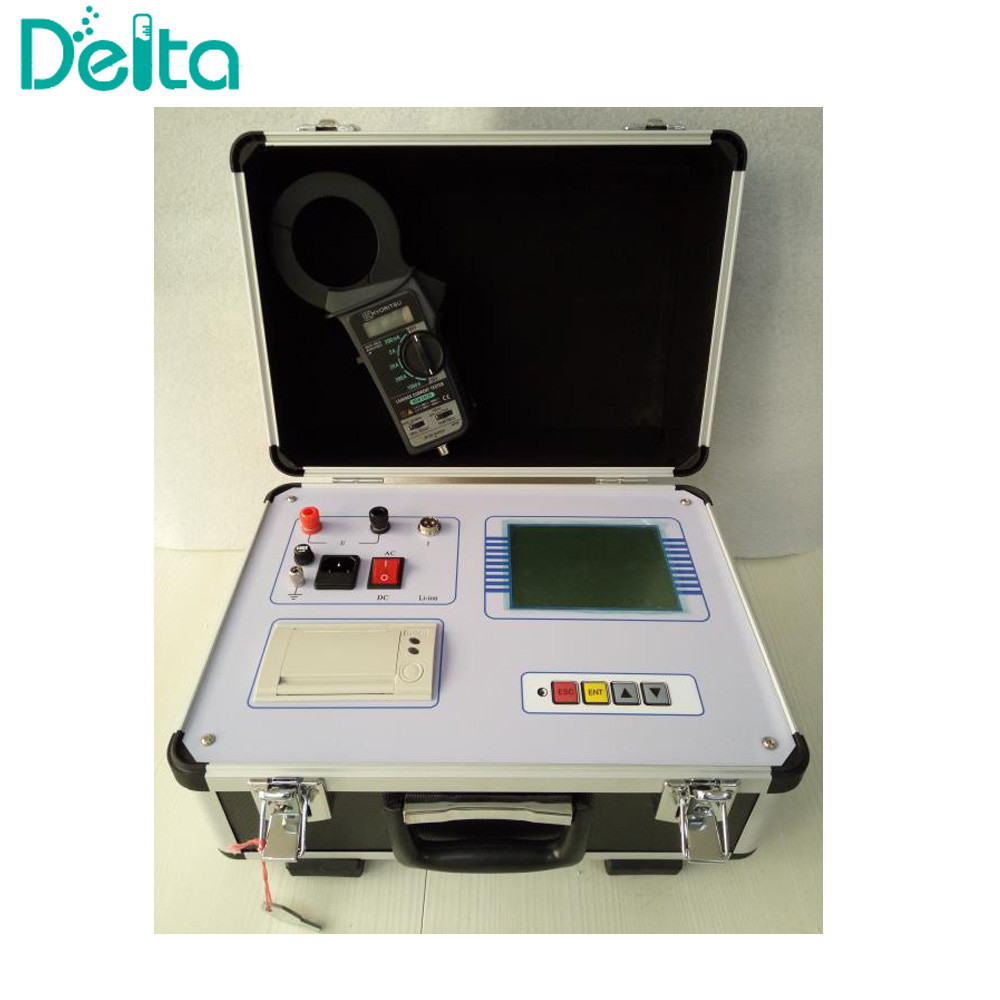

Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester

  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
  • Automatic Three Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester
Place of Origin China Mainland
Brand Name Delta
Certification ISO9001
Model Number DR-C50
Minimum Order Quantity 1 set
Price USD1,000.0 - USD3,000.0
Packaging Details Packed in one plywood case.
Delivery Time Within 10 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

DC-C50 Automatic Three-Phase Capacitor Capacitance Inductance Test Equipment Capacitance Bridge Tester



Introduction:
Capacitors in the capacitor bank are all in parallel in the field, so the leads need to be removed when workers measure with a general capacitance meter, which is a heavy workload and easily causes wiring errors.

Our DR-C50 Three Phase Capacitor Capacitance Inductance Tester is newly developed to measure single or three capacitors of a group of parallel capacitors without disconnecting the wire, and it can also measure the inductance, resistance, and current.

The wiring is convenient, the operation is simple, which reduces the workload of the maintenance personnel and greatly improve the testing efficiency of the site, and provides security for the normal operation of the power grid.

Main Parameters:



No. Item Name DR-C50 Capacitance Inductance Test Equipment Capacitance Bridge Tester
1 Capacitance measurement Capacitance range 0.01μF ~ 3,300μF
Capacity range 5 ~ 20,000kvar
Accuracy ±1.0%
Resolution 0.001μF
2 Current measurement Measurement range 0~20A
Accuracy ±3.0%
Resolution 0.01A
3 Inductance measurement Measurement range Small inductance method: 1mH-5Mh; Large inductance method: 5Mh-50H
Inductive reactance measurement range 50mΩ~20KΩ
Accuracy ±3.0%
Resolution 0.01Mh
4 Resistance measurement Measurement range

Small inductance method: 50mohm-1ohm;

Large inductance method: 1ohm-20Kohm
Accuracy 0.01ohm
5 Power supply 220V±10%, 50Hz
Rated output 2V/20V/500VA
6 Working environment 0℃ ~ +40℃,≤90%RH
7 Dimension 400mm*320mm*220mm
8 Weight 8kg
