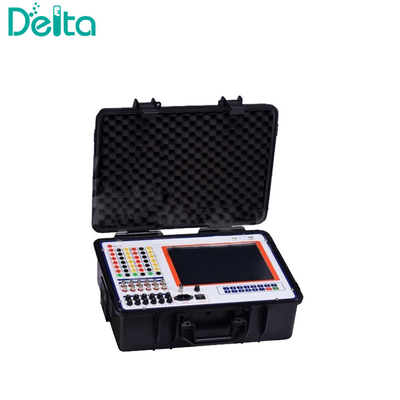

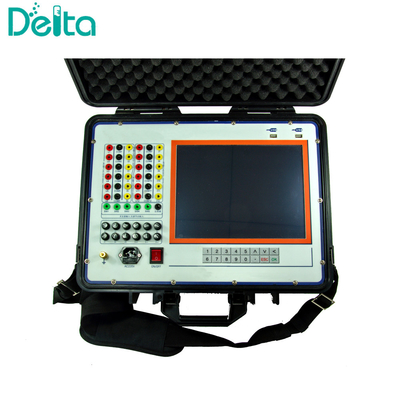

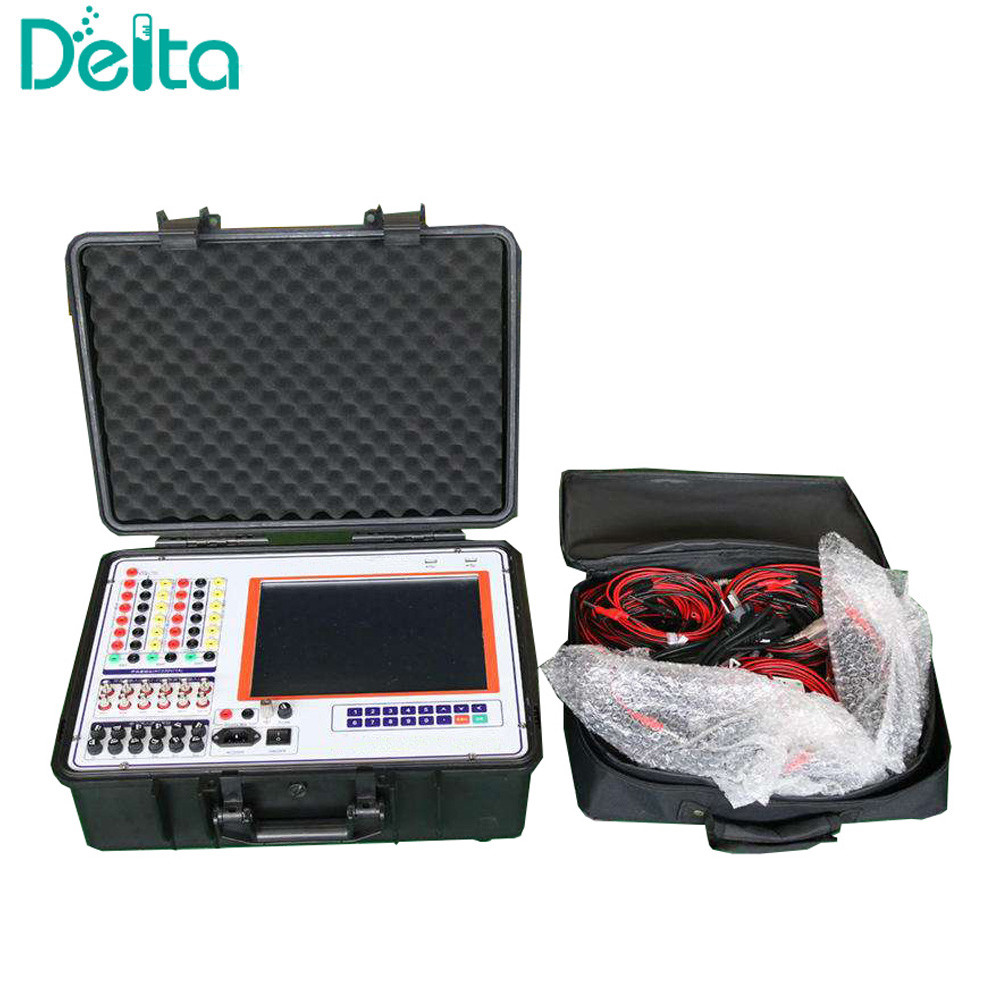

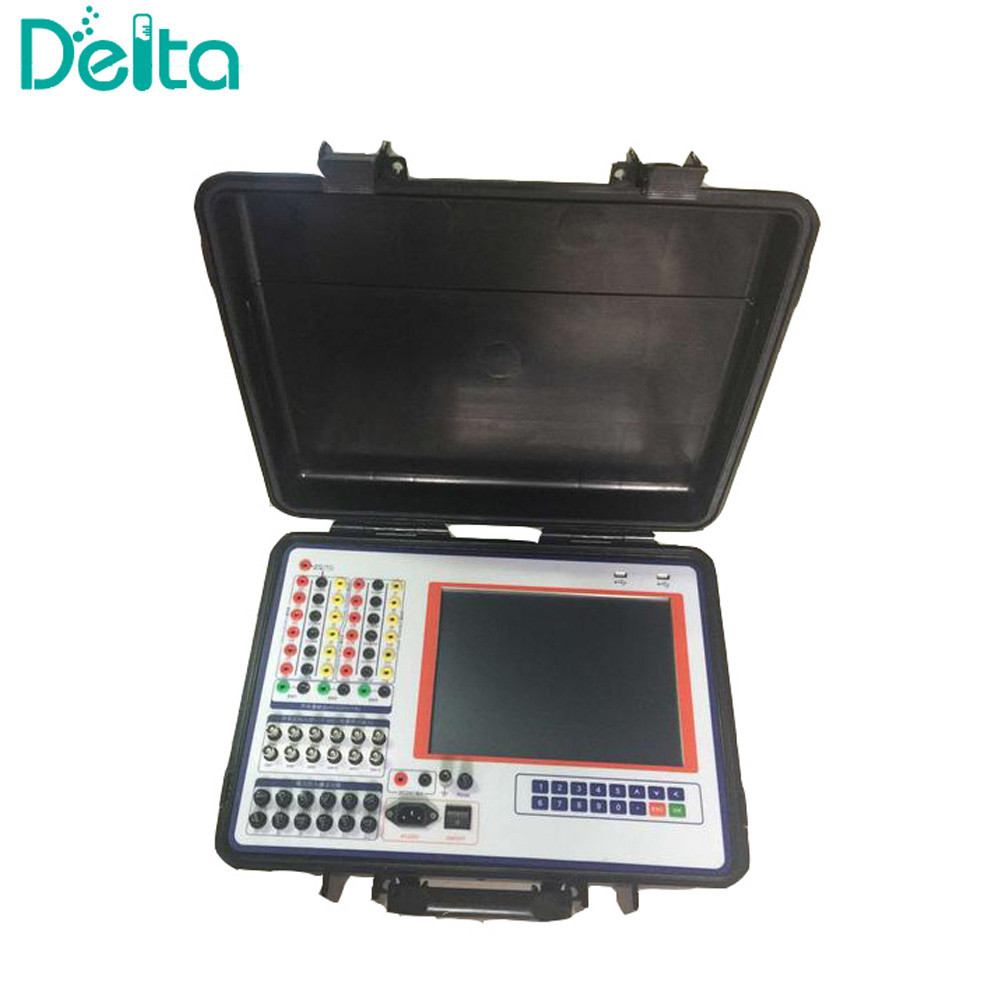

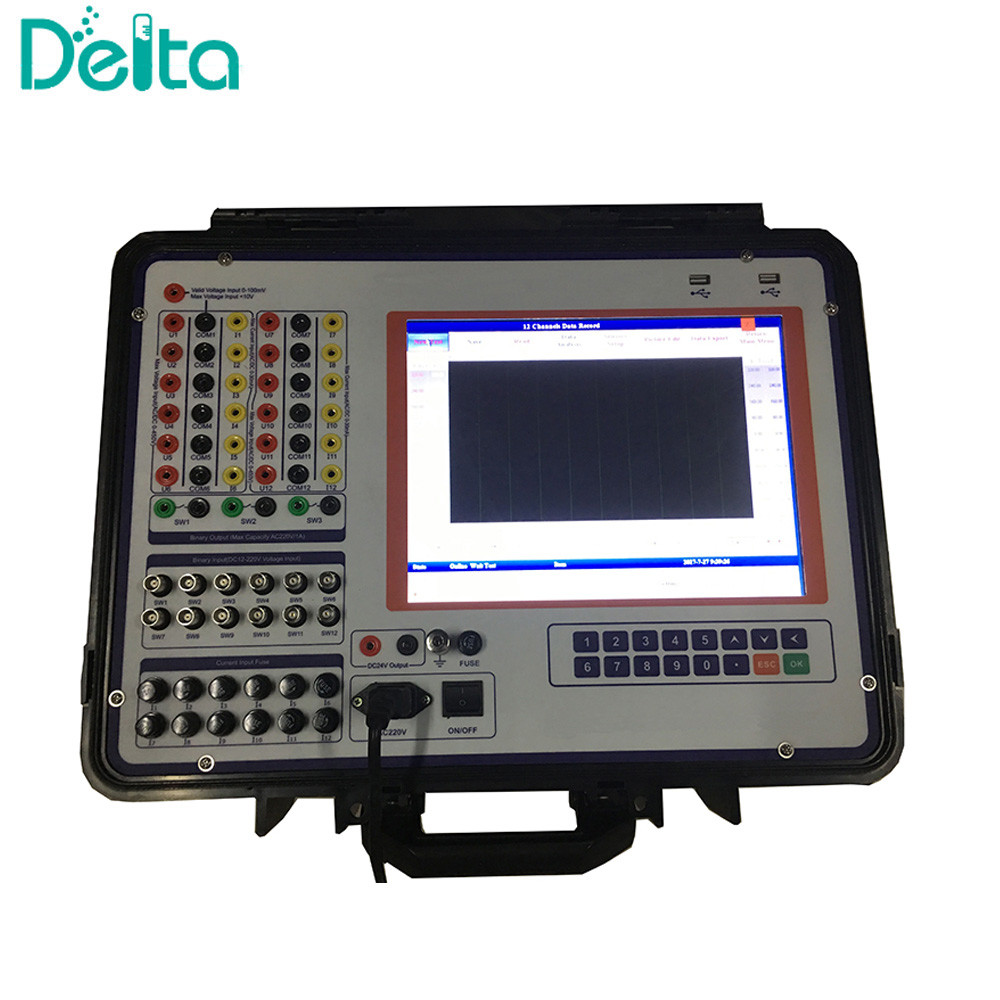

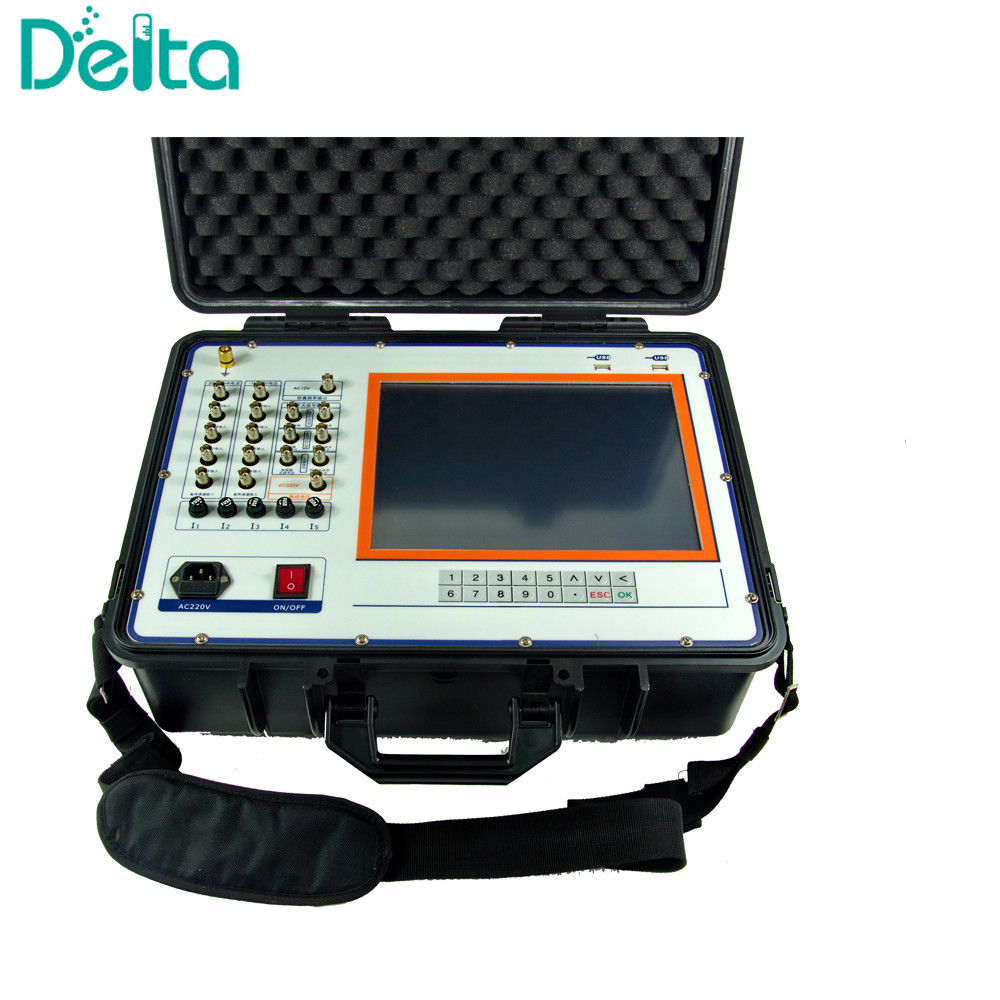

SR-601 Instantaneous Power Signal Recorder Power Data Logger
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SR-601 |
| Minimum Order Quantity | 1 set Data Logger |
| Price | USD1.0 / set Data Logger |
| Packaging Details | Data Logger is packed in veneer case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Data Logger / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Automatic 12 Channels | Description | SR-601 Instantaneous Power Signal Recorder Power Data Logger |
|---|---|---|---|
| Application | For Generator, For Power System | Signal Sample Channels | 12 |
| Display | LCD | Operation Mothod | Through The LCD Touch Screen |
| Data Storage | SD Card 32g | Dimension | 448mm*260mm*150mm |
| Weight | <10kg | Power Supply | 220V, 50Hz |
| Delivery Lead Time | 10 Days | Trade Term | EXW, Fob, CNF, CIF, DDU, Etc. |
| Shipping Method | By Express Or Air | Language | English |
| OEM Service | Available | Accuracy | 0.1% |
| Humidity | 0-90%RH | Operating Temperature | 0-50℃ |
| Storage Temperature | -20-60℃ | Warranty | 1 Year |
| Highlight | SR-601 power data logger,instantaneous power signal recorder,electric testing equipment with warranty |
||
Product Description
SR-601 Instantaneous Power Signal Recorder Power Data Logger
Introduction:
SR-601 Signal Recorder is designed for power signal recording.
The power generator test items are integrated at the tester.
It can do the following tests for the motor (power generator):
No-load test,
Short circuit test,
Motor excitation step response test,
Motor excitatory de-excitation test,
Motor load rejection test,
Grid synchronous connection test,
and also on.
Specifications:
| No. | Item Name | SR-601 Instantaneous Power Signal Recorder Power Data Logger |
| 1 | Analog signal sample channels | 12 |
| 2 | Optional ranges | -450V~450V,-100V~100V,~10V~10V,-20mA~20mA, -100mV~100mV(only 1 channel) |
| 3 | Sample error | -450V~450V: error<0.5V -100V~100V: error <0.2V -10V~10V: error <0.01V -20mA~20mA: error <0.02mA -100mV~100mV: error<0.5mV |
| Input resistances for different channels | -10V~10V: 820K -200V~200V: 820K -400V~400V: 820K -20mA~20mA: 820K -100mV~100mV: 10M |
|
| 4 | Binary signal input interface | 12 |
| 5 | Binary signal voltage ranges | DC 12~220V |
| 6 | Power supply | AC220V±10% |
| 7 | Power frequency | 45Hz-65Hz |
| 8 | Power consumption | ≤60w |
| 9 | Working environment | -10~50ºC, humidity ≤85%RH |
| 10 | Dimension | 448mm*260mm*150 mm |
| 11 | Weight | <10kg |

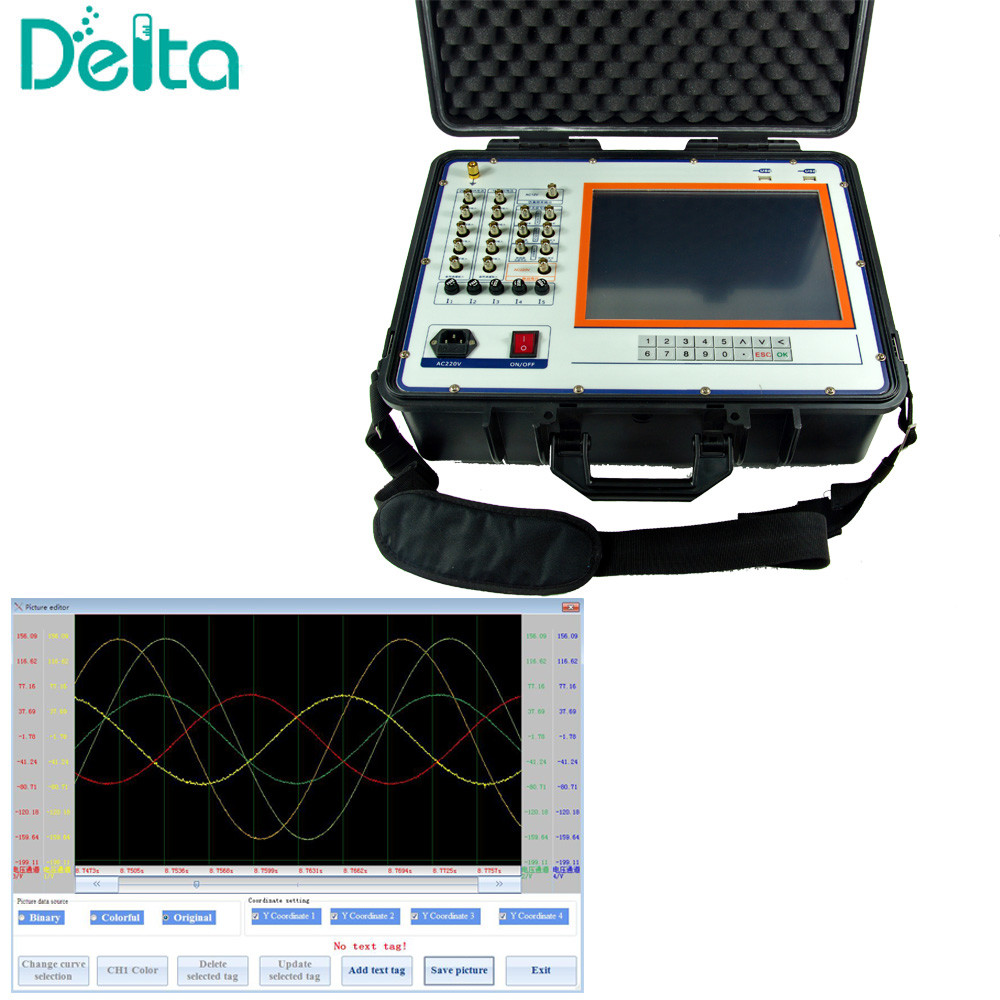

Software:
The strong software system in the tester includes:
Data compress,
signal statistics and analysis,
curve picture-making tools,
frequency spectrum tools,
curve math tools,
harmonic analysis tools,
RMS calculation,
Power calculation,
three-phase signal analysis tool,
vector analysis tools.
