Sr-601 12 Channels Curve Data Logger Data Recorder for Power System
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SR-601 |
| Minimum Order Quantity | 1 set Data Logger Data Recorder |
| Price | USD1.0 / set Data Logger Data Recorder |
| Packaging Details | Data Logger Data Recorder is packed in veneer case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Data Logger Data Recorder / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Automatic 12 Channels | Description | 12 Channels Curve Data Logger Data Recorder |
|---|---|---|---|
| Application | For Generator, For Power System | Signal Sample Channels | 12 |
| Display | 12.1 Inch LCD Screen | Operation Mothod | Through The LCD Touch Screen |
| Data Storage | SD Card 32g | Dimension | 448mm*260mm*150mm |
| Weight | <10kg | Power Supply | 220V, 50Hz |
| Delivery Lead Time | 10 Days | Trade Term | EXW, Fob, CNF, CIF, DDU, Etc. |
| Shipping Method | By Express Or Air | Language | English |
| OEM Service | Available |
Product Description

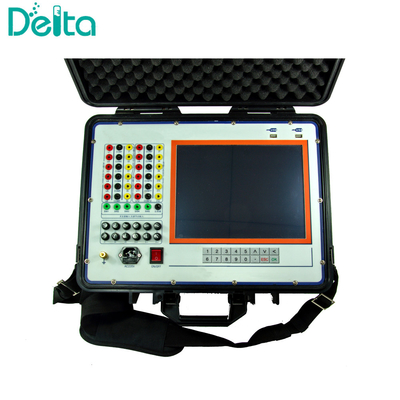

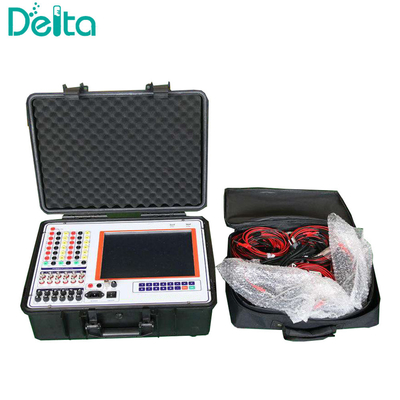

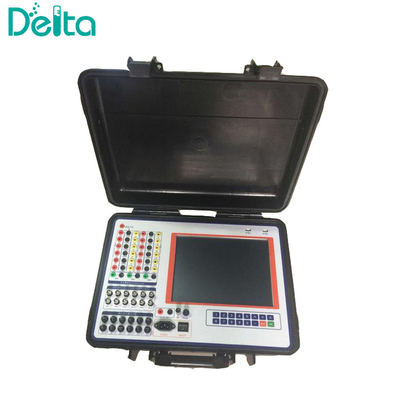

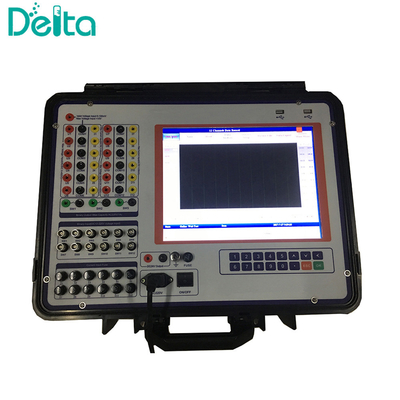

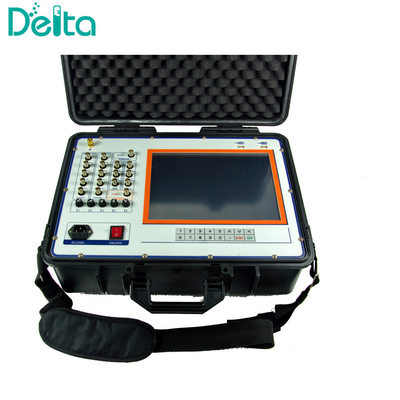

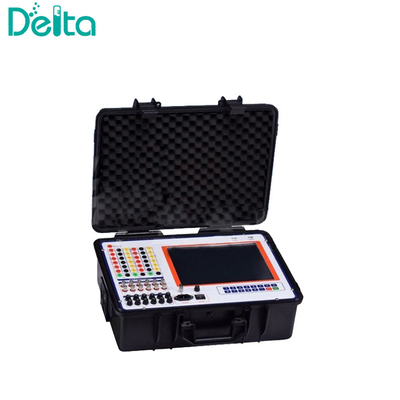

SR-601 12 Channels Curve Data Logger Data Recorder for Power System
Introduction:
SR-601 Data Logger Data Recorder is designed for power signal recording.
The power generator test items are integrated at the tester.
It can do following tests for motor (power generator):
No-load test,
Short circuit test,
Motor excitation step response test,
Motor excitatory de-excitation test,
Motor load rejection test,
Grid synchronous connection test,
and also on.
Specifications:
| No. | Item Name | SR-601 12 Channels Curve Data Logger Data Recorder for Power System |
| 1 | Analog signal sample channels | 12 |
| 2 | Optional ranges | -450V~450V,-100V~100V,~10V~10V,-20mA~20mA, -100mV~100mV(only 1 channel) |
| 3 | Sample error | -450V~450V: error<0.5V -100V~100V: error <0.2V -10V~10V: error <0.01V -20mA~20mA: error <0.02mA -100mV~100mV: error<0.5mV |
| Input resistances for different channels | -10V~10V: 820K -200V~200V: 820K -400V~400V: 820K -20mA~20mA: 820K -100mV~100mV: 10M |
|
| 4 | Binary signal input interface | 12 |
| 5 | Binary signal voltage ranges | DC 12~220V |
| 6 | Power supply | AC220V±10% |
| 7 | Power frequency | 45Hz-65Hz |
| 8 | Power consumption | ≤60w |
| 9 | Working environment | -10~50ºC, humidity ≤85%RH |
| 10 | Dimension | 448mm*260mm*150 mm |
| 11 | Weight | <10kg |

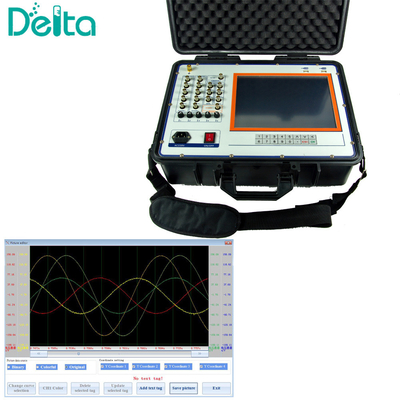

Software:
The strong software system in the tester include:
Data compress,
signal statistics and analysis,
curve picture making tools,
frequency spectrum tools,
curve math tools,
harmonic analysis tools,
RMS calculation,
Power calculation,
three phase signal analysis tool,
vector analysis tools.
