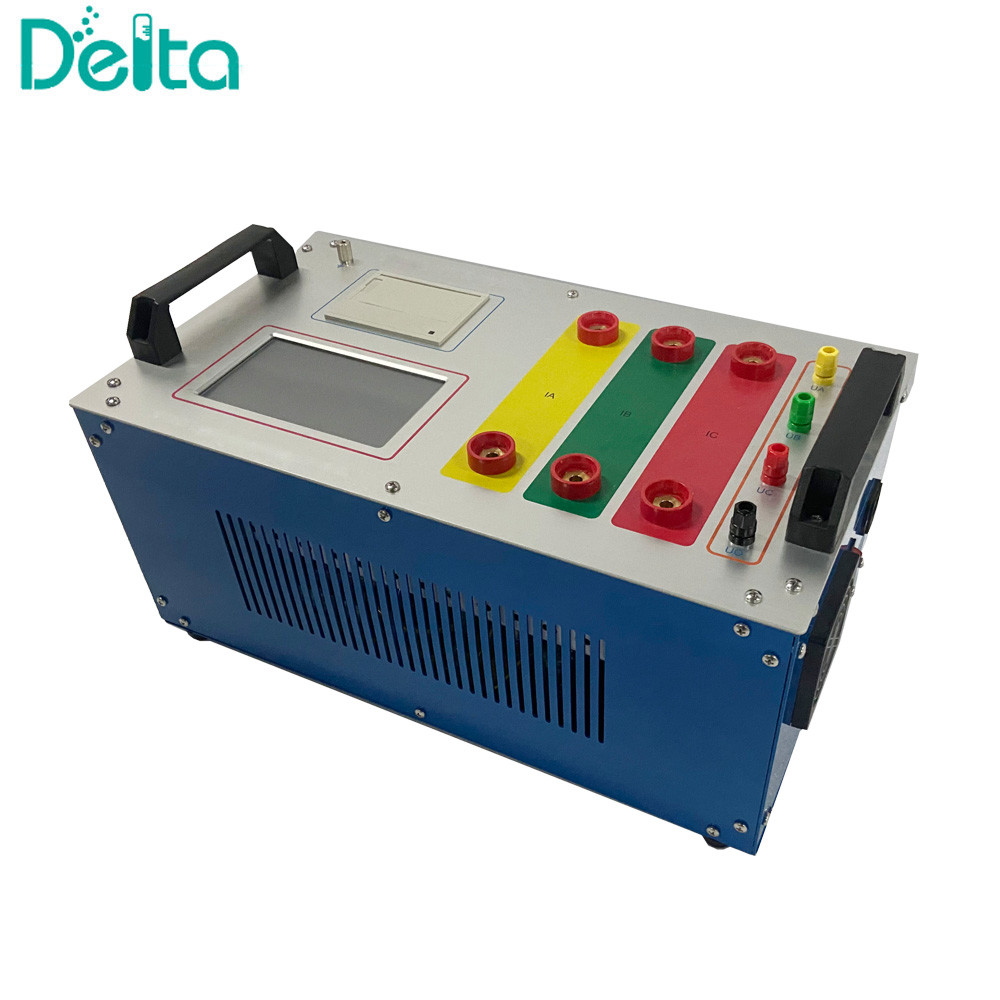

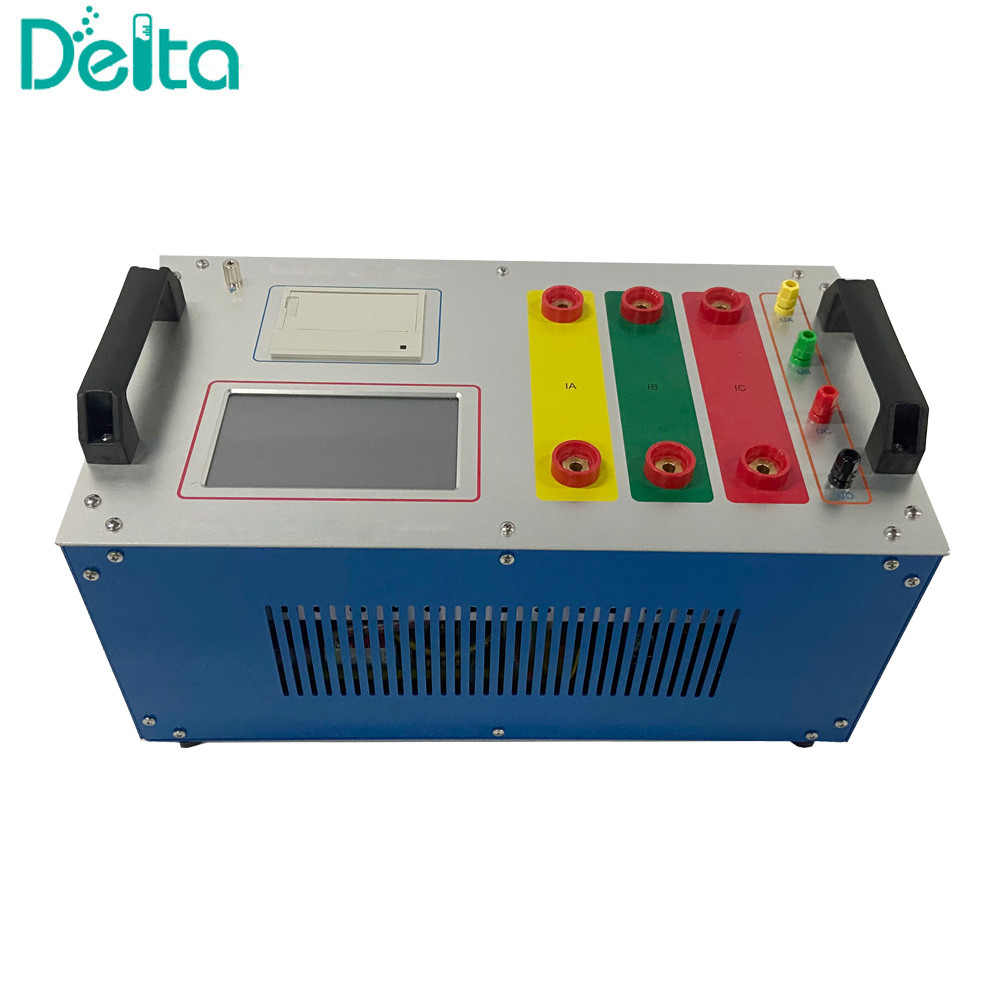

SFRA High Accuracy Power Transformer Winding Deformation Testing Equipment

SFRA High Accuracy Power Transformer Winding Deformation Testing Equipment

Introduction:

• Normally, the structure and reference of the transformer are fixed after being made, therefore, the frequency response of each winding will be almost the same. However, under some special conditions, such as cut off between circles or phases during the test, cut off or winding moved during running, or winding moved in transportation, these conditions may change the structure of the transformer, then the frequency response may be changed, we could detect the deformation according to the frequency response curve.
• Our company has designed the SFRA High Accuracy Power Transformer Winding Deformation Testing Equipment based on the idea and the advanced technique. It could draw the frequency response curve accurately. Then we compare the curves horizontally or vertically to detect the deformation of the transformer.
• SFRA High Accuracy Power Transformer Winding Deformation Testing Equipment is a powerful and sensitive method to evaluate the core, winding, and clamping structures of power transformers, by measuring their electrical transfer functions over a wide frequency range.

Specifications:

Features:

1. Adopts advanced technical of DDS;
2. Adopts high speed and advanced microprocessor;
3. Adopts double channels of AD chip of 16 bits;
4. With seven inch LCD touch screen;
5. With built-in thermal printer;
6. With PC software, we can operate, analyze data, upload data, and generate Word documents;
7. Can store 40 groups of data;
8. You can use USB2.0 to connect with the device;
