TAG-8000 Portable Wireless Phasing Stick High Voltage Phase Tester
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | TAG-8000 |
| Minimum Order Quantity | 1 set High Voltage Phase Tester |
| Price | USD1.0 / set |

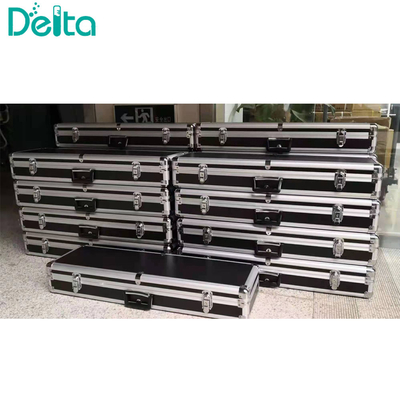

| Packaging Details | High Voltage Phase Tester is packed in one plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 Sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Voltage Range | 0.22kv - 220kv | Maximum Detection Distance | 100 Meters |
|---|---|---|---|

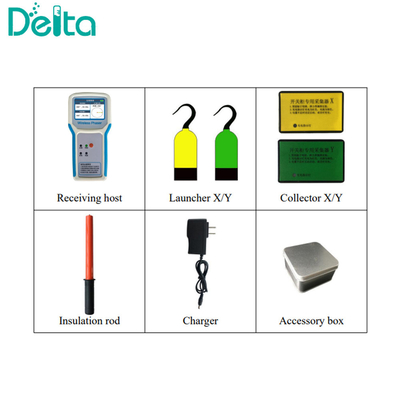

| Frequency Accuracy | 0.1Hz | Consists | Two Transmitters (X And Y) And A Receiver |
| High Voltage Leakage Current | <10ua | Transmitter Power Consumption | <0.1W |
| Receiver Working Power | <0.3W | Net Weight | 3.6kg |
| Packaging Size | 56cm *26cm *13cm | Mainframe Power Supply | 2500mAh Battery |
| Transmitter Power Supply | 450mAh. | Delivery Lead Time | 7 Days |
| Shipping Method | By Courier | Language | English |
| OEM Service | Available | ||
| Highlight | portable wireless phasing stick,high voltage phase tester,electric testing equipment with warranty |
||
Product Description
TAG-8000 Portable Wireless Phasing Stick High Voltage Phase Tester
Introduction:
- TAG-8000 Portable Wireless Phasing Stick Transmission Line Tester is applied to the grid-connected or circuit-connected nuclear phases of two High-Voltage circuits.
- It can also be used for remote (remote) nuclear phases to determine whether the color of the phase sequence is consistent with the name of the phase sequence.
- It is suitable for live operation of 0.22 ~ 220kV AC transmission line and secondary side live operation, with high voltage galvanometer function.
- It adopts wireless transmission technology, safe and reliable operation, convenient use, and overcomes many disadvantages of wired nuclear phase instruments.
- Meanwhile, it is configured with a GPS module, and two or more instruments can be used for the remote nuclear phase after matching and upgrading.
Parameters:
| Item Name | TAG-8000 Portable Wireless Phasing Stick High Voltage Phase Tester |
| Phase difference accuracy | Error ≤5° |
| Frequency accuracy | ±0.1Hz |
| Cross-voltage measurement range | 0.22kV~220kV |
| Maximum transmission line-of-sight | about 100 meters |
| High voltage leakage current when measured | <10uA |
| Transmitter power consumption | <0.1W |
| Receiving mainframe working power | <0.3W |
| Working environment | -35ºC--- +45ºC humidity≤95%RH |
| Complete machine weight | 3.6kg |
| Instrument packaging size | length 56cm* width 26cm* height 13cm |
Features:
- The measurement range across voltage is 0.22kv ~ 220kV.
- The maximum transmission line-of-sight of the transmitter and receiving mainframe is about 100 meters.
- The distance of two GPS mainframes is 0.3km ~ 800km in the remote nuclear phase.
- Human voice prompts measurement results and operation steps.

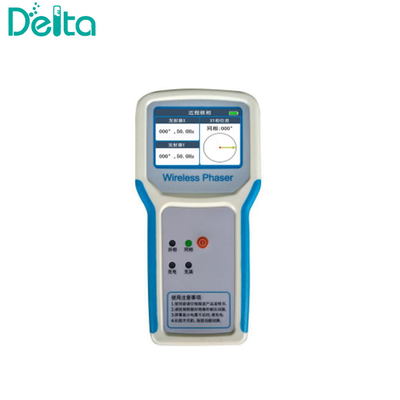

- The 3.2-inch color screen simultaneously displays the phase difference, frequency, vector diagram, and iso-phase results of two lines, and displays the number of GPS satellites, GPS timing status time, and other information.
- Automatic shutdown without operation for 1 hour continuously.
- The charger and receiver mainframe are built-in rechargeable lithium batteries with a 5V charger.
- Mainframe built-in 18650 lithium battery, battery capacity of 2500mAH. The transmitter has a built-in 14430 lithium battery with a capacity of 450mAH.
