SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SFA |
| Minimum Order Quantity | 1 set SF6 Analyzer |
| Price | USD1.0 SF6 Analyzer / set |

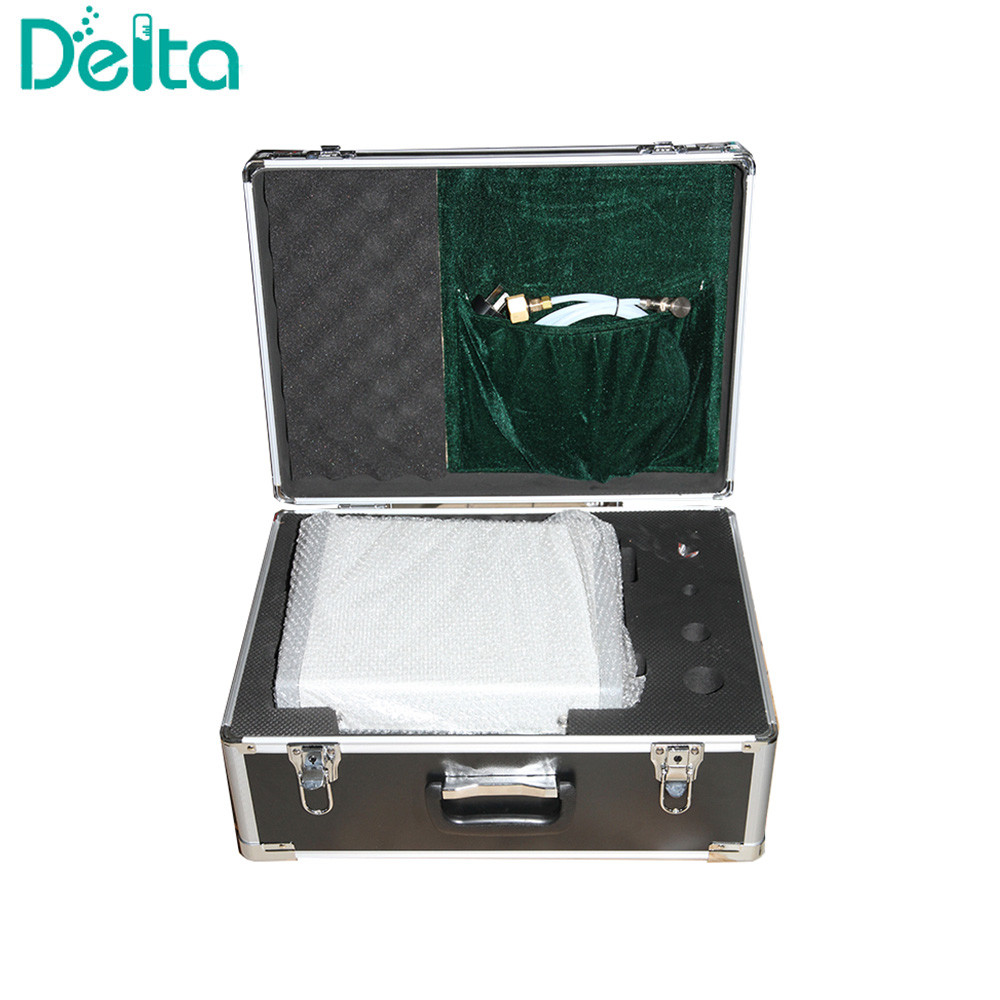

| Packaging Details | SF6 Analyzer is packed in one plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets SF6 Analyzer / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Multi-Functional SF6 Analyzer | Functions | Test Dew Point, Dew Point, Sf6 Purity, Etc. |
|---|---|---|---|
| Measured Parameters | Sf6 Purity, Dew Point, Water Content, So2, H2s, Co | Application Field | Electrical Industry |
| Description | SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter | Advantages | Multi-Functional Sf6 Analyzer For Sf6 Testing |
| Display | LCD Screen | Power Supply | AC 220V, Or Built-in Rechargeable Battery |
| Battery Performance | Charging 20 Hours Can Work For 10 Hours | Operation Mode | Through The Panel |
| Data Storage | 100 Groups | Dimension&Weight | 25cm*15cm*30cm, 5kg |
| Delivery Lead Time | 7 Days After The Order Is Confirmed | Shipping Method | Suggest To Ship By Express |
| Trade Terms | EXW, Fob, DDU, CIF, Etc. | Language | English |
| Highlight | SF6 gas dew point meter,high accuracy SF6 tester,SF6 gas parameters testing equipment |
||
Product Description

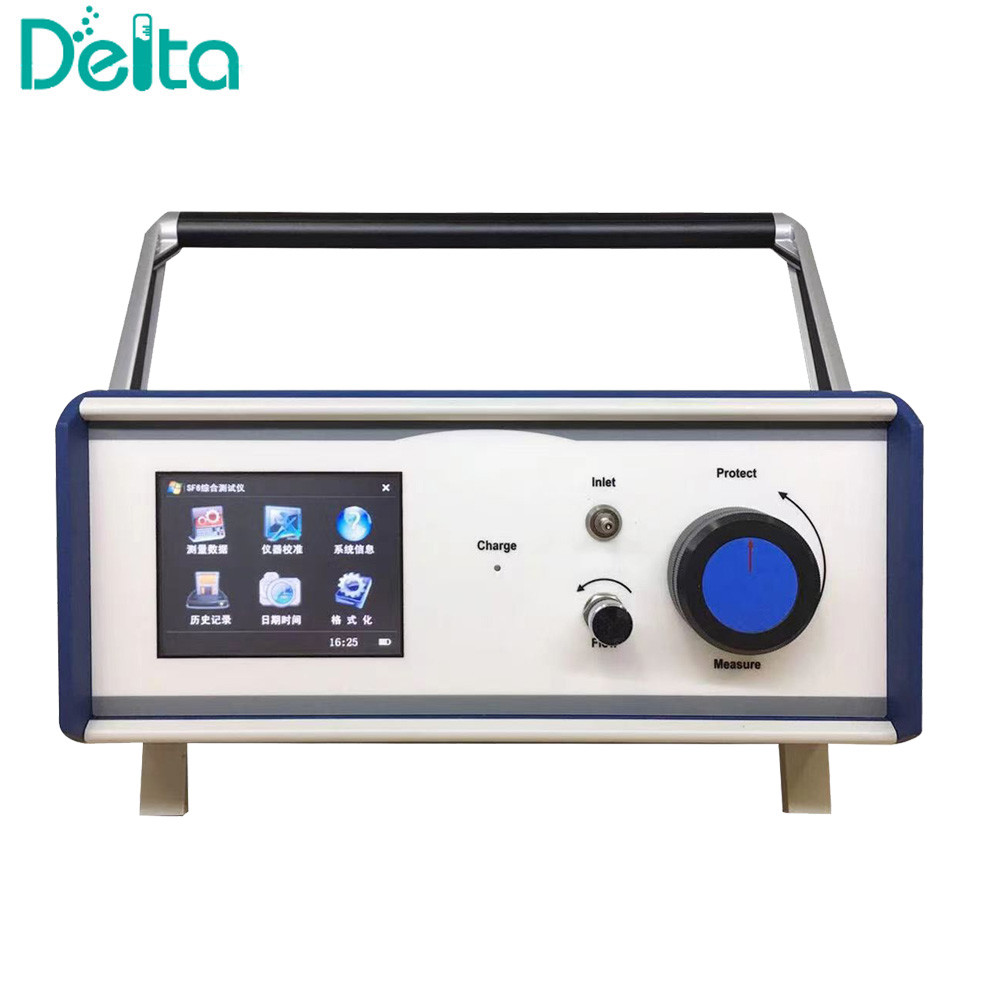

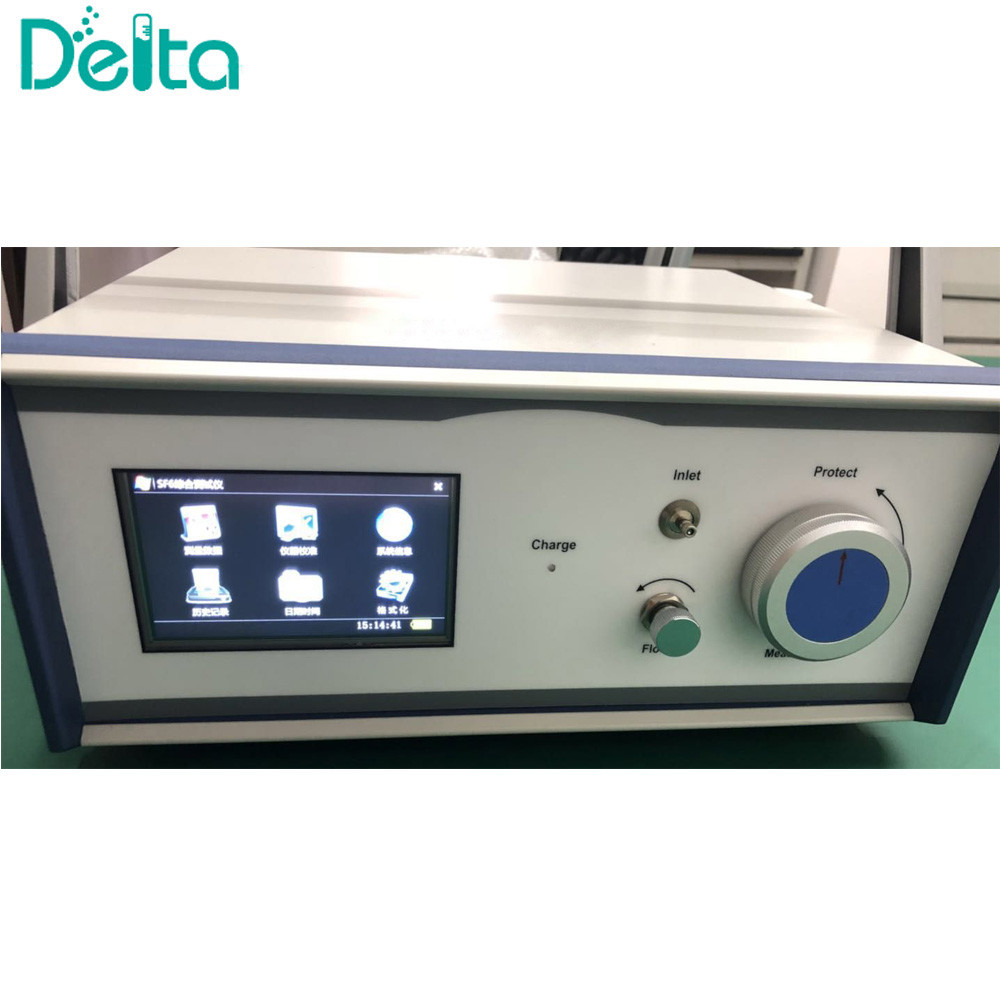

SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter
Brief Introduction:
SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter can test dew point, micro-water content(ppm), SF6 purity, concentration of SO2, H2S, CO, HF, etc.
- Model SFA-I can test SF6 purity, dew point, water content, SO2, H2S;
- Model SFA-II can test SF6 purity, dew point, water content, SO2, H2S, CO;
- Model SFA-III can test SF6 purity, dew point, water content, SO2, H2S, CO, HF;
- Model SFA-IV can test SF6 purity, dew point, water content, SO2, H2S, CO, HF, CF4;
- Model SFA-V can test SF6 purity, dew point, water content, SO2, H2S, CO, HF, CF4, N2, O2;
Main Features:
- Auto/manual range/ZERO mode
- True RMS/auto power off
- MAX/MIN
- IP54/2m drop proof
- Data hold/relative mode
- Flashlight and auto backlight
- Low battery indication
Main Parameters:
| Purity | Measuring range: 0%~100% | |
| Accuracy: ±0.5% | ||
| Measuring time: < 2min | ||
| Dew point | Measuring range: －80℃~+20℃ | |
| Accuracy: ±0.5℃(－80℃~－60℃) | ||
| Response time(+20℃) | 63% need 5S, 90% need 45S (－60℃~＋20℃) | |
| 63% need 10S,90% need 240S (+20℃~－60℃) | ||
| H2S | Measuring range: 0~200ppm | |
| The minimum detectable amount: ≤0.1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~200ppm | ||
| Repeatability: ≤2% | ||
| SO2 | Measuring range: 0~200ppm | |
| The minimum detectable amount: ≤0.1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~200ppm | ||
| Repeatability: ≤2% | ||
| HF | Measuring range: 0~20ppm | |
| The minimum detectable amount: ≤0.01ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~20ppm | ||
| Repeatability: ≤2% | ||
| CO | Measuring range: 0~1000ppm | |
| The minimum detectable amount: ≤1ppm | ||
| Accuracy: ±0.5% | ||
| Stability: 0~1000ppm | ||
| Repeatability: ≤2% | ||
| Temperature | －40℃~＋60℃ | |
| Humidity | 0~100％RH | |
| Power supply | AC 220V | |
| Built-in rechargeable battery | ||
| Battery | Charging time: 20 hours; can work for 10 hours | |
| Weight | 5kg | |
| Dimension | 25cm*15cm*30cm | |
| Working temperature | －40℃~＋80℃ | |
