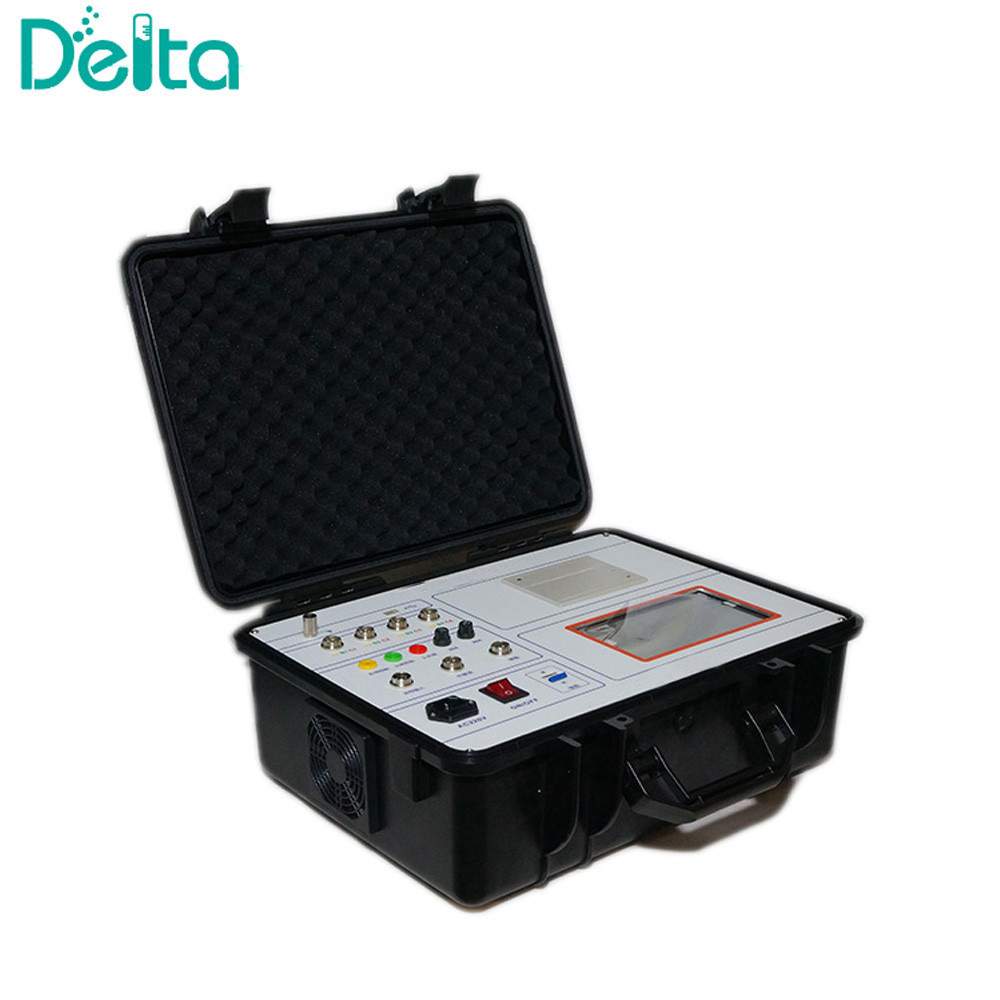

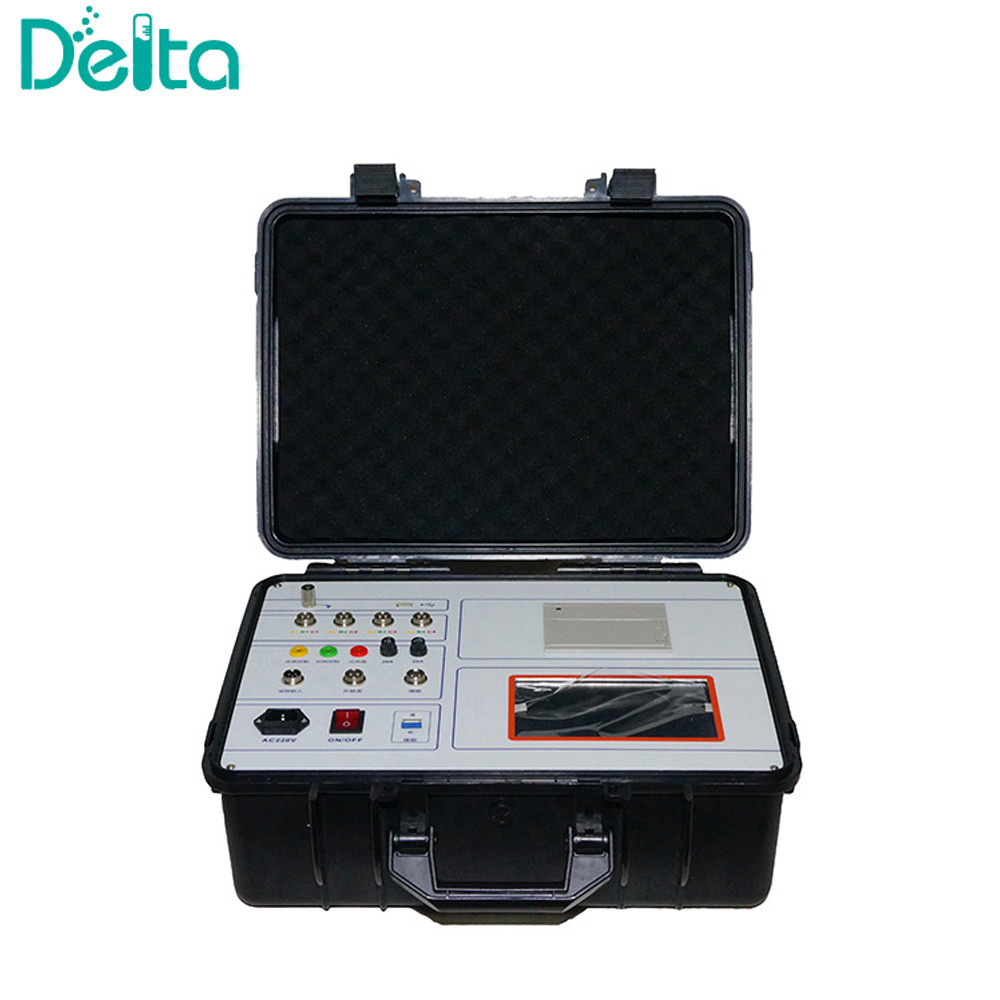

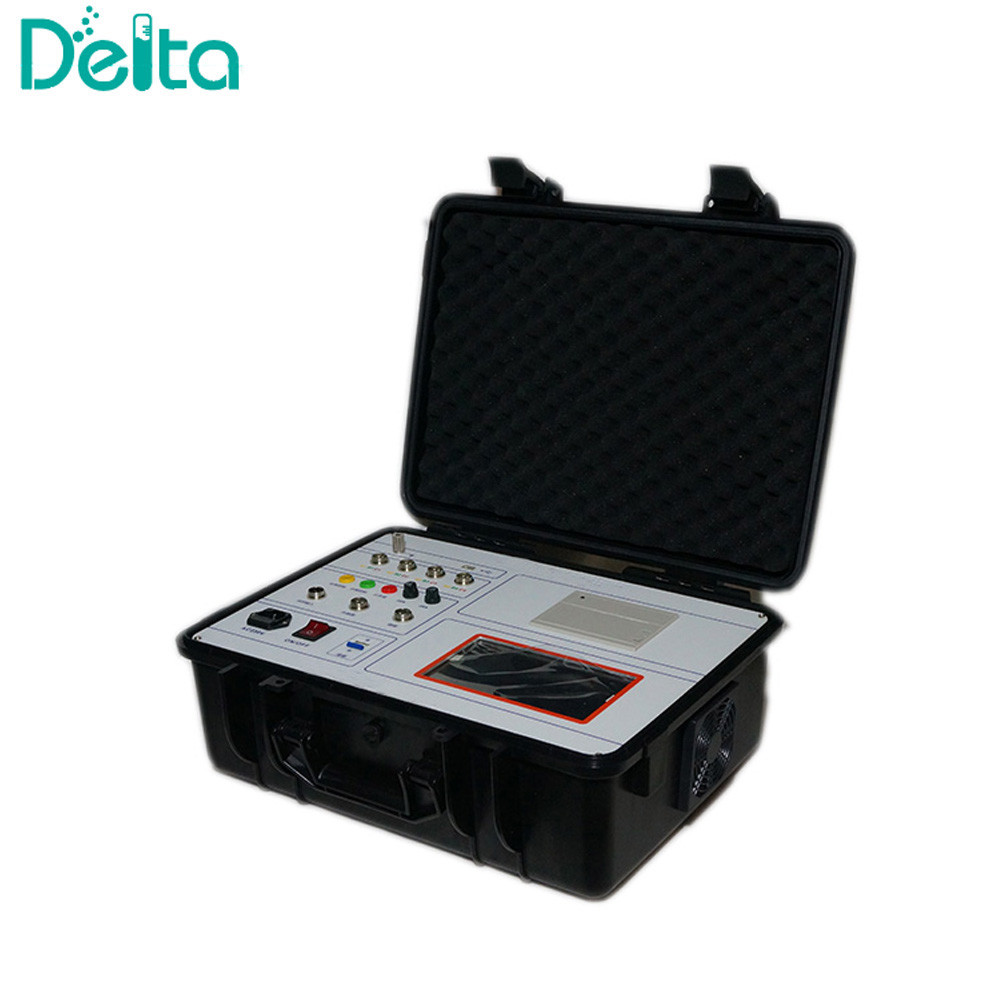

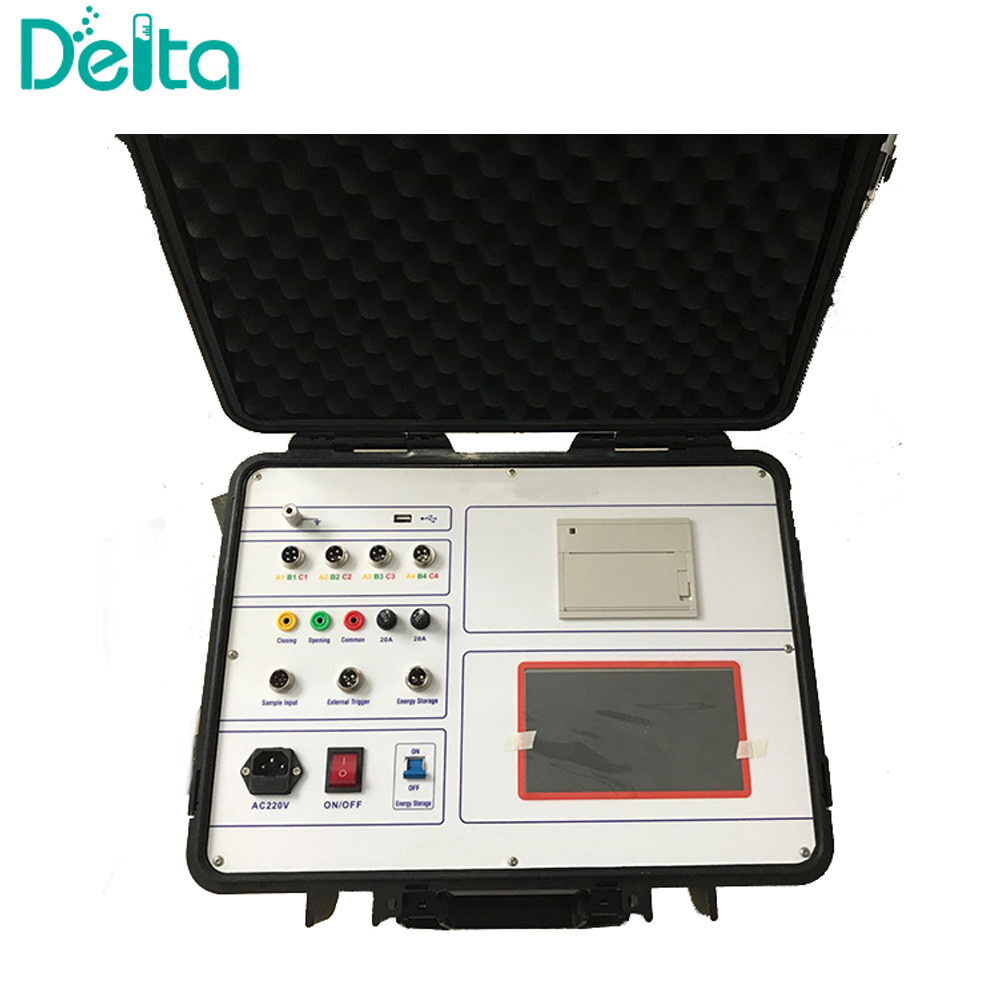

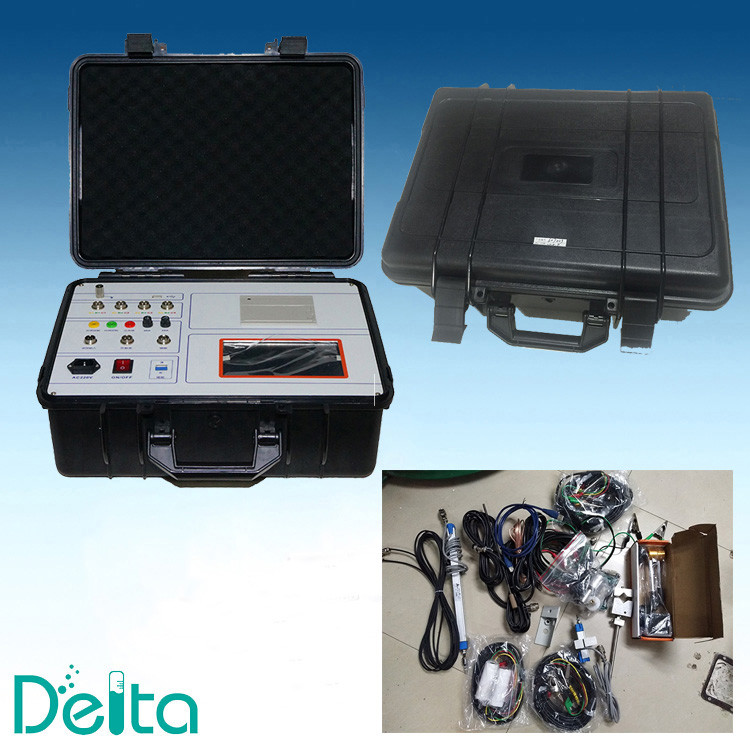

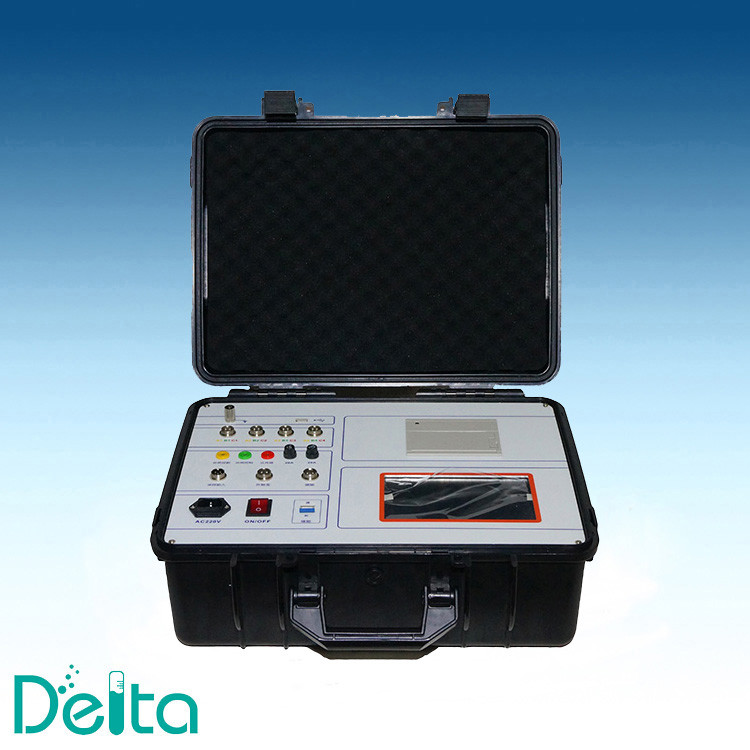

CBA-II Reasonable Price Multifunctional Circuit Breaker Tester
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CBA-II |
| Minimum Order Quantity | 1 set Circuit Breaker Tester |
| Price | USD1.0 / set |
| Packaging Details | Circuit Breaker Tester is packed in plywood case |
| Delivery Time | Within 7 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Circuit Breaker Tester / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Reasonable Price Multifunctional Circuit Breaker Tester | Usage | For High Voltage Circuit Breaker Testing |
|---|---|---|---|
| Application Field | Electrical Industry, Circuit Breaker Manufacturer | Description | CBA-II Reasonable Price Multifunctional Circuit Breaker Tester |
| Measured Parameters | Time, Distance, Travel, Etc. | Distance Measurement | <250mm |
| Time Setting Range | 0 To 6 Seconds | Number Of Contacts To Be Measured | 12 |
| Operation Mode | Manual | Powery Supply | 220V, 50Hz / 60Hz |
| Dimension | 53*45*63cm | Weight | 31kg |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. | Delivery Lead Time | 10 Days |
| Shipping Method | By Express Or By Air |
Product Description
CBA-II Reasonable Price Multifunctional Circuit Breaker Tester
Introduction:
- CBA-II Circuit Breaker Tester is designed for high-voltage switch testing.
- CBA-II Circuit Breaker Tester adopts a microcontroller unit(MCU) to control the testing process.
- CBA-II Circuit Breaker Tester is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
- CBA-II Circuit Breaker Tester can test the following switches: indoor or outdoor switches, vacuum switches, SF6 switches, etc.
Parameters:
| No. | Item Name | CBA-II High Voltage Switchgear Tester | |
| 1 | Time measurement | Number of contacts to be measured | ≤12 |
| Time setting range | 0 to 6 seconds | ||
| Resolution | 0.01ms | ||
| Error of time measured | ±0.5% | ||
| 2 | Distance measurement | Range | <250mm |
| Resolution | 0.01mm | ||
| Error | ±1mm | ||
| 3 | Internal power | Output Voltage | 30V-260V error:1% |
| Output Current | 0~10A | ||
| 4 | Operating conditions | Power supply | AC220V±10%, 50HZ/60HZ |
| Power consumption | ≤60W | ||
| Working environment temperature | 0~40ºC | ||
| Working environment humidity | ≤90%RH | ||
| 5 | Size and weight | Size of the tester | 46cm*34cm*20cm |
| Net weight | 7kg | ||
| Size after packing | 53*45*63cm | ||
| Weight of packing | 31kg | ||
Functions:
Opening and closing time of 12 contacts
Re-closing time
Asynchronous of closing or opening time of three phases
Clearance between open contacts/gaps, over-travel, over-shoot and tripping back
Speed at instant of contacts touching (separating)
Max. speed of opening and closing
Average speed of opening and closing
Tripping time and amplitude
Closing resistance measurement
Display and print the speed-distance curve
Circuit Breaker Tester Series:
1. WRT Series Circuit Breaker Contact Resistance Tester;
2. CBA-III Automatic Circuit Breaker Analyzer;
3. CBA-II Hot Sale Circuit Breaker Tester;
4. CBA-I Cheap Price Circuit Breaker Tester;
5. ZKD Circuit Breaker Vacuum Degree Tester;
