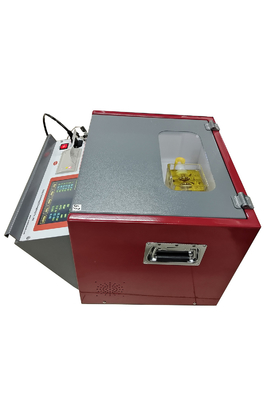

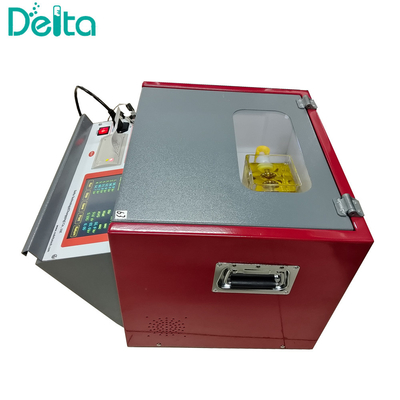

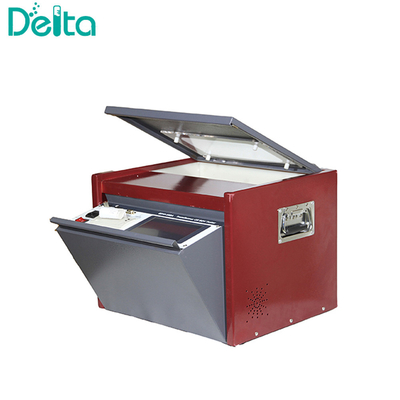

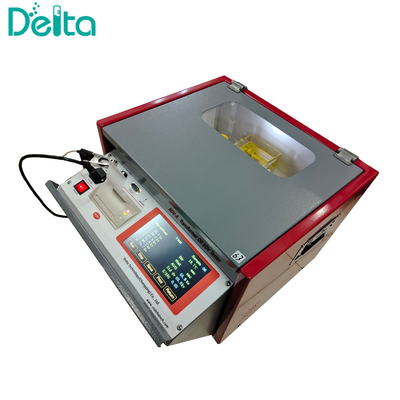

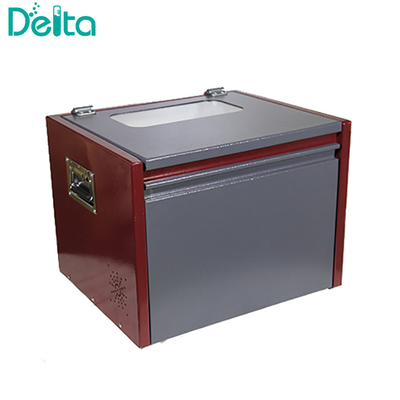

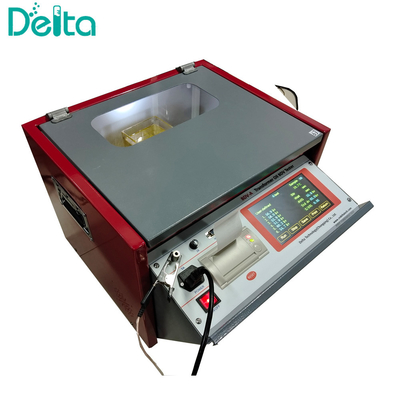

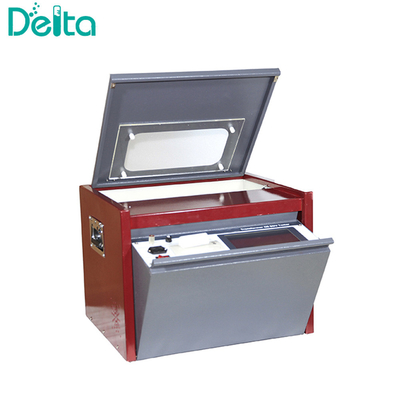

BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-A |
| Minimum Order Quantity | 1 set |
| Price | USD1.0 Oil Withstand Voltage Tester / set |
| Packaging Details | Oil Withstand Voltage Tester is Packed in plywood case |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 sets Oil Withstand Voltage Tester / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Economic Type IEC60156 Oil Bdv Test Kit 80kv | Test Standards | IEC60156, ASTM D1816, ASTM D877, Is6792, BS5874 |
|---|---|---|---|
| Output Voltage | AC 0V~100kv | Rate Of Voltage Rise | 0.5kv/S, 2kv/S, 3kv/S,5kv/S |
| Max. Test Times | 9 | Stir Time Setting | 0~999s |
| Waiting Time Setting | 0~999s | Functions | Measure Breakdown Voltage Bdv Of Insulating Oil |
| Description | Insulation Oil Withstand Voltage Tester | Application Field | Electrical Industry, Oil Laboratory, Etc. |
| Data Storage | 100 Groups | Display | Digital Display |
| Power Supply | AC 220V, 50Hz/60Hz | Delivery Lead Time | 7 Days After The Order Is Confirmed |
| Shipping Method | Suggest To Ship By Air Or Express |
Product Description
BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester
Introduction:
BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester has large LCD display, micro-printer and can store 100 groups data;
BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester is multi-functional, stable, and easy for operation.
Parameters:
| No. | Item Name | BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester |
| 1 | Output voltage | AC 0V~80KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
Test Modes:
Breakdown test of user-defined
Proof test
IEC60156/IS6792/BS5874 test
ASTM D1816 standard test
ASTM D877 standard test
5 minutes standard test
Manual test
Calibration interface for customers
Uploading data to PC and making word report automatically Result print
