CPT-III Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | CPT-III |
| Minimum Order Quantity | 1 set CT PT Tester |
| Price | USD1.0 |
| Packaging Details | CPT-III Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument，Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | CPT-III Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument | Functions | Touch Screen CT PT Analyzer, Automatic CT PT Analysis Instrument，Test Parameters Of Various Kinds Of Transformer |
|---|---|---|---|
| Applicable Transformer | CPT-III Analysis Instrument，<110kV, >2.5VA Transformer | Knee Point Voltage | 1kV |
| Max. Test Voltage | 1kV | Size | 420*330*320mm |
| Weight | 24kg | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
| Highlight | touch screen CT PT analyzer,automatic transformer testing instrument,CT PT analysis equipment with warranty |
||
Product Description
CPT-III Automatic CT PT Analysis Instrument -- Model: CPT-I
Introduction:
- CPT-III CT PT Tester is a special instrument for testing characteristic of CT and PT.
- CPT-III CT PT Tester can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere feature curve drawing and CT error drawing.
- CPT-III CT PT Tester has large output, high precision,stable performance and automatic testing.
Features:
-
CT/PT transformation ratio test
-
CT /PT polarity test
-
CT /PT volt-ampere feature curve measurement
-
CT ratio error measurement
-
Error curve measurement
-
Result print
-
Unload data to PC
-
PC online test
Parameters:
|
Input voltage |
Output scope |
Measuring Range |
Measuring degree |
||||
|
Device main engine |
220V |
0～600V 0～20A |
0～600V 0～20A |
0.5% |
|||
|
380V |
0～1000V 0～20A |
0～1000V 0～20A |
0.5% |
||||
|
220V |
0～600A |
0～600A |
Transformation ratio measuring precision 1% |
||||
|
External voltage raising machine |
220V |
0～1650V 0～3A |
0～1650V 0～3A |
0.5% |
|||
|
380V |
0～2000V 0～3A |
0～2000V 0～3A |
0.5% |
||||
|
External current raising machine |
220V |
0～1000A |
0～1000A |
Transformation ratio measuring precision 1% |
|||
|
External voltage adjustment machine |
0～1000V, 0～30A |
0.5% |
|||||
|
Device working power |
220V/380V 50HZ |
External dimensions |
420*330*320mm |
Weight |
24kg |
||

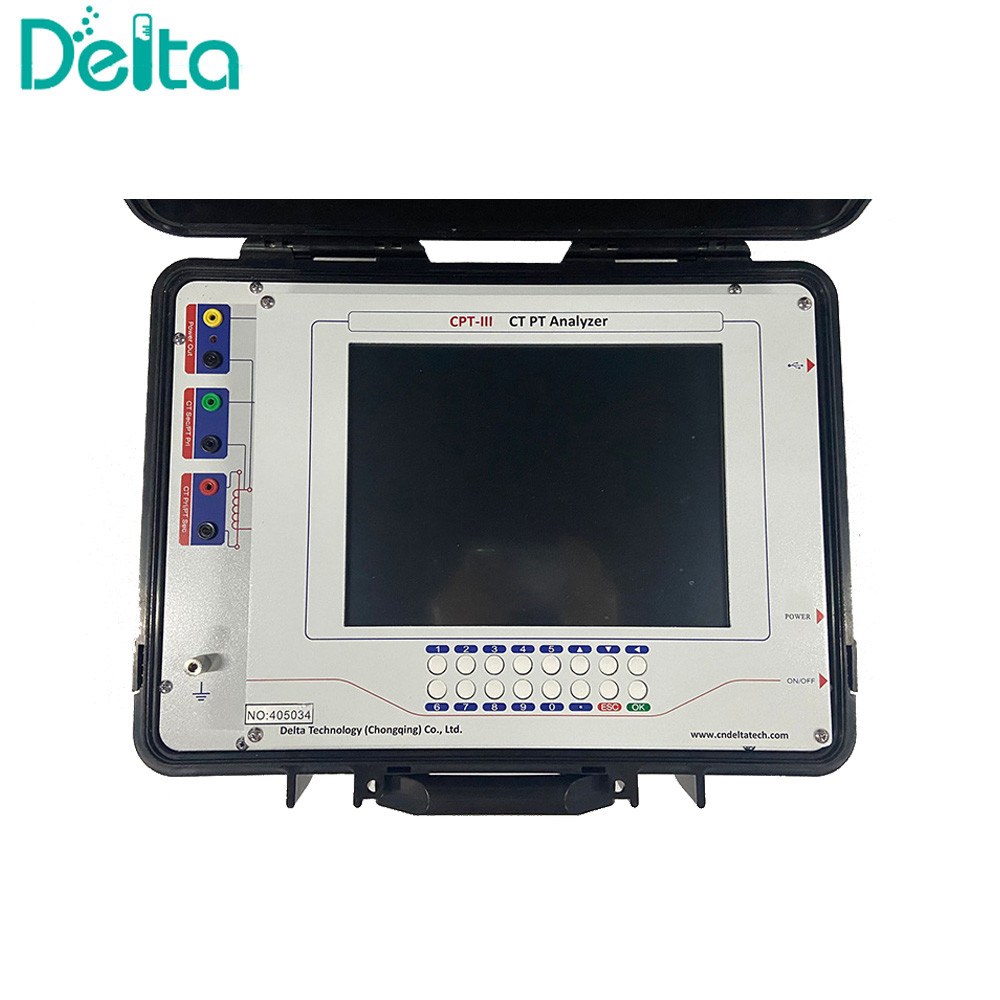

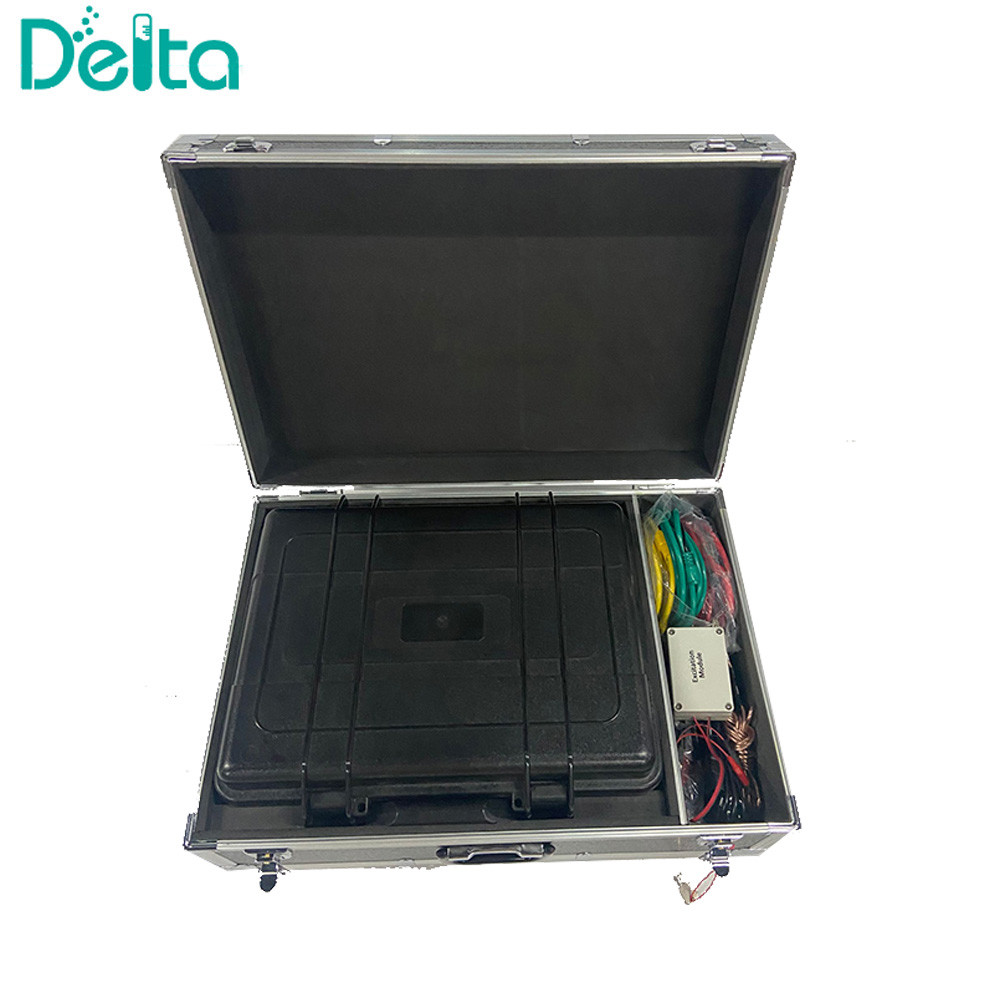

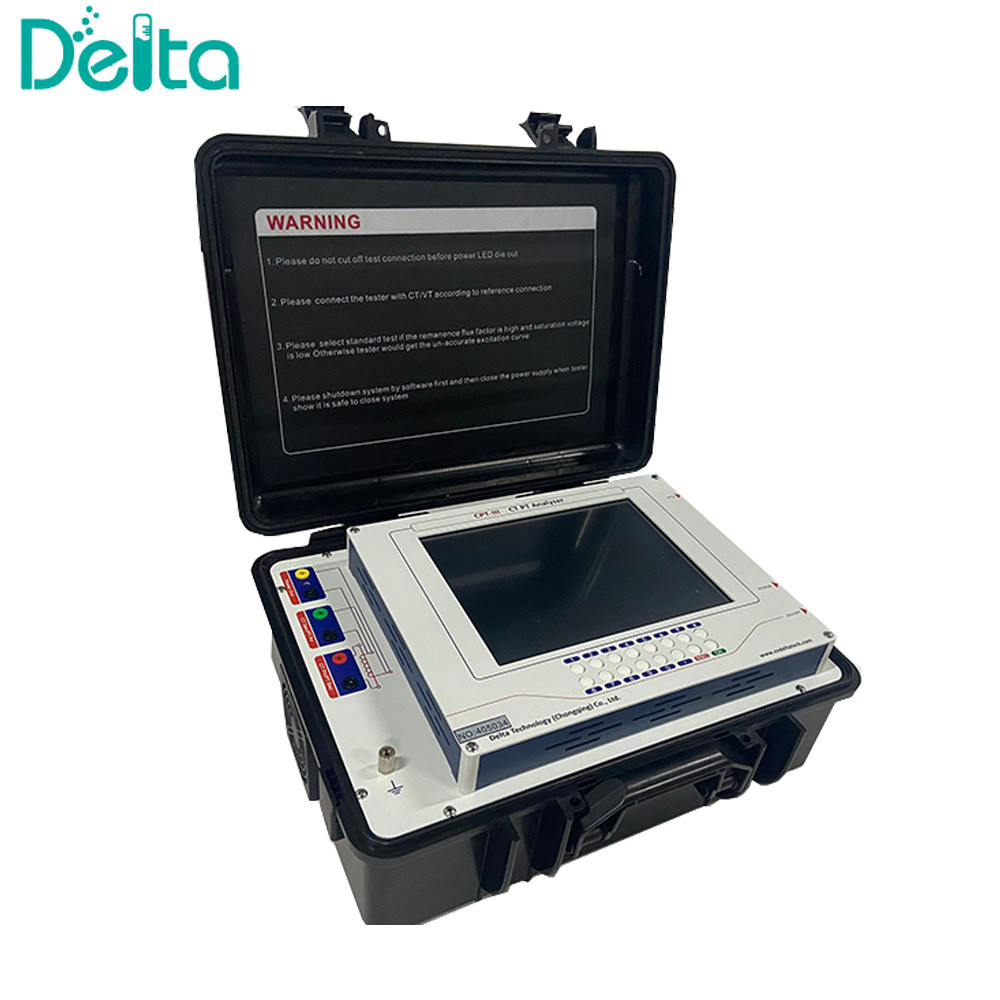

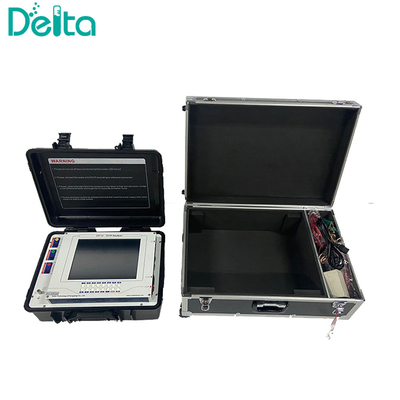

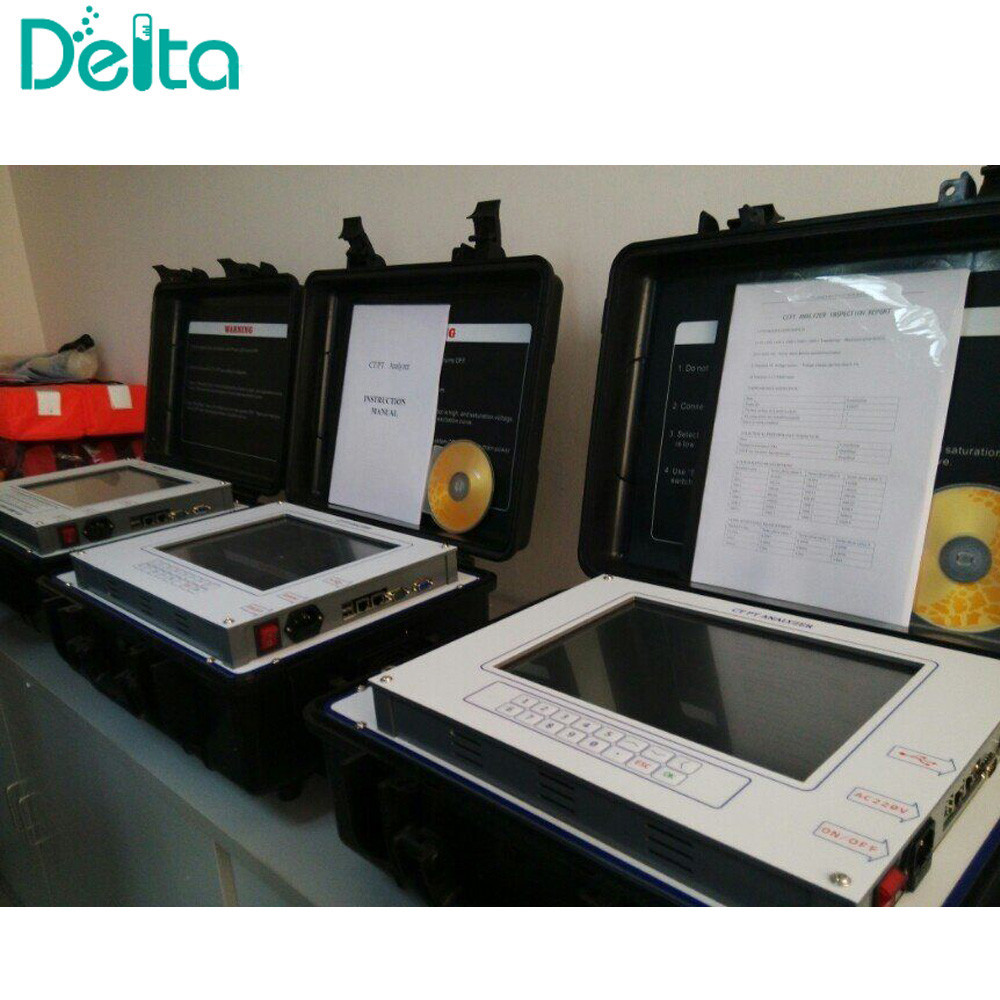

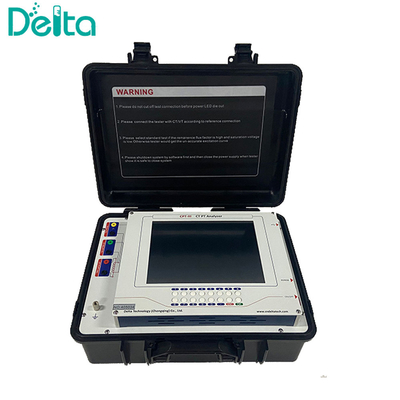

Real Picture:
