TDT Transformer Tangent Delta Testing 10kV 12kV Transformer Tan Delta Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | TDT |
| Minimum Order Quantity | 1 set Tan Delta Tester |
| Price | USD1.0 / set Tan Delta Tester |
| Packaging Details | Tan Delta Tester is packed in a plywood case |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Low Price Capacitanceand Dissipation Factor Tester | Functions | Test Capacitance, Tan Delta, Dissipation Factor |
|---|---|---|---|
| Application Field | Electrical Industry, Transformer Manufacturer | Description | Transformer Dissipation Power Factor Tester |
| Output Voltage | 10kv Or 12kv | Output Max. Current | 200mA |
| Output Capacity | 2000va | Self-Excited Power | AC 0V-50V/15A |
| Dimension | 350mm*270mm*270mm | Weight | 28kg |
| Power Supply | AC 220V, 50Hz | Delivery Lead Time | 7 Days After The Order Is Confirmed |
| Shipping Method | Suggest To Ship By Air Or Express | Trade Terms | EXW, Fob, DDU, Cit, Etc. |
| Payment Term | 30% As Deposit, The Balance Before Delivery |
Product Description

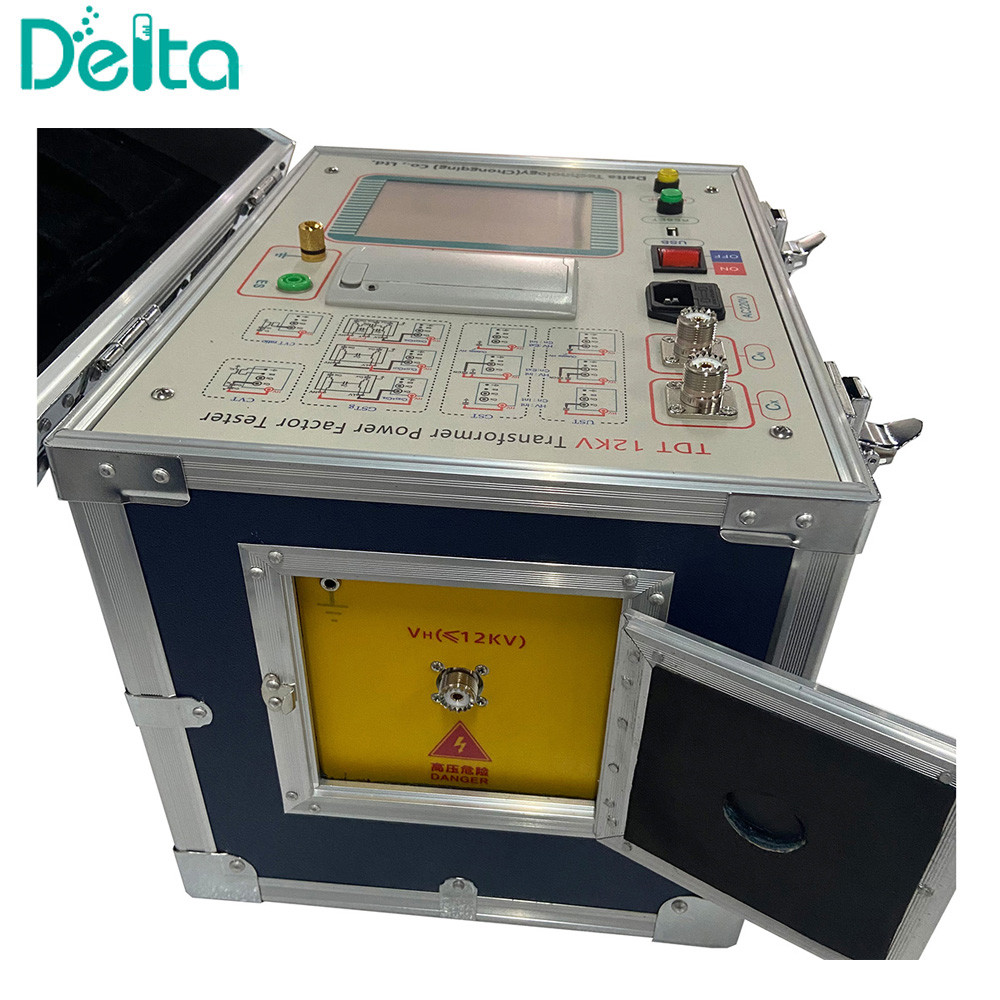

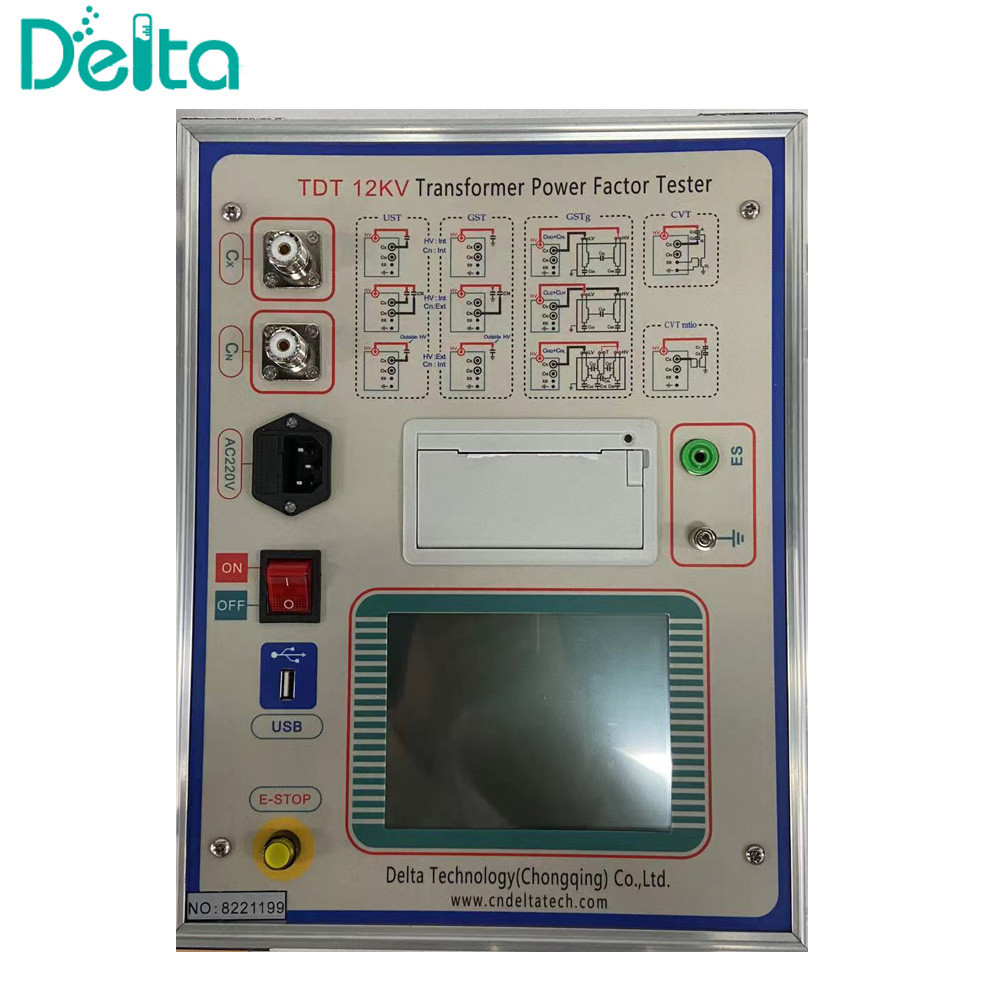

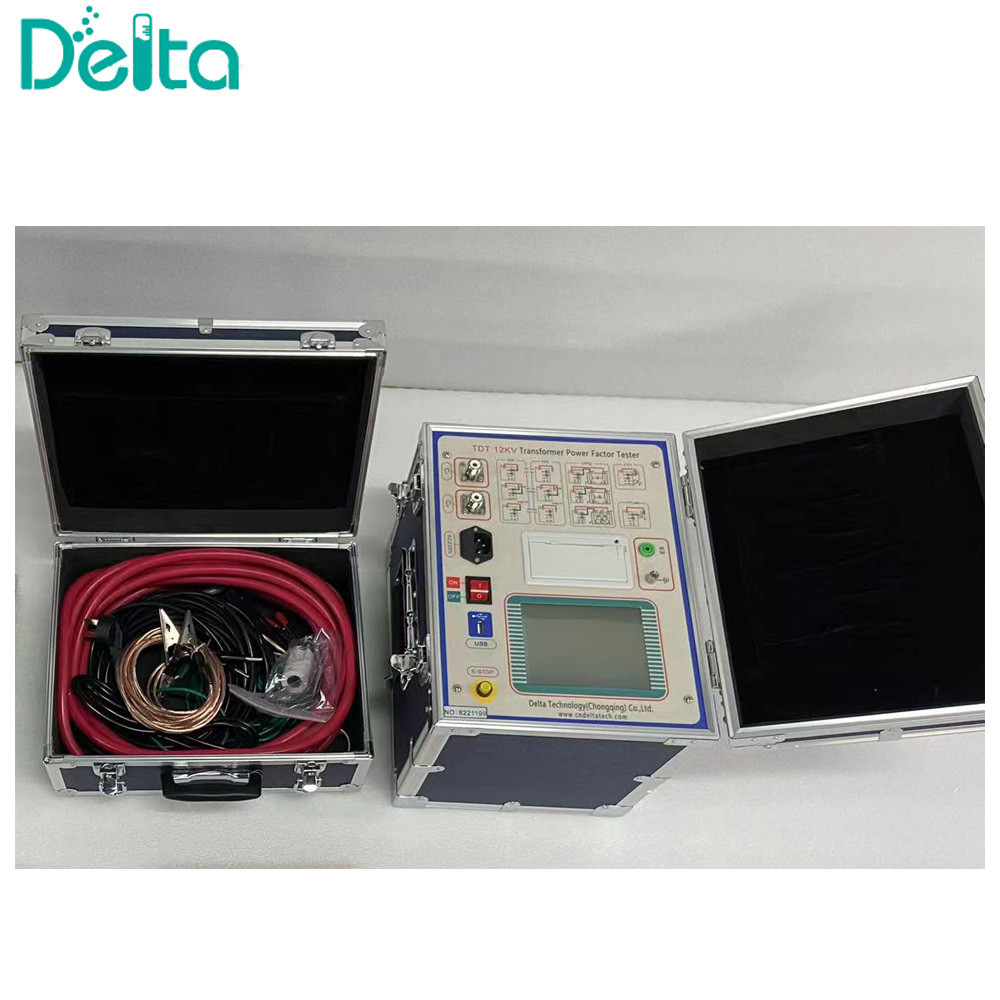

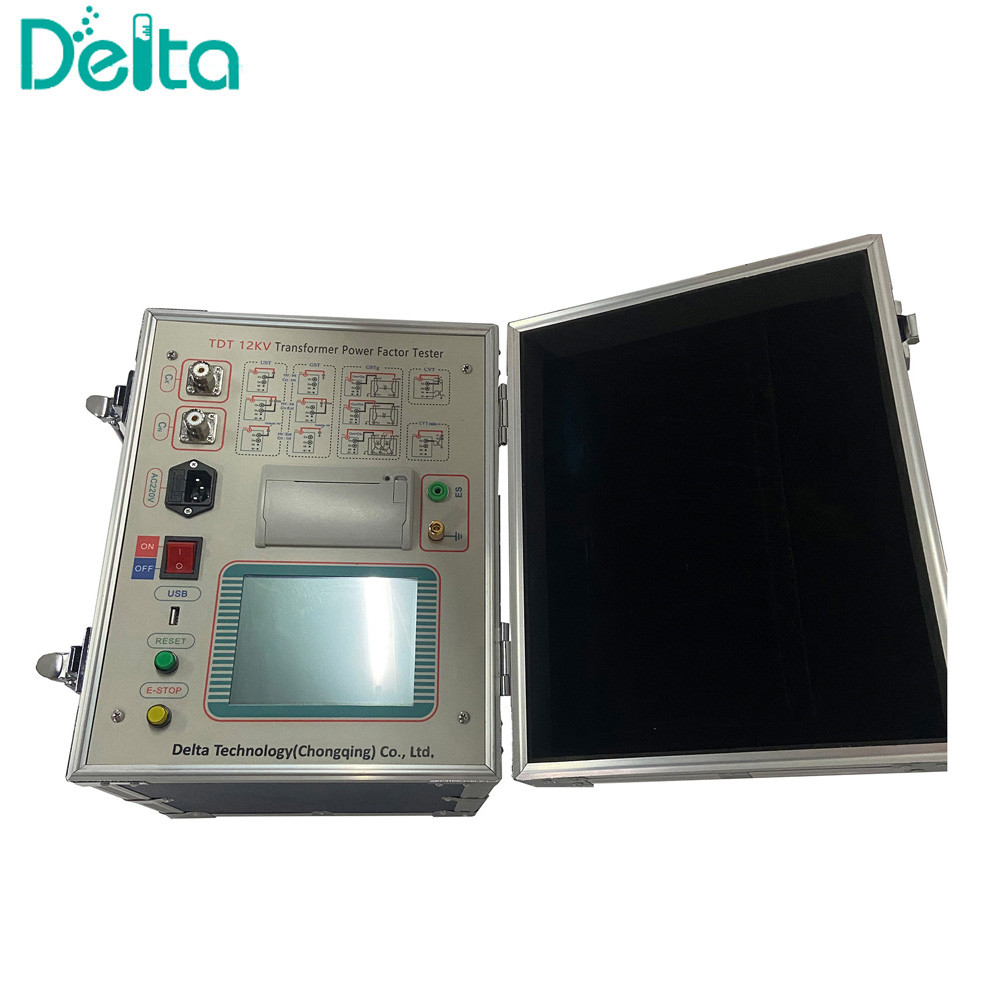

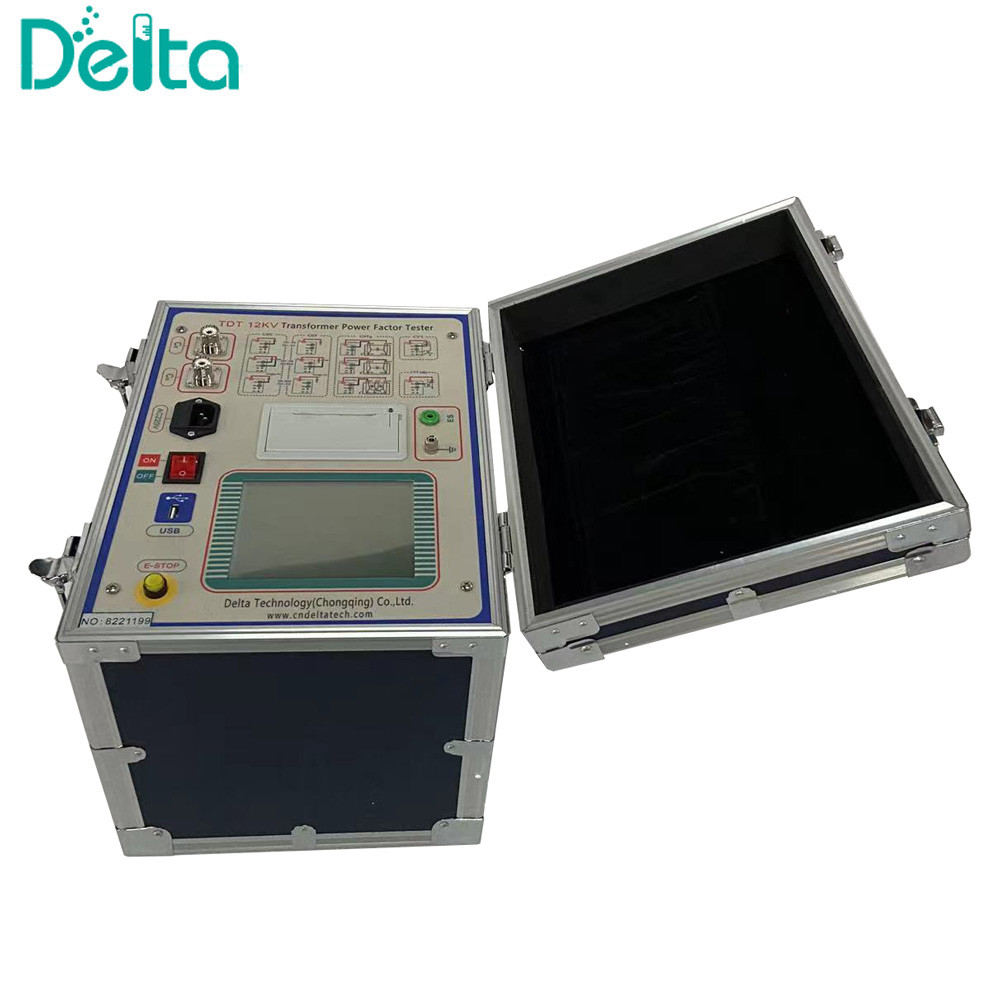

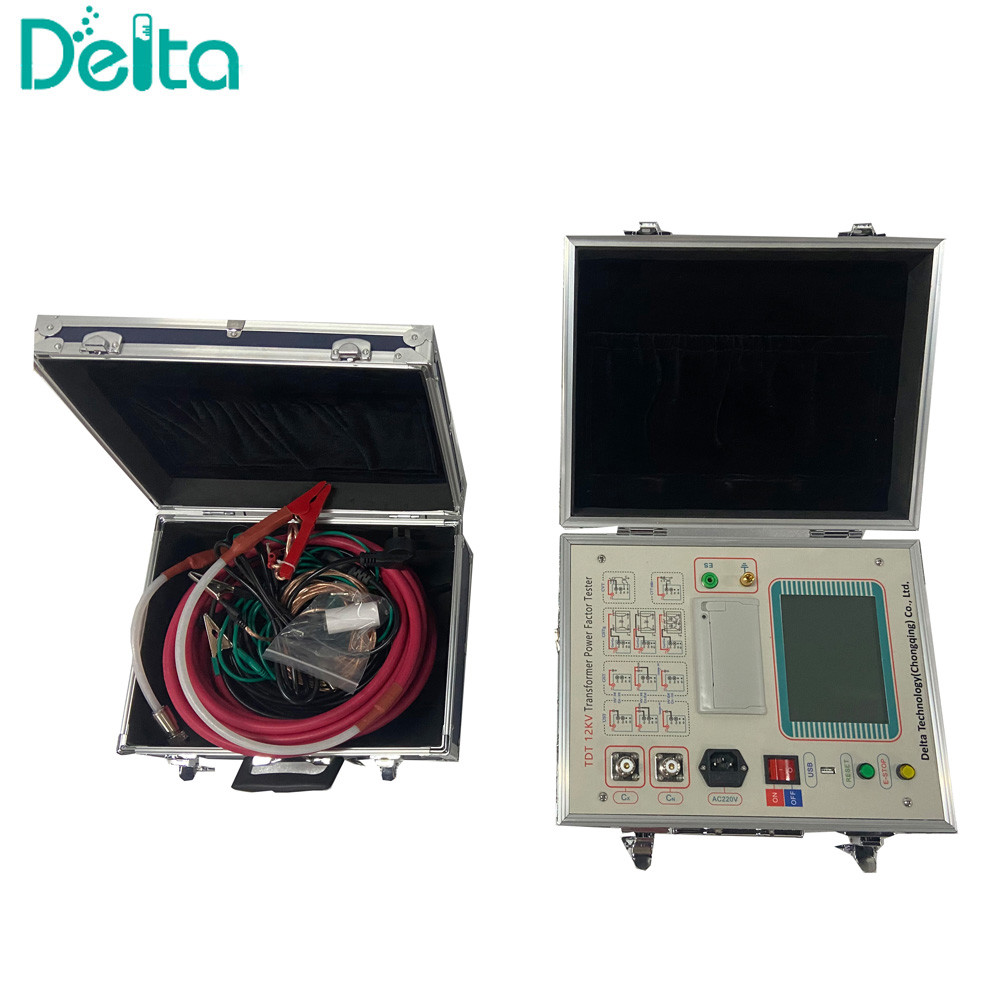

TDT Transformer Tangent Delta Testing 10kV 12kV Transformer Tan Delta Tester
Introduction:
- TDT Transformer Tan Delta Tester is used to measure electrical loss tangent ( ) and capacitance of all kinds of high voltage electrical equipment in power plants, substations, laboratories, etc.
- TDT Transformer Tan Delta Tester is composed of a dielectric loss test bridge, a variable frequency power supply, a step-up transformer, and an SF6 high stability standard capacitor, it is an integrated structure.
- TDT Transformer Tan Delta Tester can also supply high-voltage sources for testing.
- Frequency can be changed to 50Hz, 47.5Hz52.5Hz, 45Hz55Hz, 60Hz, 57.5Hz62.5Hz, 55Hz65Hz; thus, it can avoid interference of power frequency.
Parameters:
| No. | Item Name | TDT 10kV 12kV Transformer Tan Delta Tester | |
| 1 | Output | 0.5KV∽10KV | |
| Precision | |||
| Maximum current | |||
| Capacity | |||
| 2 | Self-excited power | AC 0V∽50V/15A | |
| 3 | Resolving power | tgδ: 0.001% | |
| 4 | Precision | △tgδ:±(Reading*1.0%+0.040%) △C x :±(Reading*1.0%+1.00PF) | |
| 5 | Measuring range | tgδ | |
| C x | |||
| 10KV | |||
| 5KV | |||
| 1KV | |||
| CVT test | |||
| 6 | CVT range | 10∽10000 | |
| 7 | Dimension | 350mm*270mm*270mm | |
| 8 | Weight | 28kg | |
| 9 | Working environment | -15ºC∽40ºC, RH<80% | |
| 10 | Anti-interference | Frequency conversion | |
| 11 | Power Supply | AC 220V±10%, 50Hz | |
Features:
- Large LCD display: Equipped with a high-end full-touch LCD screen.
- Mass storage data: It can save 200 groups of test results in the instrument.
- Multiple test modes: The instrument has high pressure, high voltage, standard, positive connection method and reverse connection method, self-excitation method, and other methods as optional; high voltage in standard high voltage conditions (greater than 10kV) dielectric loss.
- CVT test: The instrument can also test the fully sealed CVT (capacitor voltage transformer) C1, C2 dielectric loss and capacitance, to achieve the C1, C2 simultaneous test. The instrument can also test the CVT ratio and voltage angle difference. It can accurately measure the dielectric loss and capacitance of CVT without dismantling the CVT high voltage lead.
- High-speed sampling signal: The inverter and sampling circuit of the instrument are all controlled digitally, and the output voltage is adjustable continuously.
- Multi-protection security: The instrument has many protection measures, such as input voltage fluctuation, output short circuit, over-voltage, overcurrent, and temperature. The instrument also has the grounding detection function to ensure that no grounding equipment is not allowed to boost.
