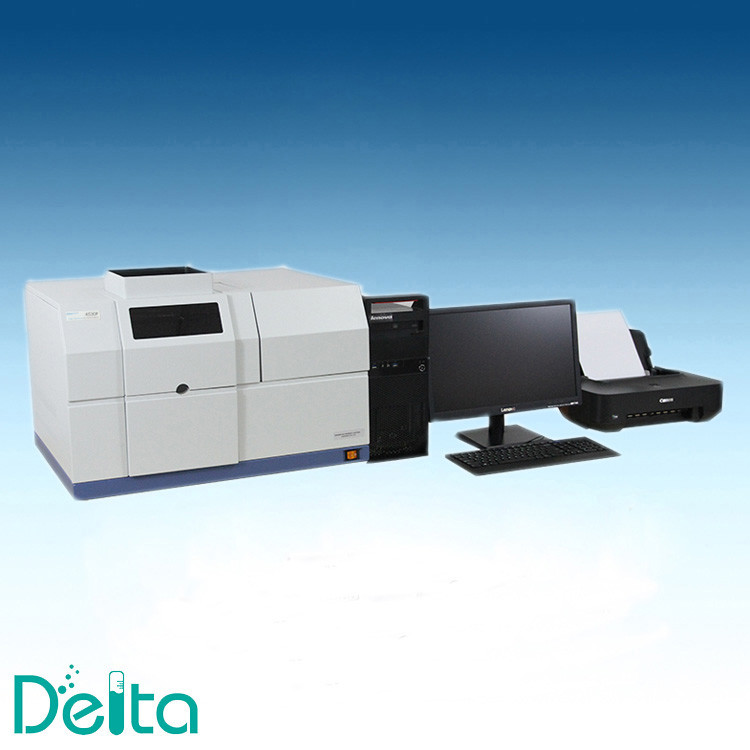

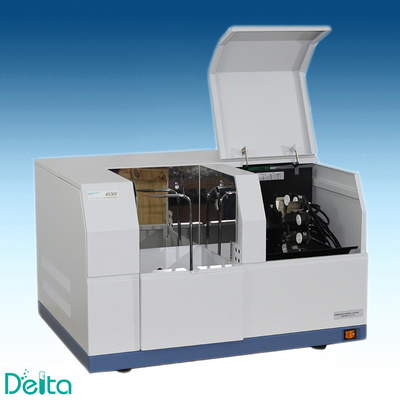

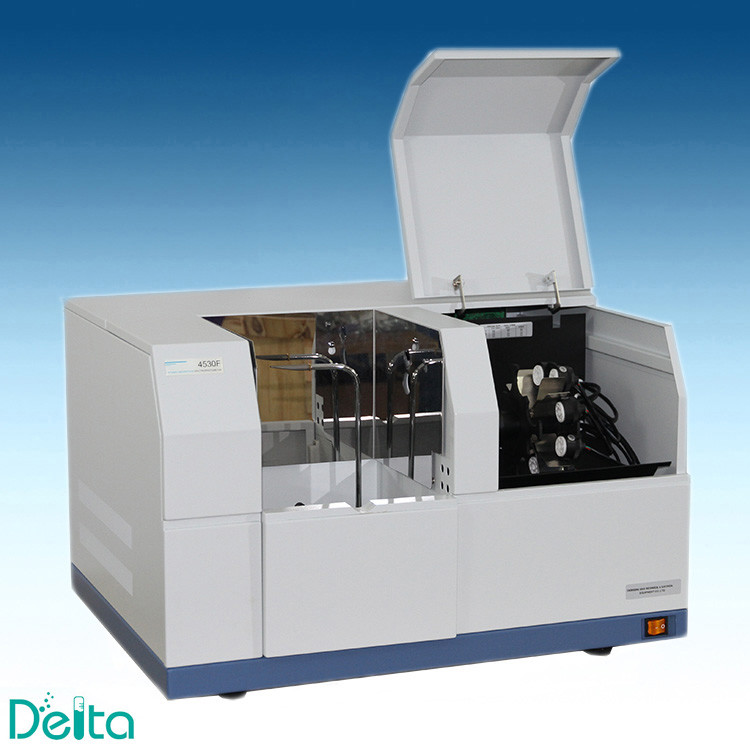

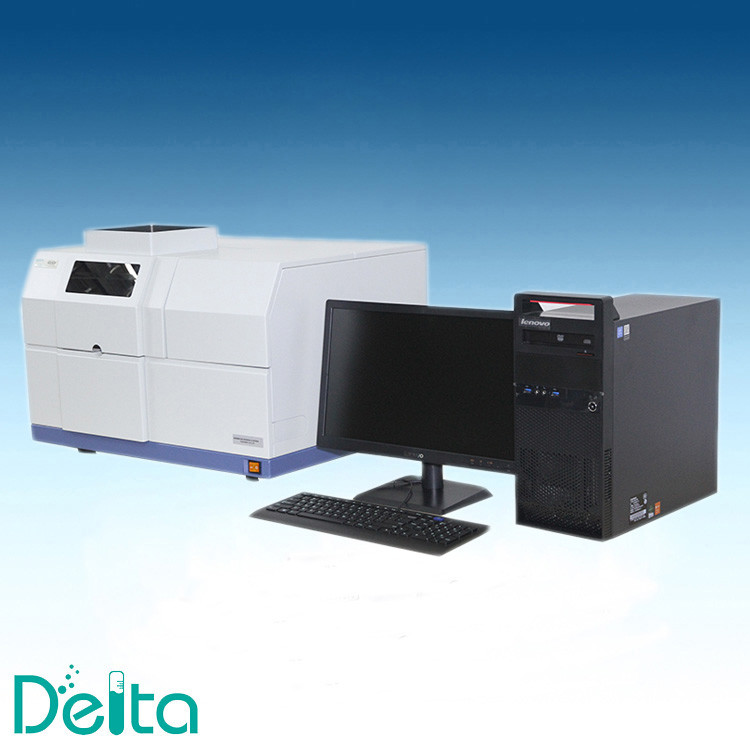

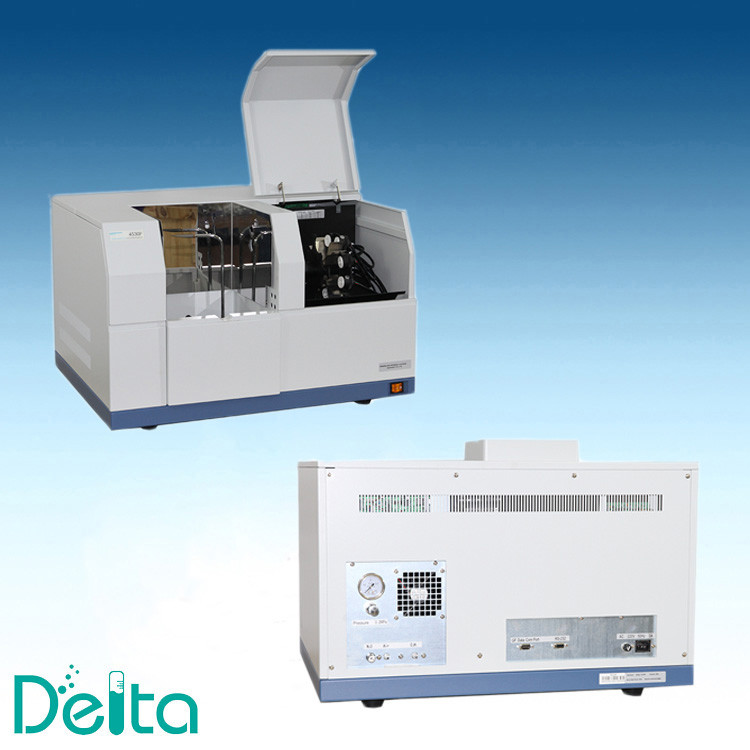

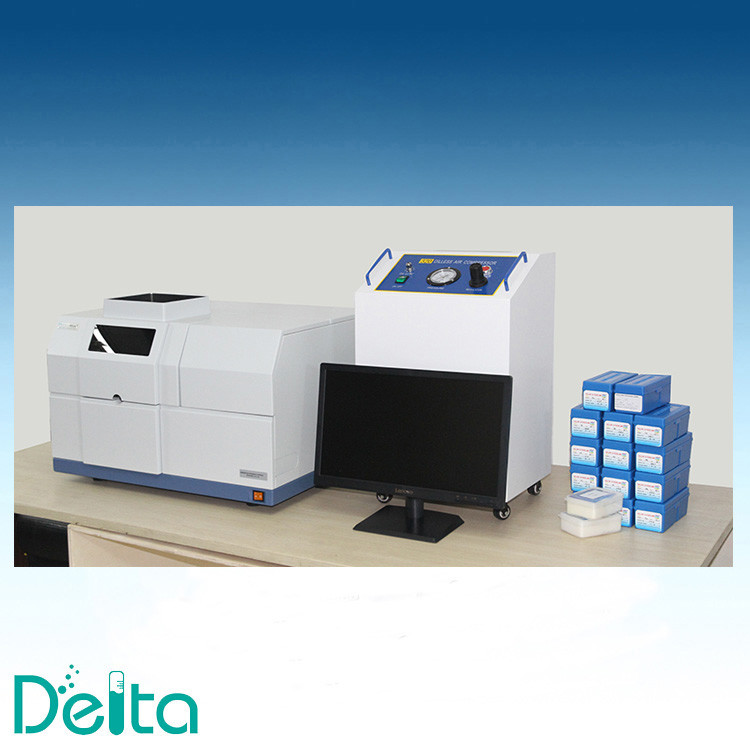

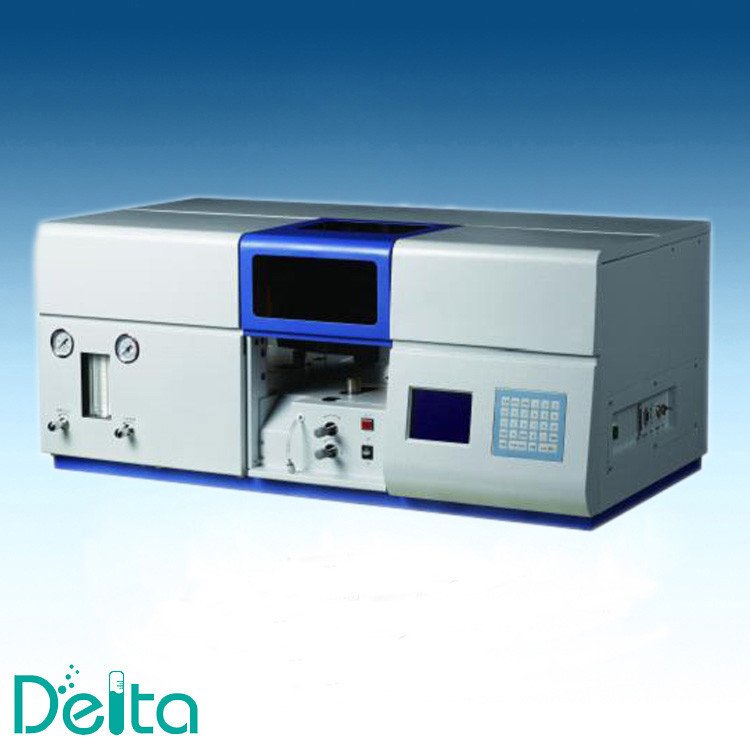

4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing

  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
  • 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number 4530F
Minimum Order Quantity 1 set AAS Analyzer in one order
Price Negotiable
Packaging Details 4530F AAS Analyzer packed in veneer case.
Delivery Time 3-7 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 set AAS Analyzer each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Universal Laboratory Using AAS Analyzer For Metal Elements Testing Usage Laboratory Using, Measure Elements In Samples
Elements Can Be Measured Most Of Metal Elements Sample Quantity 8 Samples In One Test
Control Method Computer Control Wavelength Range 190 – 900nm
Spectral Bandwidth 0.1nm, 0.2nm, 0.4nm, 1.0nm And 2.0nm Grating 1800 Lines/mm
Inflamer All-metal Titanium Burner Atomizer Effective Glass Atomizer
Size 700mm×550mm×450mm Weight 75kg
Leave a Message
Product Description

4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing



Features:

  • Complete automatic controlling system;
  • Advanced graphite furnace temperature controlling technology;
  • Safe, reliable and convenient flame system;
  • Multi-functional software workstation;
  • Completely controlled by PC, can flexibly select the flame and graphite furnace atomizer (optional);
  • Integrated floated optical platform design can obviously improve the optical system shock resistance and can keep stable though use the optical signal for a long term;
  • Eight light stands can be changed automatically and preheat the eight element lights meantime as well as optimize the working condition of the hollow cathode lamp;
  • Position adjusting: the best height of the flame burner and can automatically set the front and rear positions;
  • Fully automated wavelength scanning and peak searching;
  • Complete safety chains protection equipment: the function of warning and automatic safety protection towards the wrong burner, leakage of the gas, under voltage of air and the abnormal flameout;
  • Deuterium lamp and self-absorption background regulation;
  • Data processing: super strong database, possesses more than 500 data self-storage and cut-off storage function, can store the analyzed result with the form of EXCEL and the testing method and the result can be randomly called;
  • Measuring method: flame absorption method and emission method;
  • Result printing: parameter printing, data result printing and diagram printing;



Specifications:

Item Name 4530F Universal Laboratory Using AAS Analyzer For Metal Elements Testing
Wavelength range 190 – 900nm
Spectral bandwidth Can automatically change between 0.1nm, 0.2nm, 0.4nm, 1.0nm and 2.0nm
Accuracy of the wavelength ±0.15nm
Receptivity of the wavelength ≤0.04nm
Base line stability ≤0.002A/30min (Cu)
Characteristic viscosity 0.02μg/ml/1% (Cu)
Checking limit 0.004μg/ml (Cu)
Preciseness 0.5%
Grating 1800 lines/mm
Inflamer All-metal titanium burner
Atomizer Effective glass atomizer
Lamp stand Eight lamps
D2 background correction ability When the background is 1 A, the background ability should be deducted not less than 50 times; self absorption background deduction method
Size and weight 700mm×550mm×450mm 75Kg
Power source 220V±22V AC


Flame System:

Acetylene air burner 100mm
Nitrous oxide acetylene flame head 50mm
Ignition dynamic baseline drift ≤0.006A/30min
(Cu) Characteristic viscosity ≤0.025μg/ml/1%
Related standard deviation of the accuracy ≤0.5%(Cu, absorbance＞0.8A) (detection limit Cu≤0.008μg/ml)
Safety system Can automatically cut off the gas when the pressure is not enough, the power is off, flameout and unconformity of the burner


Graphite Furnace:

The highest temperature 3000℃
The largest temperature rising speed ≥2000℃/S
Characteristic quantity Cd≤0.5×10-12g Cu≤0.5×10-11g
Accuracy Cu≤3% Cd≤3%
Size and weight 550mm×450mm×300mm 65Kg
Safety system Over current protection
Protection Low air pressure alarm, low cooling water flow alarm
Power source and power 220V±22V AC 7000W
