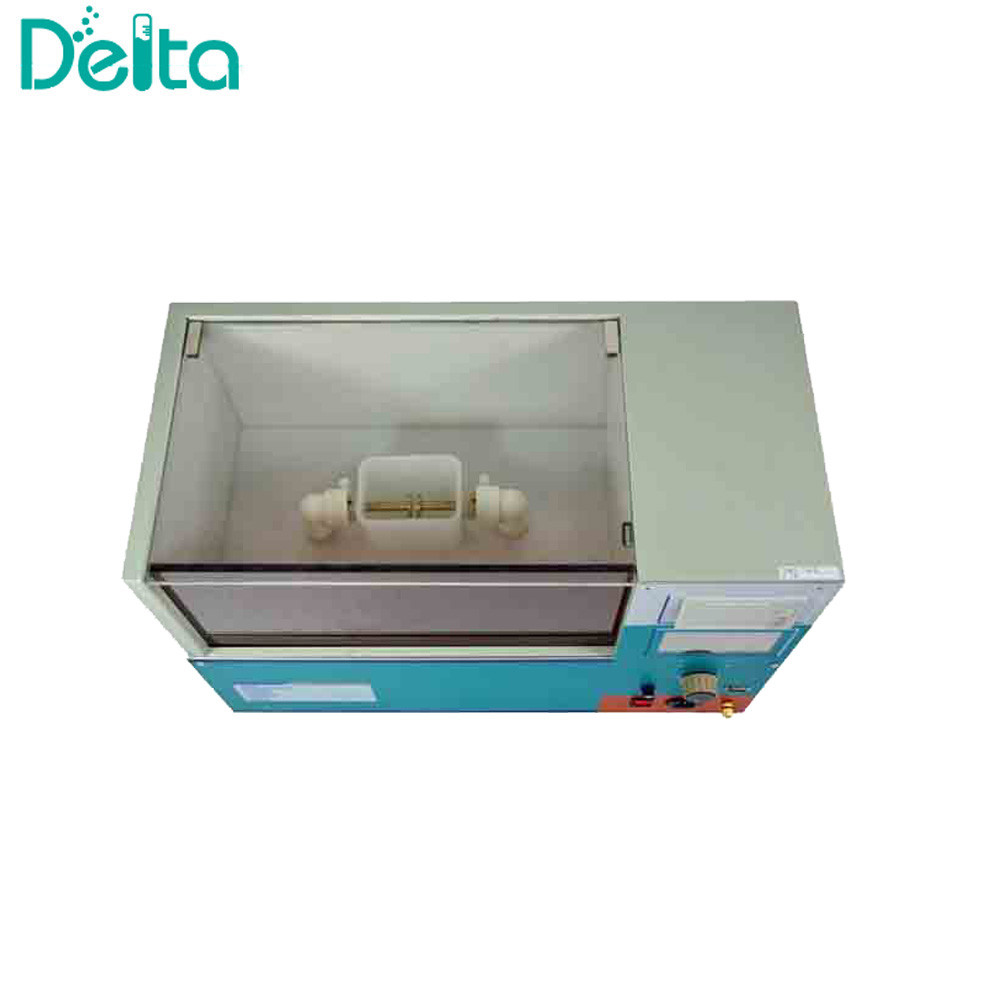

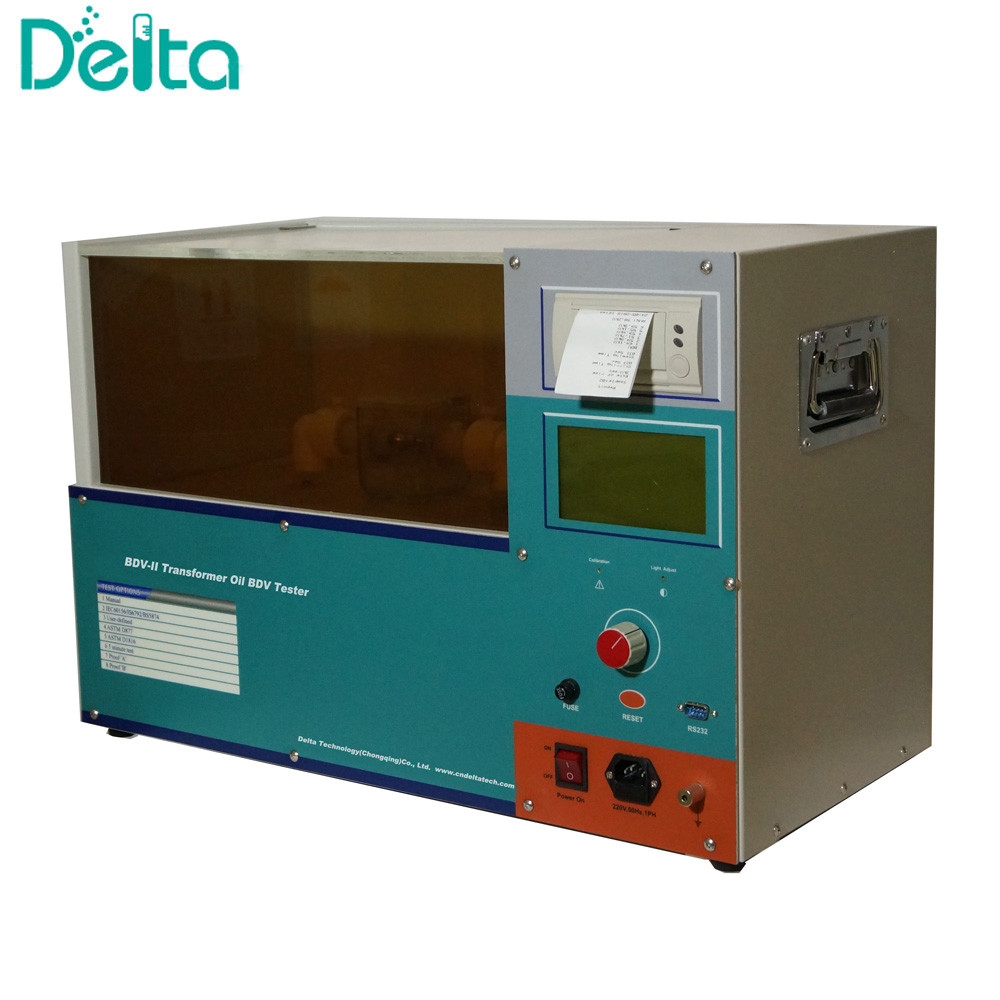

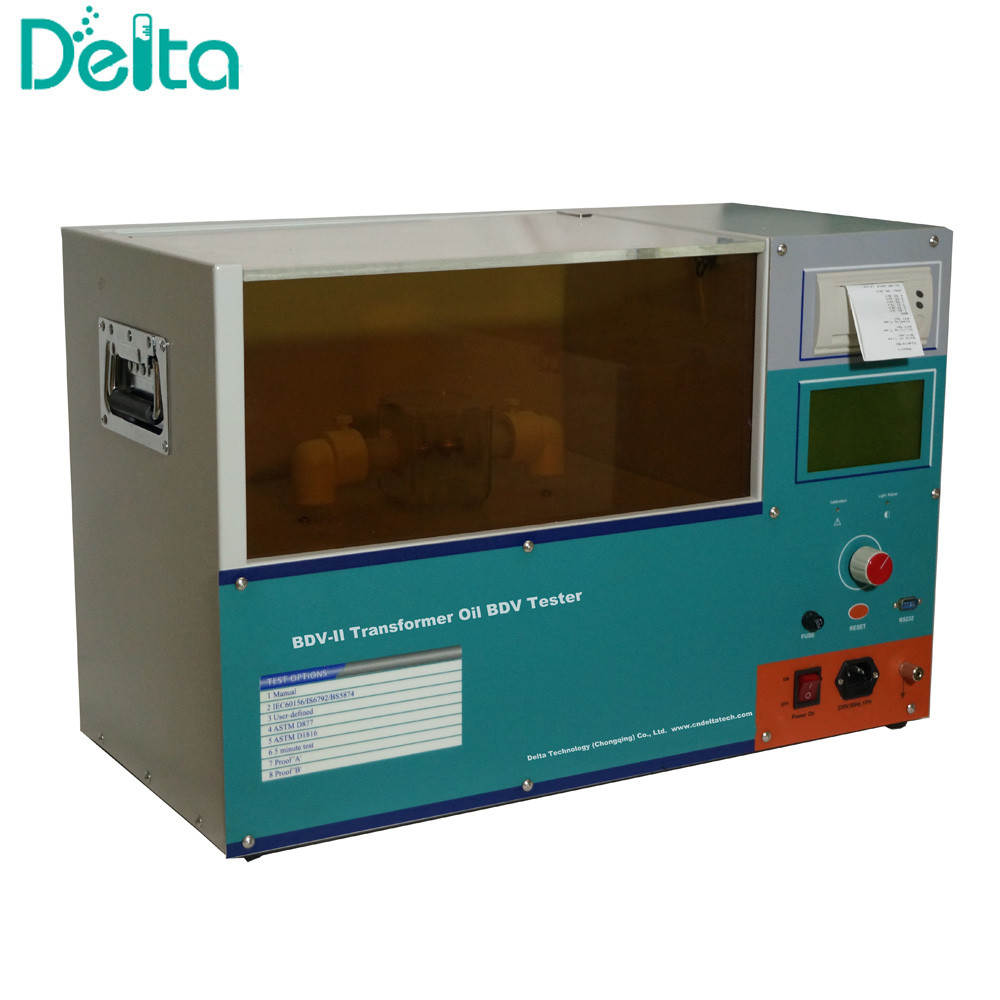

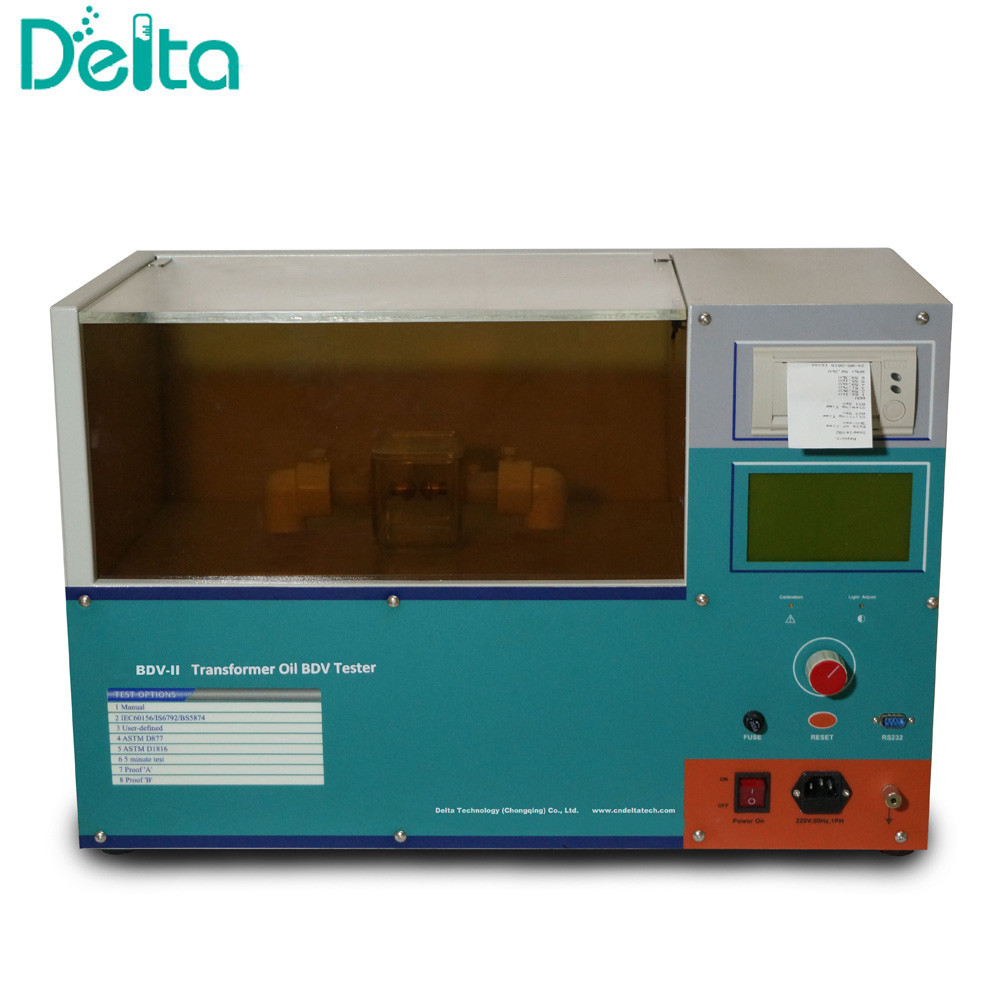

BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-II |
| Minimum Order Quantity | 1 full set of Transformer Oil Test Kit |
| Price | Negotiable |

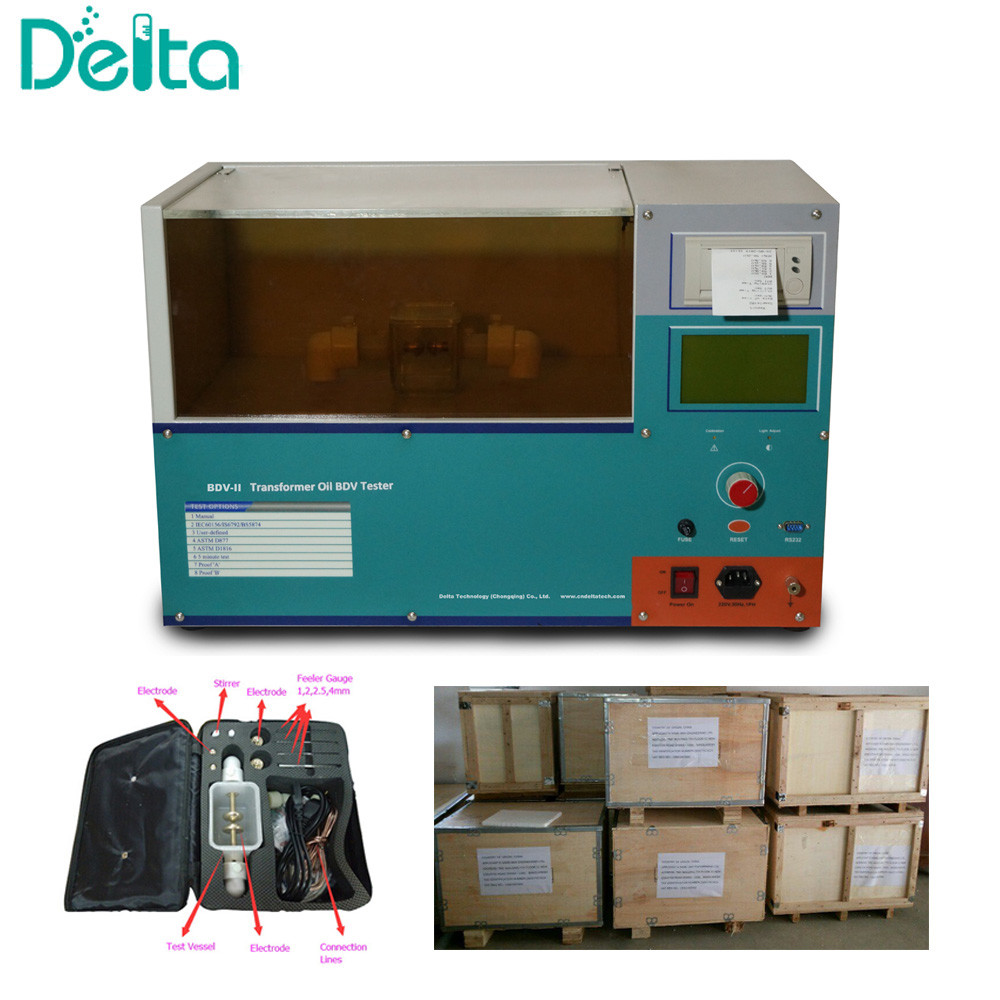

| Packaging Details | Transformer Oil Test Kit packed in veneer cases |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 100kV, 8 Kinds Of Test Modes For Choice, Stable, Reliable, Low Price Transformer Oil Test Kit | Description | BDV-II Multifunctional ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit |
|---|---|---|---|
| Functions | Transformer Oil Test Kit Is For Transformer Oil Breakdown Voltage Testing, 100kV | Test Objects | Transformer Oil, Insulating Oil, Insulation Oil, Electric Oil, Dielectric Oil |
| Test Voltae | 100kV | Output Frequency | 0.1Hz, 0.05Hz, 0.02Hz |
| Test Standards | ASTM D877, ASTM D1816, IEC60156, IS6792, BS5874 | Display | LCD Display |
| Dimension | 620 Mm*430mm*330mm | Weight | 41kg |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
Product Description
ASTM D877 ASTM D1816 IEC156 Transformer Oil Test Kit
Model: BDV-II
BDV-II Transformer Oil Test Kit:
- BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
- BDV-II ASTM D877 IEC156 Transformer Oil Test Kit has large LCD display, micro-printer and can store 100 groups data;
- BDV-II ASTM D877 IEC156 Transformer Oil Test Kit is multi-functional, stable, and easy for operation.
BDV-II Transformer Oil Test Kit Functions:
- Breakdown test of user-defined
- Proof test
- IEC60156/IS6792/BS5874 test
- ASTM D1816 standard test
- ASTM D877 standard test
- 5 minutes standard test
- Manual test
- Calibration interface for customers
- Uploading data to PC and making word report automatically
- Result print
BDV-II Transformer Oil Test Kit Specifications:
| 1 | Output voltage | AC 0V~100KV |
| 2 | Rate of voltage rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| 3 | Max test times setting for user-defined mode | 9 |
| 4 | Stir time setting for user-defined mode | 0~999s |
| 5 | Waiting time setting for user-defined mode | 0~999s |
| 6 | Test error | 3%RDG+0.3%FS |
| 7 | Display | 256´128 LCD |
| 8 | Maximum storage capacity | 100 groups of test data |
| 9 | Power supply | AC220V±10%, 50Hz/60Hz |
| 10 | Working environment | 0-50℃, ≤80%RH |
| 11 | Size | 620*430mm*330mm |
| 12 | Weight | 41kg |
