DFT Insulating Oil Dissipation Factor Tester, Oil Tan Delta Tester
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | DFT |
| Minimum Order Quantity | 1 set Dissipation Factor Tester |
| Price | USD1.0 |
| Packaging Details | Dissipation Factor Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | DFT Insulating Oil Dissipation Factor Tester, Oil Tan Delta Tester | Functions | Test Dissipation Factor And Tan Delta Of Transformer Oil |
|---|---|---|---|
| AC High Voltage Output | 400V-2200V | DC High Voltage Output | 00V-2200V |
| Temperature Control Induction Stove | Max. Power 500W | Size | 450(L)×310(W)×360(H) |
| Weight | 21KG | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
Product Description
Transformer Oil Dissipation Factor Tester -- Model: DFT
Introduction:
DFT Transformer Oil Dissipation Factor Tester is a high-precision instrument, which can be applied to measure dielectric loss angle and volume resistivity of insulating oil.
Features:
- DFT Transformer Oil Dissipation Factor Tester is integrated by oil cup, temperature controller, temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor, high resistance meter and DC high-voltage power etc.
- The most advanced heating mode of high frequency induction is applied to the heating part of this instrument, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the instrument can operate correctly.
- The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and capacitance is not influenced by environmental temperature and dampness etc.
Parameters:
| AC High Voltage Output | 400V-2200V ±2% Every 100V 50VA |
| DC High Voltage Output | 00V-2200V ±2% |
| Temperature Control Induction Stove | Max. power 500W |
| Temperature Control Range | <100℃ |
| Temperature Measuring Error | ±0.5℃ |
| Control Temperature Error | 0.1℃ |
| Control Temperature Time | Room temperature - 90℃ <20min |
|
| tgδ Without Limit Cx 15PF-300PF Rx 10M-10T |
| Resolution | tgδ 0.001% Cx 0.01pF Rx 0.01 |
| Precision | delta tgδ:±(Reading*0.5%+0.020%) delta Cx :±(Reading*0.5%+0.5PF) delta Rx :±Reading * 10% |
| Relative Dielectric Loss Constant | Εr is calculated automatically |
| Volume Resistivity | Ρ is calculated automatically |
| Dimension | 450(L)×310(W)×360(H) |
| Net Weight | 21KG |
| Condition of Use | -5℃-40℃ RH<80% |
| Power Source | AC 220V±10% Without Frequency Limit |

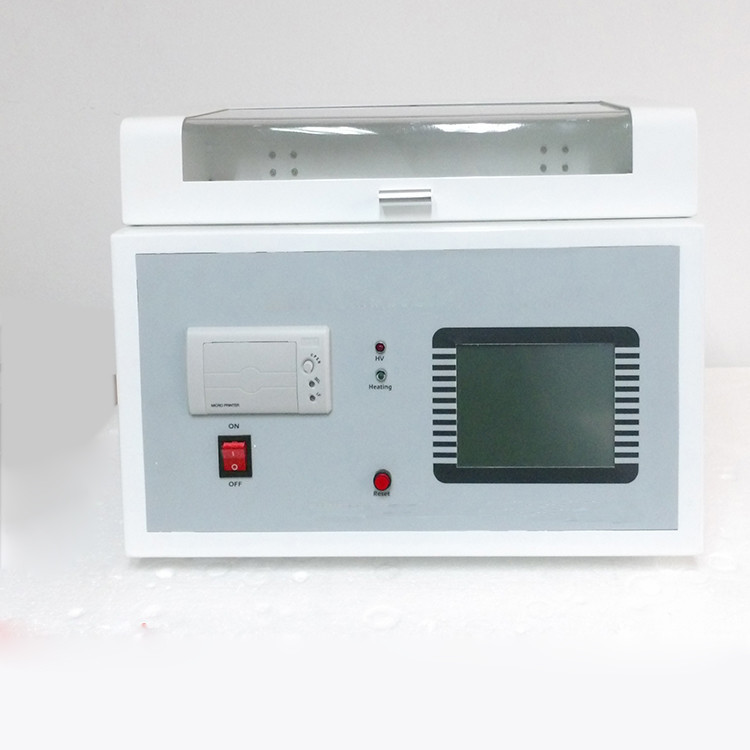

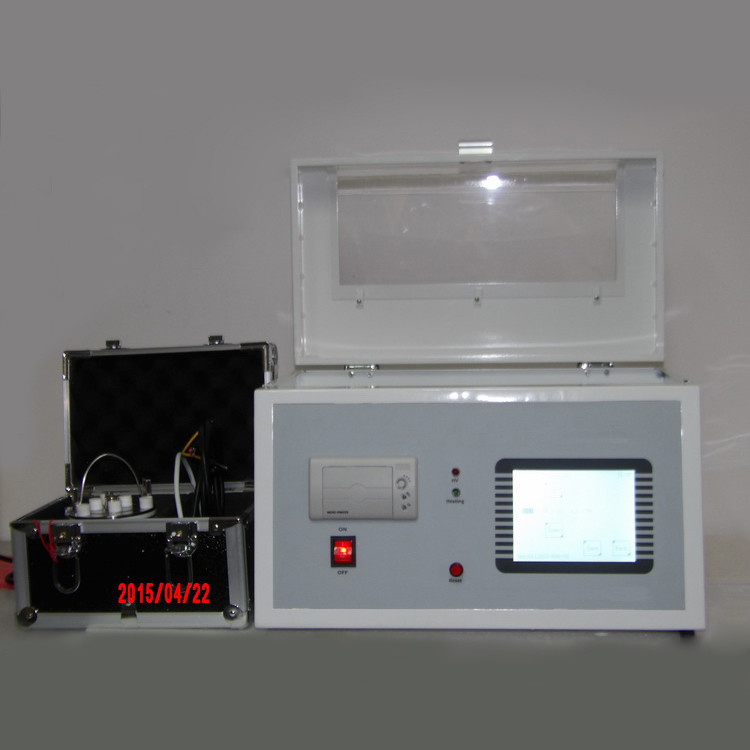

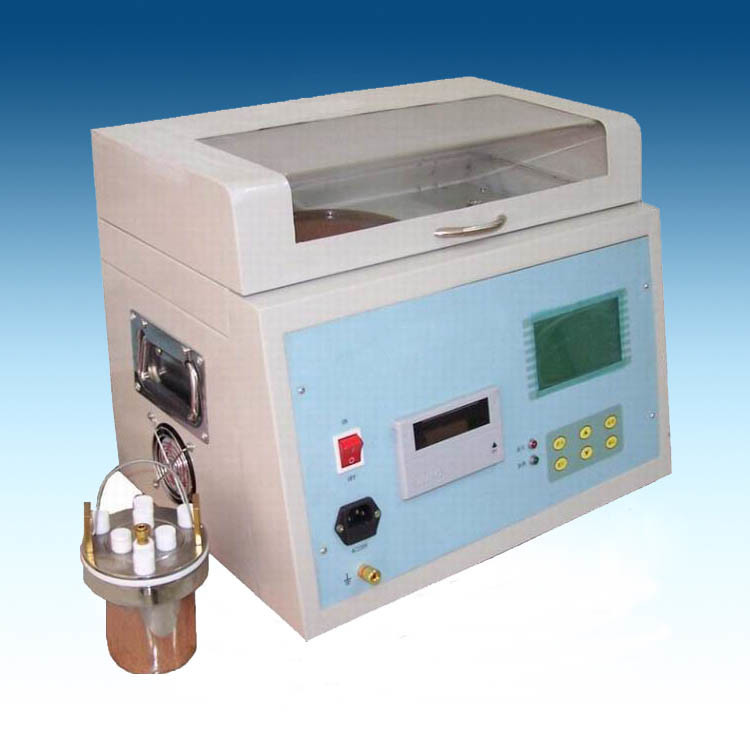

Real Picture:
