Petroleum Products Tester for Transformer Oil Water Content Testing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | PPM Level, Low Price, High Quality | Description | Petroleum Products Tester For Transformer Oil Water Content Testing |
|---|---|---|---|
| Other Name | Karl Fischer Titrator | Application | Measure Water Content, Moisture In Transformer Oil, Liquid, Solid And Gases |
| Test Method | Coulometric Method | Measuring Range | 3ug To 200 Mg Water |
| Water Content Range | 3ppm-100% | Dimension | 320 * 240 * 180mm |
| Weight | 6kg | Warranty | 1 Year |
Product Description

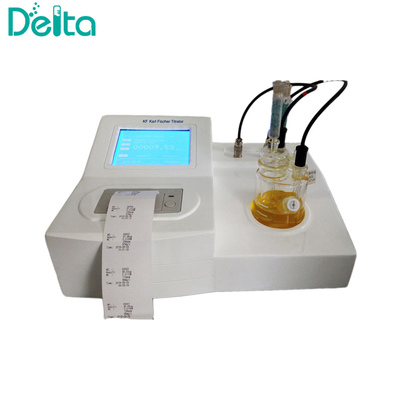

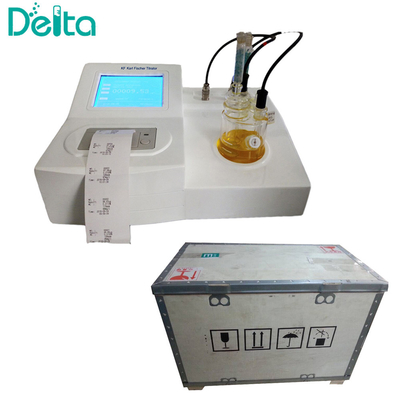

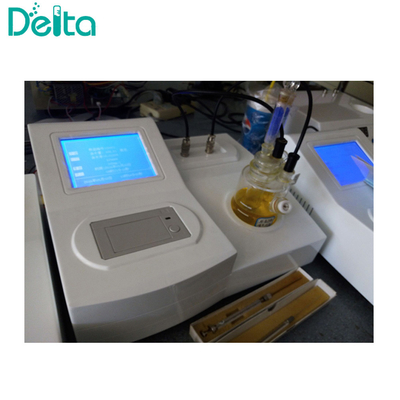

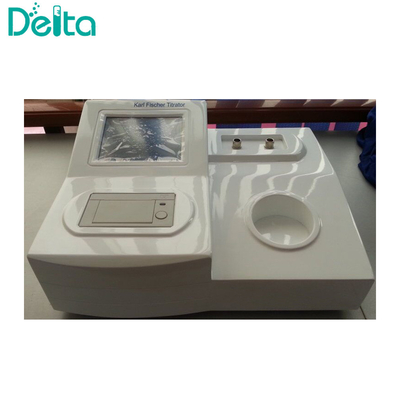

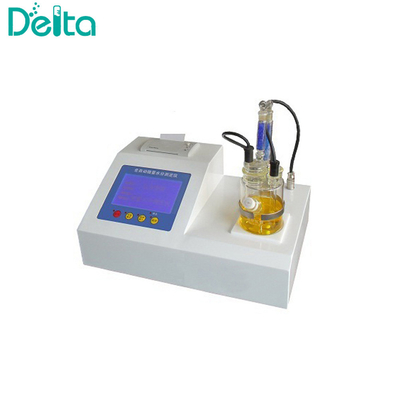

KF Petroleum Products Tester for Transformer Oil Water Content Testing
Introduction:
KF adopts Karl Fischer Coulometric method.
KF has the advantages of high testing accuracy, good repeatability, low testing cost etc.
KF is used to accurately test trace water content in various liquids, solids, and gases.
It is widely applied to petroleum, chemical engineering, pharmacy, electricity, scientific research, education department and so on.
Specifications:
| No. | Item Name | KF Petroleum Products Tester for Transformer Oil Water Content Testing |
| 1 | Measuring range | 3ug to 200 mg water |
| 2 | Water content range | 3ppm-100% |
| 3 | Resolution | 0.01 ug water |
| 4 | Accuracy | 10μg-1mg water, ± 0.2%; >1mg water, < ± 0.3% |
| 5 | Electrolysis speed | max 2.4 mg/min |
| 6 | Electrolytic current | 0 ~ 430 mA |
| 7 | Working environment | 5 ~ 35 ℃; Humidity: ≤85% |
| 8 | Dimension&Weight | 320 * 240 * 180mm, 6kg |
| 9 | Power supply | AC 220V ± 10% |
Features:
● Intelligent Determination
Powerful new-generation processor; dual-CPU design.
Dual power channels separate electrolytic electrode and measuring electrode; automatically removing all kinds of interference; greatly improving the accuracy of test results.
Measuring electrode data directly A / D sample converting; data true value avoids errors caused by analog circuit; results more accurate.
● Easy Operation
Touch-screen operation; only pressing once then the test will be done automatically and the reported values will automatically display.
● Background Compensation
Large current background compensation. Standby time can be shortened to be less than 10 minutes.
● Rotating Speed Control
Software adjusting stirring speed; selection between 0 to 36.
● End Point Indication
Character tips and buzzer
● Perfect Calculating Function
Automatically display, calculate, print ug / ppm / percentages / mg/L / sample name / test date etc.
● Automatic Date Storage
Year, month, day, hour, minute, second; automatic storage when power off.
