CFL High Technology Electrical Power Cable Fault Detector

Introduction:

CFL Cable Fault Locator can test all types power cable (voltage class 1KV~35KV) , local cable, coaxial cable, short circuit, earth, high resistance leakage, high resistance flashover fault of the metal overhead lines, and the broken & poor contact of the cable.

CFL Cable Fault Locator also can test the length of the cable and the speed of the electric wave on the cable.

To test the HV arcing fault of cable, earthing high &low resistance, short circuit and breakage of the cable, poor contact, etc.;

If equipped with fault locator, it can decide the exact broken position of the cable ,applies to power cable in various type, voltage and communication cable;

Features:

Multi functional, safe, fast speed and accurate. It uses LV impulse method and HV flashover method to test, can test kinds of fault of the cable, if equipped with sound locator, can accurately the position of the fault point.

High precision, adopts high-speed sampling technique, A/D sampling speed is 100MHz, resolution is 1m, detection blind area is 1m.

High degree of intelligence, test results auto displayed by LCD.

Can store and review the waveform and parameters, these information will not loss after power off.

Dual display, compare the measured waveform and normal waveform of the fault cable, benefit to further detection of thefault.

With function of wave form expansion ratio, change the proportion of the waveform, expand the waveform to test.

Directly display the direct distance or relative distance between fault point and measured point.

Can modify the speed according different measured cable.

Portable design , small in volume , with rechargeable battery, easy to carry and operate.

Parameters:

,

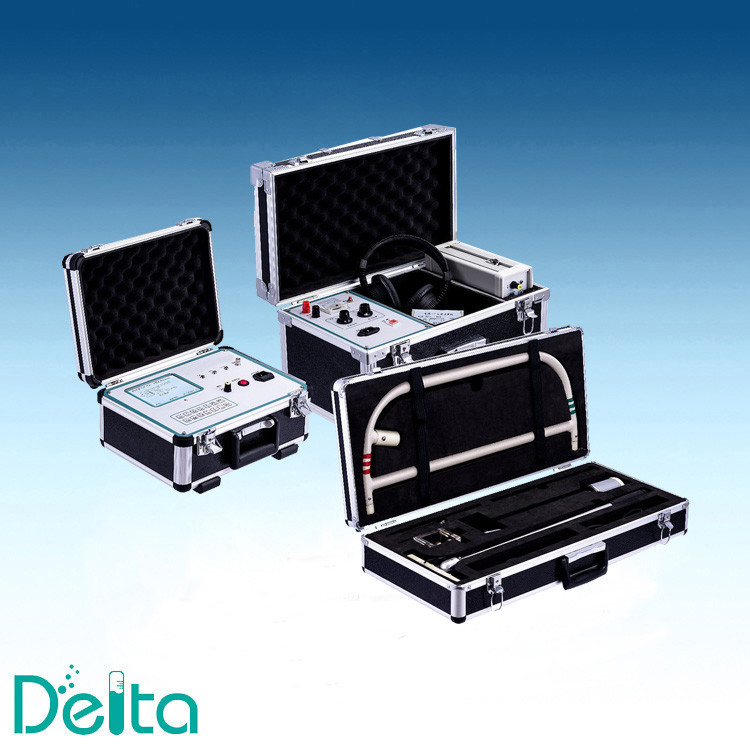

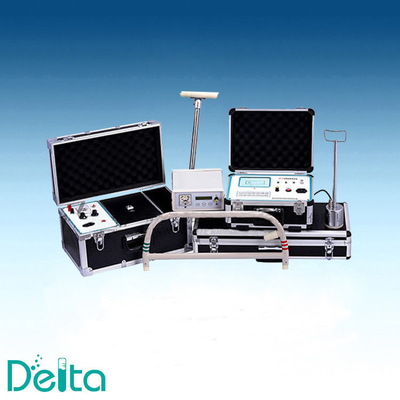

CFL High Technology Electrical Power Cable Fault Detector​ Real Picture:
