SFP Portable High Accurate High Voltage Switchgear SF6 Purity Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SFP |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | SF6 Purity Tester packed in veneer case. |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets of SF6 Purity Tester each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Portable, Quickly And Accurate SF6 Purity Tester | Description | SFP Portable High Accurate High Voltage Switchgear SF6 Purity Tester |
|---|---|---|---|
| Functions | For Sf6 Gas In Gis Or Sf6 Transformer Testing | SF6 Purity Measurement Range | 0-100% |
| SF6 Purity Test Time | <2min. | Gas Consumption | 0.5L |
| Data Storage | 100 Groups | Power Supply | AC220V, Built-in Rechargeable Battery |
| Dimension | 25cm*10cm×30cm | Weight | 3kg |
| Highlight | portable SF6 purity tester,high voltage switchgear tester,accurate SF6 gas tester |
||
Product Description
SFP Portable High Voltage Switchgear SF6 Purity Tester
Introduction:
- SFP High Voltage Switchgear SF6 Purity Tester is used to measure SF6 purity of SF6 air and the mixed gas of SF6 and N2.
- SFP High Voltage Switchgear SF6 Purity Tester can be quickly and accurately measure the purity of SF6.
- LCD screen directly displays purity value, time and date, battery power, etc.
- Under normal circumstances, after start-up the instrument, SFP High Voltage Switchgear SF6 Purity Tester can instantly measure and get the purity value quickly.
Features:
-
Portable design: convenient to carry and easy to use.
-
Quick test speed: need no wait, quick to get purity value.
-
Small gas consumption: when measured, gas consumption only around 0.5L (101.2kPa).
-
Self-locking connectors: adopts Germany imported self-locking connectors, Safe and reliable, no leaks.
-
Data storage: can store up to 100 groups test data.
-
Clear display: LCD screen to directly display purity value, time and date, battery electric quantity, etc.
-
RS232 Interface: can connect to serial printer, to print data.
-
Built-in power supply: built-in high-capacity rechargeable lithium battery, fully charged can continuous work for 10 hours;
Specifications:
| Item Name | SFP High Voltage Switchgear SF6 Purity Tester | |
| Purity | Measuring Range | 0%~100% |
| Accuracy | ±0.5% | |
| Measuring time | <2min. | |
| Temperature | －40℃～＋60℃ | |
| Humidity | 0～100％ RH | |
| Power supply | AC 220V | |
| Built-in rechargeable battery | ||
| Battery performance | Charging time more than 20 hours , can use 10 hours | |
| Weight | 3kg | |
| Dimension | 25cm*10cm×30cm | |
| Operating temperature | －30℃～＋50℃ | |

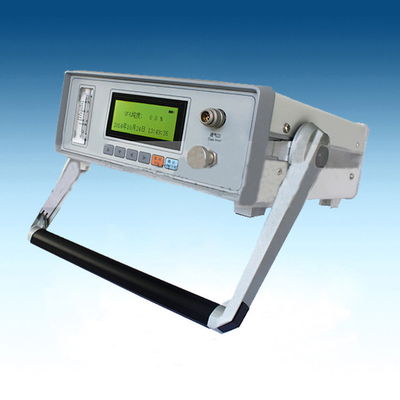

SFP Portable High Accurate High Voltage Switchgear Sf6 Purity TesterReal Picture:
