SFP Rapid Testing Purity of SF6 Gas in GIS SF6 Purity Testing Instrument
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SFP |
| Minimum Order Quantity | 1 set SF6 Purity Testing Instrument |
| Price | Price of SF6 Purity Testing Instrument |

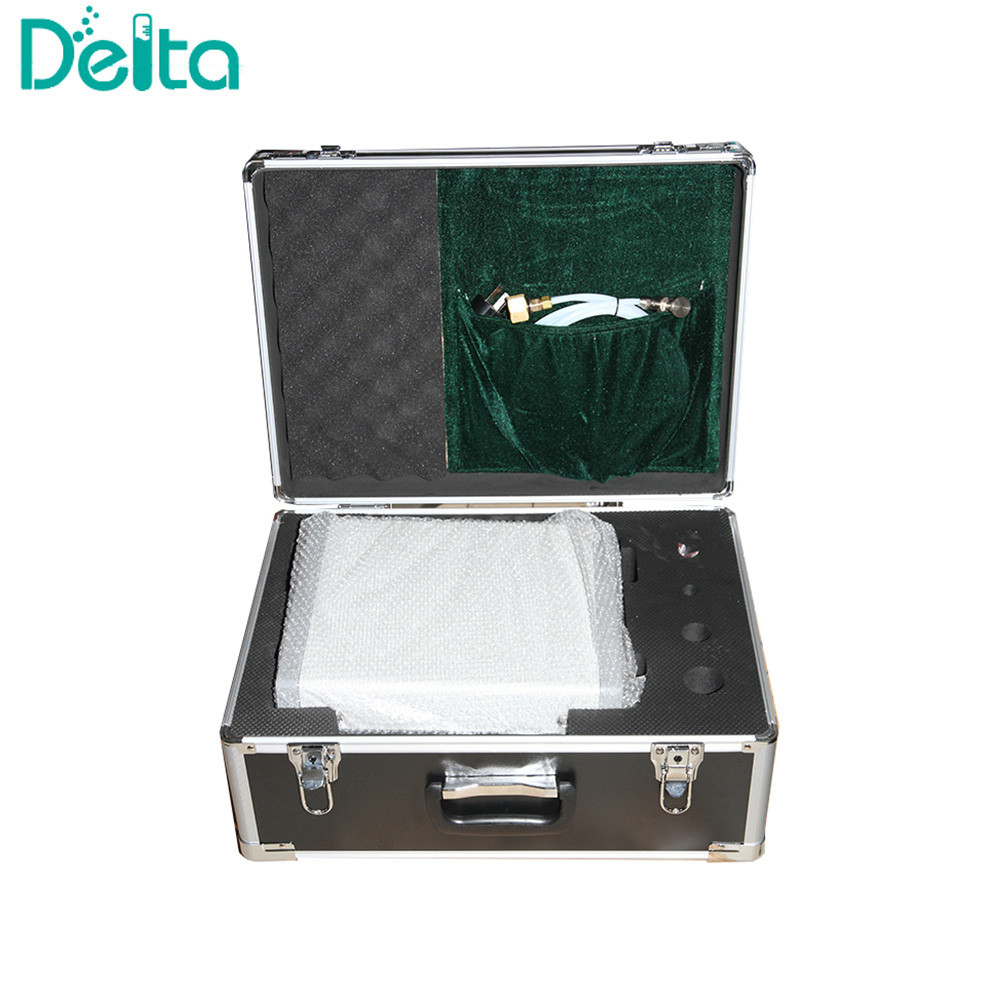

| Packaging Details | SF6 Purity Testing Instrument packed in veneer case. |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets of SF6 Purity Testing Instrument each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Portable, Quickly And Accurately Measure The Purity Of SF6, | Description | SFP Rapid Testing Purity Of SF6 Gas In GIS, SF6 Purity Testing Instrument |
|---|---|---|---|
| Application | Test Purity Of SF6 Gas In Transformer, Switchgear, Circuit Breaker | SF6 Purity Measurement Range | 0-100% |
| SF6 Purity Test Time | <2min. | Gas Consumption | 0.5L |
| Data Storage | 100 Groups | Power Supply | AC220V, Built-in Rechargeable Battery |
| Dimension | 25cm*10cm×30cm | Weight | 3kg |
Product Description

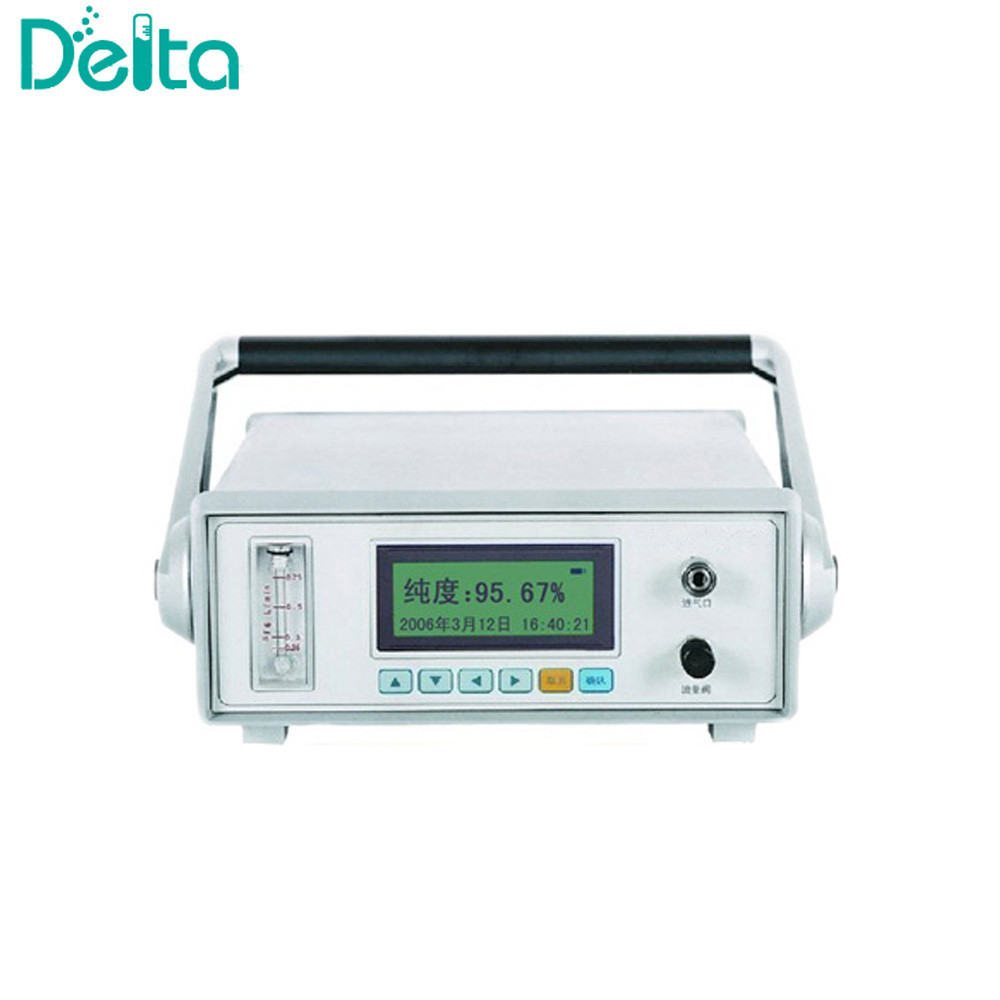

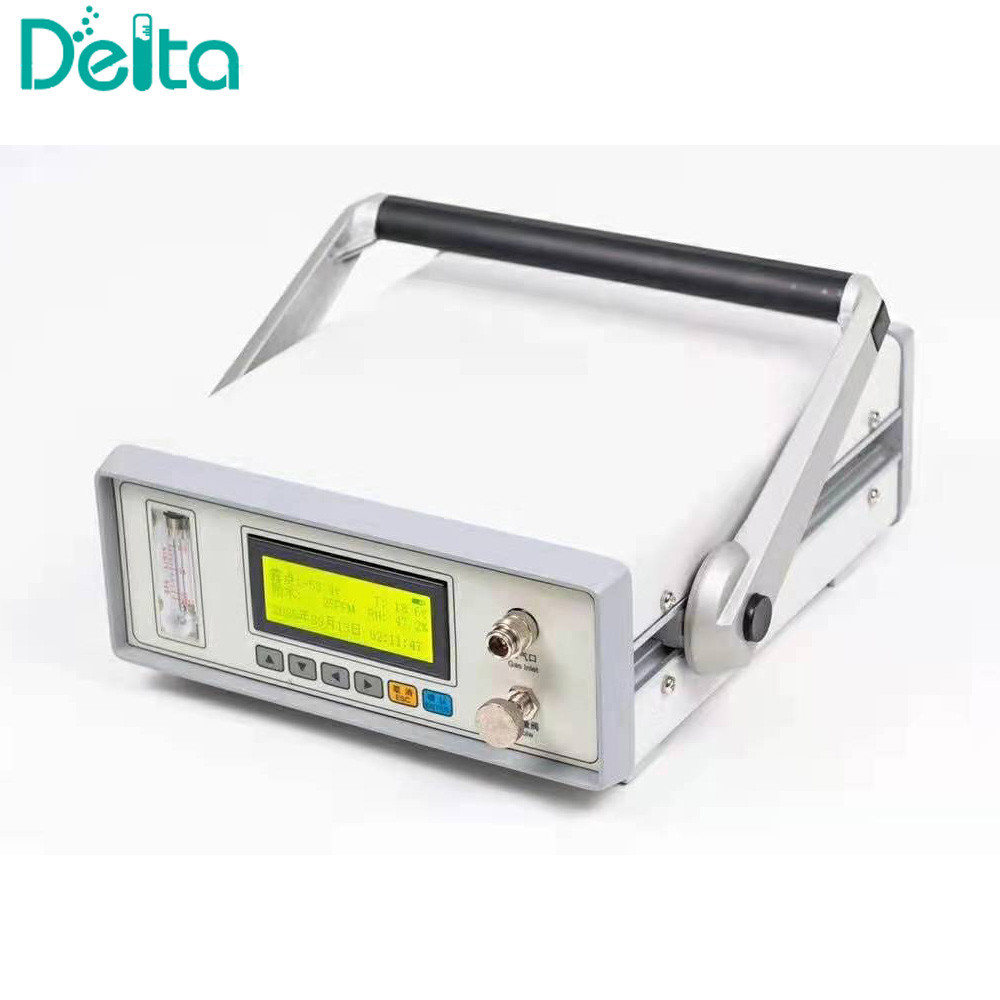

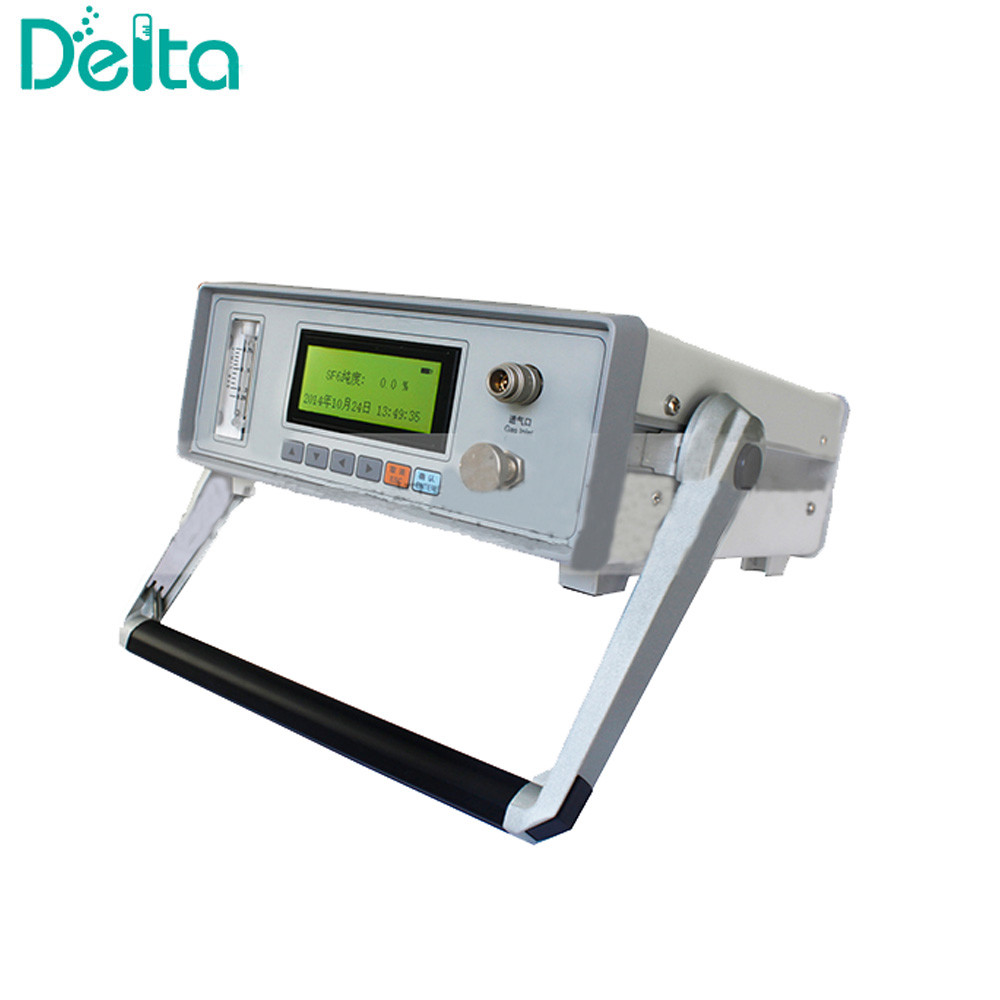

SFP Rapid Testing Purity of SF6 Gas in GIS, SF6 Purity Testing Instrument
Introduction:
- SFP Rapid Testing SF6 Purity Testing Instrument is used to measure SF6 purity of SF6 air and the mixed gas of SF6 and N2.
- SFP Rapid Testing SF6 Purity Testing Instrument can be quickly and accurately measure the purity of SF6.
- LCD screen directly displays purity value, time and date, battery power, etc.
- Under normal circumstances, after start-up the instrument, it can instantly measure and get the purity value quickly.
Features:
-
Portable design: convenient to carry and easy to use.
-
Quick test speed: need no wait, quick to get purity value.
-
Small gas consumption: when measured, gas consumption only around 0.5L (101.2kPa).
-

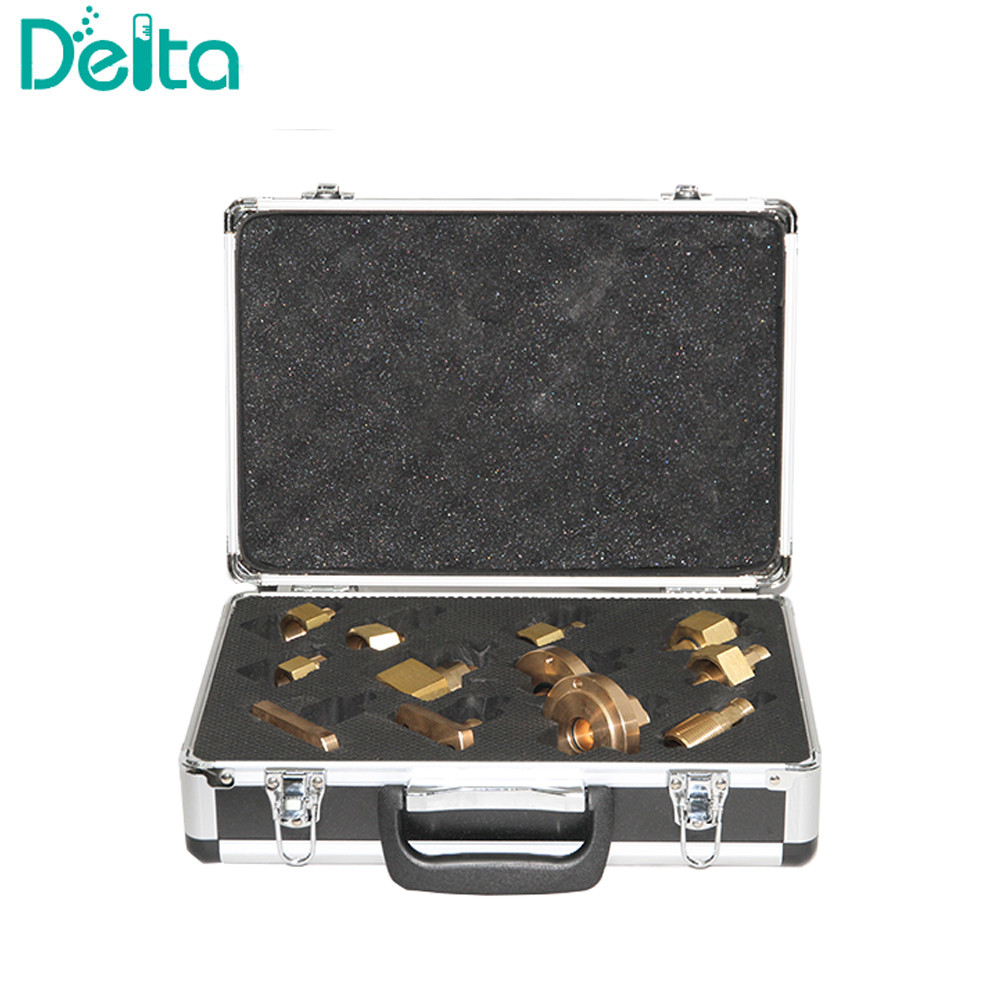

Self-locking connectors: adopts Germany imported self-locking connectors, Safe and reliable, no leaks.
-
Data storage: can store up to 100 groups test data.
-
Clear display: LCD screen to directly display purity value, time and date, battery electric quantity, etc.
-
RS232 Interface: can connect to serial printer, to print data.
-
Built-in power supply: built-in high-capacity rechargeable lithium battery, fully charged can continuous work for 10 hours;
Specifications:
| Item Name | SFP Rapid Testing SF6 Purity Testing Instrument | |
| Purity | Measuring Range | 0%~100% |
| Accuracy | ±0.5% | |
| Measuring time | <2min. | |
| Temperature | －40℃～＋60℃ | |
| Humidity | 0～100％ RH | |
| Power supply | AC 220V | |
| Built-in rechargeable battery | ||
| Battery performance | Charging time more than 20 hours , can use 10 hours | |
| Weight | 3kg | |
| Dimension | 25cm*10cm×30cm | |
| Operating temperature | －30℃～＋50℃ | |
