JF-2004 Portable Transformer Partial Discharge Detector

  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
  • JF-2004 Portable Transformer Partial Discharge Detector
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number JF-2004
Minimum Order Quantity 1 set Partial Discharge Detector
Price USD1.0
Packaging Details Partial Discharge Detector packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets Partial Discharge Detector per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Portable, Small In Volume, High Accurate Item Name JF-2004 Portable Transformer Partial Discharge Detector
Functions For Power Transformer Partial Discharge Detecting Dimension 22cm*10cm*4cm
Weight 1.5kg Power Supply AC220V ± 10%, 50Hz
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

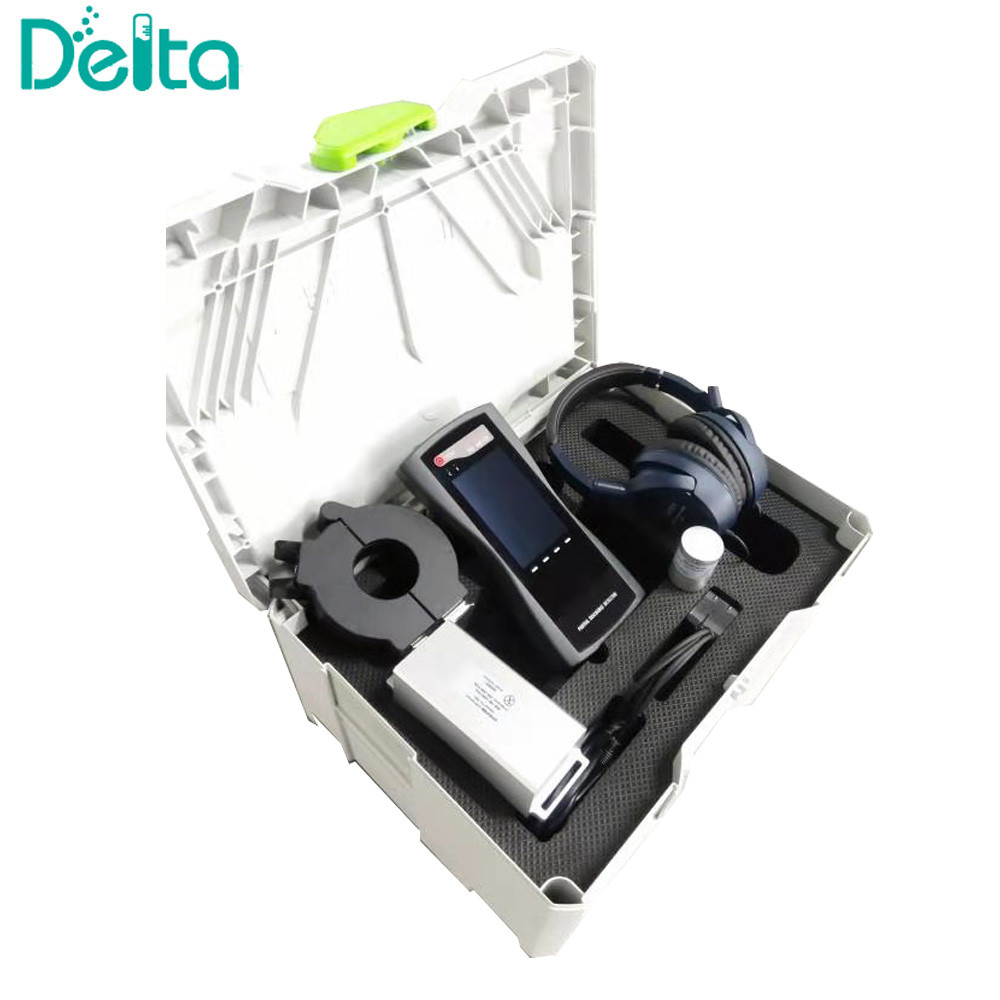

JF-2004 Portable Transformer Partial Discharge Detector



Introduction:

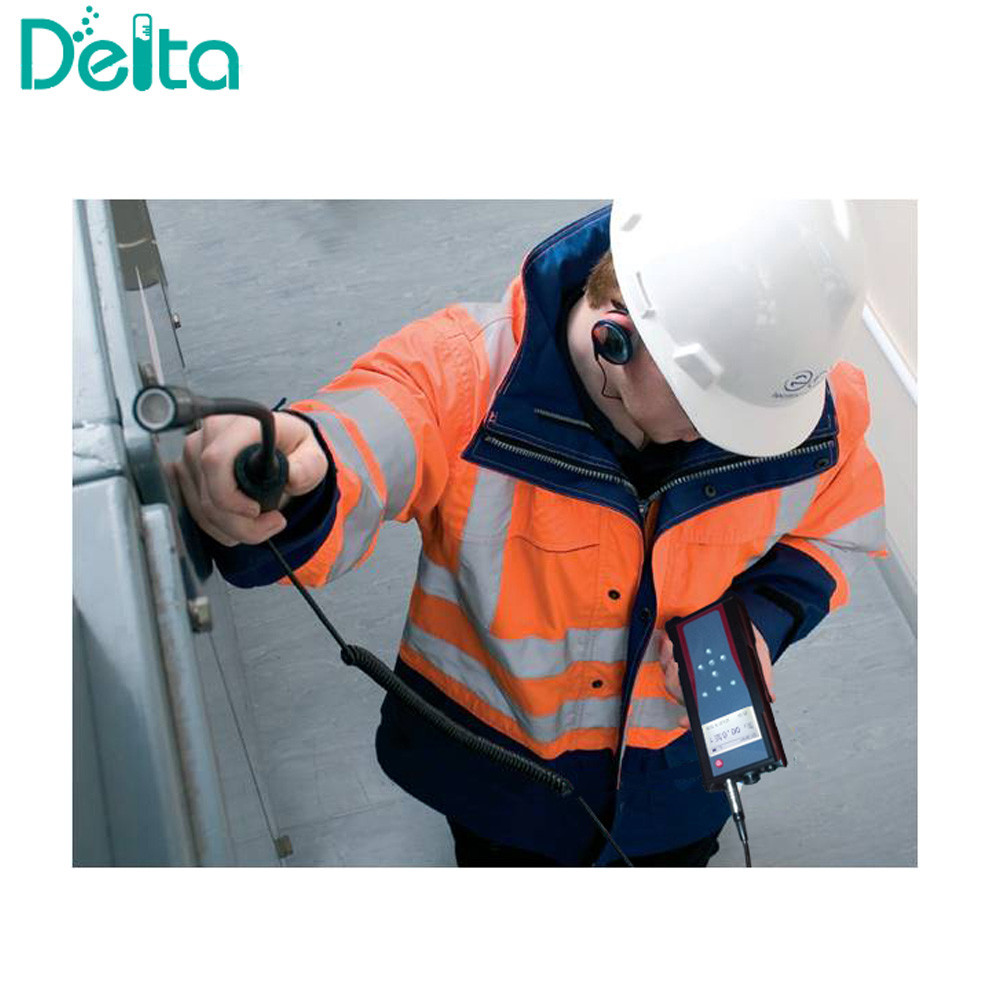

  • Application: non-intrusive detection methods to detect and locate partial discharge defects in high-voltage electrical equipment.
  • Working principle: Ultra-high frequency method (UHF), ultrasonic method (UA) and terrestrial electric wave method (TEV).
  • Detection frequency range: UHF is 300～1500(MHz), ultrasonic is 20～200(KHz).
  • Measuring range: UHF is -80～-20dBm, and ultrasonic is 0～90dB.
  • Sensitivity: 10pC minimum (depending on the distance between the sensor and the discharge source).



Sensor:

JF-2004 Partial Discharge Detector has a built-in ultrasonic sensor, a two-in-one sensor for geo-electric wave and ultrasonic;

  1. UHF sensor: 300～2000(MHz), with directional receiving characteristics;
  2. Ultrasonic sensor: 20～200(kHz);
  3. Earth electric wave (TEV): 10 ~ 70MHz;



Software function:

  1. Continuously detect ultra-high frequency, terrestrial electric wave and ultrasonic signals to determine whether there is partial discharge;
  2. Real-time display of the change trend of the measured signal, which can make a more intuitive judgment on the development of the partial discharge signal;
  3. Have on-site data storage function.



Other Parameters:

No. Item Name JF-2004 Portable Transformer Partial Discharge Detector

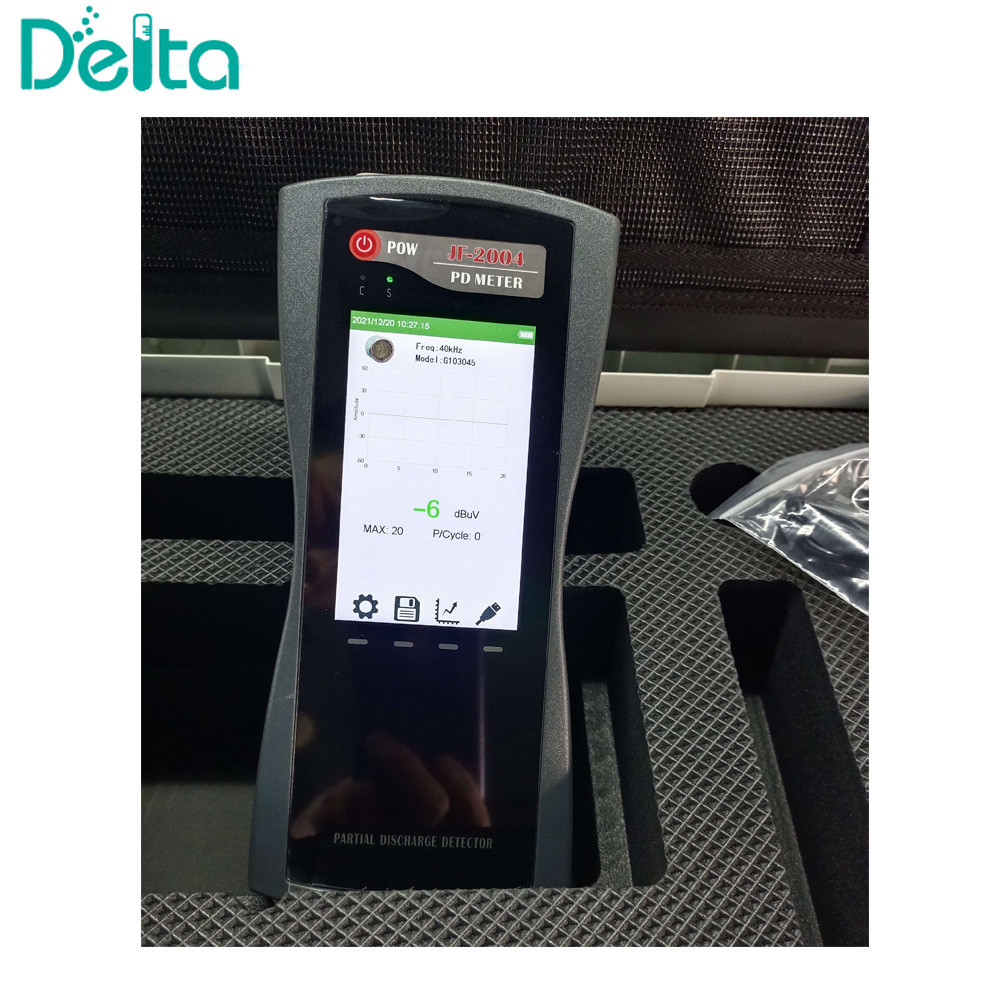

1 Screen display high-contrast 3.5-inch TFT color screen
2 Data storage 1000 sets of test data can be saved
3 Power supply Built-in 8.4V lithium battery, can work continuously for 8 hours
4 Power supply input 100-240VAC, output 8.4V/3A, charging time is 3 to 4 hours
5 Dimensions&weight 22cm*10cm*4cm, 1.5kg

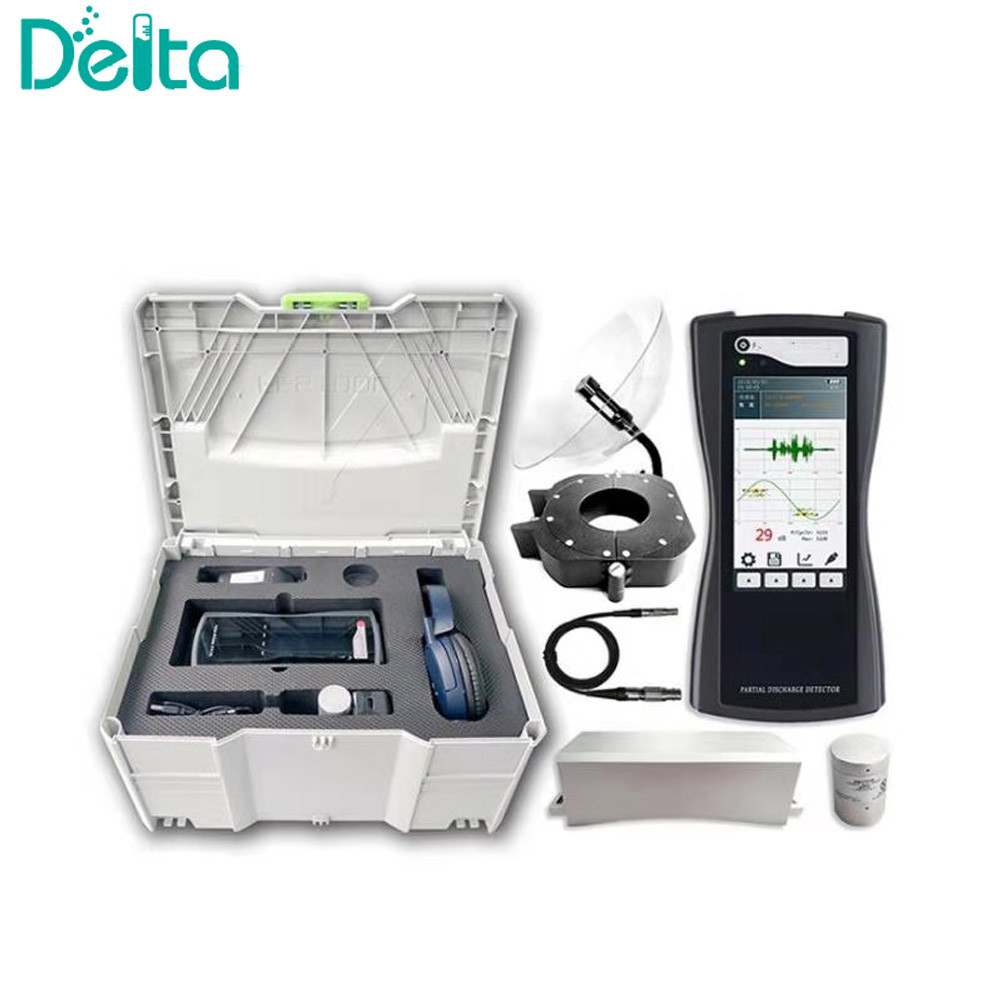

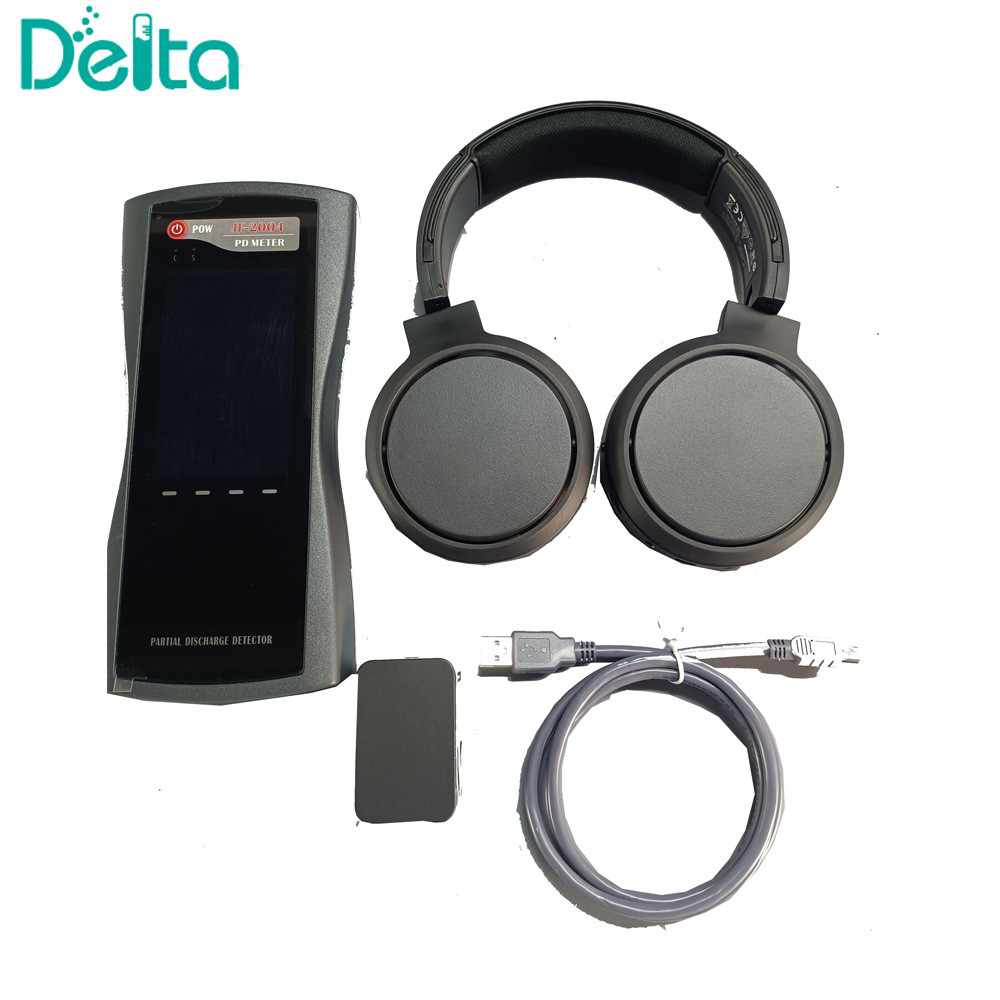

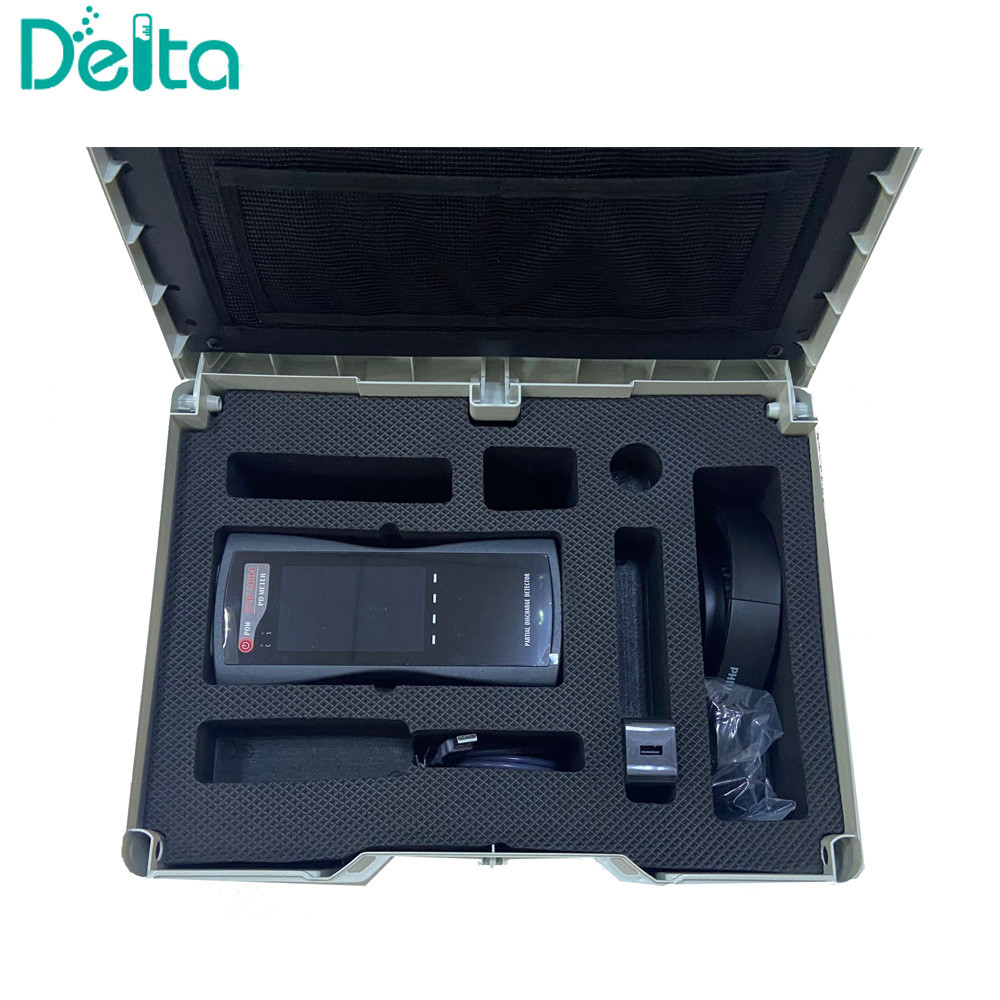

6 Complete configuration host, sensor, AC adapter, connecting cable and transport box



JF-2004 Portable Transformer Partial Discharge Detector 0JF-2004 Portable Transformer Partial Discharge Detector 1
