CRT Switchgear 100A 200A IEC62271 Loop Resistance Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CRT |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | CRT Switchgear Loop Resistance Tester Packed in Plywood Case |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | CRT Switchgear 100A 200A IEC62271 Loop Resistance Tester | Description | 3 Phase Loop Contact Resistance Testing Equipment |
|---|---|---|---|
| Test Current | DC 100A, 200A, 400A, 600A For Choice | Function | Test The Loop Resistance Of High Voltage Switch |
| Data Storage | 100 Groups | Dimension | 340mm * 280mm * 210mm |
| Weight | <18kgs | Display Type | Digital Only |
| Test Current | For Choice |
Product Description
CRT Switchgear 100A 200A IEC62271 Loop Resistance Tester
Introduction:
CRT Switchgear Loop Resistance Tester is designed according to IEC62271 to test the contact resistance of circuit breaker or high current cable contacts.
There are 100A, 200A, 400A and 600 loop resistance tester for choice.
All the test results of CRT Loop Resistance Tester could be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document
Functions:
CRT Three Phase Loop Contact Resistance Testing Equipment is packed in one veneer case.
Packing dimension: 44cm *34cm *45 cm
Packing weight: 23kg
There is no liquid or battery in the tester, it can be delivered by Express.
1. Warranty period for all products is One year;
2. Within warranty period, all quality problems of the instrument shall be repaired by our company free of charge;
3. Beyond warranty period, our company shall be responsible for life-time maintenance, only the cost of the accessories will be charged;
4. User manual will be sent with the tester, some testers have demo for review.
5. If users have question on operation, we supply on-line video training. Users can also come to our factory to get free training.
Parameters:
| No. | Item Name | CRT Automatic Switch Tester Three Phase Loop Contact Resistance Testing Equipment |
| 1 | Measuring range | 0-1999.9 μΩ Resolution:0.1 μΩ |
| 2 | Measuring current | DC 100A, 200A, 400A, 600A for choice |
| 3 | Measuring precision | 0.5 %RGD+0.05%FS |
| 4 | Display mode | LCD |
| 5 | Data storage | It can save 100 groups of data in the instrument |
| 6 | Data connection | RS232 computer interface |
| 7 | Rated power supply | AC220V |
| 8 | Dimension | 340mm * 280mm * 210mm |
| Weight | <18kg | |
| 9 | Environment temperature | -10 ºC~+40 ºC |
| 10 | Relative humidity | <80% |

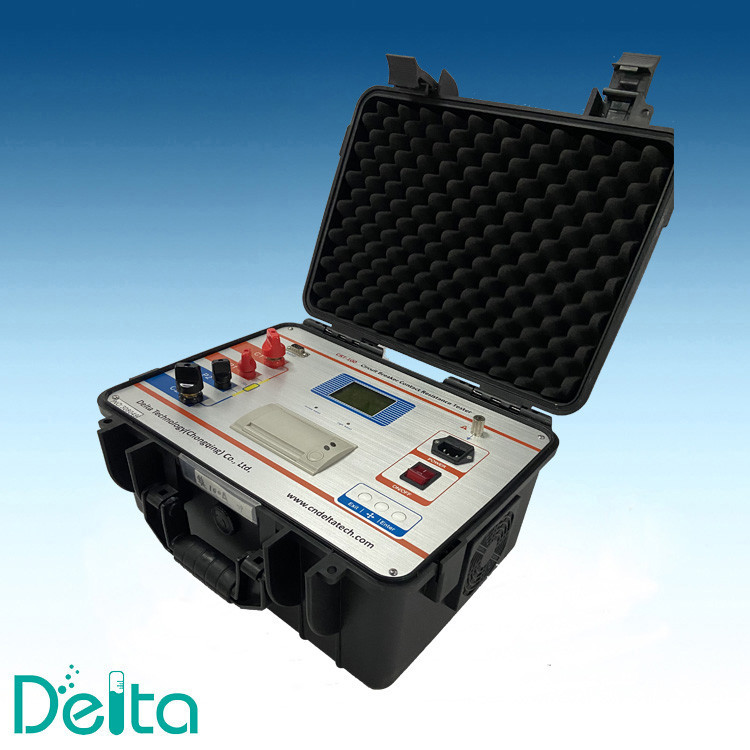

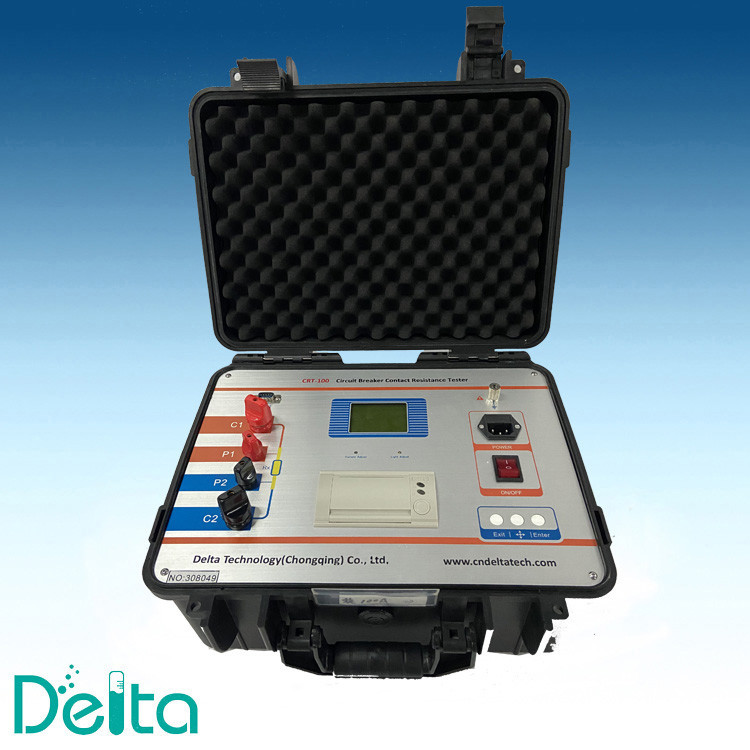

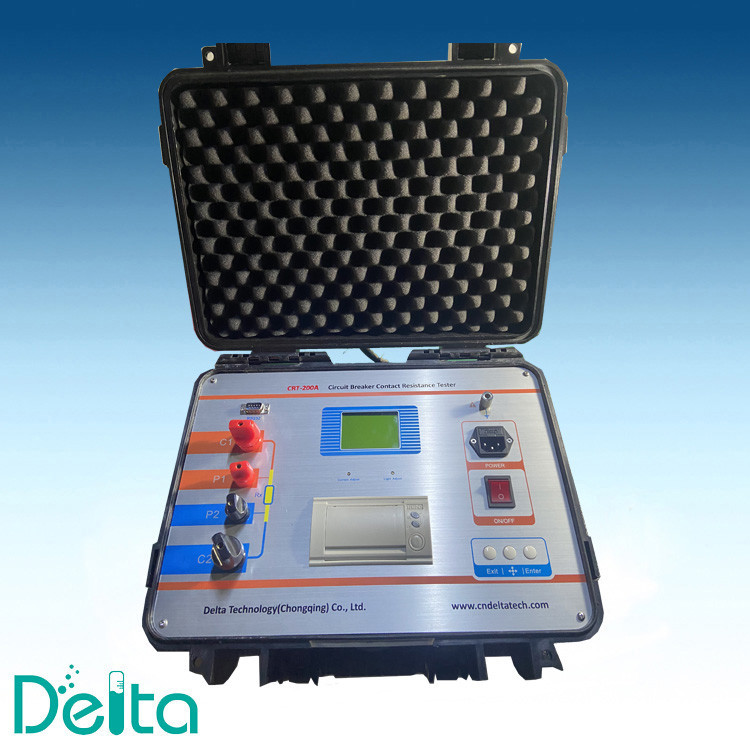

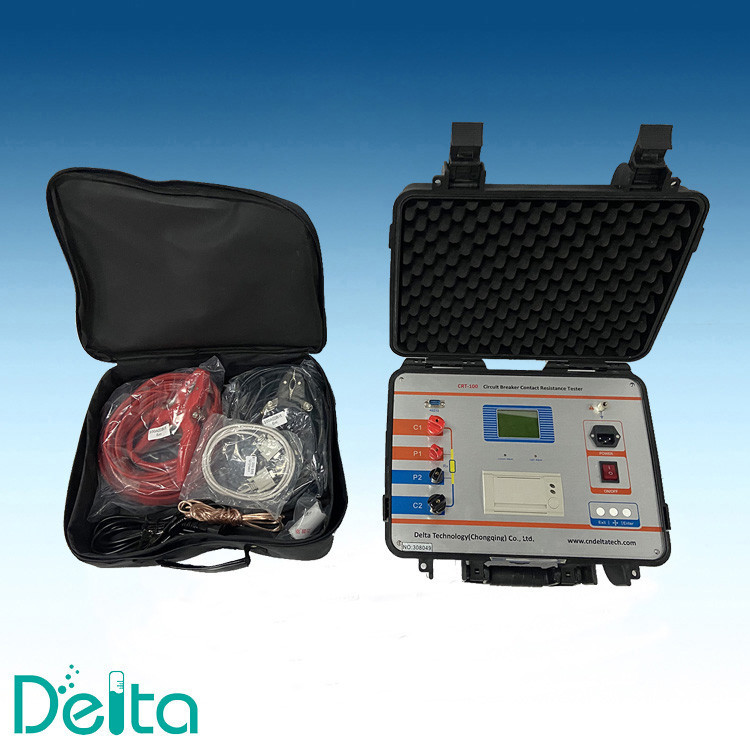

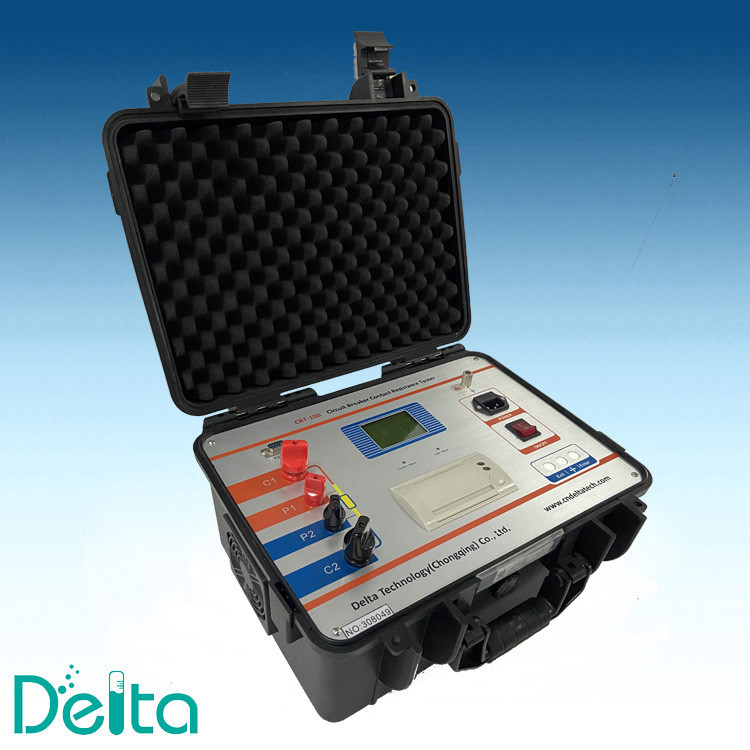

CRT Switchgear Loop Resistance Tester Tester Real Picture:
