Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set

  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
  • Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number CBA-III
Minimum Order Quantity 1 set Circuit Breaker Timing Test Set
Price USD1.0
Packaging Details Cba-III Circuit Breaker Timing Test Set packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set Application Field Electrical Industry, Circuit Breaker Manufacturer
Usage Test Parameters Of High Voltage Circuit Breaker Description High Voltage Circuit Breaker Timing Test Set
Packing Dimension 74cm * 45cm * 48cm Packing Weight 43kg
Power Supply AC220V ± 10%, 50Hz/60Hz Warranty One Year
Power Supply 220V, 50Hz
Leave a Message
Product Description

CBA-III IEC62271 High Voltage Circuit Breaker Timing Test Set

Introduction:

  • CBA-III IEC62271 High Voltage Circuit Breaker Timing Test Set is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc.
  • CBA-III IEC62271 High Voltage Circuit Breaker Timing Test Set covers all testing items of high voltage circuit breaks.

Functions:





Parameters:

  • Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.

  • Measurement of closing speed, opening speed and average speed.

  • Measurement of clearance between open contacts, over travel, overshoot travel and total travel.

  • Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current

  • Test travel time curve, speed time curve and acceleration time curve

  • Measurement of pre-insertion resistance value and pre-insertion ion time.

  • Test contact resistance

  • Measurement of dynamic resistance time curve and length for arcing contacts

  • Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.

  • CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.

  • Drawing Envelopes for reference travel curve and compare travel curve with envelopes

  • Mechanical travel curve automatic compare with saved travel curve

  • Measurement of CO time (close-open time) and OC time (Opening-Closing time)

  • Graphite contact closing time, opening time, dynamic resistance curve measurement

  • Zoom, editors, statistics and analysis for measurement curves.

  • 12.1-inch touch screen for control and data input

  • Built-in micro printer for test result printout.

  • Generate WORD format test report automatically (all reports and data can be exported through Flash disk).

1 12 channels for time measurement

3-channel support both the time contact and resistance contact time

6-channel isolated contacts for cascaded unit measurement of pole
2 Time measurement Range: 4000ms; Error :< 0.1ms; Resolution: 0.01ms
3 Travel measurement according to sensor

Linear resistance sensor:

Measurement range: 0~250mm; resolution: 0.01mm; error: <0.5mm

Measurement range: 0~25mm; resolution: 0.01mm; error: <0.05mm

Angle resistance sensor:

Measurement range: 0~360°; resolution: 0.01°; error: <0.5°
4 Pre-insertion resistance measurement Range: 50~5000ohm; error :<1%RDG+2D
5 Dynamic resistance measurement Test current: 25~100A, Measurement error :< 1%RDG+2D
6 Contact resistance measurement

Range:0--10mohm, Error <0.5%RDG+0.05%FS

Range: 0-2mohm, Error: <0.5%RDG+2D
7 Speed measurement

250mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D

25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D

Angle sensor: 0~20m/s; error: <0.5%RDG+2D

Acceleration sensor: 0~20m/s; error: <5%RDG+2D
8 Coil current measurement Range: 0~20A; resolution: 0.001A; error: <0.01A
9 Vibration measurement Range: 0~5000G; error: <3%
10 Internal DC power source voltage: 12~265V; current:0~20A
11 Data transaction Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection
12 Power supply AC220V±10%; 50Hz±10%
13 Working environment -10~50°C; Humidity: <80%


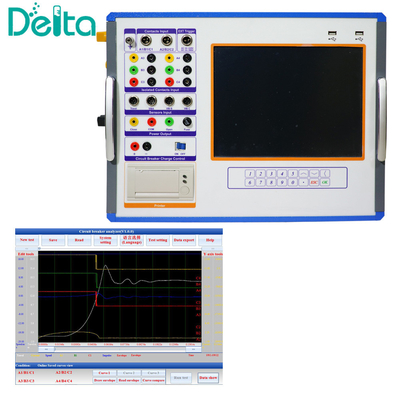

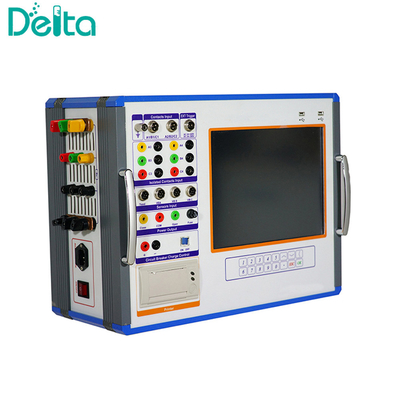

Cba-III High Voltage Circuit Breaker Timing Test Set Real Picture:

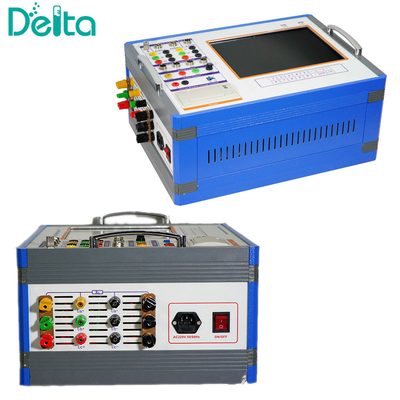

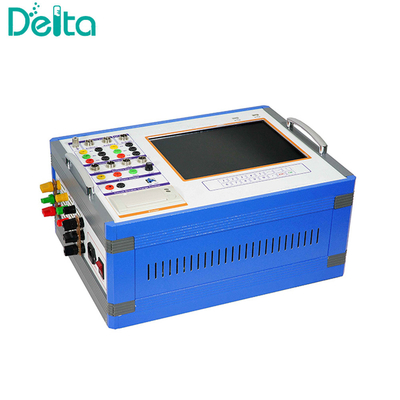

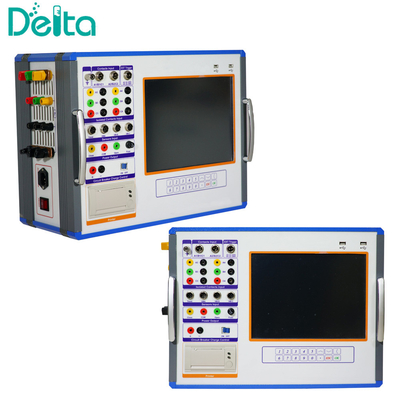

Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set 0

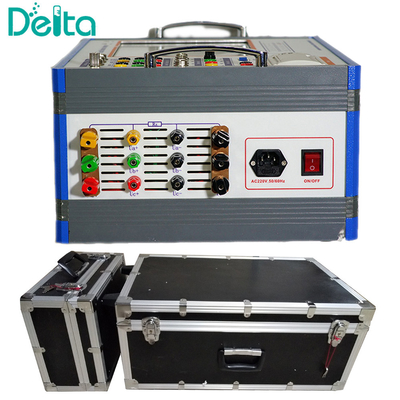

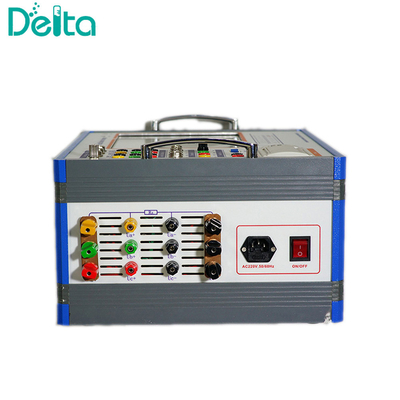

Cba-III IEC62271 High Voltage Circuit Breaker Timing Test Set 1
