Cba-II Hot Sale Manual Type Circuit Breaker Test Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CBA-II |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | CBA-II Type Circuit Breaker Test Equipment packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Good Sale Circuit Breaker Test Equipment | Item Name | Cba-II Hot Sale Manual Type Circuit Breaker Test Equipment |
|---|---|---|---|
| Description | Cba-II Circuit Breaker Test Equipment | Usage | For High Voltage Circuit Breaker Testing |
| Time Measurement Range | 6000ms | Dimension | 53*45*63cm |
| Powery Supply | 220V, 50Hz / 60Hz | Weight | 31kg |
| Service | OEM Service Is Available | Measured Parameters | Time, Distance, Travel, Etc. |
Product Description
CBA-II Hot Sale Manual Type Circuit Breaker Test Equipment
Introduction:
CBA-II Hot Sale Manual Type Circuit Breaker Test Equipment is designed for high voltage switches testing.
CBA-II Hot Sale Manual Type Circuit Breaker Test Equipment adopts micro controller unit(MCU) to control the testing process.
CBA-II High Voltage Vacuum Type Circuit Breaker Test Apparatus is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
CBA-II High Voltage Vacuum Type Circuit Breaker Test Apparatus can test following switches: indoors or outdoors switches, vacuum switches, SF6 switches and so on.
Main Functions:
-
Contacts’ closing time and opening time;
-
Re-closing time;
-
Opening or closing’s asynchronism;
-
Springing time or springing times;
-
Clearance between open contacts/gaps, over-travel, over-shoot and springback;
-
Speed at instant of contacts touching (separating);
-
Opening (Closing) max speed;
-
Opening (Closing) average speed;
-
Display and Print V-S curve;
-
Operating current curve;
-
Closing resistance measurement;
-
Large color screen in touch operating;
Parameters:
| 1 | Time | Simultaneity measure Contacts | ≤12 |
| Range | 0—6s | ||
| Resolution | 0.01ms | ||
| 2 | Travel | Range | < 250mm |
| Resolution | 0.01mm | ||
| 3 | Error | Time measurement | ±0.5% |
| Travel measurement | ±1mm | ||
| 4 | Speed | Measure range | 0—20m/s |
| 5 | Internal Power | Output Voltage | 30V—260V |
| error | 1% | ||
| Output Current | 0～10A | ||
| 6 | Power Supply | Power Supply | AC220V±10 %, 50Hz |
| Power dissipation | ≤60w | ||
| 7 | Working Environment | Ambient temperature | 0~40°C |
| Humidity | ≤90%RH | ||
| 8 | Size | Dimension | 460mm*340mm*200mm |
| Weight | 7kg |

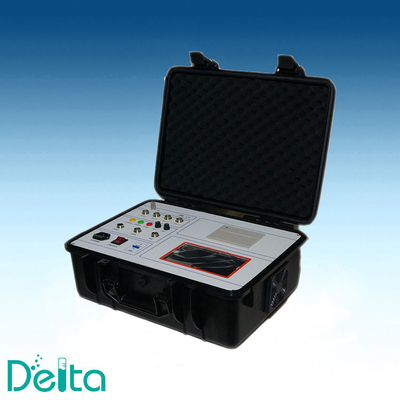

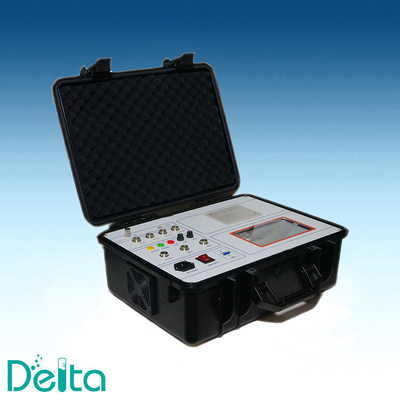

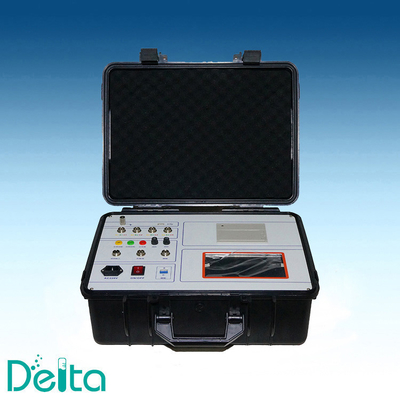

CBA-II Type Circuit Breaker Test Equipment Real Picture:
