CBA-I Circuit Breaker Travel Trip Speed Timing Tester

  • CBA-I Circuit Breaker Travel Trip Speed Timing Tester
  • CBA-I Circuit Breaker Travel Trip Speed Timing Tester
  • CBA-I Circuit Breaker Travel Trip Speed Timing Tester
  • CBA-I Circuit Breaker Travel Trip Speed Timing Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number CBA-I
Minimum Order Quantity 1 set Circuit Breaker Analyzer
Price USD1.0
Packaging Details Cba-I Travel Trip Speed Time Tester packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Easy Use Circuit Breaker Test Set Item Name Cba-I Circuit Breaker Travel Trip Speed Timing Tester
Description Cba-I Circuit Breaker Travel Trip Speed Time Teste Usage For High Voltage Switches Testing
Time Measurement Range 6000ms Test Standard IEC62271
Power Supply AC220V ± 10%, 50Hz/60Hz Warranty One Year
Service OEM Service Is Available Dimension 400mm*350mm*200mm
Weight 7kg
Leave a Message
Product Description

CBA-I Circuit Breaker Travel Trip Speed Timing Tester

Introduction:

CBA-I Circuit Breaker Travel Trip Speed Timing Tester is designed for high voltage switches testing.

CBA-I Circuit Breaker Travel Trip Speed Timing Tester adopts micro controller unit(MCU) to control the testing process.

CBA-I Circuit Breaker Travel Trip Speed Timing Tester is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.

CBA-I Circuit Breaker Travel Trip Speed Timing Tester can test following switches: indoors or outdoors switches, vacuum switches, SF6 switches and so on.





Features:

  • Closing and opening time measurement of 12 channels

  • Max difference of closing or opening time measurement of three phases

  • Bounce time and frequency measurement of breaker closing

  • Circuit breaker closing and opening speed measurement

  • Travel-time, Coil current-time curve of circuit breaker operation measurement

  • Clearance of circuit breaker measurement

  • Variable DC circuit breaker operation power supply

  • Print test results by internal micro printers







Parameters:

Time measurement range

6000ms, resolution 0.1ms

Time measurement error

<1%RDG+0.2ms

Speed measurement

Range 2m/s resolution 0.01m/s max error<0.1m/s

Range 20m/s resolution 0.01m/s max error<0.2m/s

Travel measurement

Range 250.0mmresolution 1mmmax error 1mm



DC Power out

DC30V~250V/10A (instantaneous)



Travel sensors configuration

grating and angle



Test standard

IEC62271

LCD

128*64

Power supply

AC220V±10% 50Hz/60Hz

Working Condition

Temperature: 0~50°C humidity: <85%

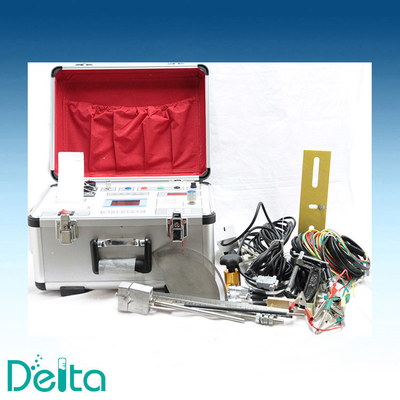

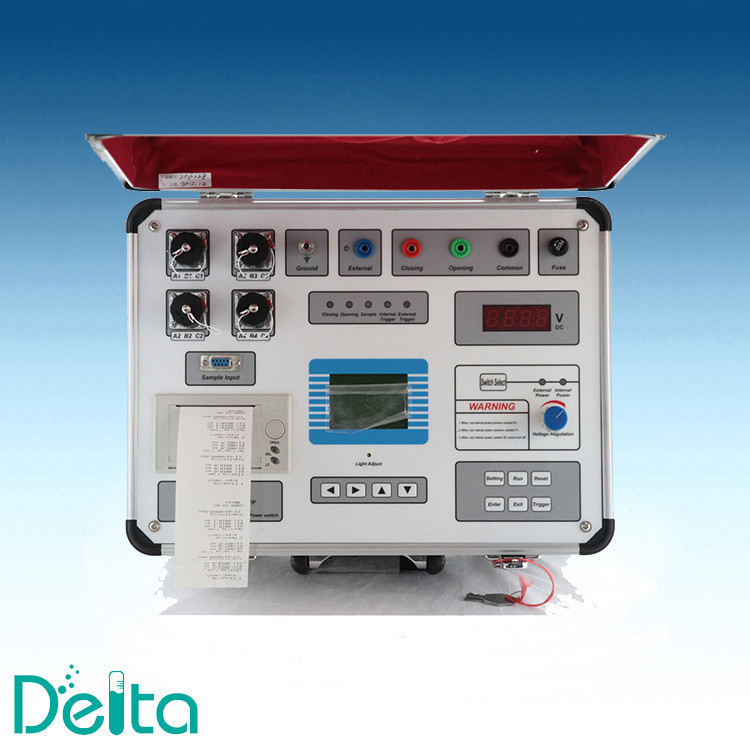

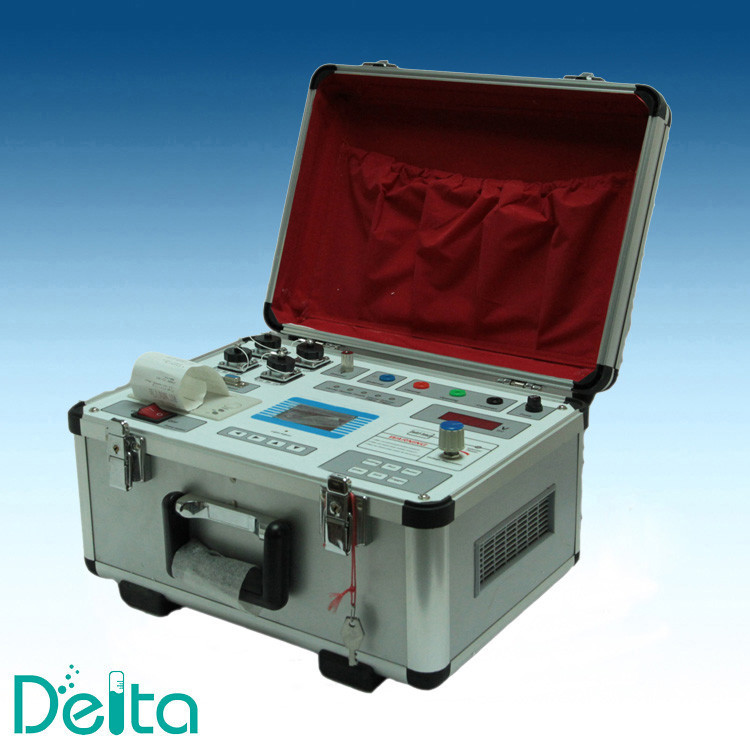

CBA-I Easy Use Circuit Breaker Test Set Real Picture:

CBA-I Circuit Breaker Travel Trip Speed Timing Tester 0

CBA-I Circuit Breaker Travel Trip Speed Timing Tester 1
