Product Details
Features Easy Use Circuit Breaker Test Set Item Name CBA-I Cheap Circuit Breaker Test Kit, Easy Use Circuit Breaker Test Set
Description Cba-I Cheap Circuit Breaker Test Kit Usage For High Voltage Switches Testing
Time Measurement Range 6000ms Test Standard IEC62271
Power Supply AC220V ± 10%, 50Hz/60Hz Warranty One Year
Service OEM Service Is Available Dimension 400mm*350mm*200mm
Weight 7kg
Leave a Message
Product Description

CBA-I Cheap Circuit Breaker Test Kit, Easy Use Circuit Breaker Test Set

Introduction:

  • CBA-I Easy Use Circuit Breaker Test Set is designed to meet the need of testing high_voltage switches.

  • CBA-I Easy Use Circuit Breaker Test Set takes the micro controller unit(MCU) for core to sample, pr℃ess and then output; the main characteristic is that it’s operated in Chinese, for example ,the results are displayed and printed in Chinese.

  • CBA-I Easy Use Circuit Breaker Test Set has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc;

  • CBA-I Easy Use Circuit Breaker Test Set can test the switches as follows:indoors or outdoors switches with less oil or more oil,vacuum switches, SF6 switches and so on.





Features:

  • Closing and opening time measurement of 12 channels

  • Max difference of closing or opening time measurement of three phases

  • Bounce time and frequency measurement of breaker closing

  • Circuit breaker closing and opening speed measurement

  • Travel-time, Coil current-time curve of circuit breaker operation measurement

  • Clearance of circuit breaker measurement

  • Variable DC circuit breaker operation power supply

  • Print test results by internal micro printers







Parameters:

Time measurement range

6000ms, resolution 0.1ms

Time measurement error

<1%RDG+0.2ms

Speed measurement

Range 2m/s resolution 0.01m/s max error<0.1m/s

Range 20m/s resolution 0.01m/s max error<0.2m/s

Travel measurement

Range 250.0mmresolution 1mmmax error 1mm



DC Power out

DC30V~250V/10A (instantaneous)



Travel sensors configuration

grating and angle



Test standard

IEC62271

LCD

128*64

Power supply

AC220V±10% 50Hz/60Hz

Working Condition

Temperature: 0~50°C humidity: <85%

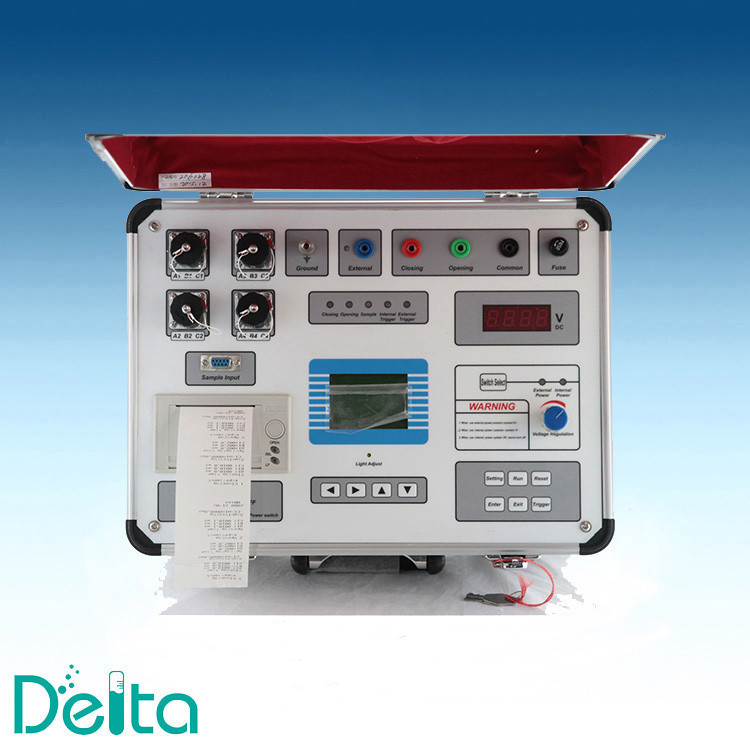

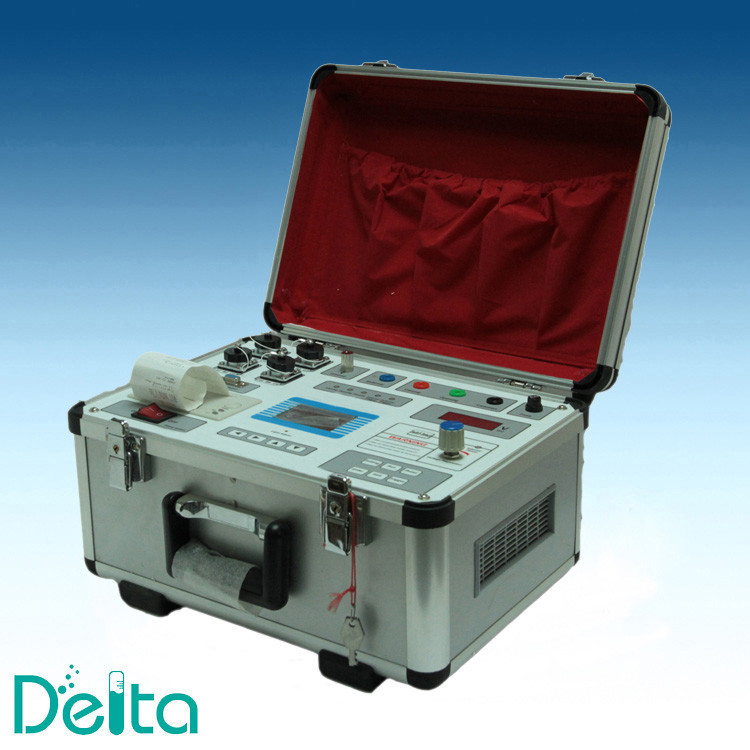

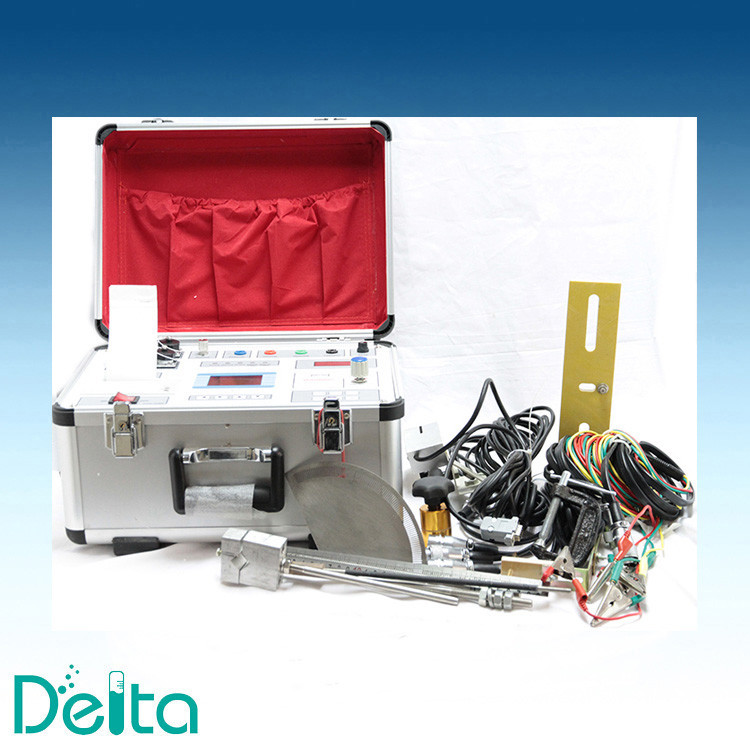

CBA-I Easy Use Circuit Breaker Test Set Real Picture:

CBA-I Cheap Circuit Breaker Test Kit, Easy Use Circuit Breaker Test Set 0

CBA-I Cheap Circuit Breaker Test Kit, Easy Use Circuit Breaker Test Set 1
