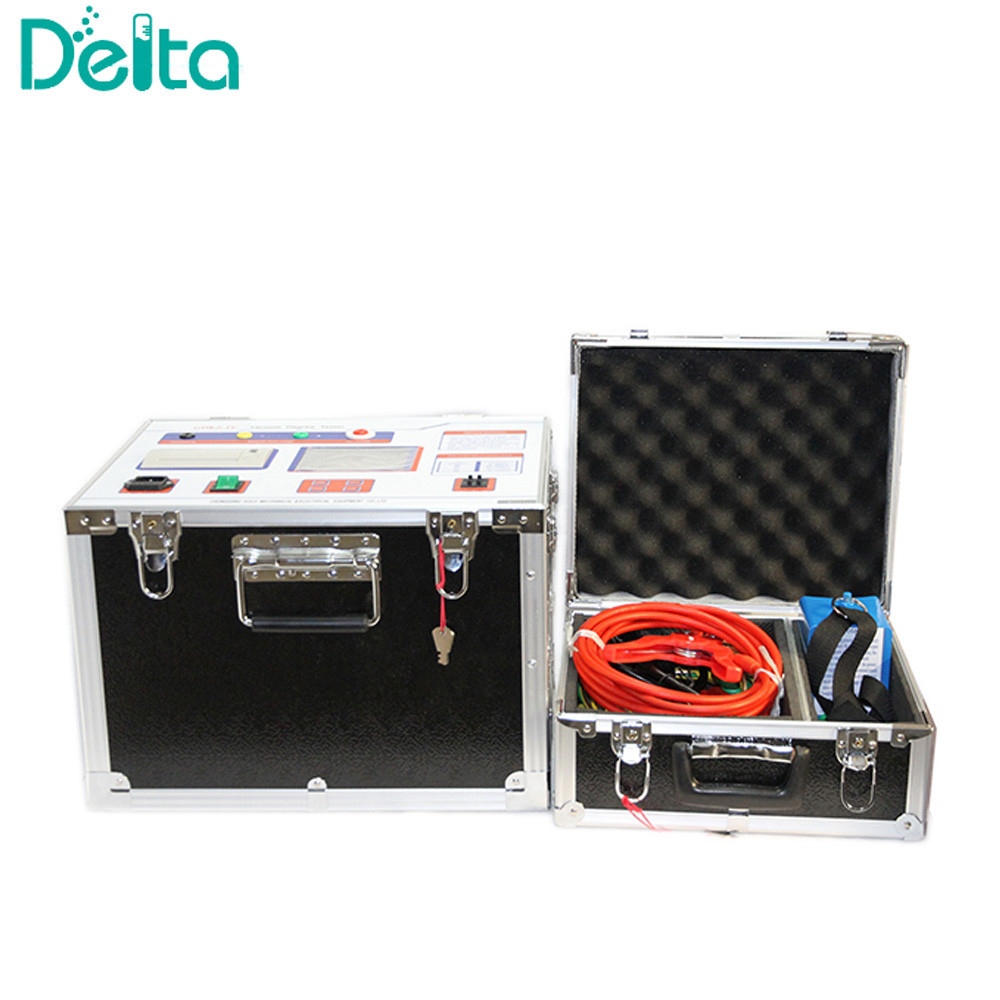

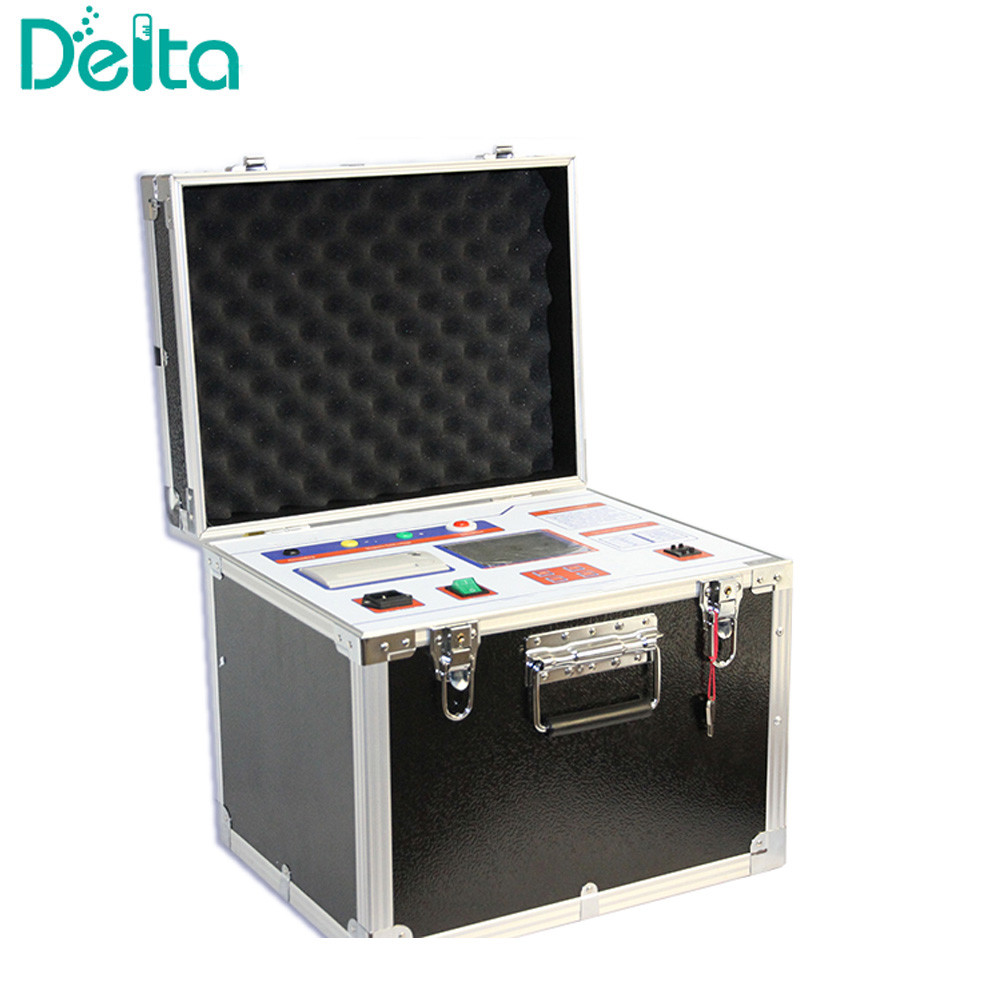

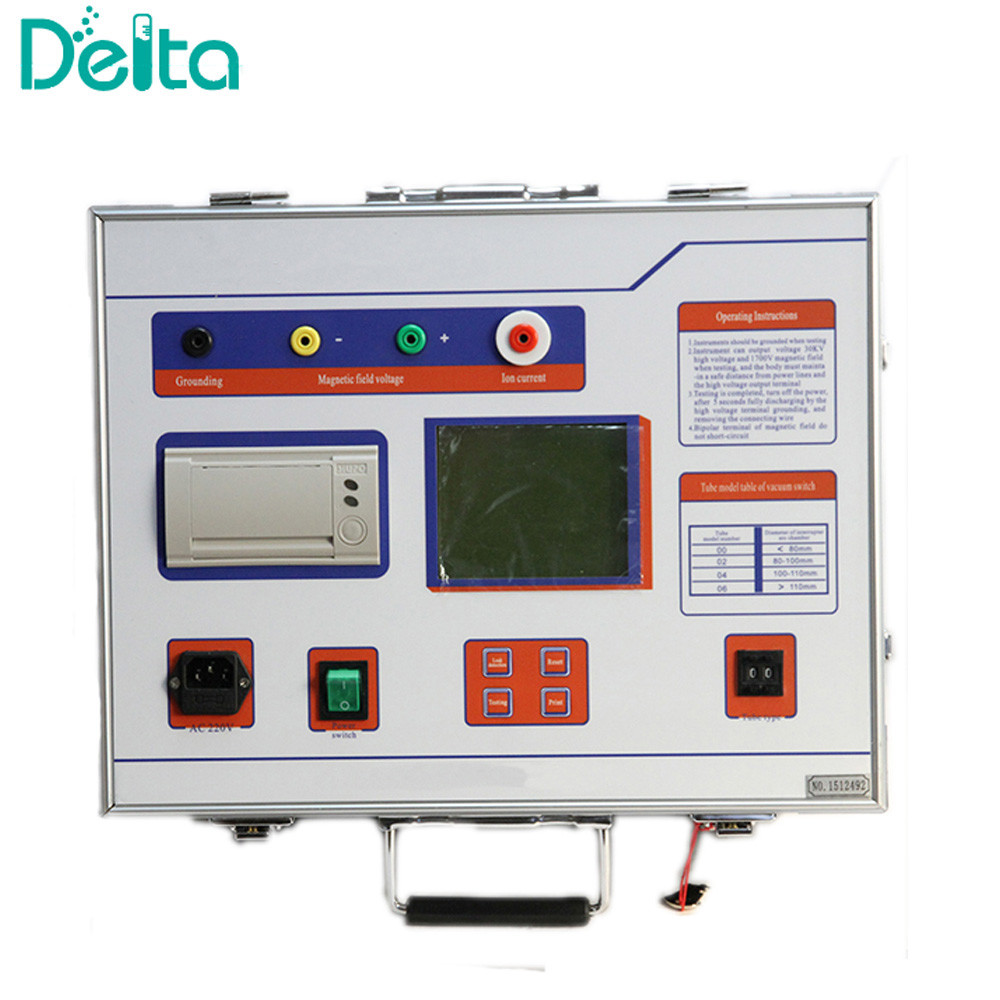

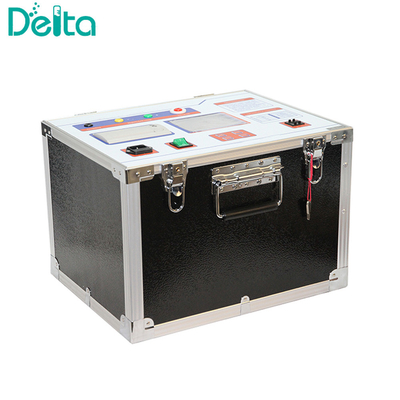

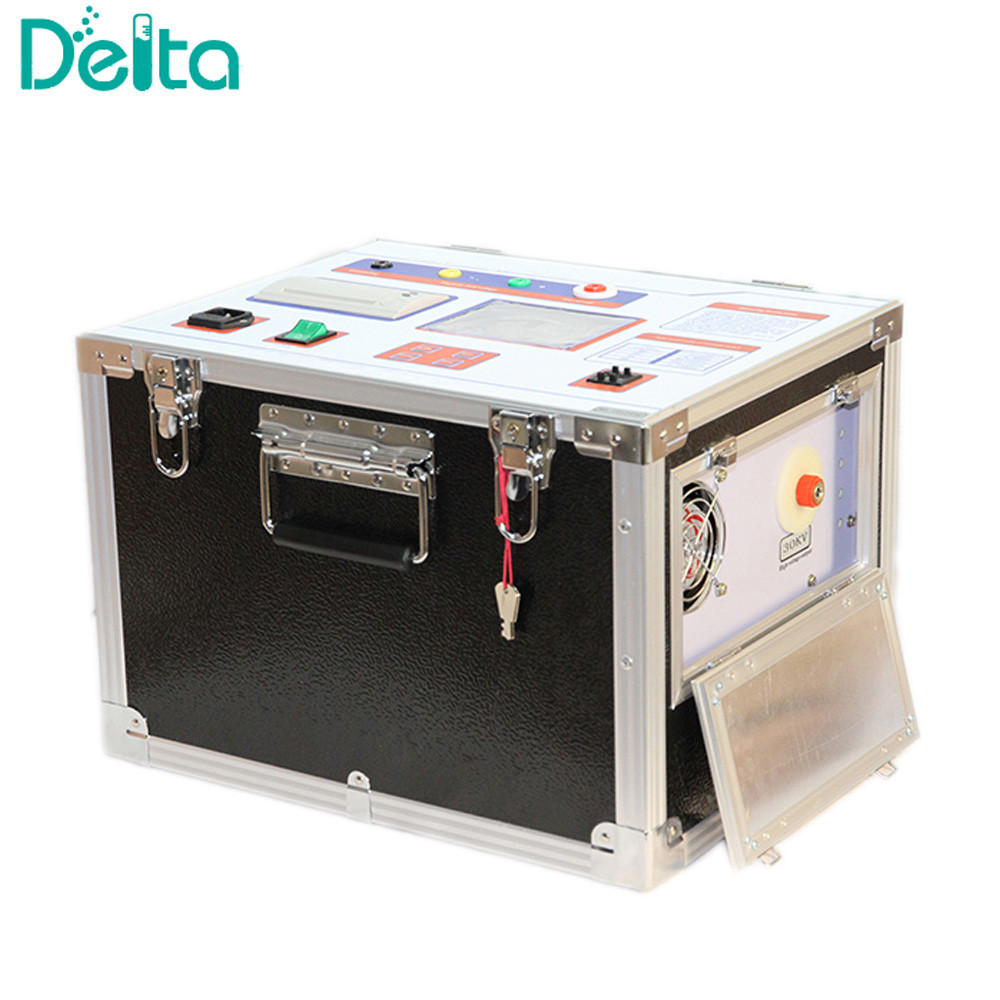

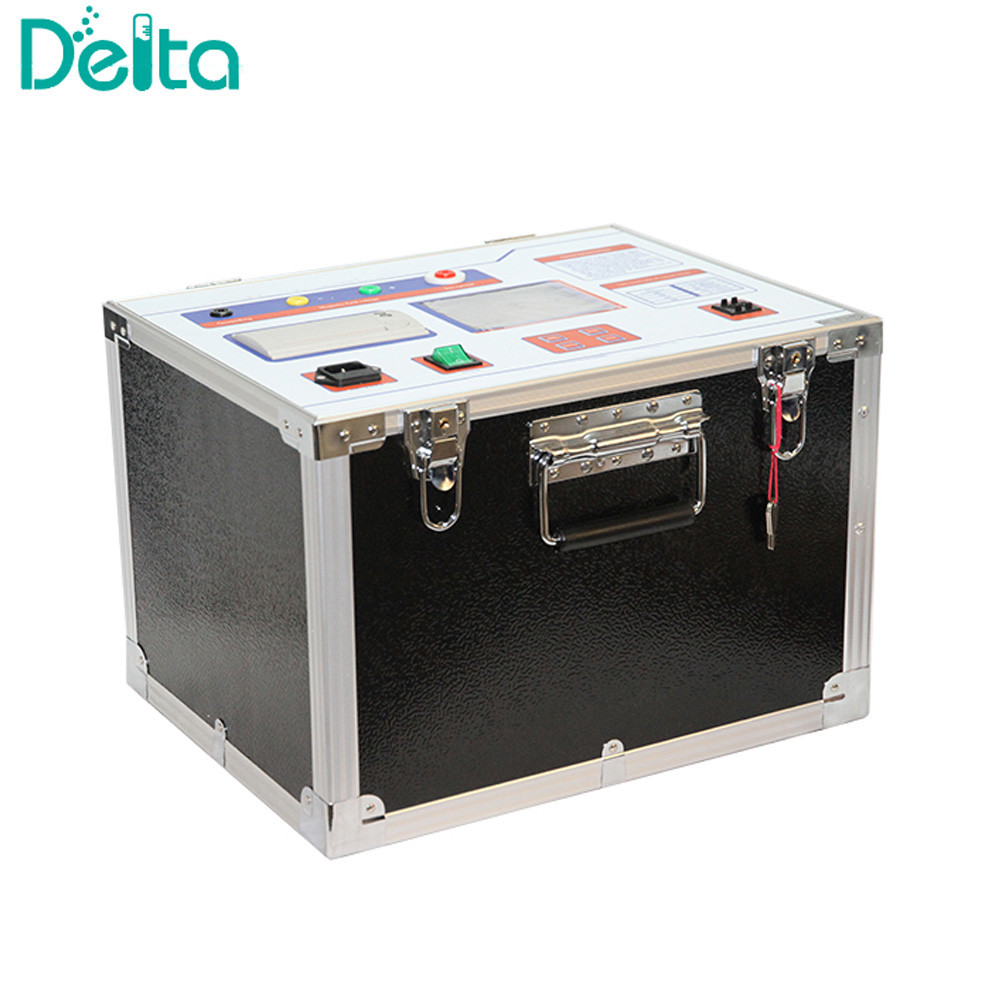

Zkd Circuit Breaker Vacuum Bottle Tester Vcb Interrupter Test Vacuum Degree Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Zkd Circuit Breaker Vacuum Bottle Tester Vcb Interrupter Test Vacuum Degree Tester | Functions | High Voltage Vacuum Switch Vacuity Tester ,Test Vacuum Degree Of Various Kinds Of Switches |
|---|---|---|---|
| Applicable Switches | Vacuum SwitchgeaVacuum Switchgearr | Detection Range | 10 -5 -10 -1 Pa |
| Dimension | 420 × 320 × 280 (mm) | Weight | 12kg |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Zkd Circuit Breaker Vacuum Bottle Tester Vcb Interrupter Test Vacuum Degree Tester
Introduction:
- Zkd Vcb Interrupter Test Vacuum Degree Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
- Zkd Vcb Interrupter Test Vacuum Degree Tester is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional.
- Zkd Vcb Interrupter Test Vacuum Degree Tester is the ideal instrument for quantitative measuring vacuum switches.
Parameters:
| Measurement range | 10-5-10-1 Pa |
| Measurement accuracy | 10-5-10-4 Pa, 10% |
| 10-4-10-3 Pa, 10% | |
| 10-3-10-2 Pa, 10% | |
| 10-2-10-1 Pa, 10% | |
| Magnetic field voltage | 1700V |
| High-voltage of pulsed electric field | 30KV |
| Open distance of switch tube in vacuum test | normal open distance |
| Testing environment | -20℃~ 40℃ |
| Weight | 12kg |
| Dimension | 420 × 320 × 280 (mm) |
| Sampler | magnetic coil |
