Zkd Digital Circuit Breaker Vacuum Degree Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | ZKD |
| Minimum Order Quantity | 1 set Vacuum Degree Tester |
| Price | USD1.0 |
| Packaging Details | Zkd Digital Circuit Breaker Vacuum Degree Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Zkd Digital Circuit Breaker Vacuum Degree Tester | Functions | Measure Vacuum Degree Of Vacuum Switch Interrupt |
|---|---|---|---|
| Applicable Switches | Vacuum SwitchgeaVacuum Switchgearr | Detection Range | 10 -5 -10 -1 Pa |
| Dimension | 420 × 320 × 280 (mm) | Weight | 12kg |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Zkd Digital Circuit Breaker Vacuum Degree Tester
Introduction:
- Zkd Digital Circuit Breaker Vacuum Degree Tester can direct quantitative measuring vacuum degree of vacuum switch interrupter without removing. It can not only measure the normal range of vacuum degree of switchgear, but also can measure some vacuum switches which leak faster. Comparing with the measuring results of past years, its life can generally be inferred, prevent accidents.
- Zkd Digital Circuit Breaker Vacuum Degree Tester is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional.
- Zkd Digital Circuit Breaker Vacuum Degree Tester is the ideal instrument for quantitative measuring vacuum switches.
Parameters:
| 1 | Detection objects | various models of vacuum switch |
| 2 | Detection method | using new excitation coil and detect vacuum tube without disassembly |
| 3 | Application area | This instrument is a all-purpose type, can measure the vacuum of variety models of open magnetic vacuum tube |
| 4 | Detection range | 10 -5 -10 -1 Pa |
| 5 | Measurement accuracy | 10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10% |
| 6 | Magnetic field voltage | 1700V |
| 7 | High-voltage of pulsed electric field | 30KV |
| 8 | Open distance of switch tube in vacuum test | normal open distance |
| 9 | Testing environment | -20℃~ 40℃ |
| 10 | Weight | 12kg |
| 11 | Dimension | 420 × 320 × 280 (mm) |
| 12 | Sampler | magnetic coil |

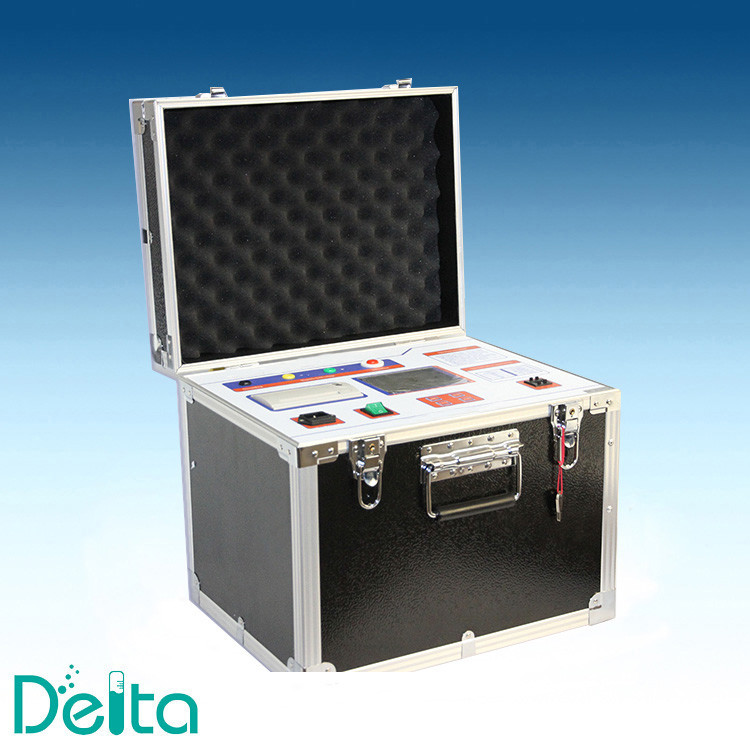

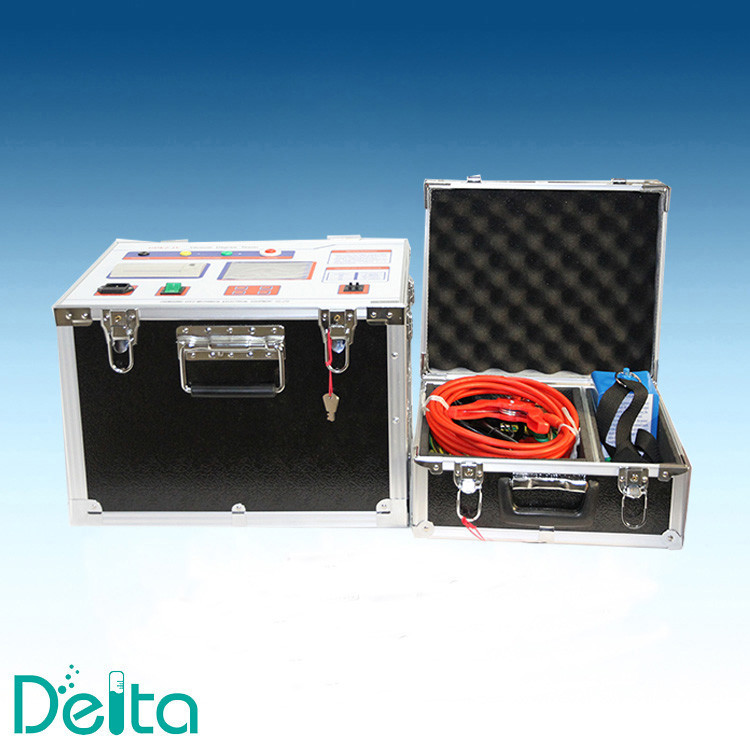

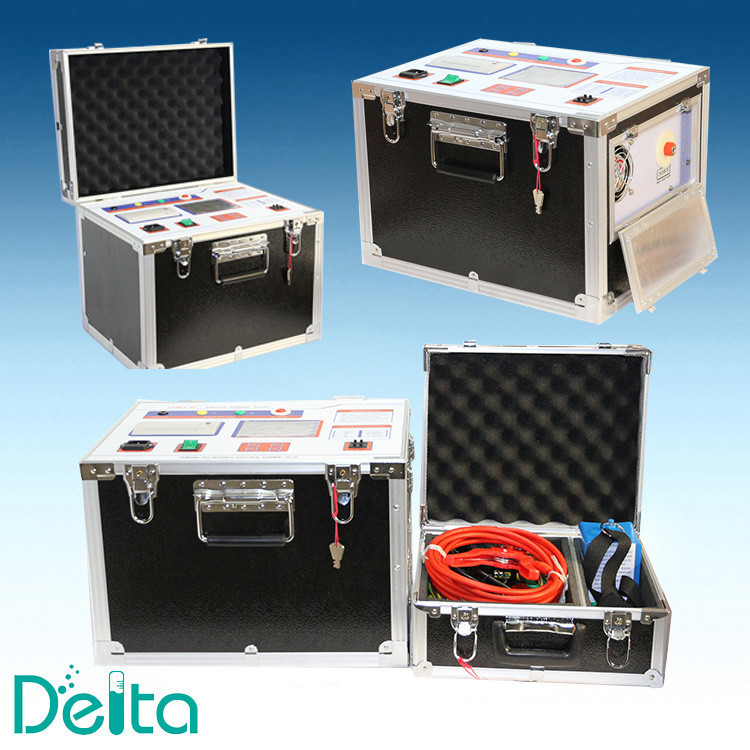

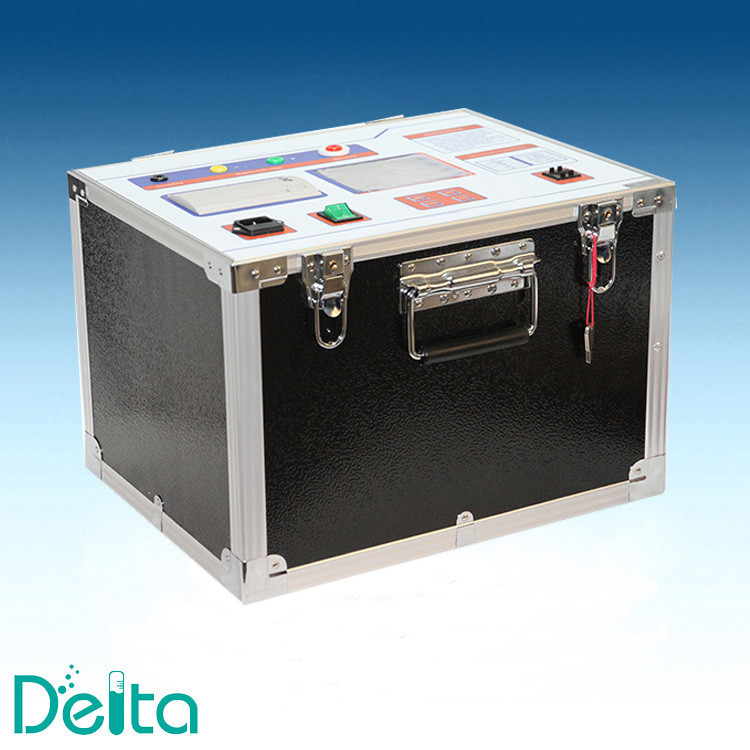

Zkd Digital Circuit Breaker Vacuum Degree Tester Real Picture:
