CBA-II 12 Contacts High Voltage Circuit Breaker Vacuum Switch Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CBA-II |
| Minimum Order Quantity | 1 set Switch Tester |
| Price | Negotiable |
| Packaging Details | CBA-II 12 Contacts High Voltage Circuit Breaker Vacuum Switch Tester packed in veneer case |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 1000 sets/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Intelligent, Multi-functional, Accurate, Stable, Portable, Easy To Operate, Etc. | Description | CBA-II 12 Contacts High Voltage Circuit Breaker Vacuum Switch Tester |
|---|---|---|---|
| Functions | For All Kinds Of Swithch Testing, High Voltage Circuit Breaker Vacuum Switch Tester | Test Object | Indoors Or Outdoors Switches, Vacuum Switches, SF6 Switches And So On |
| Time Test | 0 To 6 Seconds | Distance Test | 0-250mm |
| Power Supply | 220V, 50Hz | Size | 400mm*350mm*200mm |
| Weight | 7kg | Warranty | 1 Year |
Product Description
High Voltage Circuit Breaker Vacuum Switch Tester
Introduction:
- CBA-II High Voltage Circuit Breaker Vacuum Switch Tester is designed for high voltage switches testing.
- CBA-II High Voltage Circuit Breaker Vacuum Switch Tester adopts micro controller unit(MCU) to control the testing process.
- CBA-II High Voltage Vacuum Type Circuit Breaker Test Apparatus is intelligent, multi-functional, accurate, stable, portable, easy to operate, etc.
- CBA-II High Voltage Circuit Breaker Vacuum Switch Tester can test following switches: indoors or outdoors switches, vacuum switches, SF6 switches and so on.
Major Testing Parameters and Functions:
- Opening and closing time of 12 contacts
- Re-closing time
- Asynchronous of closing or opening time of three phases
- Clearance between open contacts/gaps, over-travel, over-shoot and tripping back
- Speed at instant of contacts touching (separating)
- Max. speed of opening and closing
- Average speed of opening and closing
- Tripping time and amplitude
- Closing resistance measurement
- Display and print the speed-distance curve
Specifications:
| No. | Item Name | CBA-II High Voltage Circuit Breaker Vacuum Switch Tester | |
| 1 | Time measurement | Number of contacts to be measured | ≤12 |
| Time setting range | 0 to 6 seconds | ||
| Resolution | 0.01ms | ||
| Error of time measured | ±0.5% | ||
| 2 | Distance measurement | Range | <250mm |
| Resolution | 0.01mm | ||
| Error | ±1mm | ||
| 3 | Internal power | Output Voltage | 30V—260V error:1% |
| Output Current | 0～10A | ||
| 4 | Operating conditions | Power supply | AC220V±10%, 50HZ/60HZ |
| Power consumption | ≤60W | ||
| Working environment temperature | 0~40℃ | ||
| Working environment humidity | ≤90%RH | ||
| 5 | Size and weight | Size of the tester | 46cm*34cm*20cm |
| Net weight | 7kg | ||
| Size after packing | 53*45*63cm | ||
| Weight of packing | 31kg |

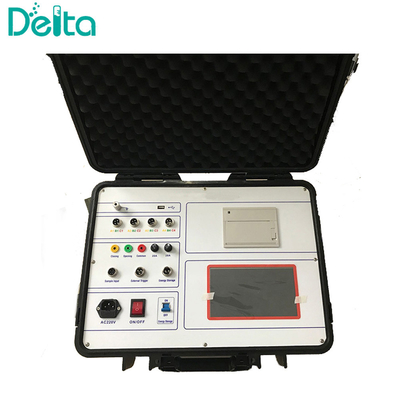

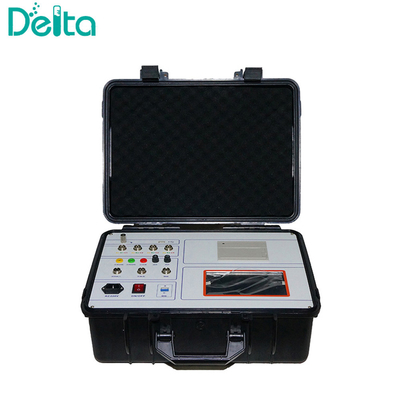

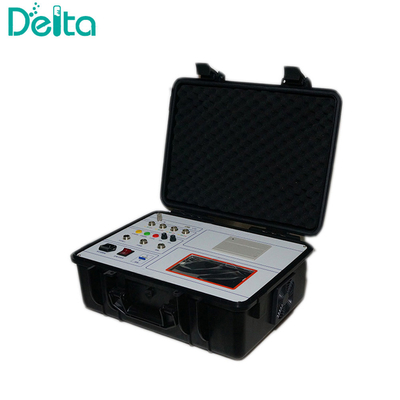

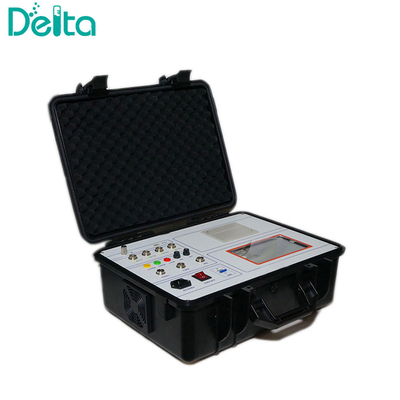

CBA-II Vacuum Switch Tester Show:
