CRT Switchgear 400A 200A 100A IEC62271 Loop Resistance Tester

  • CRT Switchgear 400A 200A 100A IEC62271 Loop Resistance Tester
  • CRT Switchgear 400A 200A 100A IEC62271 Loop Resistance Tester
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number WRT
Minimum Order Quantity 1 set IEC62271 Loop Resistance Tester in one order.
Price USD1.0
Packaging Details IEC62271 Loop Resistance Tester packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 IEC62271 Loop Resistance Tester sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features China Made High Quality Low Price IEC62271 Loop Resistance Tester Item Name WRT Switchgear 400A 200A 100A IEC62271 Loop Resistance Tester
Functions Test Winding Resistance, DC Resistance Of Transformer Feature Suitable For Large Scale Transformer Above240MVA In Temperature Rising Tests
Applicable Transformer Single Phase And Three Phase Transformers Test Current 1A, 2A, 5A, 10A, 20A, 40A, 50A, 100A
Voltage Output 20V Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

CRT Switchgear IEC62271 Loop Resistance Tester

Introduction:

CRT Switchgear Loop Resistance Tester is used to test the contact resistance of circuit breaker or high current cable contacts.

It is designed according to IEC62271.

The main application of CRT Switchgear Loop Resistance Tester is measurement of circuit breaker contact resistance.

All the test results of the tester could be print by the micro-printer which is integrated in the tester.

Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.



Features:

All the test results of the tester could be printed by the micro-printer which is integrated in the tester.

All the test results saved in the tester could be uploaded to PC computer and converted to an MS WORD document.

Functions: Contact resistance measurement, Result print, Unload data to PC.



1 Measuring range 0-1999.9 μΩ Resolution:0.1 μΩ
2 Measuring current DC 100A, 200A, 400A, 600A for choice
3 Measuring precision 0.5 %RGD+0.05%FS
4 Display mode LCD
5 Data storage Save no more than 100 groups of data
6 Data connection RS232 computer interface
7 Rated power supply AC220V
8 Size 340mm*280mm*210mm
  Weight <18kg
9 Environment temperature -10 ℃~+40 ℃
10 Relative humidity <80%

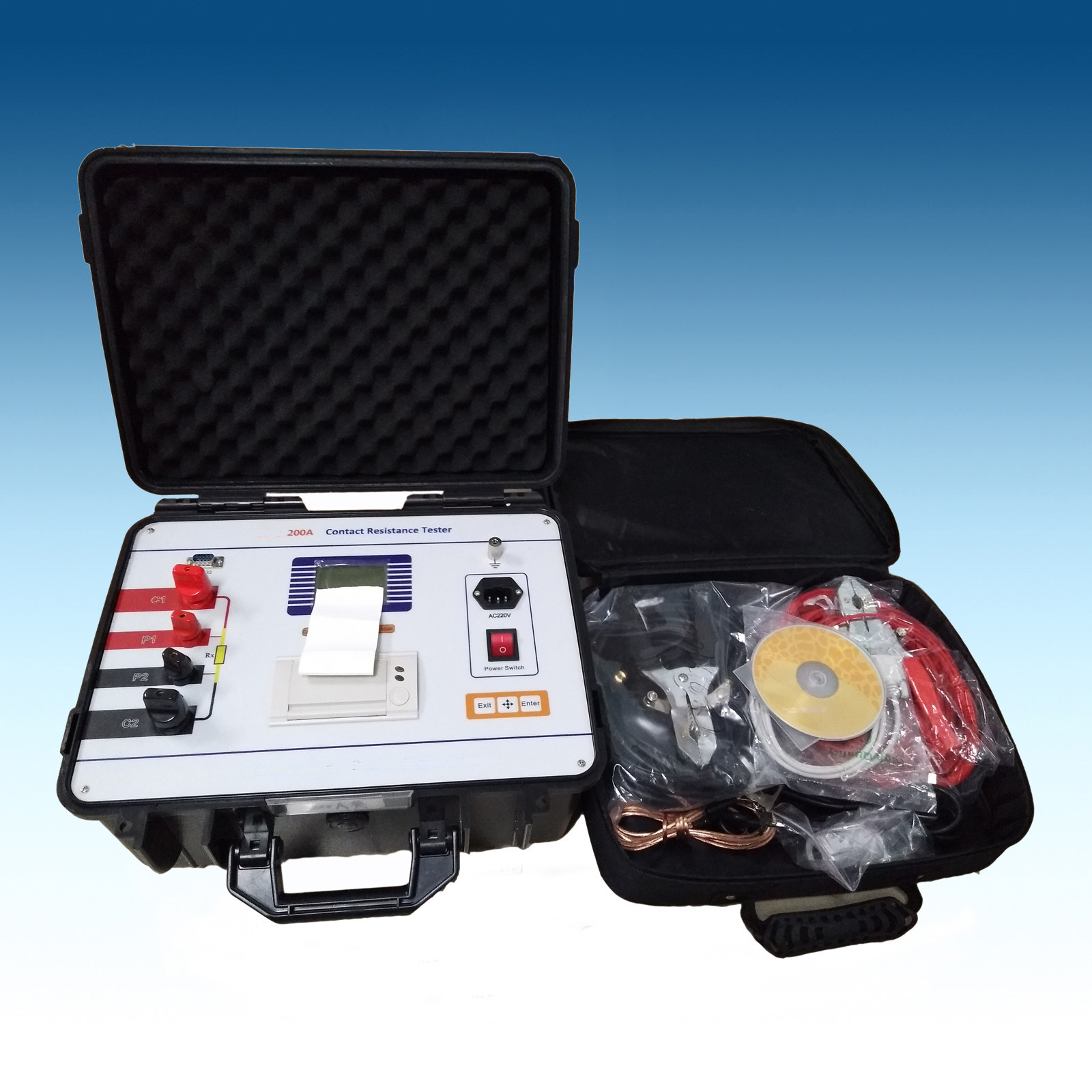

Real Picture:

CRT Switchgear 400A 200A 100A IEC62271 Loop Resistance Tester 0
