CRT Circuit Breaker Contact Resistance Tester 100A 200A 400A 600A
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | CRT |
| Minimum Order Quantity | 1 set Contact Resistance Tester |
| Price | USD1.0 |
| Packaging Details | Contact Resistance Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | CRT Circuit Breaker Contact Resistance Tester | Functions | Test Contact Resistance Of Various Kinds Of Switches |
|---|---|---|---|
| Applicable Switches | Various Kinds Of Circuit Breaker | Reference Standard | IEC62271 |
| Measuring Current | 100A, 200A, 400A, 600A | Data Storage | 100 Groups |
| Size | 340mm× 280mm × 210mm | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
| Highlight | CRT circuit breaker tester 100A,circuit breaker resistance tester 600A,electric contact resistance tester 200A |
||
Product Description
Circuit Breaker Contact Resistance Tester -- Model: CRT
Introduction:
- CRT Contact Resistance Tester is used to test the contact resistance of circuit breaker or high current cable contacts.
- CRT Contact Resistance Tester is designed according to IEC62271.
- The main application of the tester is measurement of circuit breaker contact resistance.
- All the test results of the tester could be print by the micro-printer which is integrated in the tester.
- Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.
Features:
- Rapid test;
- Result print;
- Upload data to PC;
Parameters:
|
1 |
Measuring range |
0-1999.9 μΩ Resolution:0.1 μΩ |
|
2 |
Measuring current |
DC 100A, 200A, 400A, 600A for choice |
|
3 |
Measuring precision |
0.5 %RGD+0.05%FS |
|
4 |
Display mode |
LCD |
|
5 |
Data storage |
Save no more than 100 groups of data |
|
6 |
Data connection |
RS232 computer interface |
|
7 |
Rated power supply |
AC220V |
|
8 |
Size |
340mm× 280mm × 210mm |
|
9 |
Environment temperature |
-10 ℃~+40 ℃ |
|
10 |
Relative humidity |
<80% |

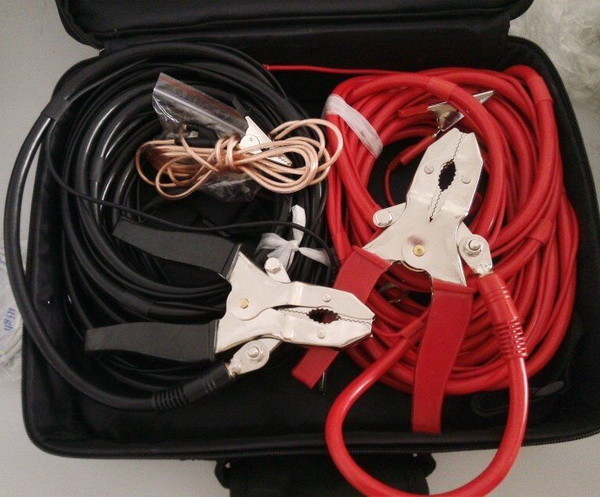

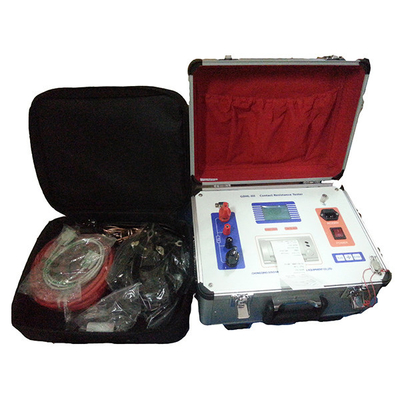

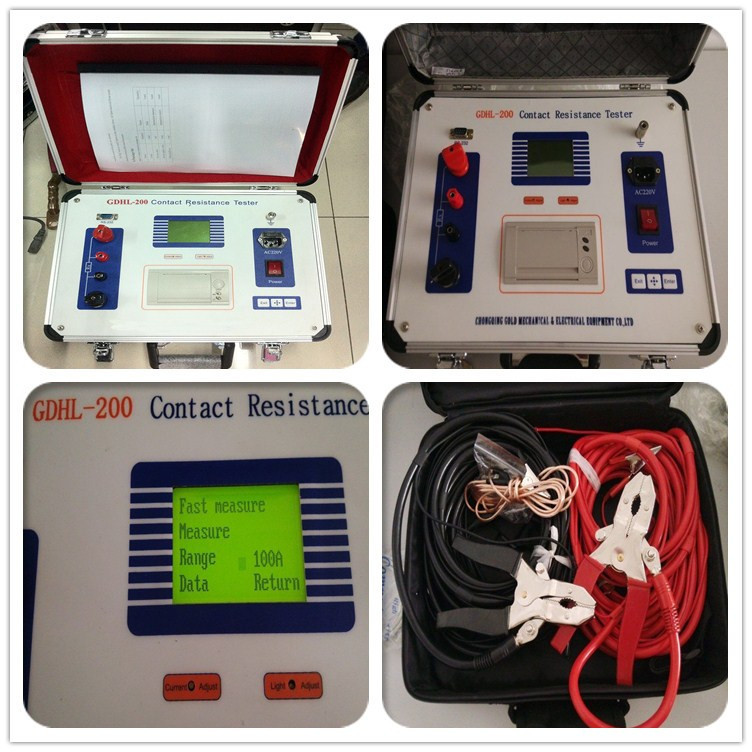

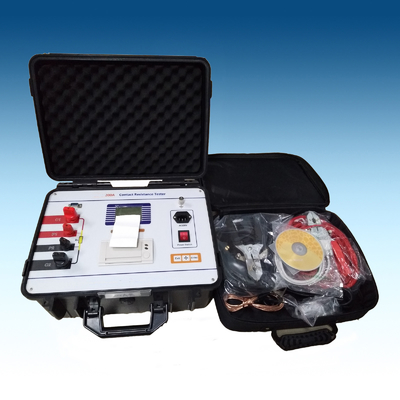

Real Picture:
