Circuit Breaker Analyzer CBA --  Model: CBA-II

Introduction:

• CBA-II Multi-functional Economic Circuit Breaker Analyzer CBA is designed to meet the need of onsite test the dynamic characteristics of High-Voltage Circuit Breakers.

• GDGK-306A Circuit Breaker Analyzer CBA takes the ARM7 unit for core to sample, process and output; the main characteristic is that it’s operated in alt.

• CBA-II Multi-functional Economic Circuit Breaker Analyzer CBA has many advantages such as intelligence, multifunctional, accurate data, strong anti-jamming, easy operation, small size, light weight ,beautiful appearance, etc;

• CBA-II Multi-functional Economic Circuit Breaker Analyzer CBA can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.

Main Functions:

• Contacts’ closing time and opening time;

• Re-closing time;

• Opening or closing’s asynchronism;

• Springing time or springing times;

• Clearance between open contacts/gaps, over-travel, over-shoot and springback;

• Speed at instant of contacts touching (separating);

• Opening (Closing) max speed;

• Opening (Closing) average speed;

• Display and Print V-S curve;

• Operating current curve;

• Closing resistance measurement;

• Large color screen in touch operating;

Parameters:

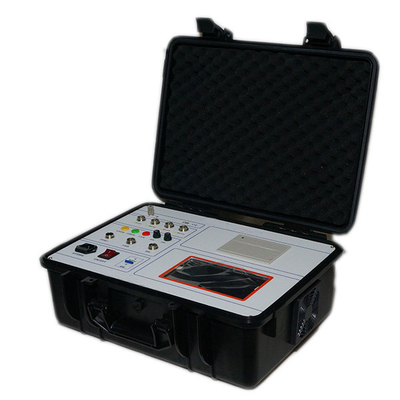

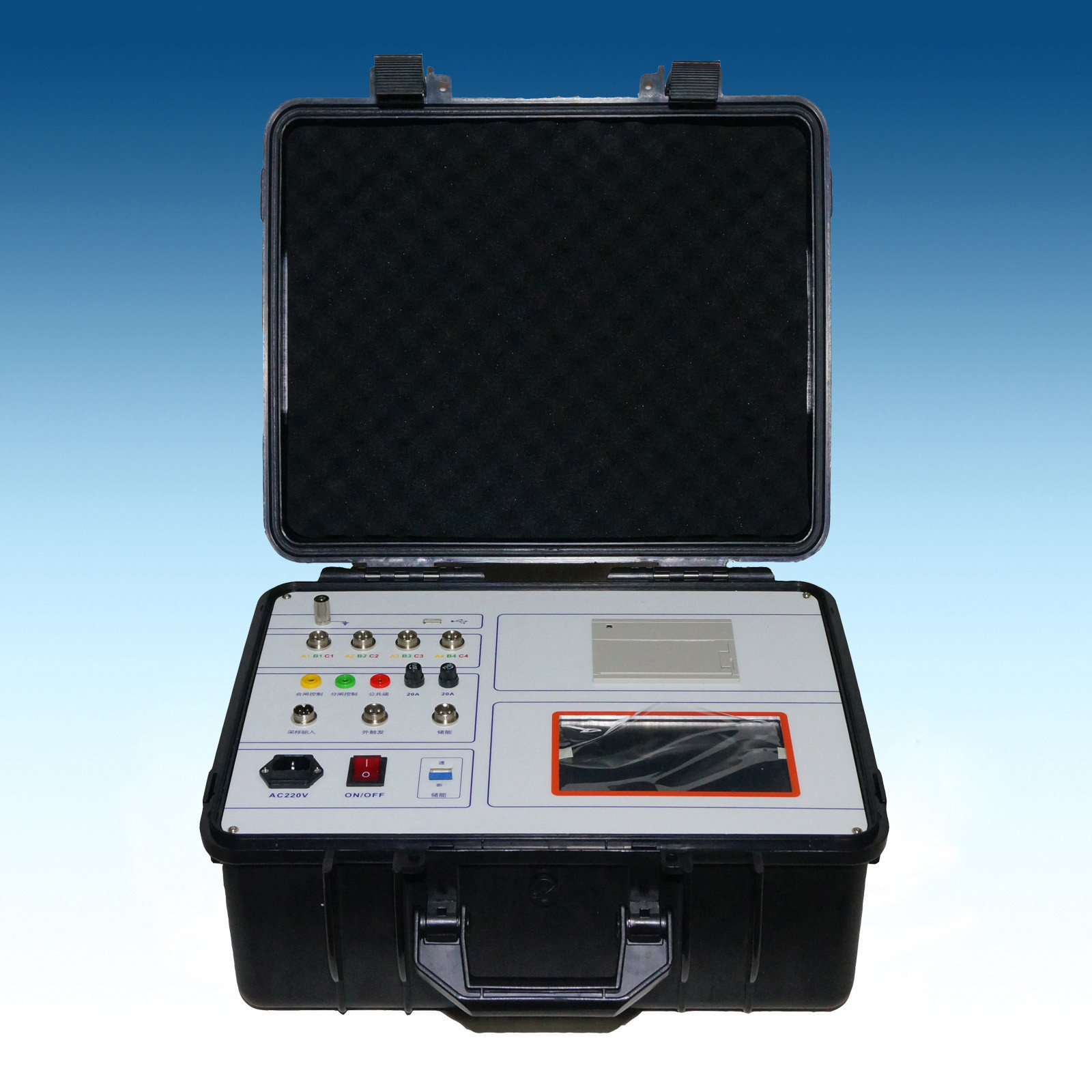

Real Picture:
