CBA-I Hot Sale Basic Model Low Price CBA Circuit Breaker Analyzer
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | CBA-I |
| Minimum Order Quantity | 1 set Circuit Breaker Analyzer |
| Price | USD1.0 |
| Packaging Details | Circuit Breaker Analyzer packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Intelligent, Multi-functional, Accurate Data, Strong Anti-jamming, Easy Operation, Small Size, Beautiful Appearance | Item Name | CBA-I Hot Sale Basic Model Low Price CBA Circuit Breaker Analyzer |
|---|---|---|---|
| Functions | Test Parameters Of Various Kinds Of Switches | Applicable Switches | Indoors Or Outdoors Switches,vacuum Switches, SF6 Switches And So On |
| Time Measurement Range | 6000ms | Test Standard | IEC62271 |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Circuit Breaker Analyzer -- Model: CBA-I
Introduction:
-
CBA-I CBA Circuit Breaker Analyzer is designed to meet the need of testing high_voltage switches.
-
GDGK-303 Circuit Breaker Analyzer takes the micro controller unit(MCU) for core to sample, pr℃ess and then output; the main characteristic is that it’s operated in Chinese, for example ,the results are displayed and printed in Chinese.
-
CBA-I CBA Circuit Breaker Analyzer has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc;
-
CBA-I CBA Circuit Breaker Analyzer can test the switches as follows:indoors or outdoors switches with less oil or more oil,vacuum switches, SF6 switches and so on.
Features:
-
Closing and opening time measurement of 12 channels
-
Max difference of closing or opening time measurement of three phases
-
Bounce time and frequency measurement of breaker closing
-
Circuit breaker closing and opening speed measurement
-
Travel-time, Coil current-time curve of circuit breaker operation measurement
-
Clearance of circuit breaker measurement
-
Variable DC circuit breaker operation power supply
-
Print test results by internal micro printers
Parameters:
| Time measurement range | 6000ms, resolution 0.1ms |
| Time measurement error | <1%RDG+0.2ms |
| Speed measurement | Range 2m/s resolution 0.01m/s max error<0.1m/s |
| Range 20m/s resolution 0.01m/s max error<0.2m/s | |
| Travel measurement | Range 250.0mmresolution 1mmmax error 1mm
|
| DC Power out | DC30V~250V/10A (instantaneous)
|
| Travel sensors configuration | grating and angle
|
| Test standard | IEC62271 |
| LCD | 128*64 |
| Power supply | AC220V±10% 50Hz/60Hz |
| Working Condition | Temperature: 0~50°C humidity: <85% |

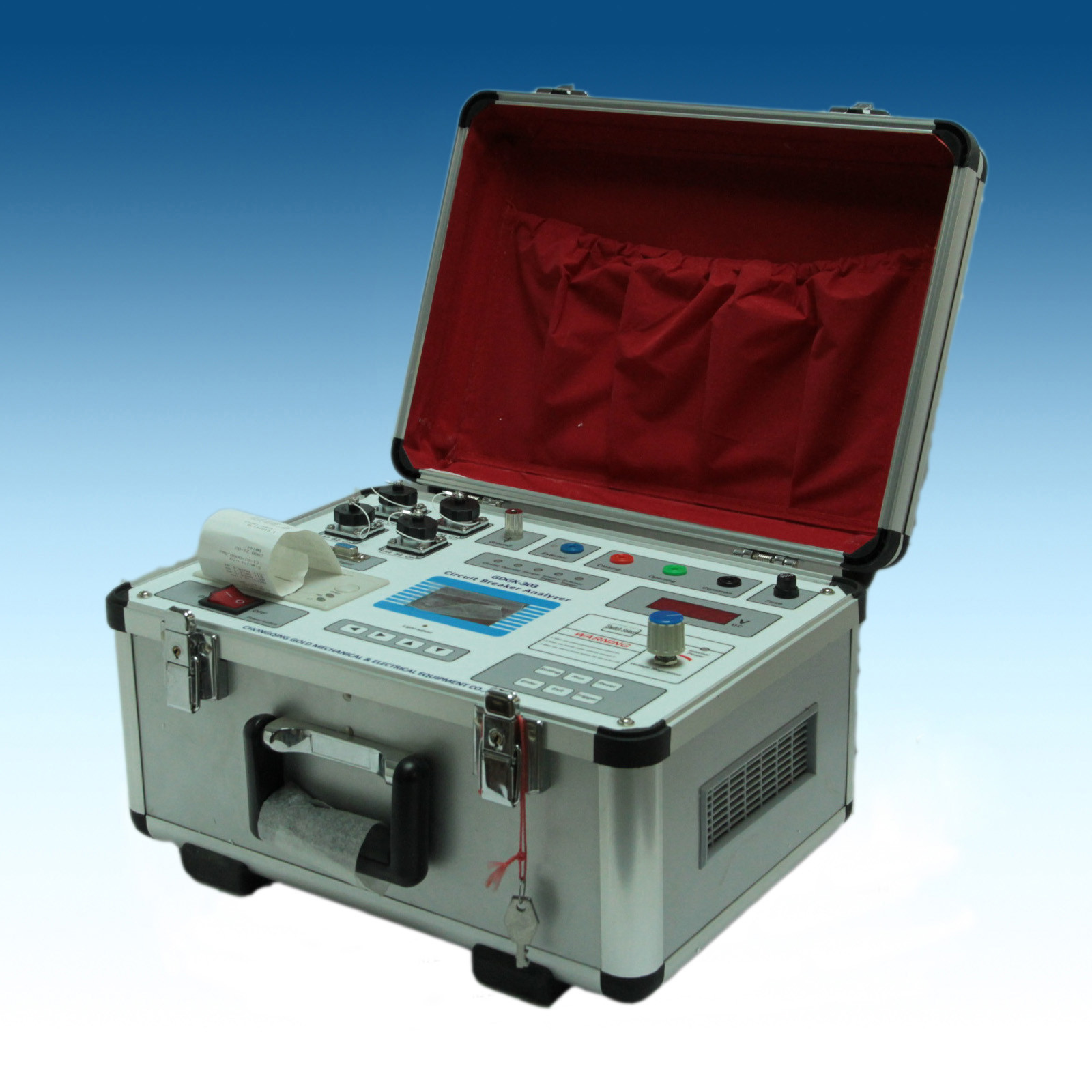

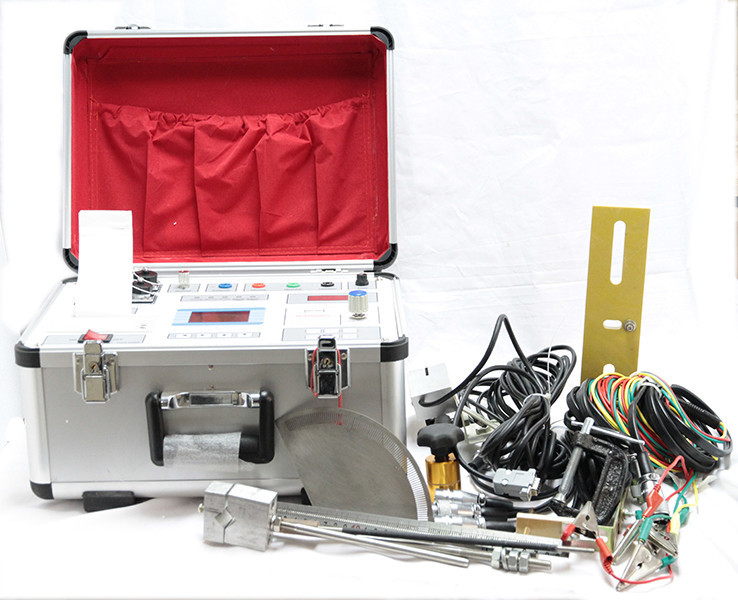

Real Picture:
