Prt-PC6 Six Phase Secondary Current Injection Test Device
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | RPT-PC6 |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | Prt-PC6 Secondary Current Injection Test Device packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Prt-PC6 Six Phase Secondary Current Injection Test Device | Description | Six Phase Secondary Current Injection Test Device |
|---|---|---|---|
| Functions | Measure Parameter Of 3 And Six Phase Relay | Gross Weight | 30kg |
| Display | Large LCD Screen Display | Specification | 67*61*41CM |
| PC-Connection | USB | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
Product Description
PRT-PC6 Secondary Current Injection Test Device
Introduction:
- Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device);
- 12channels D/A output simultaneously in a single machine;
- High precise linear power amplifier,6 voltage outputs and 6 current outputs.
- 8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices;
- Easy to carry,suitable for flexible testing and wild working;
- Intelligent self-protection;
- 8channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable, intelligent identification;
- Plentiful Binary and powerful software function;
- Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional).
Parameters:
| Current generators |
| General |
| ||
| Setting range |
| Frequency range | |||
| 6-phase ac(L-N) | 6*0…30A |
| Sine signal | DC…1000Hz | |
| 3-phase ac(L-N) | 3*0…60A |
| Transient signal | DC…3000Hz | |
| 1-phase ac(L-N) | 1*0…180A |
| Frequency accuracy | 0.01% | |
| 6-phase dc(L-N) | 6*0…10A |
| Frequency resolution | 0.01Hz | |
| 3-phase dc(L-N) | 3*0…20A |
| Phase angle range | -360…+360 | |
| 1-phase dc(L-N) | 1*0…60A |
| Phase angle accuracy | 0.1 | |
| Power |
|
|
|
| |
| 6-phase ac | 6*260VA/W |
| Digital Input and Output |
| |
| 3-phase ac | 3*400VA/W |
| Digital input |
| |
| 1-phase ac | 1*1080VA/W |
| Number | 10 | |
| 6-phase dc | 6*180VA/W |
| Input characteristic | 10-250VDC or free contact | |
| 3-phase dc | 3*320VA/W |
| Time resolution | 1m s | |
| 1-phase dc | 1*780VA/W |
| Max.measuring time | 9999s | |
| General |
|
| Digital output |
| |
| Accuracy | ＜0.2% typical |
| Type | Free relay contact | |
| Distortion | ≤ 0.5%guaranteed |
| Number | 8 | |
| Resolution | 1mA |
| Break capacity ac | 0.5A,250V | |
|
|
|
| Break capacity dc | 0.5A,60Vdc | |
| Voltage Generators |
| General |
| ||
| Setting rang |
| Nominal supply voltage | 240Vac | ||
| 6-phase ac(L-N) | 6*0…120V |
| Permissible supply voltage | 220-264Vac | |
| 6-phase ac(L-L) | 0…240V |
| Nominal frequency | 50/60Hz | |
| 6-phase dc(L-N) | 6*0…160V |
| Permissible frequency | 45-65Hz | |
| 6-phase dc(L-L) | 0…320V |
| Operating temperature | -5…+50℃ | |
| Power |
|
|
|
| |
| 6-phase ac(L-N) | 6*70VA |
| Miscellaneous |
| |
| 6-phase ac(L-L) | 3*140VA |
| PC-Connection | USB | |
| 6-phase dc(L-N) | 6*80W |
| Ground Socket | 4mm banana socket | |
| 6-phase dc(L-L) | 3*160W |
|
|
| |
| General |
|
|
|
| |
| Accuracy | ＜0.2%typical |
|
|
| |
| Distortion | ≤ 0. 5%typical |
|
|
| |
| Resolution | 4.0mV |
|
| ||

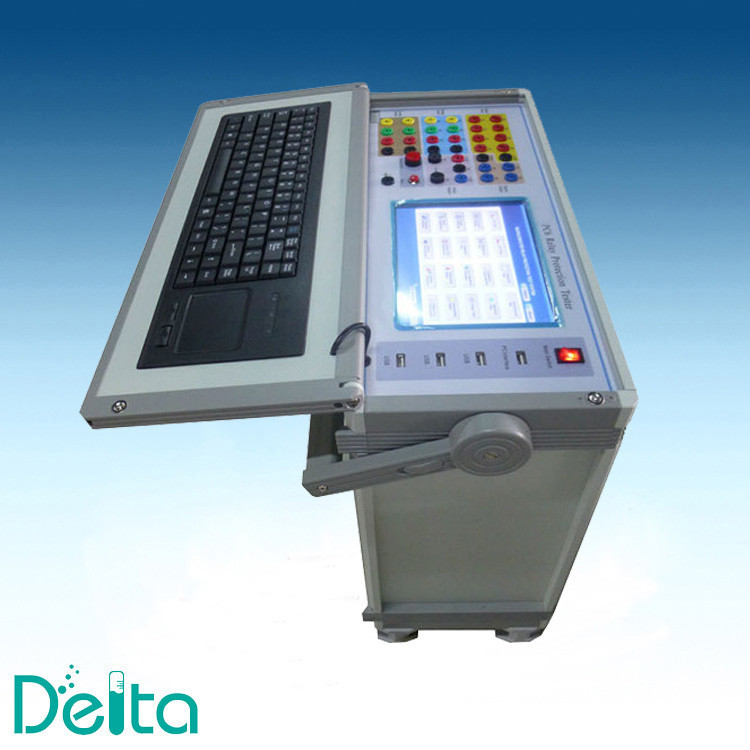

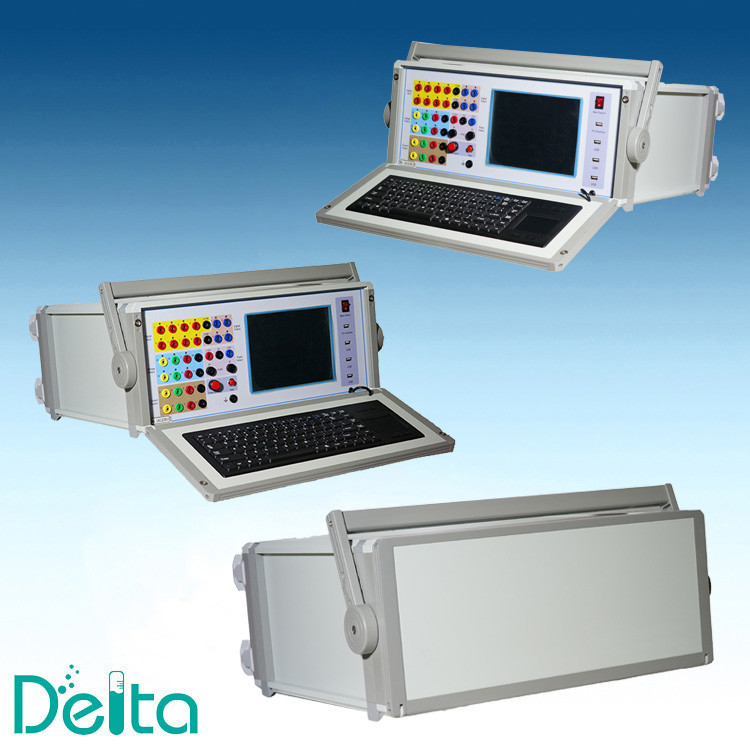

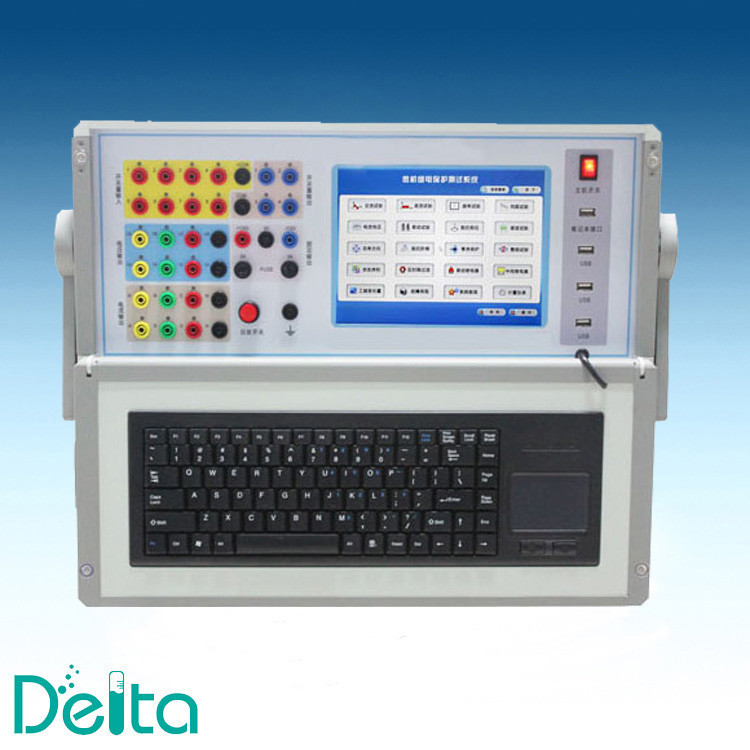

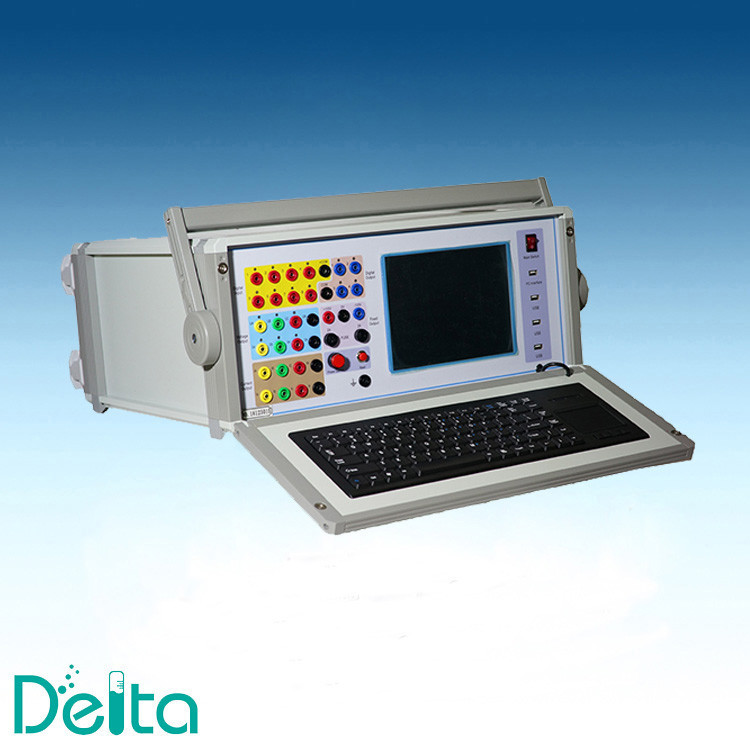

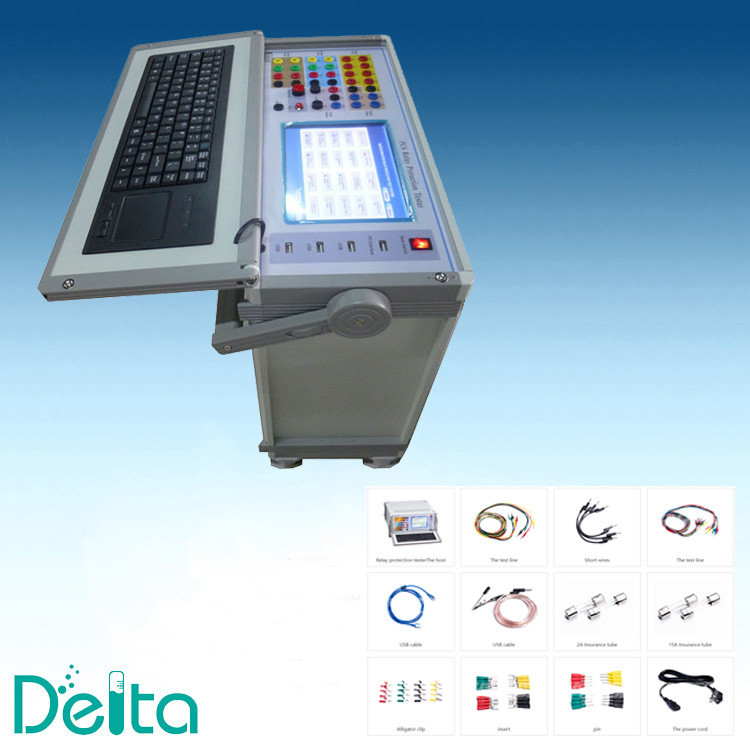

Prt-PC6 Secondary Current Injection Test Device Real Picture:
