Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester

  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
  • Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number RPT-PC6
Minimum Order Quantity 1 set Secondary Current Injection Test Set
Price USD1.0
Packaging Details RPT-PC6 Secondary Current Injection Tester packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features China Made Low Price Secondary Injection Tester Item Name Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester
Applicable Relay High Speed Electrical Relay Protection Test Set,Six Phase Relay DC Current Output 6*10A
AC Current Output 6*30A Power Supply 220V, 50Hz
PC-Connection USB Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester

Introduction:

  1. RPT-PC6 Secondary Current Injection Tester with standard 6 phase voltage and 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A.
  2. With digital Signal Processor Microcomputer, it can not only test the traditional relays and protectors but also can test the modern microcomputer relays, especially for transformer differential protection and transfer equipment testing.
  3. Classic Windows XP operating interface, 8.4 inch resolution of 800*600 TFT true color display.
  4. Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
  5. The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
  6. Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
  7. USB directly connect with PC, without any adapter cable, easy to use.
  8. Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
  9. With a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
  10. The software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.

Parameters:

Current generators



General



Setting range



Frequency range

6-phase ac(L-N)

6*0…30A



Sine signal

DC…1000Hz

3-phase ac(L-N)

3*0…60A



Transient signal

DC…3000Hz

1-phase ac(L-N)

1*0…180A



Frequency accuracy

0.01%

6-phase dc(L-N)

6*0…10A



Frequency resolution

0.01Hz

3-phase dc(L-N)

3*0…20A



Phase angle range

-360…+360

1-phase dc(L-N)

1*0…60A



Phase angle accuracy

0.1

Power









6-phase ac

6*260VA/W



Digital Input and Output



3-phase ac

3*400VA/W



Digital input



1-phase ac

1*1080VA/W



Number

10

6-phase dc

6*180VA/W



Input characteristic

10-250VDC or free contact

3-phase dc

3*320VA/W



Time resolution

1m s

1-phase dc

1*780VA/W



Max.measuring time

9999s

General





Digital output



Accuracy

＜0.2% typical



Type

Free relay contact

Distortion

≤ 0.5%guaranteed



Number

8

Resolution

1mA



Break capacity ac

0.5A,250V







Break capacity dc

0.5A,60Vdc

Voltage Generators



General



Setting rang



Nominal supply voltage

240Vac

6-phase ac(L-N)

6*0…120V



Permissible supply voltage

220-264Vac

6-phase ac(L-L)

0…240V



Nominal frequency

50/60Hz

6-phase dc(L-N)

6*0…160V



Permissible frequency

45-65Hz

6-phase dc(L-L)

0…320V



Operating temperature

-5…+50℃

Power









6-phase ac(L-N)

6*70VA



Miscellaneous



6-phase ac(L-L)

3*140VA



PC-Connection

USB

6-phase dc(L-N)

6*80W



Ground Socket

4mm banana socket

6-phase dc(L-L)

3*160W







General









Accuracy

＜0.2%typical







Distortion

≤ 0. 5%typical







Resolution

4.0mV











RPT-PC6 Secondary Current Injection Tester Real Picture:

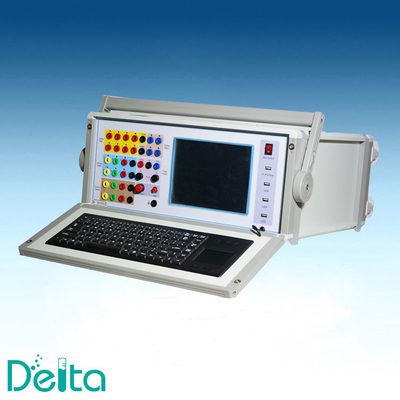

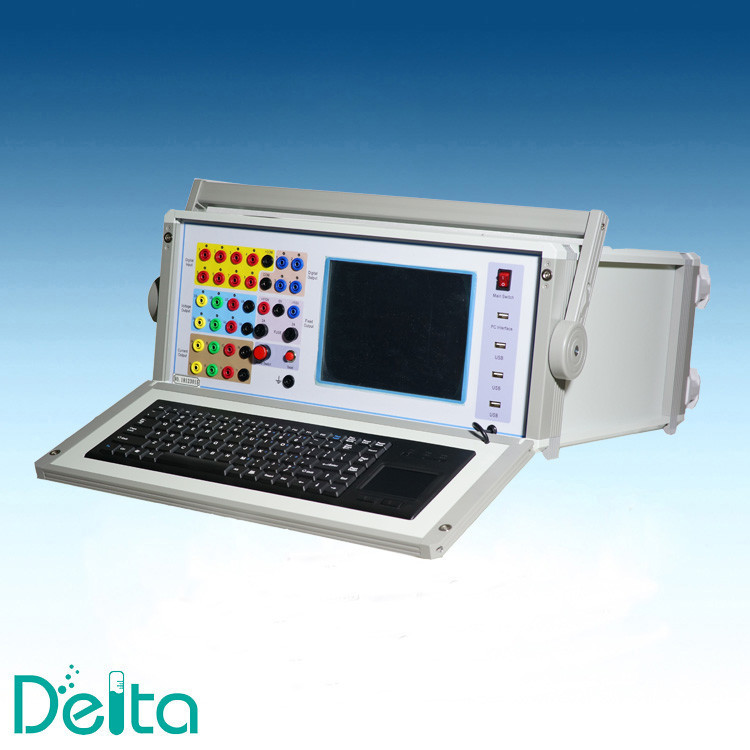

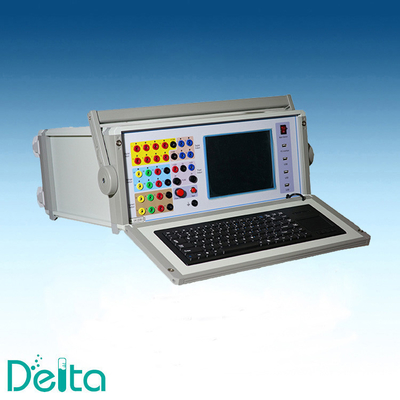

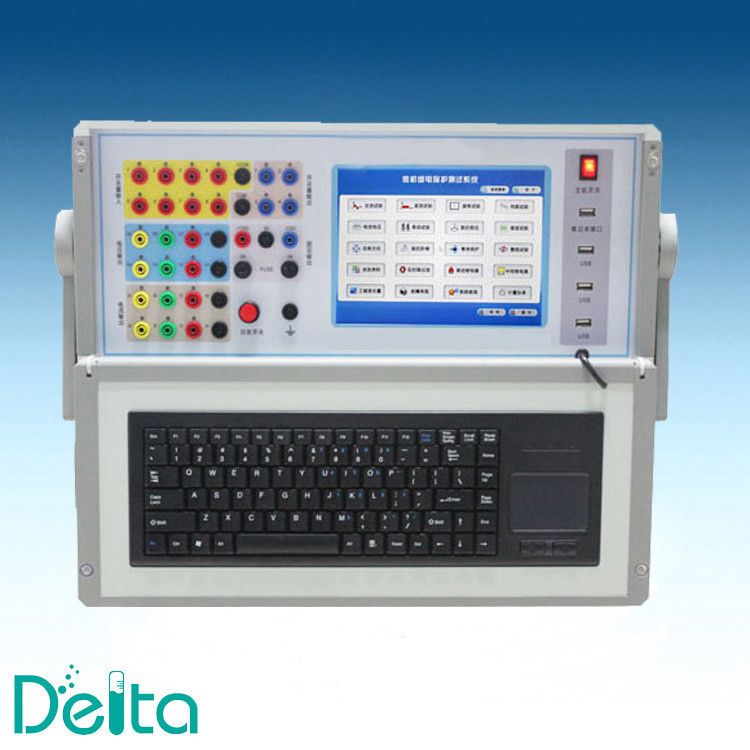

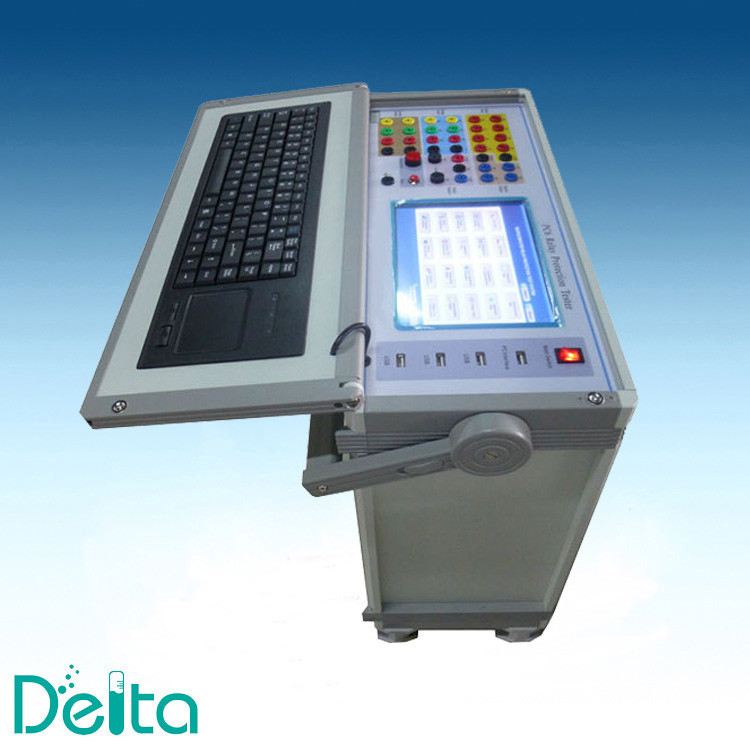

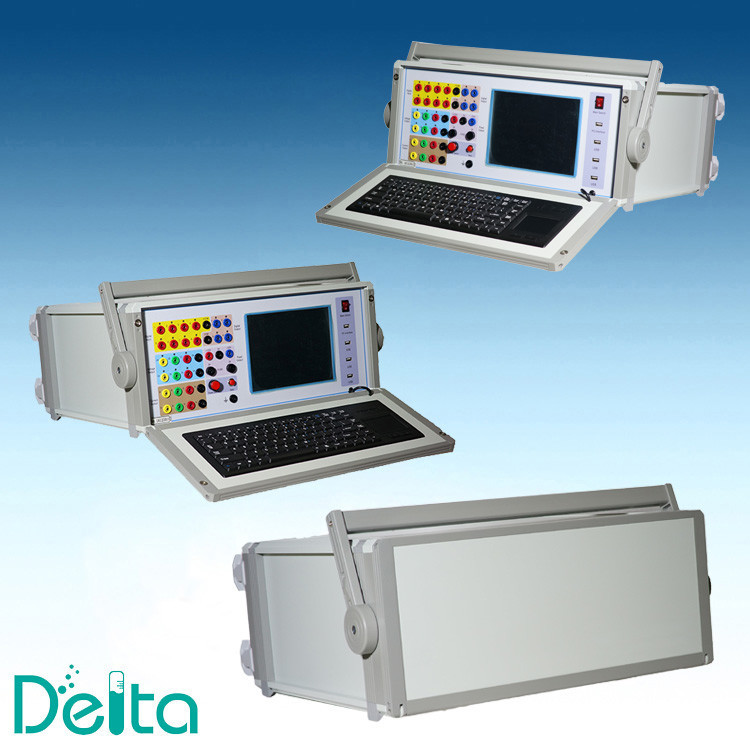

Multi-Functional Six Phase Protection Relay Testing Secondary Current Injection Tester 0
