ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester

  • ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester
  • ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number ZK-III
Minimum Order Quantity 1 set
Price USD1.0
Packaging Details ZK-III Transformer Short Circuit Impedance Tester is packed in veneer case.
Delivery Time 10-20 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Small Size And Light Weight Item Name ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester
Description Transformer Short Circuit Impedance Tester Rate Of Voltage Rise 2KV/s±10%
Dimension 395*295*175mm Weight 5kg
Test Standards IEC60156 Temperature Range -10ºC~40ºC
Display Large-Screen LCD Display Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty 1 Year
Leave a Message
Product Description

ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester

Introduction:
Zk-III Circuit Impedance Tester​ is an instrument developed by our company for low-voltage short-circuit impedance measurement of transformers under field and laboratory conditions.

Standards:

  • DIN: DIN 53438
  • ISO: ISO 11925-2
  • EN: EN 13501
  • IEC: IEC 61730-2:2016



Application Field:

  • Building Materials;
  • Rail;
  • Automotive Interior;



Features:

  1. Small size and lightweight.
  2. ZK-III Transformer Short Circuit Impedance Tester adopts voltage and current synchronous AC sampling and digital signal processing technology, and the measurement data is accurate.
  3. For three-phase transformers, the instrument can test the transformer by a three-phase simultaneous test and split-phase test: three-phase simultaneous test uses a three-phase power supply, and the three-phase parameters can be directly measured; split-phase test uses a single-phase power supply, After measuring the corresponding phases in sequence, the three-phase parameters are automatically converted.
  4. For single-phase transformers, the instrument has a single-phase transformer testing function, which can directly test its impedance parameters.
  5. The instrument has built-in non-power-down memory, which can store measurement data for a long time. The instrument has its own printer, large-screen LCD display, all Chinese menus, and operation prompts, and the operation is simple and intuitive.



Parameters:

No. Item Name ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester
1 Dimension 395*295*175mm
2 Weight 5kg
3 Power supply AC 1A 50A AC 50V ~ 500V
4 Ambient temperature -10ºC~40ºC
5 Tested Transformer Type Single Phase and Three Phase Transformer

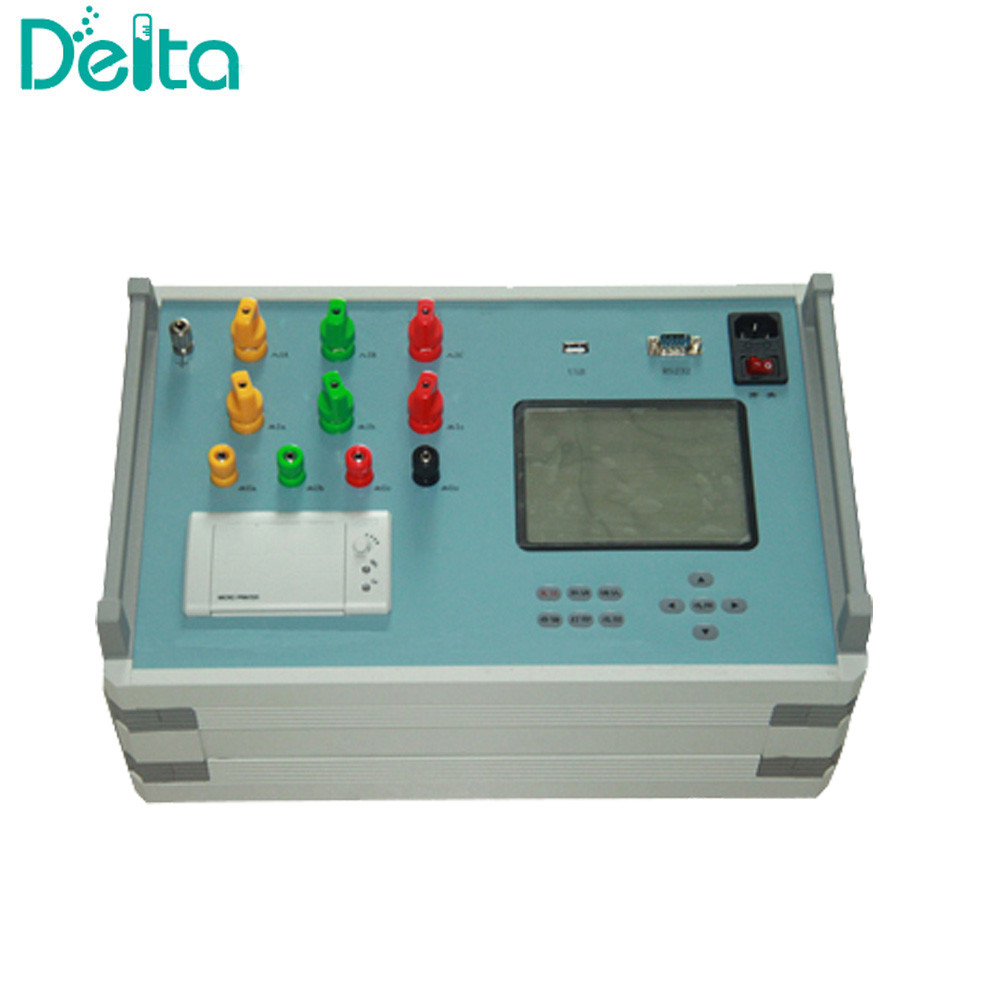

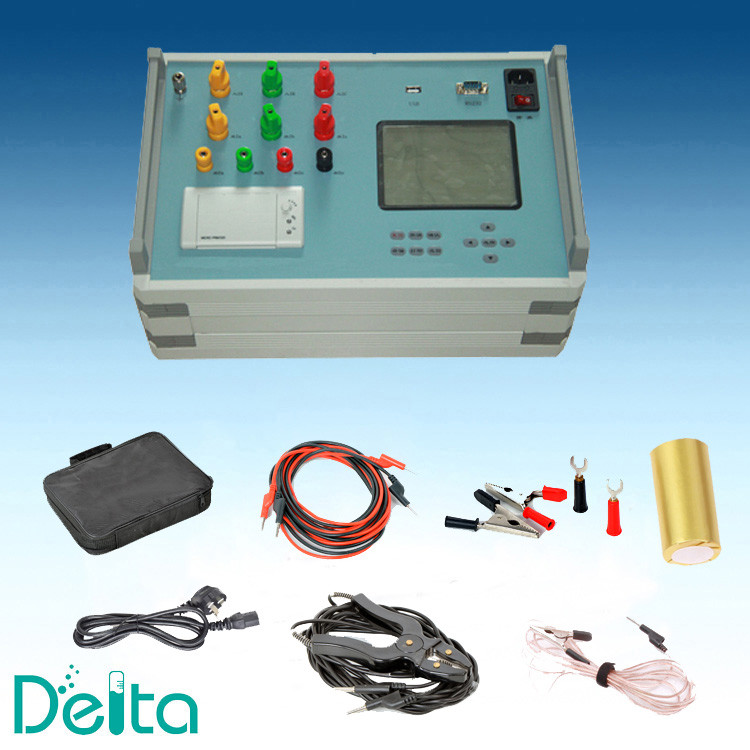

Zk-III Circuit Impedance Tester​ Real Picture:

ZK-III China Electric Testing Durable Transformer Short Circuit Impedance Tester 0
