Rpt-PC6 Multi-Functional Six Phase Relay Tester for All Kinds of Relay Testing
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | PRT-PC6 |
| Minimum Order Quantity | 1 set Six Phase Relay Tester |
| Price | Negotiable |
| Packaging Details | Rpt-PC6 Multi-Functional Six Phase Relay Tester for All Kinds of Relay Testing， packed in veneer case. |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Rpt-PC6 Automatic Six Phase Relay Tester | Description | Rpt-PC6 Multi-Functional Six Phase Relay Tester For All Kinds Of Relay Testing |
|---|---|---|---|
| Functions | Multi-Functional Six Phase Relay Tester For All Kinds Of Relay Testing | Equipped With | Rpt-PC6 Multi-Functional Six Phase Relay Tester For All Kinds Of Relay Testing：English Software, Industrial Keyboard, Optical Mouse, USB Interfaces, 8.4 Inch Screen |
| Output | 6 Phase Voltage And 6 Phase Current Output | Current Output | 6x (0~30A)/phase |
| Voltage Output | 6x( 0~125V)/phase | Dimension | 455 (mm)×530 (mm)×220 (mm) |
| Weight | 30kg | Warranty | 1 Year |
Product Description
PRT-PC6 Six Phase Relay Tester
Introduction:
- RPT-PC6 Six Phase Relay Tester with standard 6 phase voltage and 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A.
- RPT-PC6 Six Phase Relay Tester with digital Signal Processor Microcomputer, so RPT-PC6 Six Phase Relay Tester can not only test the traditional relays and protectors, but also can test the modern micro computer relays, specially for transformer differential protection and transfer equipment testing.
- Classic Windows XP operating interface, 8.4 inch resolution of 800*600 TFT true color display.
- Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
- The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
- Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
- USB directly connect with PC, without any adapter cable, easy to use.
- Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
- With a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
- The software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
Specifications:
| No. | Item Name | RPT-PC6 Six Phase Relay Tester |
| 1 | AC current source | |
| Current range | 6x (0~30A)/phase | |
| Current accuracy | 0.5% | |
| 6 phase parallel current output | 180A | |
| Phase current working value for allowed long time | 10A | |
| Power | 300VA/phase | |
| Max. output power of 6 phases in parallel | 900VA | |
| Max. permitted work time of 6 phases in parallel | 10S | |
| Frequency range | 0~1000Hz; accuracy: 0.001Hz | |
| Harmonic time | 2~20 | |
| 2 | DC current source | |
| Current range | 20A / phase, | |
| power | 300VA/phase | |
| accuracy | 0.5% | |
| 3 | AC voltage source | |
| Phase voltage output | 6x( 0~125V)/phase | |
| accuracy | 0.5% | |
| Line voltage output | 0~250V | |
| Phase voltage / Line voltage output power | 70VA / 100VA | |
| Frequency range | 0~1000Hz | |
| Frequency accuracy | 0.001Hz | |
| 4 | DC voltage source | |
| Phase voltage output range | 0～±150V | |
| accuracy | 0.5% | |
| Line voltage output range | 0～±300V | |
| Phase voltage / Line voltage output power | 90VA / 180VA | |
| 5 | Switch terminal | |
| Switch input terminals | 8 pairs | |
| Dead contact | 1-20mA, 24V ac | |
| Potential flip | 1-6V DC low level 15-250V DC high level | |
| Switch output terminals | 4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A | |
| 6 | Time measurement range | |
| Range | 1ms-9999s | |
| Accuracy | 1ms | |
| 7 | Dimension & weight | |
| Dimension | 455 (mm)×530 (mm)×220 (mm) | |
| Weight | 30kg | |
| 8 | Power | AC220V±10%, 50Hz, 15A
|

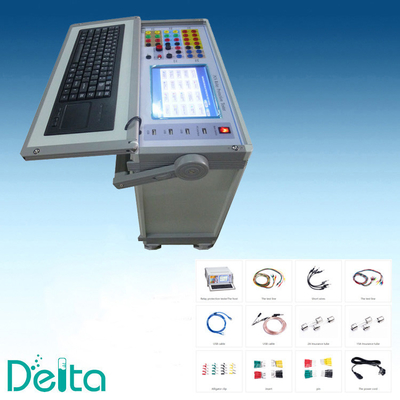

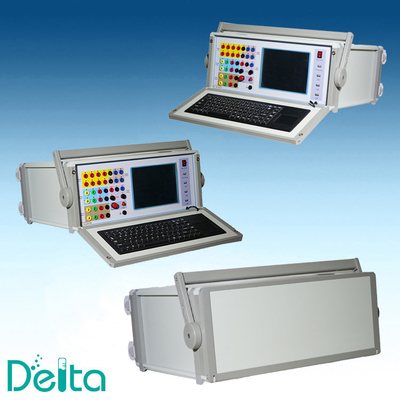

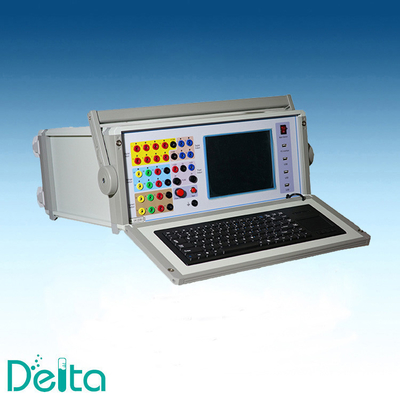

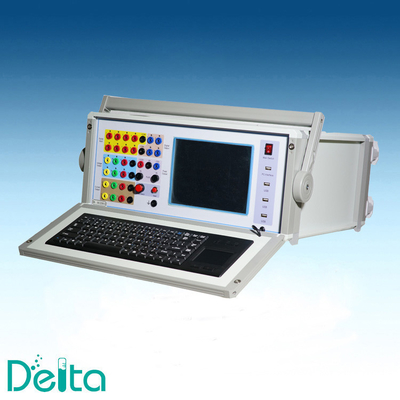

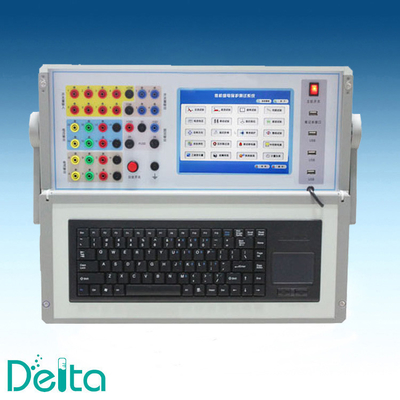

RPT-PC6 Six Phase Relay Tester:
