CPT-III Single Phase or Three Phase Portable Current Transformer Tester

  • CPT-III Single Phase or Three Phase Portable Current Transformer Tester
  • CPT-III Single Phase or Three Phase Portable Current Transformer Tester
  • CPT-III Single Phase or Three Phase Portable Current Transformer Tester
Place of Origin China
Certification ISO9001
Model Number CPT-III
Minimum Order Quantity 1 set Current Transformer Tester
Price USD1.0
Packaging Details Current Transformer Tester packed in veneer case.
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name CPT-III Single Phase Or Three Phase Portable Current Transformer Tester Functions Current Transformer Tester For CT PT Transformer Testing
Applicable Transformer 220V- 500kV KV, >2.5VA Transformers Knee Point Voltage 40kV
Max. Test Voltage 180V Size 485mm×356mm×183mm
Weight <15kg Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

CPT-III Single Phase or Three Phase Current Transformer Tester

Application:

Tests for current transformer:

  1. Excitation curve and parameters test
  2. Turns ratio test
  3. Ratio and phase error test
  4. Polarity mark check
  5. Winding resistance measurement
  6. Secondary loop burden measurement
  7. Error line curve test for protection CT
  8. Transient CT parameters test
  9. CT nameplate guess
  10. Saturation hysteresis loop curve measurement





Tests for voltage transformer:

  1. Turns ratio test
  2. Ratio error and phase angle error test
  3. Polarity test
  4. Secondary burden test
  5. Winding resistance test



Applications for Transformer Tester:

  • CT nameplate check
  • CT parameters check in work burden
  • CT transient parameters analysis
  • CT ratio and phase error calibration

  • PT routine test



Parameters:

No. Item Name CPT-III Portable Current Transformer Tester
1 Test standards IEC60044-1, IEC60044-6, GB1208, GB16847, C57.13
2 Power supply AC220V±10%,50Hz/60Hz±10%
3 Power output 0.1~180V (AC)
4 Current output 0.001~5A(RMS)
5 Power output 300VA
6 Max. knee voltage measurement 45kv
7 Current measurement range 0~10A (automatically change range in 0.1/0.4/2/10A)
8 Current measurement error <±0.1%+0.01%FS
9 Voltage measurement range 0~200 V (automatically change range in 1V/10V/70V/200V)
10 Voltage measurement error < ±0.1%+0.01%FS
11 Turns ratio measurement range

1~35000;

1~2000 error<0.05%;

2000~5000 error>0.1%;

5000~35000 error<0.2%
12 Phase measurement error:±2min,resolution:0.01min
13 Coil resistance measurement

Range: 0~8kΩ(automatically change range in 2ohm /20ohm /80ohm/800ohm/8kohm)

Error< 0.2%RDG+0.02%FS

Maximum resolution: 0.1mΩ
14 Temperature measurement -50~100 Celsius degree, error<3 Celsius degree
15 CT Secondary burden

Range 0-160ohm (automatically change range in 2ohm/ 20ohm/80ohm/160ohm)

Error <0.2%RDG+0.02%FS

Maximum resolution 0.001ohm
16 PT Secondary burden

Range 0-80kohm (automatically change range in 800ohm / 8kohm /80kohm)

Error <0.2%RDG+0.02%FS

Maximum resolution: 0.1ohm
17 PT ratio measurement

Range: 1~35000,

1~5000 error<0.2%

5000~35000 error<0.5%
18 Saved data groups >1000groups
19 Work condition Temperature:-10℃-50℃, moist:≤90%
20 Size 485mm×356mm×183mm
21 Weight <15Kg

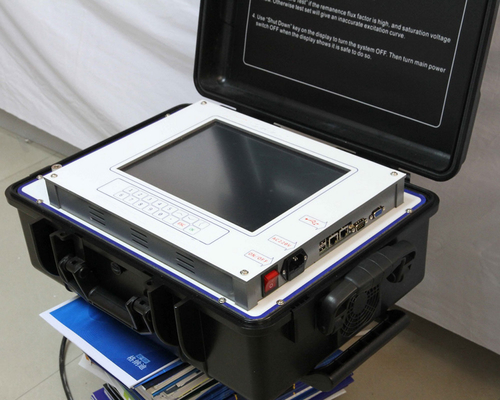

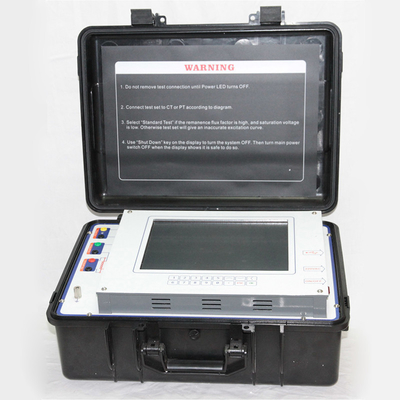

Real Picture:

CPT-III Single Phase or Three Phase Portable Current Transformer Tester 0CPT-III Single Phase or Three Phase Portable Current Transformer Tester 1
