PRT-I Single Phase Relay Tester for Single Phase Relay Testing

  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
  • PRT-I Single Phase Relay Tester for Single Phase Relay Testing
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number RPT-I
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details Relay Tester packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name PRT-I Single Phase Relay Tester Functions Test Parameters Of Single Phase Relay
Applicable Relay Single Phase Relay DC Voltage Output 0~350V
DC Current Output 0~10A Size 550mm*410mm*340mm
Weight 33kg Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Highlight

single phase relay tester

,

PRT-I relay testing equipment

,

electric relay tester with warranty
Leave a Message
Product Description

PRT-I Single Phase Relay Tester for Single Phase Relay Testing

Introduction:

  • PRT-I Single Phase Relay Tester is applied to test protection replay based on voltage and current operation.
  • The main function of the PRT-I Single Phase Relay Tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
  • PRT-I Single Phase Relay Tester is a low cost, simple operation and reliable performance device for secondary circuit test.

Parameters:



DC voltage output

0~350V continuous adjustable, output capacity:960VA

AC voltage output

0~380V continuous adjustable, output capacity:400VA

DC current output

0~10A continuous adjustable, output capacity:80VA

AC current output

0~10A 0~100A,capacity:1000VA

Volt ampere feature test

voltage 0~240V current 0~5A

AC short circuit voltage analog output

DC voltage selection output(it can be used as the operation power of static relay)

OutputVoltage24V,48V,110V,220V,all the output current is 0.4A

Device precision

0.5 grade

Joint action time test

0~9999s

Resolution

1ms.

Power supply

AC220V+/-10%, 50Hz/60Hz;

Environment temperature

0-50 centigrade;

Size

550mm*410mm*340mm

Weight

33kg

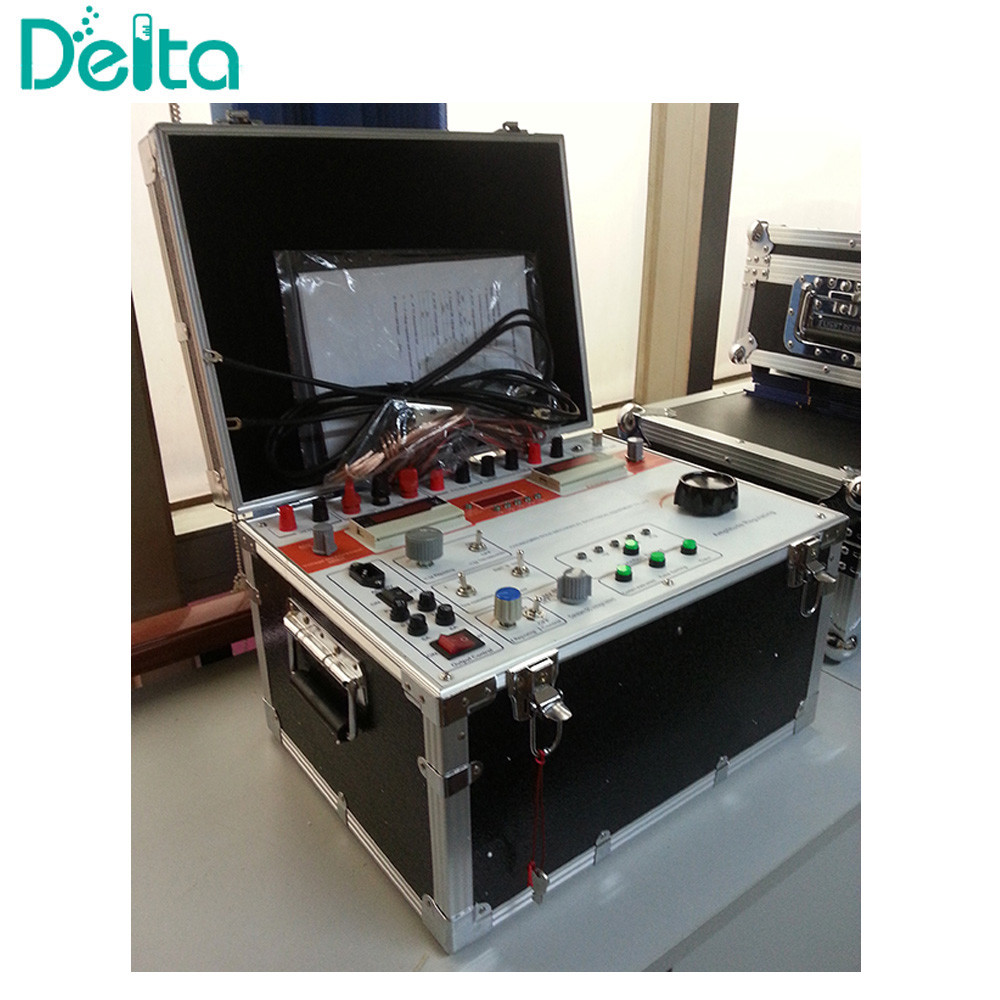

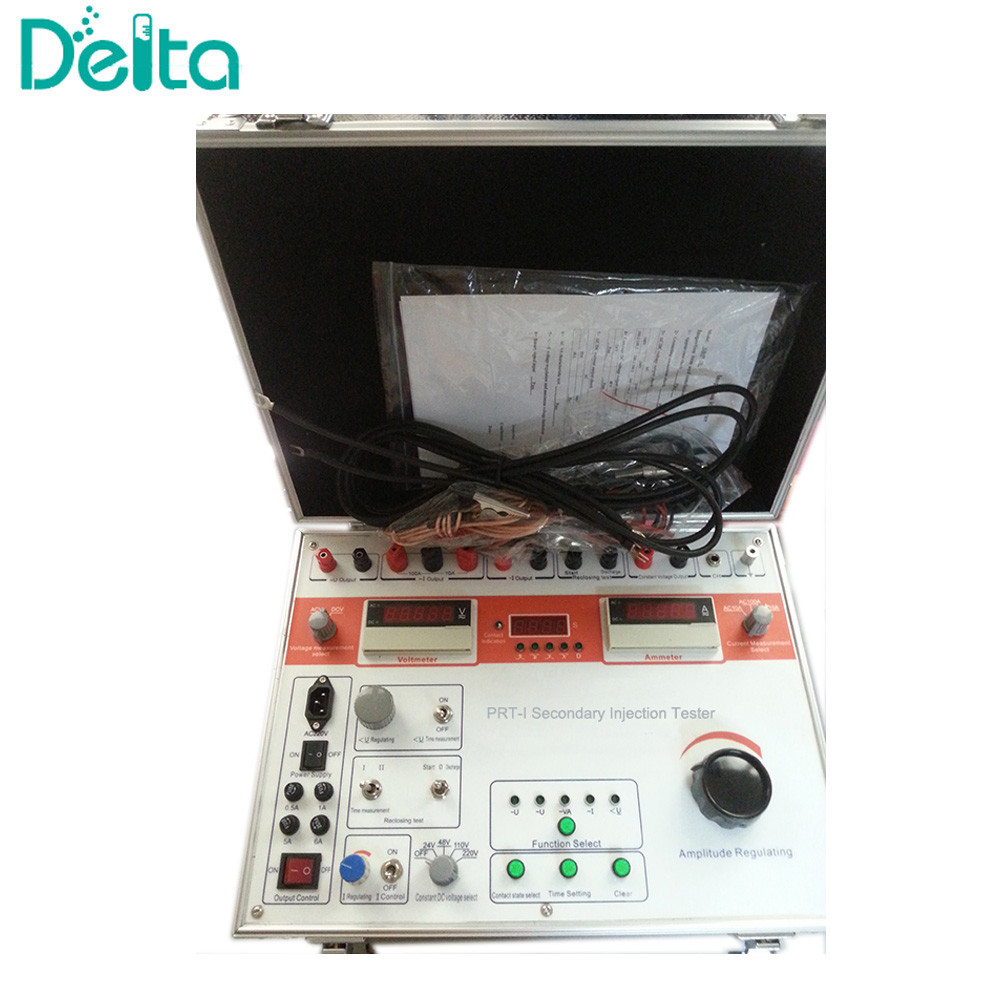

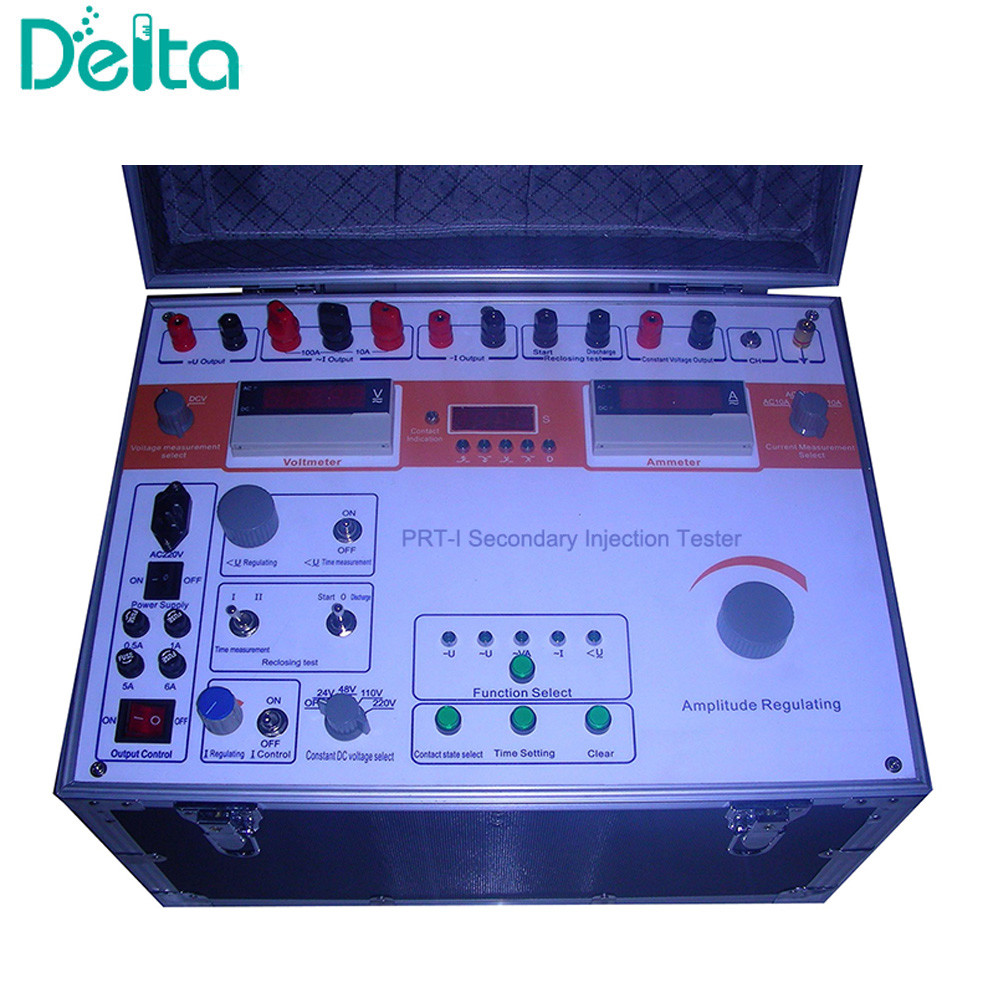

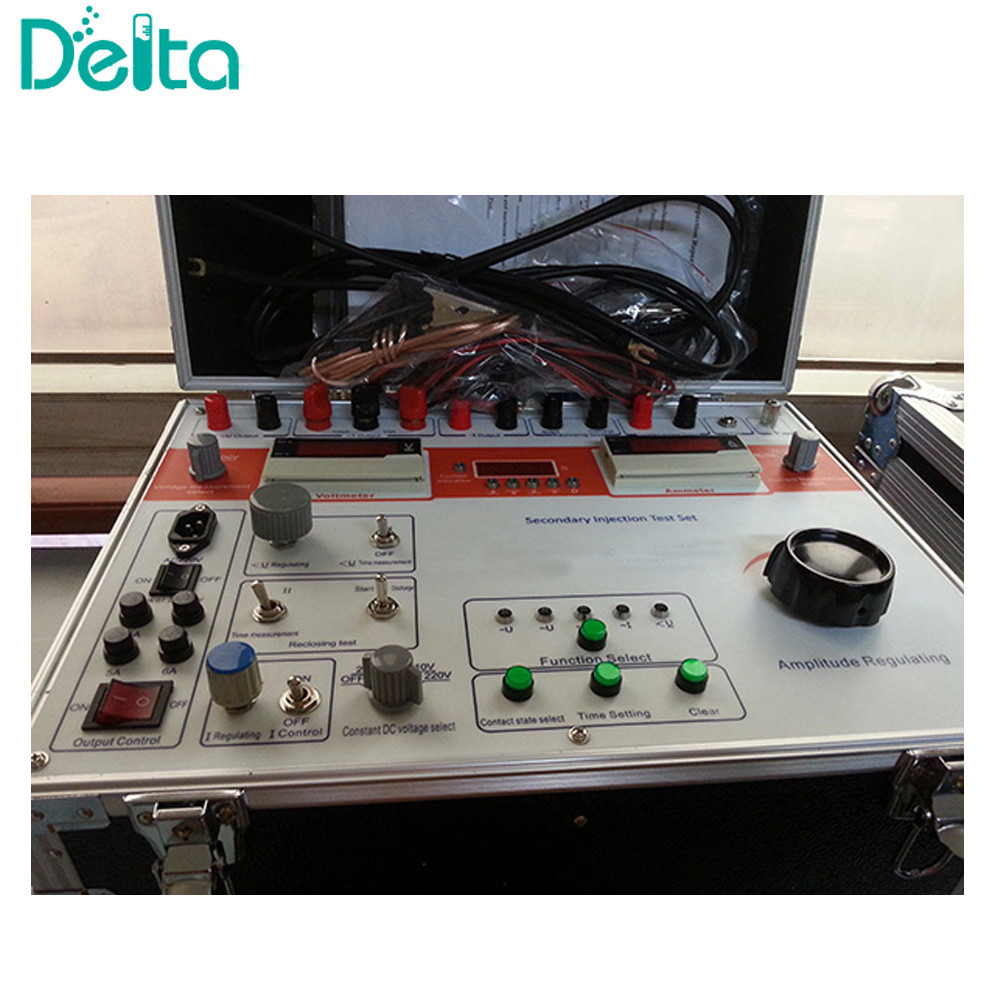

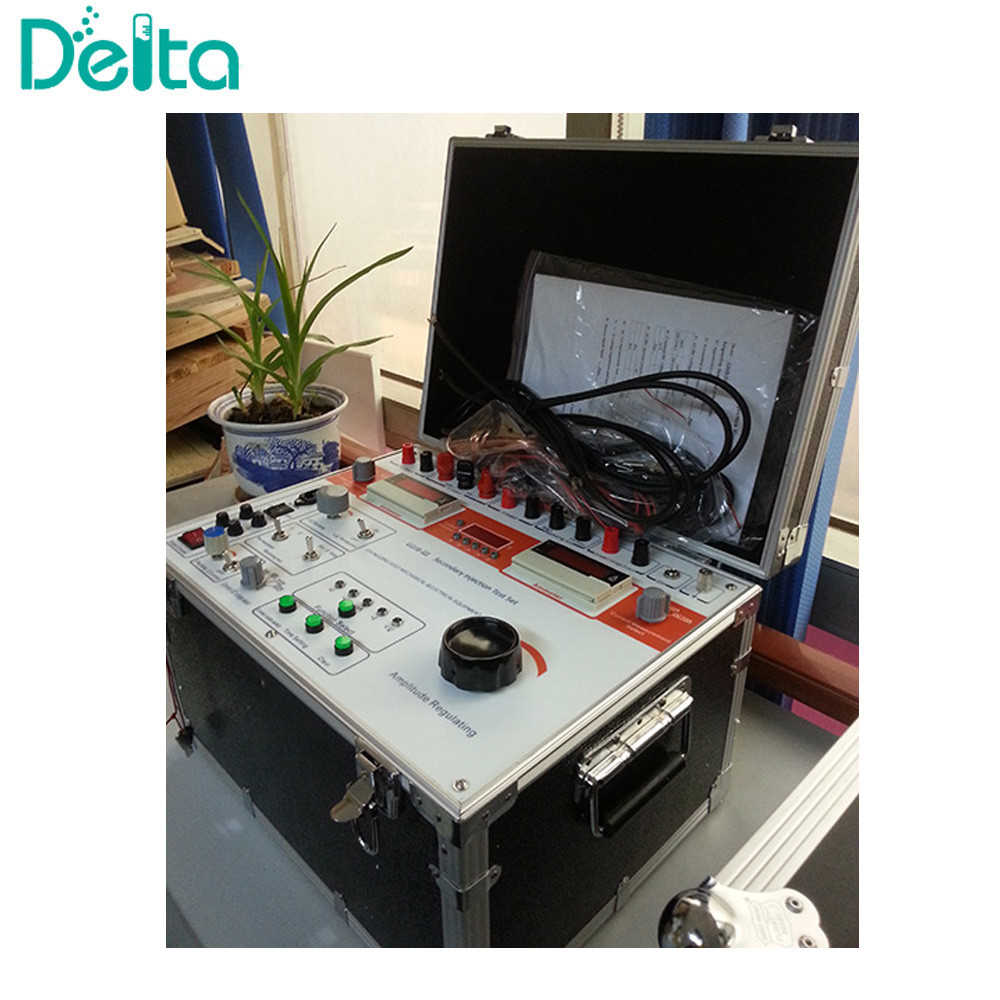

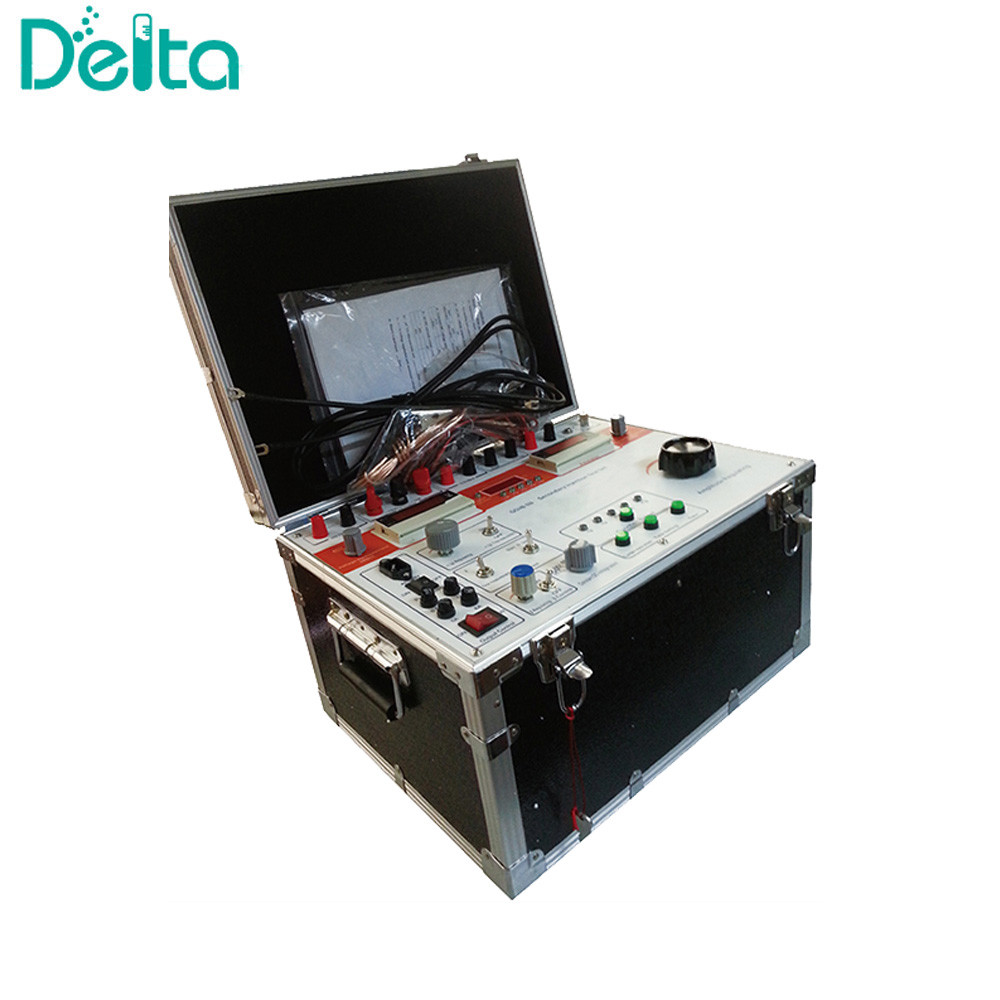

Real Picture:

PRT-I Single Phase Relay Tester for Single Phase Relay Testing 0

PRT-I Single Phase Relay Tester for Single Phase Relay Testing 1
